BRUGSANVISNING SLM-3400-C KLIPSCH
SLM-3400-C
Shallow Depth In-Ceiling Speaker


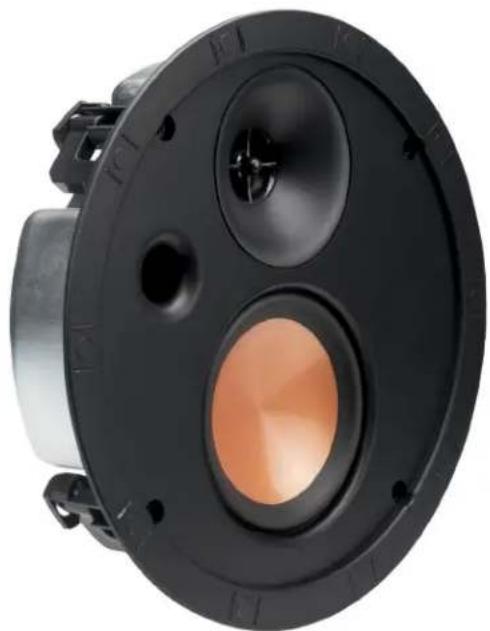

Close-up of a black circular speaker or audio device with two speakers and a central orange lens (no text or symbols visible)BIG SOUND, SLIM PACKAGE
One of the most compact in-ceiling speakers on the market, the SLM-3400-C features a shallow depth (50mm) depth with a fully enclosed back box. Along with premium acoustics straight from the legendary Klipsch Reference 3000 architectural series, the SLM-3400-C brings high performance acoustics in an extra slim package – for great sound where installation space is limited.
FIRE RATED BACK BOX
The ultra-slim galvanized metal back box provides a fire-rated enclosure for excellent sound isolation from neighboring floors, while ensuring consistent acoustics and exceptional low frequency response from a compact speaker.
PREMIUM ACOUSTICS
Featuring a 4" IMG woofer and a 1" aluminum dome tweeter mated to a custom designed Tractrix™ horn for dynamic, powerful low frequencies, and detailed, focused highs – the SLM-3400-C brings classic Klipsch sound to an ultra-slim package.
SLIM TRIM GRILLE
The flat, magnetic, minimum bezel grille gives a modern, premium, and – most of all – discreet look for great sound anywhere in the home without being obtrusive to the eye or interruptive of the design of the listening area. Square and round grilles are included to match any style.
COMPATIBLE WITH THE KLIPSCH IK-650-C INSTALL KIT
For increased mounting flexibility and pre-install marking during new construction.
| SPECIFICATIONS | |
| FREQUENCY RESPONSE | 92Hz - 20kHz |
| POWER HANDLING | 120W Peak |
| RECOMMENDED AMP POWER | 50W |
| SENSITIVITY | 90dB |
| NOMINAL IMPEDANCE | 8 Ohm |
| HIGH FREQUENCY DRIVER | 1" (2.5cm) Aluminum Dome Tweeter with Round Tractrix Horn |
| LOW FREQUENCY DRIVER | 4" (10.2cm) IMG Woofer |
| ENCLOSURE TYPE / MATERIAL | 50mm Deep Metal Back Box with Ported ABS Baffle |
| WIRE GAUGE RECOMMENDED | 12 Gauge |
| DIAMETER | 9.5" (24.13cm) |
| CUTOUT DIMENSIONS | 8.3" (21cm) |
| MOUNTING DEPTH | 1.47" |
| INSTALLATION KIT | IK-650-C (Sold Separately) |
| PRODUCT WEIGHT | 7.4 lbs |
| BUILT FROM | 2017 |
