1. Get to know your DV (camera)

1.1 Features

5.0 Mega pixels resolution sensor

Digital video cameraper

Digital still camera

Puit-in flash Light

TV control

2.0* LTBS real colors display

2.0 LTPS test color display Internal & MR flash response and SD card usage

Internal 64 MS flash memory and SD card support

Driver free for Windows XP, Vi60 and MAC 8.x and x.x

Bacca mode

1.2 Specifications

Sensor 5.0 Mega pixel		CMOS sensor
Image resolution	DC	12.0 Mega pixels: (4032x3024) [Hardware Interpolation]
		8.0 Mega pixels: (3264x2448) [Hardware Interpolation]
		6.0 Mega pixels: (2560x1920)
		3.1 Mega pixels: (2048x1536)
		2.0 Mega pixels (1600x1200)
		1.3 Mega pixels: (1286x960)
	DV	VGA (640x430)
		VGA (640x860)
		QVGA (320x240)
Lens		F/2.8 f=8.5mm
Focus range: 0.5m ~ Infinity
Macro mode: 11cm ~ 18cm
Digital zoom: 6x
Flash strobe Built-in (AutoForceoff)
LCD display: 2.0" real color LTPS TTT
White balance AutoDaylightCloudy/Tungsten/Fluorescent
DV mode Up to 30fps@VGA (Use SD card)
Built-in memory		64 M5 Flash memory
Picture Capacity in 84 M memory (The quantity of pictures varies and depends on the complexity of the scene)	DC	VGA: (640x480) -325 Pictures
		1.3M: (1260x960) -155 Pictures
		2.0 M: (1600x1200) -112 Pictures
		3.1M: (2048x1536) -78 Pictures
		5.0M: (2560x1920) -65 Pictures
		8.0M: (3264x2448) -47 Pictures
		12M: (4332x3624) -30 Pictures
	DV	VGA /5 S
		QVGA 150 S
External memory card		SD card supports up to 6 GB
File format Picture: JPEG, Video: AVI.
Self timer: 2/10/10+2 seconds
FC interface USB 1:1
TV-out		NT5C/PAL
Power source: 3XAAA alkaline batteries.

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The line in the GT is clearly a stylistic or background line, not a placeholder for text. Therefore, the OCR should not have output any underscores. Outputting `____` constitutes an error under Rule 2, as it hallucinates placeholder symbols where none are semantically intended. Hence, the OCR result is inconsistent with the Ground Truth.

1.3 System requirement

Operating System	Windows XP Vida or above
	Mac 9.x or X.x
CPU	Pentium	II	or
RAM	At least		64MB
Interface	USB port
CD	4x speed CD ROM or above

1. Functional parts:


Technical diagram of a handheld device with labeled parts and a close-up view showing internal components.

1	Strap hook	Hook for attaching the wrist strap to the camera.
2	REC	Press this button to take photographs or start/stop recording a video clip. And Press it to confirm changes.
3	Power on/off button	Press this button to turn on, press again to turn off.
4	Busy LED	When the indicator is light, the camera is busy.
5	Flash light	Use the built-in flash to give the subject extra lighting if it is in dark surroundings (the best flash distance is recommended within 1.5m.).
6	Macro switch	Macro mode: Select this mode to take close-up photographs (distance 11cm - 18cm).Normal mode: Select this mode to take photographs from 0.5m - Infinity
7	USB interface	Via this connection, you can download photographs and video clips to a computer.
8	AV port	For television connection.
9	Lens	Records the image to be taken.Note: Keep the lens clean. Dirt and fingerprints will affect the quality of the picture.
10	LCD screen	Display photographs, video clips, camera setting and menu.
11	UP / display	UP and LCD display on / off
12	Menu	For camera selling.
13	Mode	Slide it to select different mode.
14	Left, For menu Left	I selection & Digital zoom in.
15	Playback	Press it to enter playback mode.
16	Right	For menu right selection & Digital zoom out.
17	Down/flash light	Down and selection of flash light mode
18	Battery door	3xAAA alkaline batteries
19	SD card slot	SD card slot.
20	Speaker	Speaker

1. Details for DV (camera) setting

SET above	Size	12M pixel resolution	4032 x 3024
		8.0M pixel resolution	3260 x 2448
		5.0M pixel resolution	2560 x 1920
		3.1M pixel resolution	2046 x 1536
		2.0M pixel resolution	1600 x 1200
		1.3M pixel resolution	1280 x 960
		VGA resolution	640 x 480
	Custility	Fine(Default)/Standard/Economy	Picture quality set
	Scene mode	Auto(Default/Sport/Night/Forward/andscape/Backlight)	Scene set
	Exposure value	+/-2, +/-5/-3, +/-4/-3, +/-2/-3, +/-1/-1, 0(Default)	Level of exposure
	White balance	Auto (Default)	Automatic white balance
		Daylight	White balance selected for daylight surrounding
		Cloudy	White balance selected for cloudy surrounding
		Tungsten	White balance selected for lungsten lighting
		Fluorescent	White balance selected for fluorescent surrounding
	ISO	Auto(Default)/100/200	Sensitively select
	Color	Standard (Default) / White / Scope / Monochrome	Color setting
	Saturation	Normal(Default) / High / Low	Saturation setting
	Sharpness	Normal(Default) / Hard / Soft	Sharpness setting
	Self timer	2s	Set the delay time at 2s to take a picture
		10s	Set the delay time at 10s to take a picture
		10+2s	Set the delay time at 10s to take a picture, and then every 2s to take pictures automatically.
	Date input	Off(Default)/Set	DO.MM/YYYY
	Time Stamp	Off(Default)/Date Only/Date & Time	Show the date and / or time on the pictures

	Burst	Off(Default)On	Press Shutter key to take three photos.
Data volume	Size	VGAQVGA	640 x 480320 x 240
	Exposure value	+/-2, +/-6/3, +/-4/3,+/-2/3, +/-1/3 +/-1, 0(Default)	Level of exposure
	White balance	Auto (Default)	Automatic white balance
		Daylight	White balance selected for daylight surrounding
		Cloudy	White balance selected for cloudy surrounding
		Tungsten	White balance selected for tungsten lighting
		Fluorescent	White balance selected for fluorescent surrounding
Sales	Format	Execute/cancel	Format the memory card.
	Language	English(Default)/Yt-Chinese/S-Chinese/French/German/Italian/Spanish/Portuguese	Select display language
	Auto power offSys. Reset	1/35 min and Off	Auto power off in 1min, 3min(default) or 5 min if no operation
		Execute/cancel	Restore default setting
	Light-Frequency (Flicker)	50Hz	Main European electricity frequency
		80Hz	Main American electricity frequency
	TV-Out	NTSC	American and Japanese video format
		PAL	European video format

Note: The camera will remain the last setting when it is turned off.

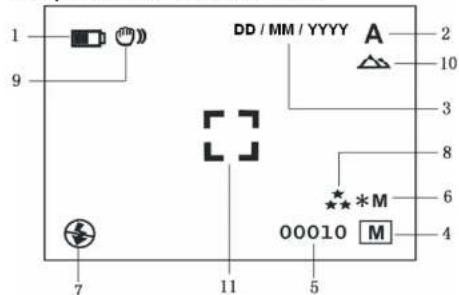

1. Explanation of the status icons


1 9 7 11 5 DD / MM / YYYY A 2 10 3 8 6 00010 M 4

Item	Function	Description
1	Battery indicator	The batteries are full.The batteries are empty.
2	Recording mode	Setting for photographs takingSetting for videos capture
3	Date stamp	Displays the date day/month/year
4	Memory or SD card indicator	Indicates memory or SD cardPictures stored in built-in memoryPictures stored in SD card
5	Photo / Video counter	Photo mode: No. of balance picture can be taken;Video mode: Balance of recording time in second.Playback mode: The No. of pictures or video tile.
6	Selected Resolution	12M= 4032x30248M= 3264x24485M= 2560x1920;3.1M = 2048x1536;2M= 1600x12001.3M= 1280x960;VGA= 640x180;QVGA= 320x240
7	Flash indicator	Force flashAuto Flash: The camera determines if the flash must be used or not.No Flash: The flash is turned off.
8	Picture quality	The quality is fine (Default)The quality is standard.The quality is economy.
9	Brightness Alert	Meet user to hold the camera steadily.
10	Normal / Macromode indicator	Normal mode (0.5m – infinity)Macro mode (11cm –19cm)
11	View center

5. Using the DV(camera)

5.1 Installing the batteries

1. Open the battery door.

2. Insert3x AAA alkaline batteries into the camera.

3. Turn on the DV (camera).

Press the POWER button or open the LCD panel to turn on it.

5.2 Inserting a memory card (not included)

This DV (camera) has built-in internal memory. This memory can be extended with a SD memory card not included.

Follow the instructions given below to insert the optional SD memory card into the camera.

1. Turn off the camera first.

2. Insert the SD card into the camera.

Note: There is only one right direction to insert the SD memory card into the slot. Do not force the card into the slot, or else it may damage both the camera and the SD memory card.

Note: The SD memory card must be formatted before taking photographs. See the following sections for more information.

5.3 Formatting the memory or SD card

1. Press Menu button

2. Select Setup setting by Menu key

3. Press REC to confirm and select by up or down key.

4. Press REC to format the card or memory

5.4 Setting the resolution

The DV (camera) can be set to different resolutions.

1. Press MENU to set proper resolution.

Resolution: VGA (640 x 450) : 1.3M (1280 x 960) : 2.0M (1600 x 1270)

3.1M (2048 x 1536), 5M (2560 x 1920), 8M (3264 x 2448), 12M (4032 x 3024)

1. Different resolutions will be displayed. Select the desired resolution by using the ▲ or ▼

buttons and then press the REC button to confirm the selection.

5.5 Taking Video or photographs

1. Tunt on the DV (camera)

2. Slide MODE to set the DV to photo mode (A) or mode

3. Depending on the distance to the object being photographed, use Macro switch to

adjust the distance. Select the flower symbol ( ) if you wish to take a close-up

photograph (11cm - 18cm)

If you wish to take Video or photograph of surroundings or people (0.5m - infinity), set the

Macro switch to Normal mode (▲)

1. If you are not sure if there is enough lighting, turn the automatic flash (A) on by pressing

the flash button (▼)

the flash button (▼)

1. Press REC button

2. Free REC button.

Caution: 1) Taking picture for last-moving object is not recommended.

2) Image may be distorted when taking picture in a moving vehicle.

5.6 Zoom in and out

The DV can zoom in up to 8 times.

Zoom in or out by pressing the ◀ or ▶ button, a number will appear on the display. 8.0 is the

maximum zoom.

5.7 Taking photographs using self-timer function

You can use the self-timer function when you wish to take a photograph for yourself or when you wish to photograph for an object where the camera must be as still as possible.

1. Set the camera to photo mode

2. Press the MENU button. The quick menu will appear

3. Press ▼ to self-limer mode, press REC and ▲ or ▼ to set the delay time: 2 seconds! 10

seconds / 10-2 seconds or off

1. Press the REG button to confirm. The self-timer function is now ready for use.

2. Aim at the object you wish to photograph.

3. Press the REC button to take a photograph.

4. The photograph will be taken after the timer reaches the delay time that you pre-set, and

5.8 Playback photographs

1. Press ▶ button to playback mode, and ▲ or ▼ to select the video clip or photo.

2. Press ▶ or ▶ to zoom the image.

3. Press MENU to select SLIDE SHOW, and then press REC to confirm. The pictures saved

in your camera or your SD card will be displayed in sequence automatically.

5.9 Playback video clips

1. When video clips are displayed, press REC to play, and press DOWN key to stop.

2. Press REC to pause the playback

3. Press Playback to exit.

5.10 Delete photographs and video clips

Follow the instructions given below to delete photograph or video.

1. Press PLAYBACK to enter Playback mode.

2. Press the MENU button and select Delete Single/Delete All, press REC to confirm.

3. If you select Project picture, your current file or images can not be deleted

4. Press MENU to exit.

NOTE: Select 'Deleting All' and Press REC to confirm, all the pictures will be deleted.

6. Connecting to a PC

By connecting the camera to a PC, your system be expanded to fill a wide range of uses. Using the 'APCSOFT MEDIAIMPRESSION' performs images saving, browsing, file management, printing photos, email photos and upload videos to YOUTUBE.

Also the unit can be connected to the computer as Mass Storage Device.

Autorun function (Option)

When you connect the Digital Camera to the PC, a simple Arcsoft Media Impression software which inside the memory will run automatically. As different from user setting on the computer, the software may not be launched automatically. Please double click the icon inside COMPUTER.

Note: Autoran function is only compatible with Windows XP / Vista.

Note: Under the environment with electrostatic discharge, the sample may malfunction and

memory lost. It requires user to install the battery to reset the sample

1. Trouble shooting

Problem	Cause	Solution
Cannot turn on the DV (camera) by opening the LCD panel.	Low battery power.Battery placed at wrong polarities.	Replace or install the battery correctlyTry to open the DV (camera) by pressing the power button.
Photos can not be saved when taking pictures.	The memory card or built-in memory hasn't been formatted properly.	Format the memory in SETUP mode of the camera. Please refer to section 5.3.
Cannot find removable disk after connecting the camera to the computer.	Connection failure.	Make sure all cable connections are secured and restart the computer if necessary.
Flash does not work.	Battery Power is too low.	Replace with new ALKALINE battery.
The batteries used up very fest.	Use wrong type of battery.	Replace with new ALKALINE battery.
The photos are over exposure.	Set the flash light to force modein bright environment.	Set the Flash light to Auto modeA
The video photos are blurry	1. The DV (camera) is not held steady2. The lens of DV (camera) is dirty.3. The DV (camera) is Set to wrong macro mode.	1. Hold the DV (camera) steadily until it keeps when taking video photo.2. Clean the lens with soft dry cloth.3. Set the macro mode according to the distances of subject.

For EU only
