BRUGSANVISNING Striker Plus 4cv GARMIN

GARMIN®

Printing a Mounting Template

NOTICE

It is not recommended that you print a mounting template on your own. Use the template that came in the product box.

If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

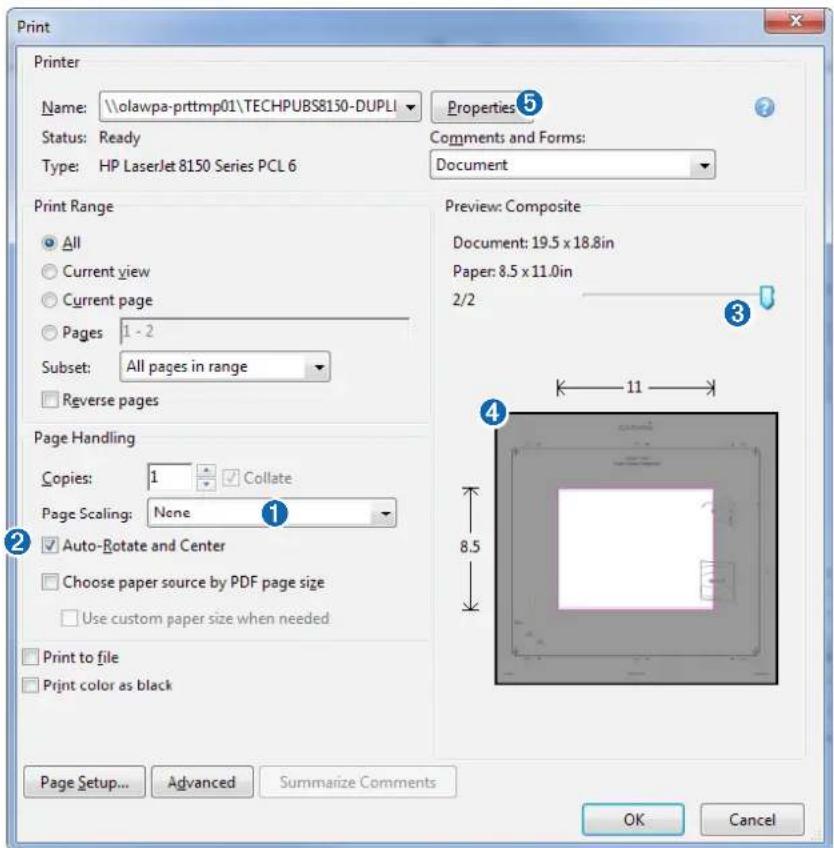

1 Select File > Print.

Print Printer Name: \olawpa-prttmp01\TECHPUBS8150-DUPLI Status: Ready Type: HP LaserJet 8150 Series PCL 6 Properties 5 Comments and Forms: Document Print Range All Current view Current page Pages 1 - 2 Subset: All pages in range Reverse pages Preview: Composite Document: 19.5 x 18.8in Paper: 8.5 x 11.0in 2/2 Page Handling Copies: 1 Collate Page Scaling: None Auto-Rotate and Center Choose paper source by PDF page size Use custom paper size when needed Print to file Print color as black 8.5 11 4 Page Setup... Advanced Summarize Comments OK Cancel

2 Select None for Page Scaling ①.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.

In this example, the paper is not larger than the template.

5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.

NOTICE

Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.

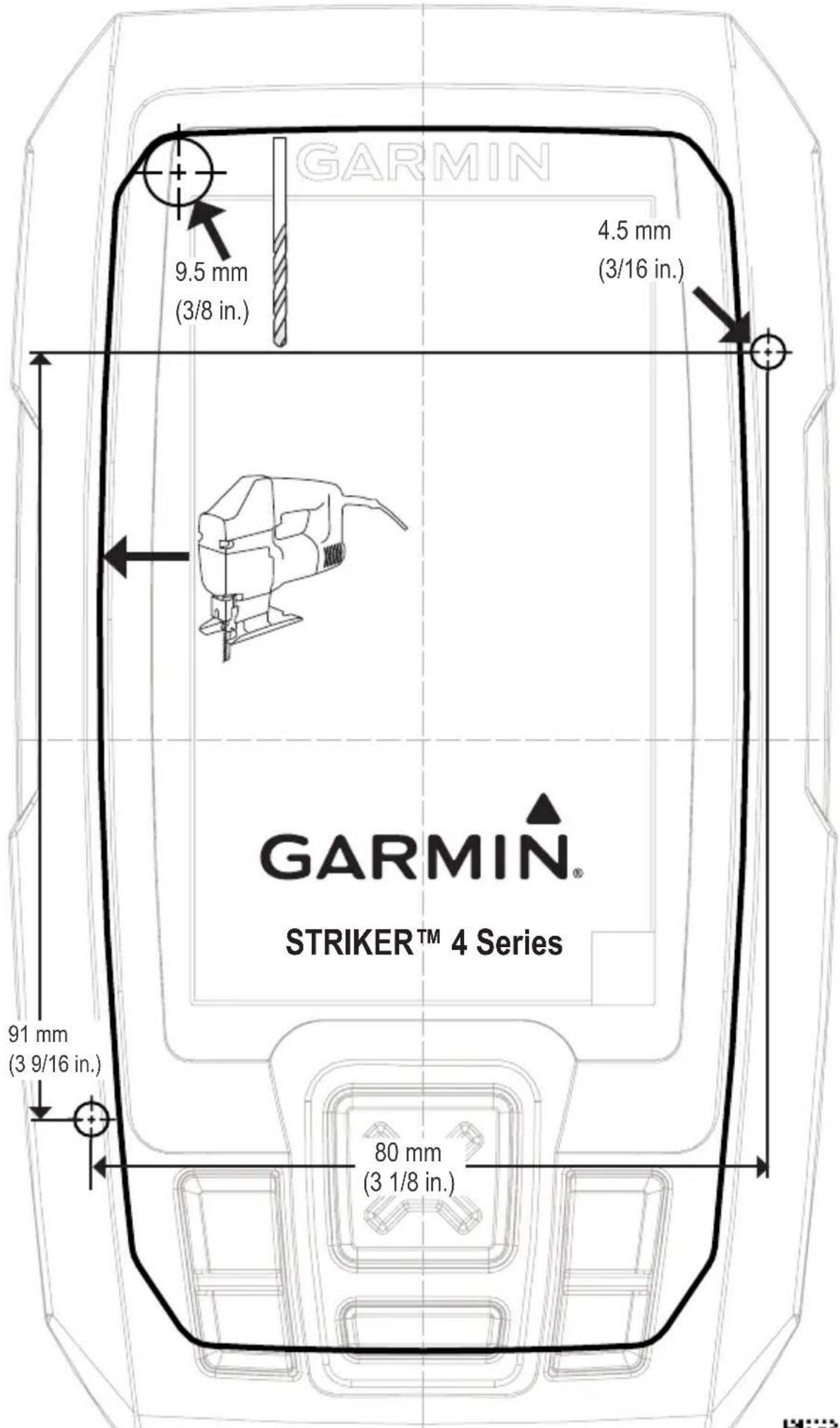

GARMIN 9.5 mm (3/8 in.) 4.5 mm (3/16 in.) 91 mm (3 9/16 in.) 80 mm (3 1/8 in.) GARMIN® STRIKER™ 4 Series

October 2020 190-02226-04_0BPrinted in Taiwan

- Compass Safe Distance • Distance de sécurité du compas • Distanza di sicurezza dalla bussola • Sicherheitsabstand zum Kompass • Consumo eléctrico máximo • Distância segura da bússola • Sikkerhedsafstand for kompas • Trygg avstand fra et kompass • Säkerhetsavständ till kompass • 30 cm (11.8 in.)

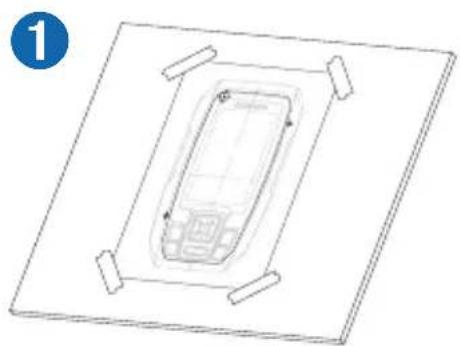

Top-down line drawing of a mobile phone inside a square frame, no text or symbols present

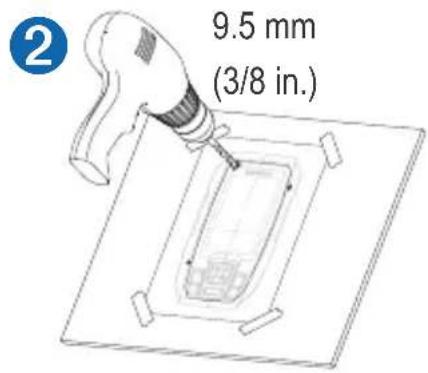

2 9.5 mm (3/8 in.)

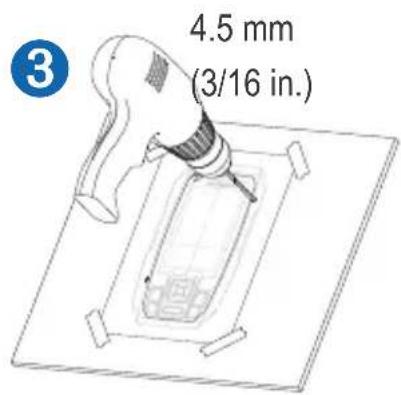

4.5 mm (3/16 in.) 3

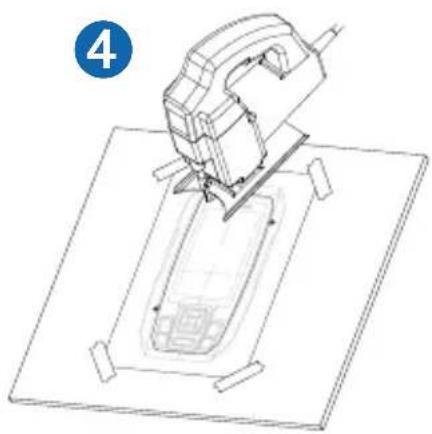

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a tool or bracket with a blue circular label (5) in the top-left corner, no text or symbols on the main structure.

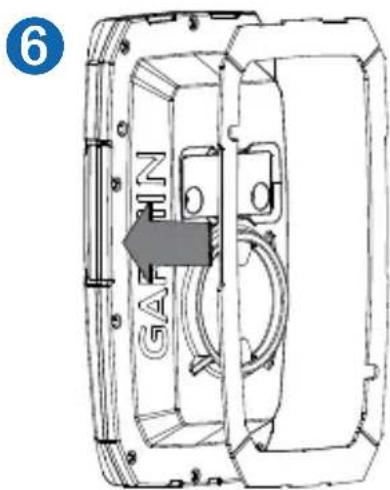

6 N G F G5

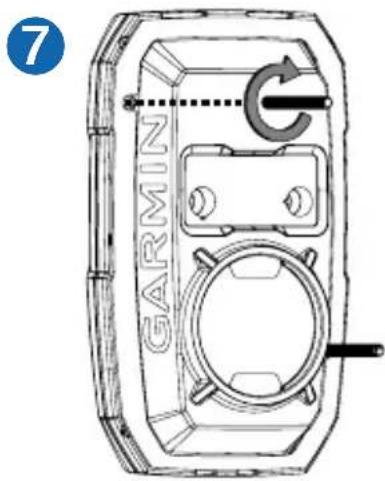

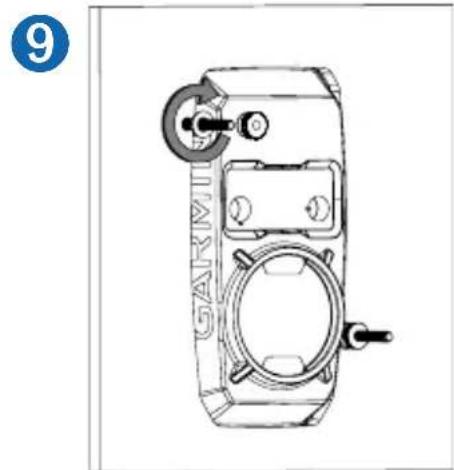

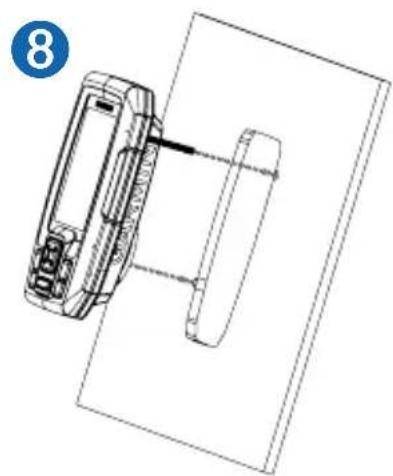

7 GARMIN

Technical line drawing of a mobile phone with a cable, shown in two orthogonal views (no text or symbols)

Technical line drawing of a GAKIVI device with adjustment knobs and control buttons (no text or symbols)
