BRUGSANVISNING Striker Plus 5cv GARMIN

GARMIN®

Printing a Mounting Template

NOTICE

It is not recommended that you print a mounting template on your own. Use the template that came in the product box.

If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

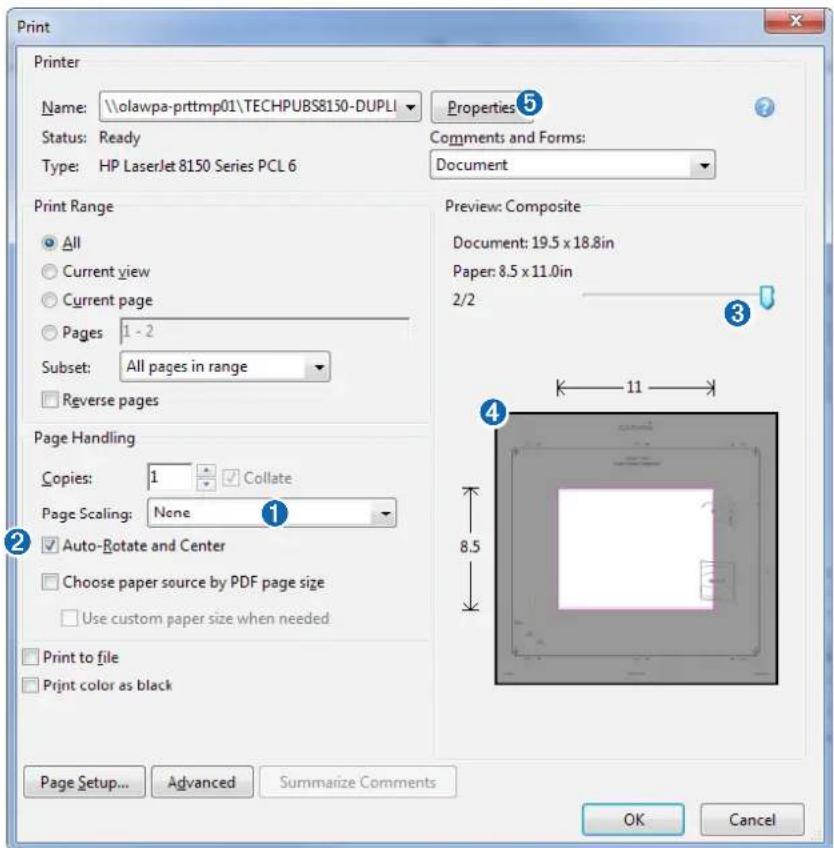

1 Select File > Print.

Print Printer Name: \olawpa-prttmp01\TECHPUBS8150-DUPLI Status: Ready Type: HP LaserJet 8150 Series PCL 6 Properties 5 Comments and Forms: Document Print Range All Current view Current page Pages 1 - 2 Subset: All pages in range Reverse pages Preview: Composite Document: 19.5 x 18.8in Paper: 8.5 x 11.0in 2/2 Page Handling Copies: 1 Collate Page Scaling: None Auto-Rotate and Center Choose paper source by PDF page size Use custom paper size when needed Print to file Print color as black 8.5 11 4 Page Setup... Advanced Summarize Comments OK Cancel

2 Select None for Page Scaling ①.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.

In this example, the paper is not larger than the template.

5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.

NOTICE

Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.

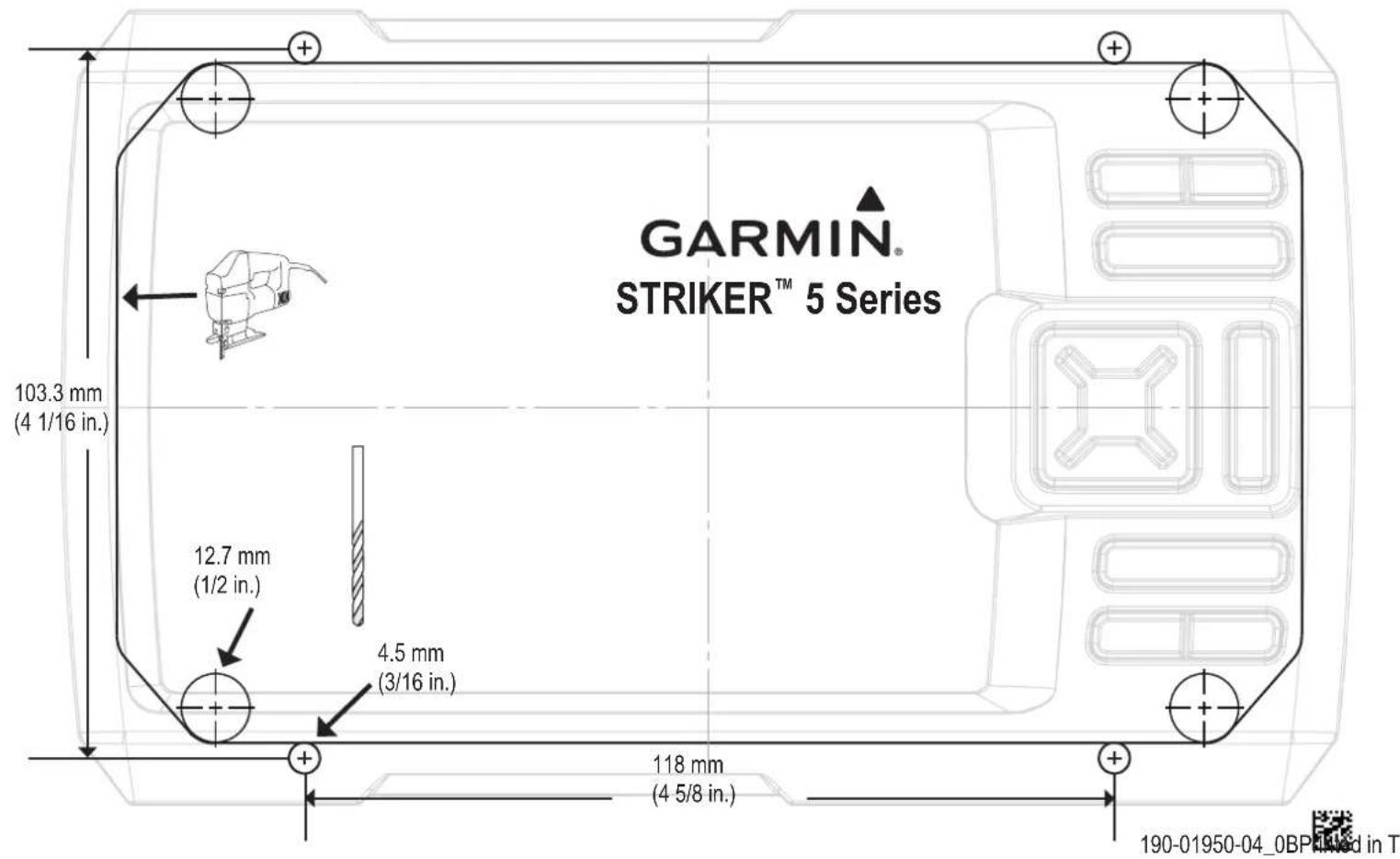

GARMIN® STRIKER™ 5 Series 103.3 mm (4 1/16 in.) 12.7 mm (1/2 in.) 4.5 mm (3/16 in.) 118 mm (4 5/8 in.) 190-01950-04_0BP Limited in T

- Compass Safe Distance - Distance de sécurité du compas - Distanza di sicurezza dalla bussola - Sicherheitsabstand zum Kompass - Consumo eléctrico máximo - Distância segura da bússola - Sikkerhedsafstand for kompas - Trygg avstand fra et kompass - Säkerhetsavständ till kompass

•STRIKER 5 Series: 25 cm (9.84 in.)

Pure technical diagram of a rectangular component with mounting brackets and internal grid lines, no text or symbols present.

12.7 mm (1/2 in.)

4.50 mm (3/16 in.)

Technical line drawing of a mechanical assembly with a component, no visible text or symbols

Pure technical line drawing of a curved mechanical part with no text or symbols

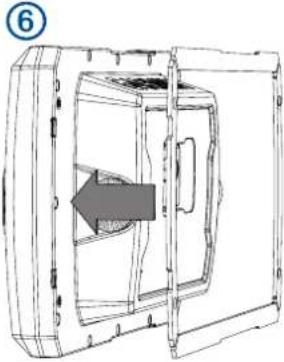

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

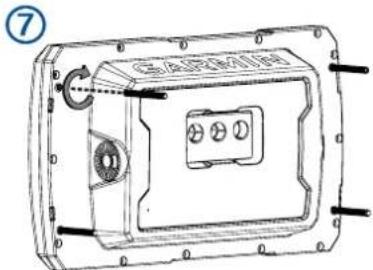

⑦ SASAMIN

Technical line drawing of a device with labeled components and directional arrows (no text or symbols)

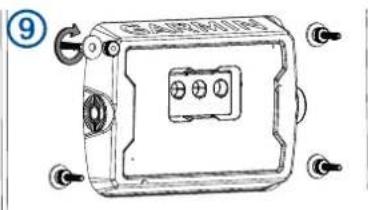

⑨ ⑨
