Printing a Mounting Template

NOTICE

It is not recommended that you print a mounting template on your own. Use the template that came in the product box.

If you do print the template, you must follow these instructions for printing a mounting template precisely. To print large templates, you need large enough paper and printer. Failure to have the correct sized paper and printer, or a failure to follow these instructions, may result in an incorrectly sized template and therefore an incorrect cutout (too large or too small) on the mounting surface of your boat.

1 Select File > Print.

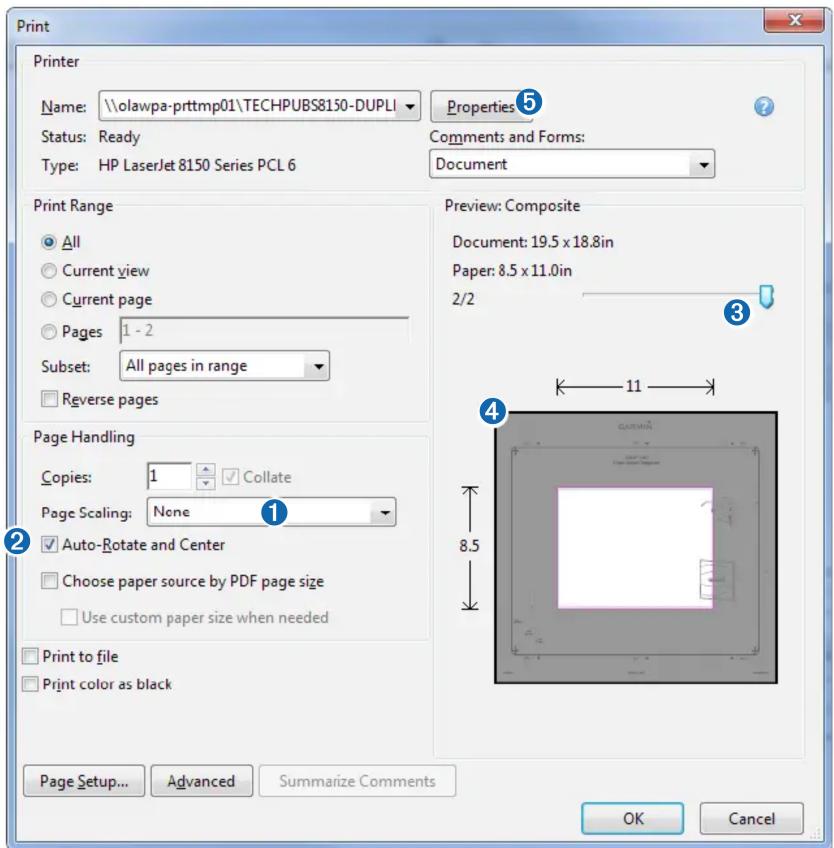

Print Printer Name: \olawpa-prttmp01\TECHPUBS8150-DUPLI Properties ⑤ Status: Ready Comments and Forms: Type: HP LaserJet 8150 Series PCL 6 Document Print Range All Current view Current page Pages 1 - 2 Subset: All pages in range Reverse pages Page Handling Copies: 1 Collate Page Scaling: None Auto-Rotate and Center Choose paper source by PDF page size Use custom paper size when needed Print to file Print color as black Preview: Composite Document: 19.5 x 18.8in Paper: 8.5 x 11.0in 2/2 11 8.5 Page Setup... Advanced Summarize Comments OK Cancel

2 Select None for Page Scaling ①.
3 Ensure the check mark is next to Auto-Rotate and Center ②.
4 Drag the arrow ③ to the right, to view page 2 in the window below.
4 Verify that the paper size is larger than the template ④.

In this example, the paper is not larger than the template.

5 If the paper size is not large enough, select Properties ⑤ and select a Page Size that is larger than the template.

NOTICE

Garmin is not responsible for any damages or expenses resulting from a miscut mounting surface arising from a failure to follow these instructions.

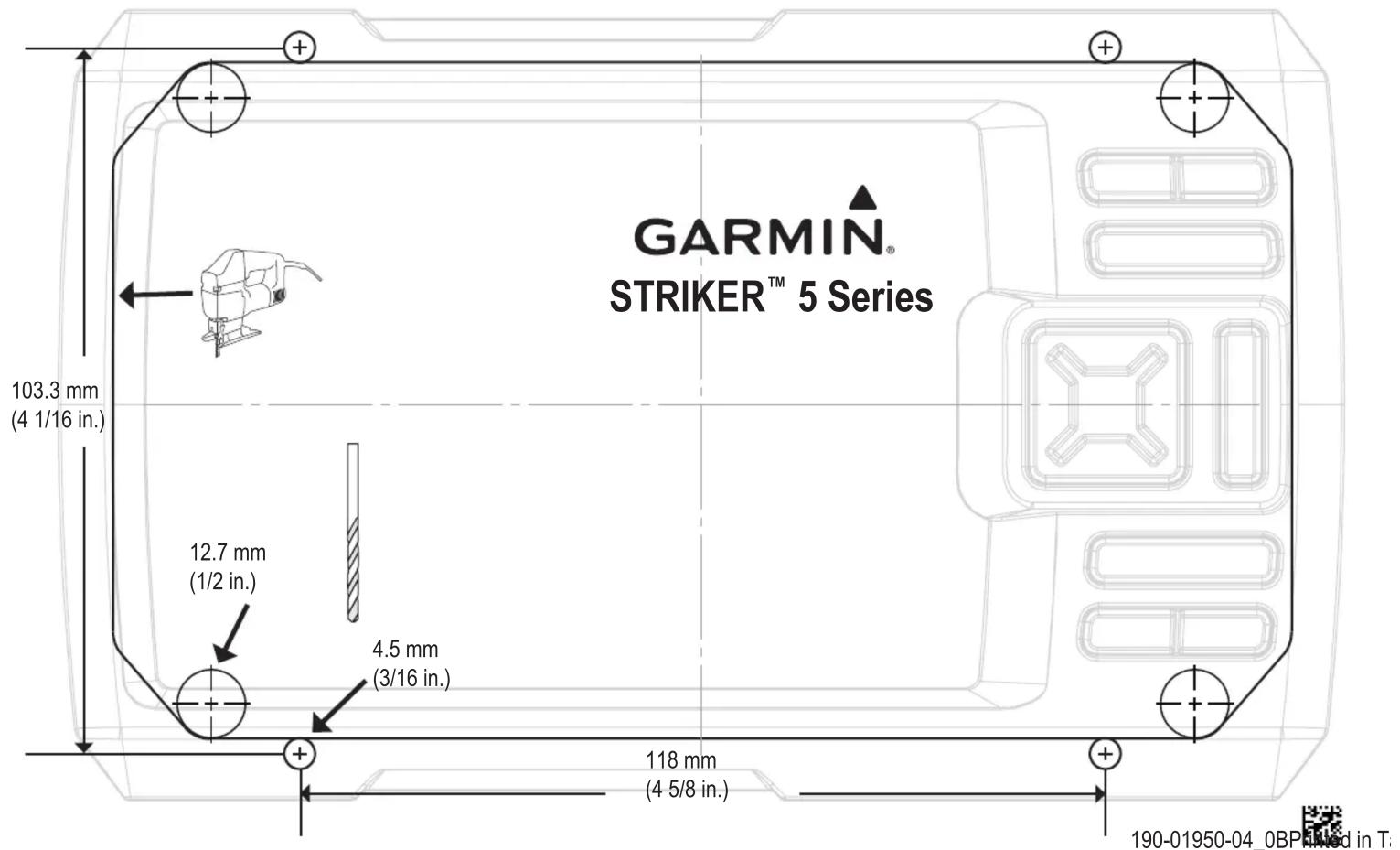

GARMIN® STRIKER™ 5 Series 103.3 mm (4 1/16 in.) 12.7 mm (1/2 in.) 4.5 mm (3/16 in.) 118 mm (4 5/8 in.) 190-01950-04_0BP lined in T

- Compass Safe Distance •Distance de sécurité du compas •Distanza di sicurezza dalla bussola •Sicherheitsabstand zum Kompass •Consumo eléctrico máximo •Distância segura da bússola •Sikkerhedsafstand for kompas •Trygg avstand fra et kompass •Säkerhetsavständ till kompass

•STRIKER 5 Series: 25 cm (9.84 in.)

GARMIN Striker Plus 5cv - NOTICE - 2

natural_image Pure technical diagram of a square component with internal grid lines and mounting brackets (no text or symbols)

②

12.7 mm (1/2 in.)

4.50 mm (3/16 in.)

GARMIN Striker Plus 5cv - NOTICE - 5

natural_image Technical line drawing of a mechanical assembly with no visible text or symbols

GARMIN Striker Plus 5cv - NOTICE - 6

natural_image Pure technical line drawing of a mechanical part with no text or symbols

⑥

GARMIN Striker Plus 5cv - NOTICE - 7

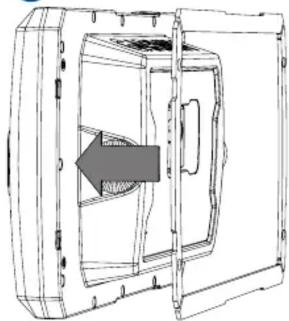

natural_image Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

⑦

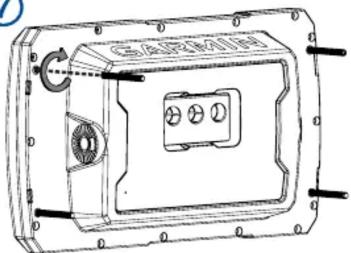

GASSEM-19

⑧
GARMIN Striker Plus 5cv - NOTICE - 9

natural_image Technical line drawing of a device with no visible text or symbols

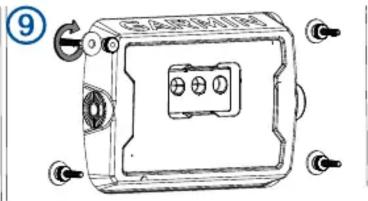

GARMIN Striker Plus 5cv - NOTICE - 10
