BRUGSANVISNING AF210192 GAGGENAU

Exterior view of a modern office building (no signage)

Color Variants

AF210192

Stainless steel handle bar

Width 90 cm

Optional accessories

AA210110

1 activated charcoal filter with high

efficient odour reduction due to

increased surface. For air recirculation

module AA 211 812.

AA211812

Patented air recirculation module

including 1 activated charcoal filter with

high efficient odour reduction due to

increased surface

Installation Accessories

AA210491

Assembly kit for 90 cm upper cabinet

AA210492

Lowering frame for 90 cm flat kitchen hood

AF210192

Flat kitchen hood 200 series

Stainless steel handle bar

Width 90 cm

Air extraction / Air recirculation

A

Unobtrusive flat kitchen hood design thanks to integrated glass sheet in the steam screen

Especially quiet operation thanks to integrated sound insulation

Steam screen extends by touching the handle bar

Especially high air output

Energy-saving, low-noise fan

Function for automatic, sensor-

controlled power adjustment

depending on the build-up of cooking vapours

Dimmable, neutral white LED light for ideal illumination of the cooktop

The patented lowering frame allows

the flat kitchen hood to disappear

completely into the upper cabinet

Air extraction or air recirculation system Air recirculation module with activated charcoal filter: quiet and highly efficient air recirculation solution with odour reduction as in air extraction mode and long replacement intervals

Output

Performance and noise level, output level 3/Intensive:

Air output according to EN 61591.

Sound power level according to EN

60704-3

Odour reduction for air recirculation in

accordance with EN 61591.

Air extraction:

517 / 965 m³/h.

57 / 71 dB (A) re 1 pW.

Air recirculation:

506 / 876 m³/h.

62 / 69 dB (A) re 1 pW.

Odour reduction air recirculation 91%.

Features

Controls at front.

3 electronically controlled power levels

and 1 intensive mode.

Automatic function with sensor-

controlled run-on function.

Grease filter saturation indicator.

Stainless steel grease filter,

dishwasher-safe.

Neutral white LED light (3500 K),

continuously dimmable.

Lamp output 3 x LM3-01_LED_1,5W.

Illuminance 355 lx.

Light can be switched on separately.

Fan technology with highly efficient,

brushless DC motor (BLDC).

Integrated sound insulation for quiet

operation.

The fan is activated when the steam

screen is extended.

Patented technology for extension of the steam screen.

Extendable steam screen 198 mm.

Airflow-optimised interior for efficient

air circulation and ease of cleaning.

Patented easy mounting system for

simple installation.

The package includes an one-way flap.

Consumption data

Energy efficiency class A at a range of energy efficiency classes from A+++ to D.

Energy consumption 41.4 kWh/year.

Ventilation efficiency class A.

Illumination efficiency class A.

Grease filter efficiency class B.

Characteristics

Product name/family

Color chimney

Typology

Pull

Approval certificates

Australia Standards, CE, Eurasian, G-Mark, VDE

Length electrical supply cord (cm)

175

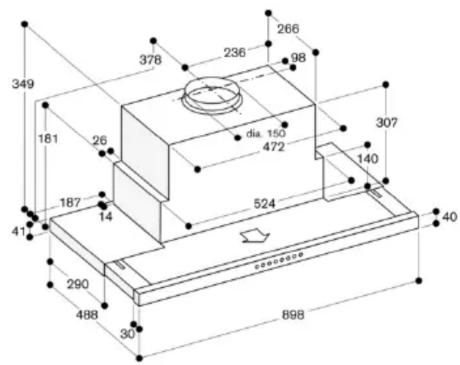

Required niche size for installation

(HxWxD)

349mm x 524.0mm x 290mm

Height of the chimney (mm)

Height of product, without chimney (mm)

Net weight (kg)

15.588

Type of control

Electronic

Number of speed settings

Maximum output air extraction (m3/h)

516

Boost position output recirculating

(m3/h)

649

Maximum output recirculating air (m3/

h)

500

Boost position air extraction (m³/h)

965

Number of lights

3

Noise level (dB)

57

Diameter of air outlet (mm)

120/150

Grease filter material

Washable stainless steel

Odour filter

No

Operating Mode

Convertible

Delay Shut off modes

Required accessories

Optional accessories

AA210110, AA211812

Type of lamps used

LED

Total power of the lamps (W)

6

Grease filter type

Kassette

Clean filter reminders

Connection rating (W)

266

Fuse protection (A)

10

Voltage (V)

220-240

Frequency (Hz)

50; 60

Plug type

CH plug w/ earthing, Gardy plug w/

earthing, GB plug

Installation typology

Built-in

Universal Product Code

Material body

Stainless steel

Approval certificates

Australia Standards, CE, Eurasian, G-

Mark, VDE

Length of electrical supply cord (in)

Plug type

CH plug w/ earthing, Gardy plug w/

earthing, GB plug

Dimensions of the product, with

chimney (if exists) (in)

/ x x

Dimensions of the packed product (in)

16.53 × 37.00 × 19.29

Height of the chimney (in)

Vertical rise height

Required distance above cooktop/

ranges

Net weight (lbs)

34.000

Gross weight (lbs)

40.000

Motor location

Integrated motor in hood body

Sound level min. 42 dB / max. 57 dB normal mode.

Planning notes

For air recirculation an external air recirculation module is required. Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the activated charcoal filter.

The door of the upper cabinet must be fully open in order to change the activated charcoal filter.

To be installed in an upper cabinet without base.

The required cavity depth of the upper cabinet together with the lowering frame measures 335 mm.

The required cavity height of the upper cabinet together with the lowering frame measures 600 mm.

Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).

Clearance above electric appliances min. 43 cm.

When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Connection

Total connected load 266 W.

Connecting cable 1.8 m, pluggable.

AF210192

Flat kitchen hood 200 series

Stainless steel handle bar

Width 90 cm

Air extraction / Air recirculation

2021-08-13

Page 2

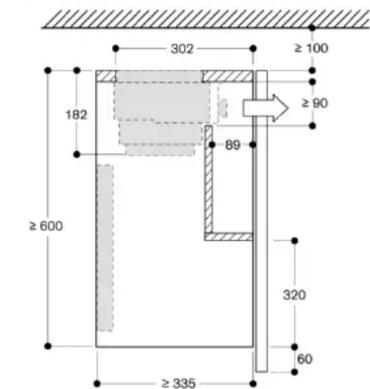

Cross-section of upper cabinet for AF210 with AA 211 812 and AA 210 492/460 lowering frame

measurements in mm

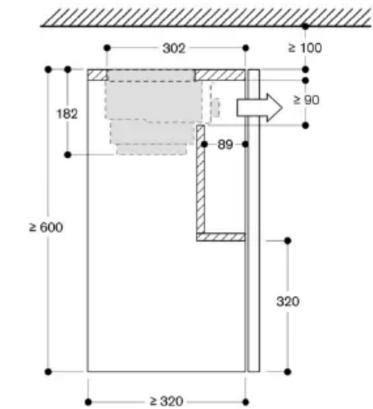

Cross-section of upper cabinet for AF210 with AA 211 812

measurements in mm

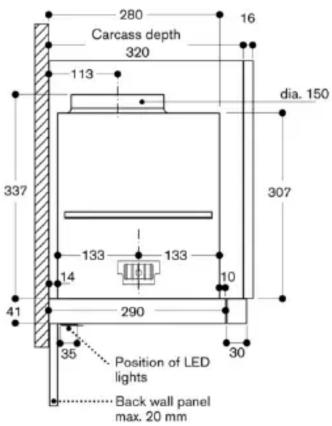

View of upper cabinet from above with AA 211 812

A: Appliance only
B: Appliance with lowering frame

measurements in mm

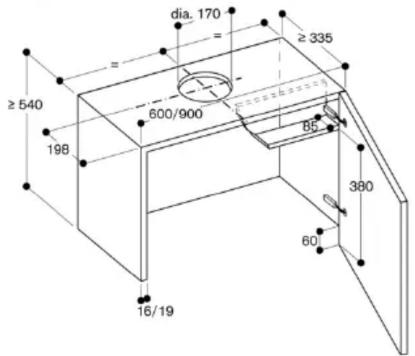

Upper cabinet for AF 210 with lowering frame

measurements in mm

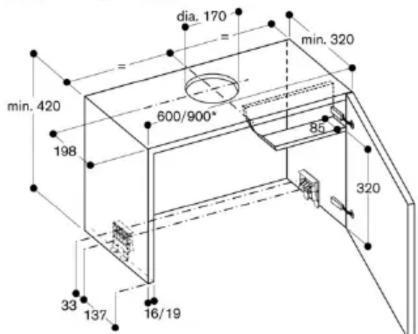

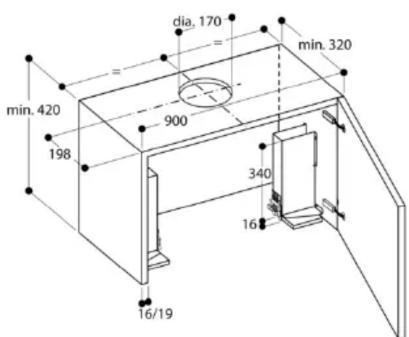

Upper cabinet for AF 210

* for upper cabinets measuring 90 cm, the AA 210 491 installation set is required in addition
