BRUGSANVISNING SGH-X540 SAMSUNG

Installing the SIM card and battery

1. Remove the battery cover and insert the SIM card.

1. Install the battery and reattach the cover.

Charging the battery

1. Plug the supplied travel adapter.

1. When charging is finished, unplug the adapter.

Note: Do not remove the battery from the phone without unplugging

the adapter first. Otherwise, the phone may be damaged.

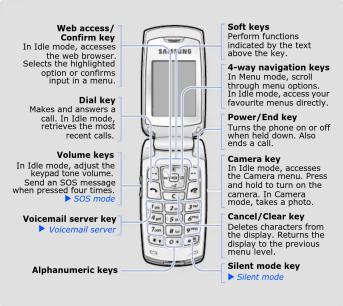

Phone layout and key functions

Silent mode	Press and hold # in Idle mode to disable all sounds on the phone. To exit, press and hold this key again.
Voicemail server	Press and hold 1 in Idle mode to access your voicemail server.
SOS mode	With the phone closed, press the Volume keys four times in Idle mode to send an SOS message to preset phone numbers. Once the SOS message will change to SOS mode and will receive calls only from the SOS message recipients until the SOS mode is cancelled. Upon receiving a call from the SOS message recipients, the phone will automatically answer the call, after one vibration, reliving the emergency situation to the caller.

Display

Your phone is in Idle mode when you are not on a call or using a menu. You must be in Idle mode to dial a phone number.

Your phone displays the following status indicators on the top of the screen:

Icon Description

T..all Received signal strength

Call in progress

Out of your service area; you cannot make or receive calls

except for emergency calls

SOS message feature active

GPRS network

Alarm set

Call diverting feature active

New text message

New multimedia message

New voicemail message

Bluetooth active

- Bullion and Bullion

10

Silent mode

Battery power level

Switching on or off the phone

1. Press and hold for more than one second to switch on the phone.
2. To switch off the phone, press and hold for more than two seconds.

Changing the display language

1. In Idle mode, press the Menu soft key.
2. Select Phone settings → Language → Text language.
3. Select a language.

Making a call

1. In Idle mode, enter an area code and phone number, and press ↗
2. When you want to end the call, press

Answering a call

1. When the phone rings, press the Accept soft key or to answer a call.
   To reject the call, press
2. To end the call, press

Adjusting the volume

1. In Idle mode, press the Menu soft key.
2. Select Sound settings → Incoming calls → Ring volume.
3. Press the Navigation keys to adjust the volume level.
4. Press the Save soft key.

While a call is in progress, press the Volume keys to adjust the earpiece volume.

Changing a ringtone for calls

1. In Idle mode, press the Menu soft key.
2. Select Sound settings → Incoming calls → Default ringtones or My sounds.
3. Select a ringtone and press the Yes soft key.

Redialling recent numbers

1. In Idle mode, press
2. Press Up or Down to scroll to the number you want.
3. Press to dial the number.

Using the menus

In Idle mode, press the Menu soft key to enter the main menu.

To select or modify a menu or feature:

1. In Idle mode, press the Menu soft key.
2. Press the Navigation keys to reach a desired menu and then press the Select soft key or 📄
3. If the menu contains any submenus, locate the one you want by pressing the Navigation keys. Press the Select soft key or to enter the submenu.
   If the selected menu contains additional submenus, repeat this step.
4. Press the Navigation keys to find the setting of your choice.
5. Press the Select soft key or to confirm your chosen setting.

Shortcut numbers

You can quickly access the menu you want by using shortcut numbers. The shortcut number displays in front of the menu name in Menu mode.

Menu map Entering text

1. Call log

1. Network services

1. Applications

4.1 Incoming calls 4.2 Messages

1. Messages

1. Fun box

1. Planner

1. Camera

8.4 Settings

8.5 Memory status

Phone settings

9.1 Display 9.2 Greeting message

9.3 Language 9.4 Office mode

9.5 Security

9.6 Auto redial 9.7 Voice clarity

9.8 Anykey answer

9.9 Active folder 9.10 Volume key

9.11 Reset settings

Press the Phonebook soft

key in Idle mode 1. Find name

2 FDN list

3 Add entry 4 Speed-dial list

5 Own number

6 Group setting 7 Management

8 SDN*

* Shows only if

supported by your SIM card.

Changing the text input mode

In a text input field, press the right soft key until the input mode indicator you want appears:

• Eng :

All Exp

-

- Number mode

• None: Symbol mode

Note: To change the language, press and hold the right soft key and select

Language select

T9 mode

1. Press 2 to 9 to start entering a word. Press each key once for one letter. Example: To enter Hello in T9 mode, press 4, 3, 5, 5, and 6. T9 predicts the word that you are typing, and it may change with each key that you press.
2. Enter the whole word before editing or deleting characters.

3. When the word displays correctly, go to step 4. Otherwise, press 0 to display alternative word choices for the keys that you have pressed. For example, Of and Me use 6 and 3.

4. Press to insert a space and enter the next word.

ABC mode

Press the keys labelled with the character you want:

- once for the first character

- twice for the second character

* and so on.

For example, press 2 three times to enter C and 5 two times to enter K.

Number mode

Press the keys corresponding to the digits you want.

Symbol mode

Press the number keys corresponding to the symbol you want and press the OK soft key. You can press Up or Down to display more symbols.

Tips for entering text

• To move the cursor, press the Navigation keys.
- To delete characters one by one, press C. To delete all of the characters,
press and hold C.
- To insert a space between characters, press #
• To change case in T9 mode or ABC mode, press 1. • To enter punctuation marks in T9 mode or ABC mode, press 1.

Feature Description Select

Select a call rington	Select a rington for incoming calls, a volume level, or an alert type.	Menu > Sound settings > Incoming call.
Select a message tone	Select the alert rington and alert type for incoming SMS and MMS, or set how often you are informed of a new message.	Menu > Sound settings > Messages
Power on/off tone	Set the phone to sound when it is switched on or off.	Menu > Sound settings > Power on/off.
Connection tone	Set the phone to beep when a call is connected to the system.	Menu > Sound settings > Connection tone
Select a key tone	Select a tone which the phone sounds when you press a key.	Menu > Sound settings > Keypad tone
Minute minder	Set the phone to beep every minute during a call to keep you informed of the length of your call.	Menu > Sound settings > Minute minder
Silent mode	Set how the phone acts to alert you to a specific event while in Silent mode.	Menu > Sound settings > Silent mode
Alerts on call	Set the phone to alert you when you receive a new message or when the time for an alarm comes during a call.	Menu > Sound settings > Alerts on call
Send SMS or MMS messages	Create and send messages to other mobile phones.	Menu > Messages > Text messages or Multimedia messages > Create

Feature Description
Select

Auto redial	Set the phone to make up to ten attempts to redial a phone number after an unsuccessful call.	Menu > Phone settings > Auto redial
Voice clarity	Remove extraneous noise and increase call quality so that the person with whom you are speaking can hear you clearly even if you are in a noisy place.	Menu > Phone settings > Voice clarity
Anykey answer	answer an incoming call by pressing any key, except for [√].	Menu > Phone settings > Anykey answer.
Active folder Answer	An incoming call by opening the phone.	Menu > Phone settings > Active folder
Volume key setting	Set whether the phone mutes the call finger or rejects a call if you press and hold the Volume keys when a call comes in.	Menu > Phone settings > Volume key
Reset the phone	Reset the phone to the factory default settings.	Menu > Phone settings > Reset settings

Important safety precautions

Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal.

Drive safely at all times

Do not use a hand-held phone while driving; park the vehicle first.

Sending an SMS message

1. In Idle mode, press the Menu soft key.

2. Select Messages → Text messages → Create.

3. Enter the message text.

4. Press the Options soft key and add items using the following options:

- Add media: add sounds, images, or animated images.

- Add emoticon: add emoticons.

- Preset messages: add text templates.

1. Press the Options soft key and select Send.
2. Select an empty location.
3. Enter a destination number and press the OK soft key.
4. Press the Send soft key to send the message.

Taking a photo

1. In Idle mode, press and hold to turn on the camera.
2. Aim the lens at the subject and make any desired adjustments.
3. Press on to take a photo.
4. Press C to take another photo.

Feature Description Select

Read SMS or MMS messages	Read received, sent, or saved messages.	Menu > Messages> Text messages or Multimedia messages> Inbox, Outbox, Draft, or My folder
Delete messages	Delete messages in each message folder, or all messages at once.	Menu > Messages> Text messages or Multimedia messages> Delete all
Push messages	Change the settings for the service, and access or delete push messages.	Menu > Messages> Push messages
Message templates	Preset templates for frequently used messages or emoticons.	Menu > Messages> Preset messages or Menu > Messages > Text messages> Emotion templates
Voicemail	Access your voicemail server and listen to messages on the network.	Menu > Messages> Voice mail
Broadcast messages	Chatting the settings for the voice and access broadcast messages.	Menu > Messages> Broadcast
Messaging options	Set options for using messaging services.	Menu > Messages> Settings
SOS message	Activate the SOS message feature.Enter recipients and select the repeat mode.	Menu > Messages> SOS messages
Message memory status	Check memory information for messages.	Menu > Messages> Memory status
Web browser	Launch and configure the web browser.	Menu > Services> WWW services

Switching off when refuelling

Do not use the phone at a refuelling point (service station) or near fuels or

Switching

Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.

Switching off near all medical equipment

Hospitals and health care facilities may be using equipment that could be sensitive to external RF energy. Follow any regulations or rules in force. Interference

All wireless phones may be subject to interference, which could affect their performance.

Special regulations

Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it.

Water resistance

Your phone is not water-resistant. Keep it dry.

Sensible use

Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.

Emergency calls

Key in the emergency number for your present location, then press 📋. Do not end the call until given permission to do so.

Small children and your phone

Keep the phone and all its parts including accessories out of reach of small children.

Quick feature reference

This section provides brief explanations of features on your phone.

Feature Description Select

Find a contact Search for contacts in Phonebook. Phonebook
Create an FDN list	Create a list of contacts to be used in FDN (Fixed Dialling Number) mode, in which the phone allows outgoing calls only to the specified phone numbers..	> Find name
		Phonebook > FDN list
Add a new contact	Add a new contact to Phonebook. Phonebook
Speed dial Assign	Speed dial numbers (2 to 9) for eight of your most frequently dialled numbers.	> Add entry
		Phonebook > Speed-dial list
Check your own phone numbers	Check your phone numbers or assign a name to them.	Phonebook > Own number
Change properties of a caller group	Select a ringtone for incoming calls and messages from members of a group, by change the group name.	Phonebook > Group setting
Manage contacts	Copy all contacts on the SIM card to the phone's memory, delete all Phonebook contacts. You can also check memory information for Phonebook contacts.	Phonebook > Management

Feature Description Select

Access media files	Access sounds or images in your phone's memory.	Menu > Fun box> Media box > My photos, downloaded images, or Sounds
Delete all media files	Delete sounds and images in each media box, or all media files at once.	Menu > Fun box> Media box > Delete all
Funbox memory status	Check the amount of memory in use for games, sounds and images.	Menu > Fun box> Media box > Memory status
Java applicationsSchedule an item	Access the embedded Java games and downloaded Java applications. Create a new item.	Menu > Fun box> JAVA worldMenu > Planner> New memo
Calendar	Keep track of daily or monthly schedule.	Menu > Planner> Calendar
Task list	Create a list of tasks and assign a deadline to each task.	Menu > Planner> To do list
Time and date	Set the current time and date manually and set your local time zone. You can also set your phone to update the current time automatically when you travel abroad. Time information may not be updated when you move to one time zone to another within a country.	Menu > Planner> Clock
Alarm	Set an alarm to sound at a specific time.	Menu > Planner> Alarm

Feature Description Select

SDN (Service Dalling Numbers)	Access the list of service numbers assigned by your service provider.	Phonebook > SDN
View recent calls	View the most recent calls you have dialled, received, or missed.	Menu > Call log > Missed calls, Received calls, or Dialled calls
Delete recent calls	Delete the call logs in each call type, or all logs at once.	Menu > Call log > Delete all
Call time display	View the duration of recent calls you have dialled and received. Also reset the time counter.	Menu > Call log > Call time
Call cost display	View the cost of your calls. Menu > Call log > Call costs
Network services	Access network services offered by your service provider.	Menu > Network services
Voice memo	Record voice memos and listen to them.	Menu > Applications > Voice recorder
FM radio	Listen to music or news via the FM radio for your phone. First, you must connect your phone with the headset, which serves as a radio antenna.	Menu > Applications > FM radio
Bluetooth	Connect the phone wirelessly to other Bluetooth devices and talk hands-free, or control the phone remote.	Menu > Applications > Bluetooth
Use the SIM service	Use a variety of additional services offered by your service provider.	Menu > Applications > SIM-AT

Feature Description

Calculator	Perform basic arithmetic functions.	Menu > Planner> Calculator
Converter	Do conversions such as currency and temperature.	Menu > Planner> Converter
Timer	Set a period of time for the phone to count down.	Menu > Planner> Timer
Stopwatch Measure	Elapsed time. The maximum measurement time is 10 hours.	Menu > Planner> Stopwatch
Camera	Take photos in various modes, and access saved photos in jpeg format. You can also delete photos or check memory information for photos.	Menu > Camera
Display settings	Change settings for the display and light.	Menu > Phone settings > Display
Greeting message	Enter the greeting message to be displayed when the phone is switched on.	Menu > Phone settings > Greeting message.
Language selection	Select a language to be used for the display text or text input mode.	Menu > Phone settings > Language
Offline mode	Switch the phone to Offline mode. This mode is helpful when you want to use your phone in an airplane where you are not allowed to use mobile devices, such as in an airplane and at a capital.	Menu > Phone settings > Offline mode.
Security	Protect the phone against unauthorised use.	Menu > Phone settings > Security

Accessories and batteries

Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage your phone and may be dangerous.

CAUTION Risk of explosion if a battery is replaced by an incorrect type. Dispose used batteries according to the instructions.

At very high volume, prolonged listening to a headset can damage your hearing.

Qualified service

Only qualified service personnel may repair your phone.

SAR information

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the European Union (EU) Council. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on the safety standards that were developed by independent scientific organisations through periodic and through evaluation of scientific studies.

The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The exposure standard for wireless phones employs a unit of measurement known as Specific Absorption Rate (SAR). The SAR limit set by the EU Council is 2.0 W/kg. The highest SAR value for this model phone was 0.787 W/kg.

Declaration of Conformity (R&TTE)

Samsung Electronics

declare under our sole responsibility that the product

GSM Mobile Phone : SGH-X540

to which this declaration relates, is in conformity with the following standards and/or other normative documents.

SAFETY EN 60950* 1 : 2001 EN 301 489* 01 V1.4.1 (08*2002) EMC EN 301 489* 07 V1.2.1 (08*2002) EN 301 489* 17 V1.2.1 (08*2002) SAR EN 50360 : 2001 EN 50361 : 2001 RADIO EN 301 511 V9.0.2 (03-2003) EN 300 328 V1.6.1 (11-2004)

We hereby declare that [all essential radio test suites have been carried out and that] the above named product is in conformity to all the essential requirements of Directive 1999/5/EC.

The conformity assessment procedure referred to in Article 10 and detailed in Annex[IV] of Directive 1999/5/EC

BABT, Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD, UK Identification mark: 0168

The technical documentation kept at :

which is not available to you

itative in the EU)

Samsung Electronics Euro QA Lab,

Blackbushe Business Park, Saxony Way,

2006.12.31

(stave and date of issue)

C€0168

The technical documentation kept at

Samsung Electronics QA Lab.

which will be made available upon request. (Representative in the EU)

Samsung Electronics Euro QA Lab.

Blackbushe Business Park, Saxony Way,

2006.12.31

(stave and date of issue)

x s 0042

1. 2017年1月1日

Yong-Sang Park / 5. Manager

(name and signature of authorised person)

It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your phone.
