BRUGSANVISNING CMA643 Chief
INSTALLATION INSTRUCTIONS


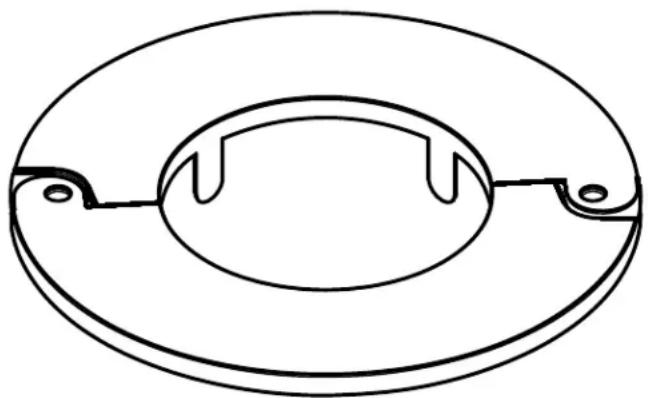

Technical line drawing of a circular mechanical component with two mounting holes and a central slot (no text or symbols)Chrome Ceiling Ring Accessory
DISCLAIMER
CSAV, Inc., and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. CSAV makes no representation of warranty, expressed or implied, regarding the information contained herein. CSAV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
IMPORTANT WARNINGS AND TIONS!
WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.
WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.
WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component.

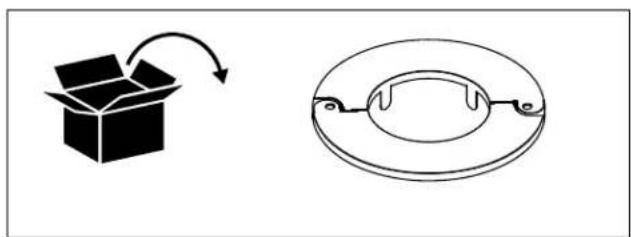

PARTS
- Install ceiling plate, extension accessories and projector following installation instructions provided by manufacturer.

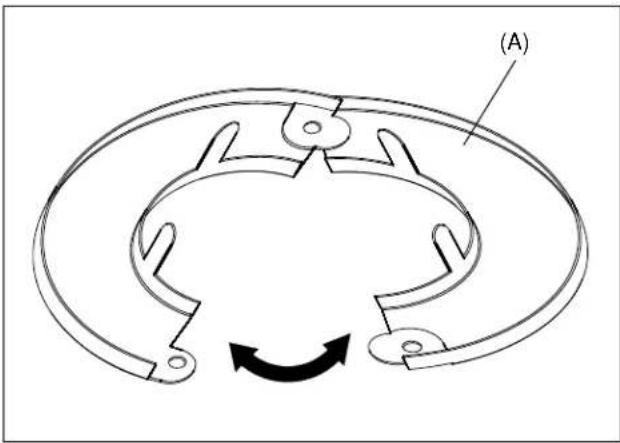

- Spread open the CMA643 (A). (See Figure 1)


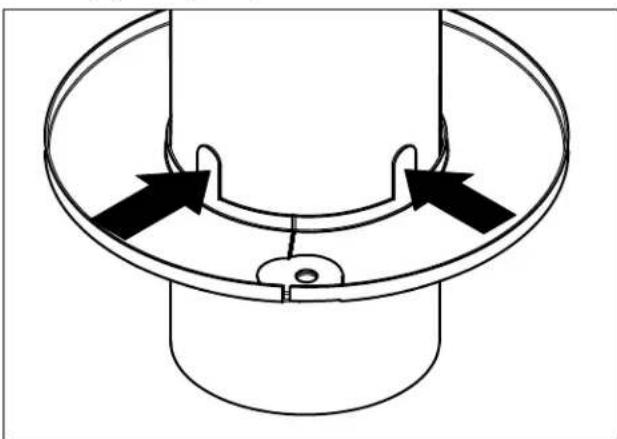

- Place CMA ring around the pipe with tabs facing up, and close CMA.
- Press tabs in toward pipe to hold CMA in place at the ceiling. (See Figure 2)
CHIEF®
8803-000080
©2007 Chief Manufacturing
www.chiefmfg.com
03/07
