BRUGSANVISNING Atrix 2 MOTOROLA

User's Guide

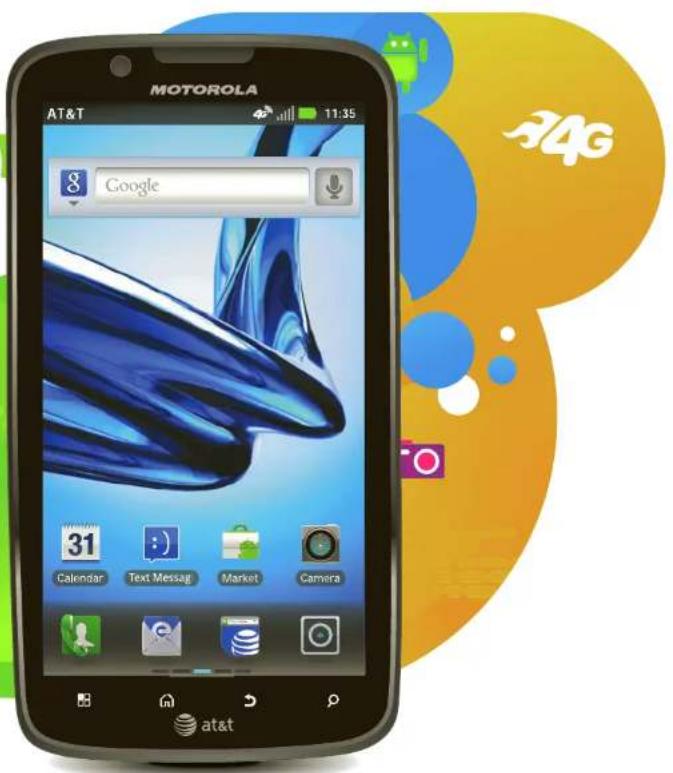

MOTOROLA ATRIX™ 2

smart

meets life.

MOTOROLA AT&T 11:35 8 Google 31 Calendar Text Message Market Camera at&t

Welcome

MOTOROLA ATRIX™ 2

Powerful just got a lot more fun.

• Browse in the fast lane: 4G and the 1GHz dual-core processor deliver up to 2x faster processing power than single-core smartphones.
• ZumoCast™: Our free ZumoCast app gives you secure, unlimited access to music, pictures and videos straight from your computer (see "File Access" on page 50).
• Capture the moment: Capture every detail with the 8MP camera and 1080p HD video recorder (see "Photos & Videos" on page 33).
• Music to your ears: Music, Motorola's music player, connects you to your favorite artists, lyrics, music news, and more (see "Music" on page 36).

- The Big Time: Connect to an optional Motorola HD Station to browse or play high-res video on the big screen (see "Screen Connections" on page 43).

Caution: Before assembling, charging, or using your phone for the first time, please read the important safety, regulatory and legal information provided with your phone.

SAR This product meets the applicable limit for exposure to radio waves (known as SAR) of 1.6 W/kg (FCC). The limits and guidelines include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The highest SAR values measured for this device are listed in the regulatory information packaged with your product.

Contents

Your Phone 3

Find More Information 4

Let's Go....5

Touchscreen & Keys....6

Home Screen 8

Personalize 11

Apps 13

Calls....16

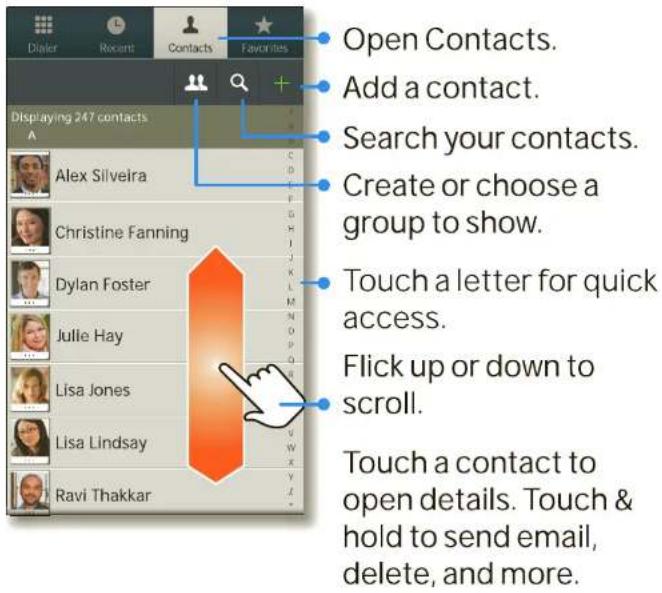

Contacts 22

Social networking 25

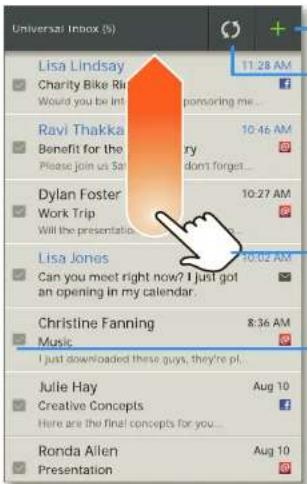

Text Messaging & Email 27

Text Entry 31

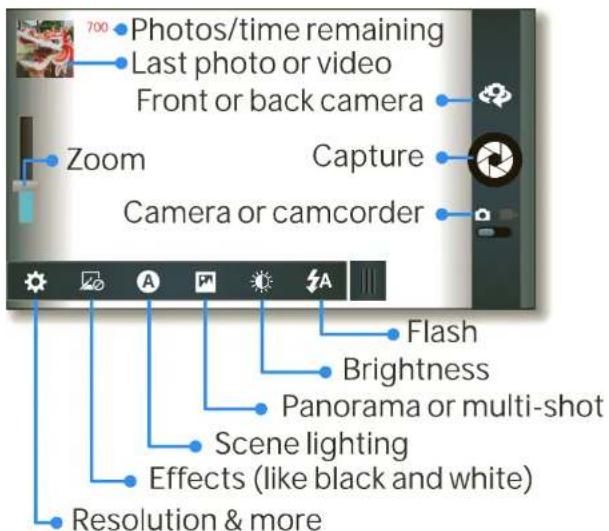

Photos & Videos 33

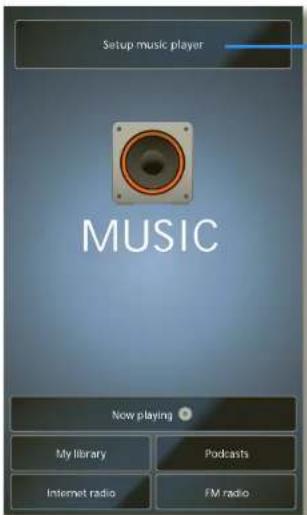

Music....36

AT&T Features & Services 38

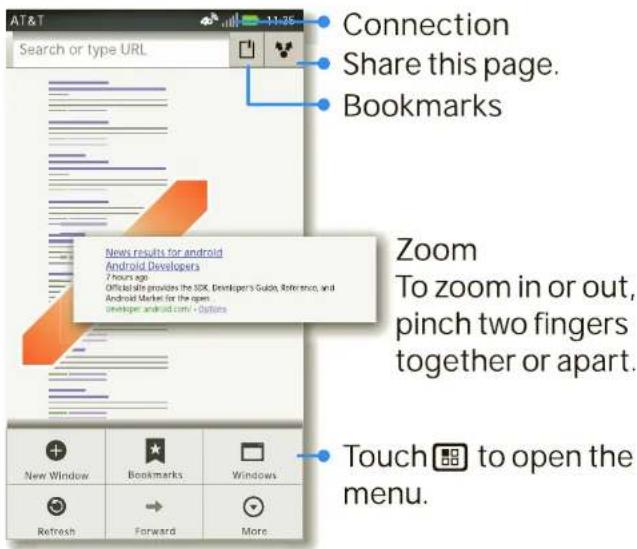

Browser 39

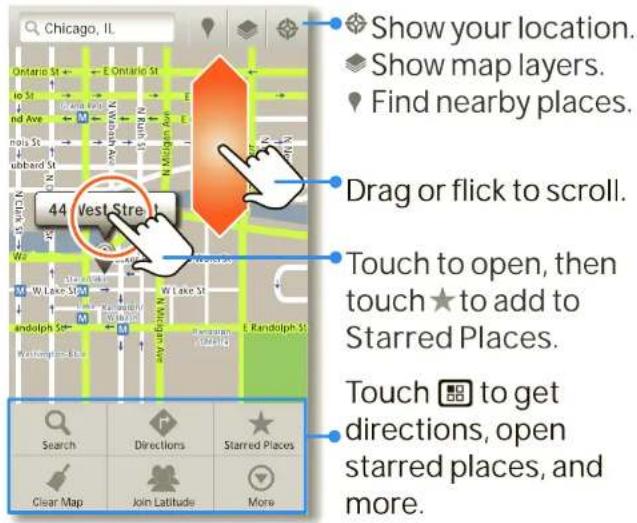

Location 41

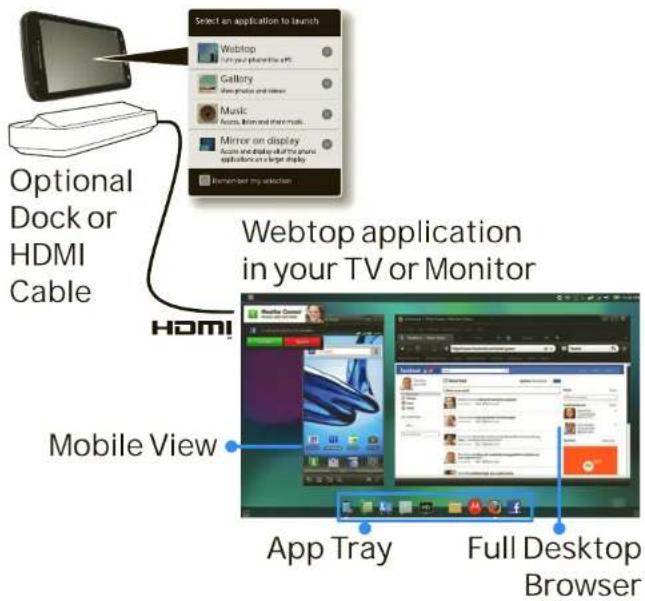

Screen Connections 43

Bluetooth™ & Wi-Fi Connections 45

File Access....50

Schedule 53

Security 55

Tips & Tricks 57

Troubleshooting 63

Safety, Regulatory & Legal 64

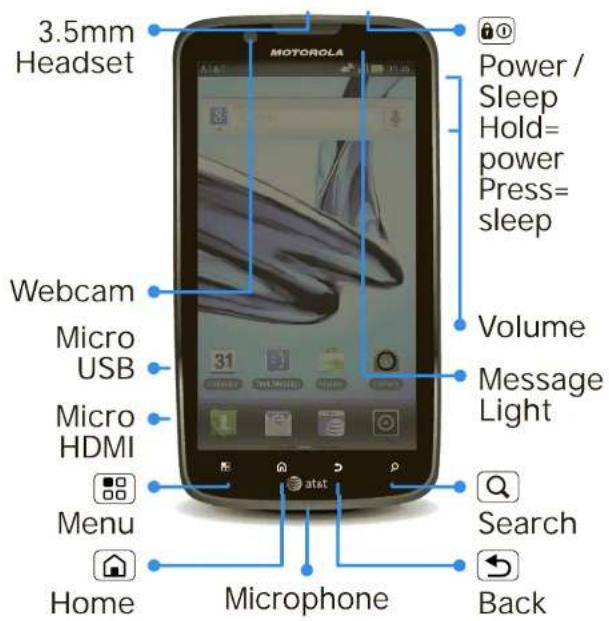

Your Phone

3.5mm Headset Power / Sleep Hold= power Press= sleep Webcam Micro USB Micro HDMI Volume Message Light Menu Home Microphone Search Back

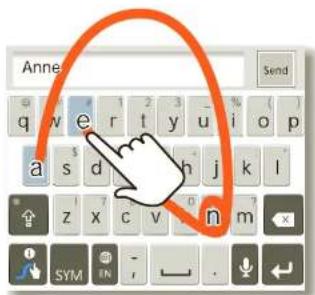

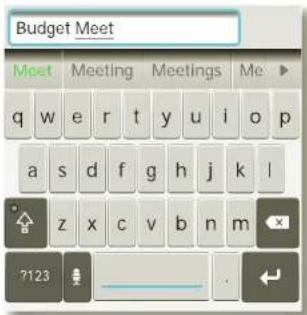

Touch a text box (like in a message or search) to enter text:

• Choose a keyboard: Touch and hold a blank spot in a text box, then choose Input Method.
• Close the keyboard: Touch Back ↩.
• Find out more: See "Text Entry" on page 31.

AT&T 90 Enter message here MOTOROLA CONFIDENTIAL SEET MARKETING REVIEW AT&T MOBILITY MAIN MARKETING MOTOROLA Q W E R T Y U S Q P A S O F G H K L Z X C N B N M ?123 Shift Voice Delete Symbols Return Press=symbols Hold=settings

Find More Information

- On your phone—Touch 🔒 > ? Help Center.

- On any phone—Call AT&T Customer Care at 1-800-331-0500 or dial 611 from any AT&T mobile phone for assistance with your service or device.

- On the web—You can also get support online:

Interactive web tutorials are available at att.com/Tutorials. Select Manufacturer: Motorola and Model: ATRIX 2 from the drop-down menus.

For detailed support information including device specifications, the user manual, troubleshooting, user forums and knowledgebase articles, go to att.com/DeviceSupport

For information about your wireless account, service plan or network, go to att.com/Wireless

• Accessories—You can find accessories for your phone at att.com/WirelessAccessories or visit your local AT&T store.

Let's Go

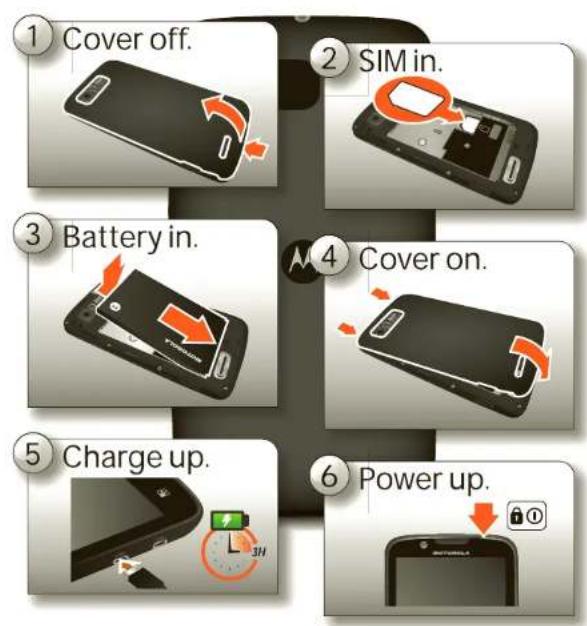

Assemble & Charge

Caution: Please read "Battery Use & Safety" on page 64.

To save battery life, see "Battery Tips" on page 57.

Note: This phone supports apps and services that use a lot of data, so make sure your data plan meets your needs. Contact your service provider for details.

After you power up, create or log into your Google™ account so you can download apps from Android Market™, back up your Contacts, and more. You can also add your email or social networking accounts. Later, you can add or remove accounts by touching 📷 > Accounts.

Note: If you want to use a Wi-Fi network for even faster Internet access, touch Menu > Settings > Wireless & networks > Wi-Fi settings. Touch Wi-Fi to search for and connect to wireless networks. There's more in "Wi-Fi Networks" on page 48.

Touchscreen & Keys

Quick Start: Touchscreen

It's all in the touch:

• Touch: Choose an icon or option.
• Touch & hold: Move items on the home screen, or open options for items in lists.

AT&T QD 11:35 Google See all your apps. Touch the Launcher in Calendar Text Message Market Camera

Touch to open. Touch & hold to move or delete.

Touch & hold an empty - spot to add a shortcut or widget.

- Drag or flick to scroll panels (or long lists).

• Drag or flick: Scroll slowly (drag) or quickly (flick).
• Pinch or double-tap: Zoom in and out on websites, photos, and maps.

Tips & tricks

• Flick & stop: When you flick a long list, like Contacts, a scroll bar appears at the right. Drag the scroll bar to move quickly, or touch the screen to stop it where you want.
• Maps: Twist a map with two fingers to rotate it, and pull two fingers down to tilt it.
• Sleep: To make the screen sleep or wake up, press Power 🔒.

Note: Your touchscreen might stay dark if the

sensor just above it is covered. Don't use covers or screen protectors (even clear ones) that cover this sensor.

• Security: To make the screen lock when you're not using it, touch Menu > Settings > Location & security > Set up screen lock.
• Rotate: In many apps, the touchscreen switches from portrait to landscape when you rotate your phone. To turn this on or off, touch Menu > Settings > Display > Auto-rotate screen.

Power & Sleep Key

Press and hold Power 🔒 to open a menu where you can turn off sound (Silent mode), network and wireless connections (Airplane mode), or the phone (Power off).

To save your battery, prevent accidental touches, or when you want to wipe smudges off your touchscreen, put the touchscreen to sleep by

pressing Power 🔒. To wake up the touchscreen, just press Power 🔒 again.

To change how long your phone waits before the screen goes to sleep automatically, touch Menu □> Settings > Display > Screen timeout.

Tip: To make the screen lock when it goes to sleep, see "Security" on page 55.

Volume Keys

Press the volume keys on the side of the phone to change the ring volume (in the home screen), or the earpiece volume (during a call).

Menu, Home, Search, & Back Keys

Touch Menu ☐ to open menu options in your home screen, lists, and other places. Touch Home 🔒 to close any menu or app and return to the home screen. Touch

and hold Home 🔒 to show the last few apps you used, then touch an app to open it. In the home screen, touch Home 🔒 to open or close the app menu.

Touch Search 🔒 to open "Search" on page 10.

Touch Back ↩ to go to the previous screen.

Home Screen

Quick Start: Home Screen

Use your home screen for quick access to apps, notifications, and more.

You'll see the home screen when you turn on the phone or touch Home from a menu:

AT&T 90 8 Google See all your apps. Touch the Launcher lock 31 Calendar Text Message Market Camera

Status Indicators

Notifications

Flick down for details.

Widgets

Touch to open. Touch & hold to move or delete.

Drag or flick to scroll through panels.

Shortcuts

©

Open the app menu.

• App menu: 📷 See all your apps (if you have a lot, flick left and right to see them all).
• Shortcuts: Icons open your favorite apps, web bookmarks, contacts, mail labels, or music playlists.
• Widgets: Little windows show you news, weather, messages, and other updates.

Tips & tricks

• Panels: To show other panels of shortcuts and widgets, flick the home screen left or right.
• Customize widgets: When you open a widget, touch Menu to show any options or settings (you can choose accounts for Messages, Social Networking, or Calendar widgets).

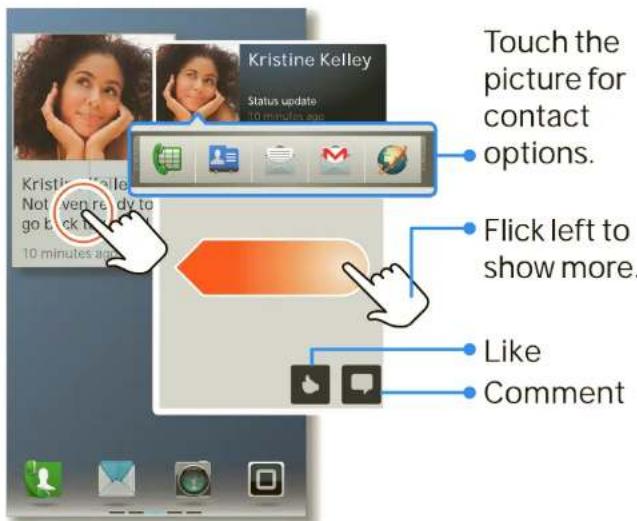

There's more about social networking widgets in "Quick Start: Social Networking" on page 25 and "Update

Your Status" on page 27.

• Resize widgets: Touch and hold a widget until you feel a vibration, then release. Drag a corner to resize.
• Add: To add something or change your wallpaper, touch and hold an empty spot until you open the Add to Home screen menu.

You can add a folder to organize your shortcuts.

• Move or delete: To move or delete something, touch and hold it until you feel a vibration, then drag it to another spot, another panel, or the trash at the bottom of the screen.
• Options: To show options for list items (like Contacts), touch and hold them. To show options for your current display, touch Menu (not all screens have options).

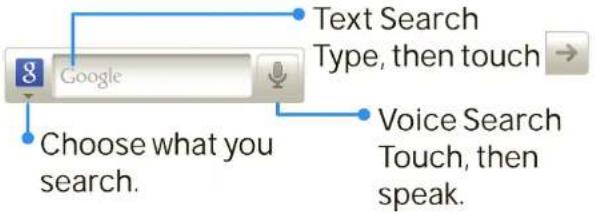

Search

To search, use a Search widget on your home screen or touch Search 🔒.

Phone Status & Notifications

At the top of the screen, icons on the left notify you about new messages or events (flick the bar down for details). Icons on the right tell you about phone status:

	BluetoothTM		Wi-Fi
	GPS active		Airplane mode
	Silent ring		Vibrate ring
	Mic mute		Speakerphone
	Alarm set		Network (strong)
	Charging		Charged
	Connected to HSPA+

Personalize

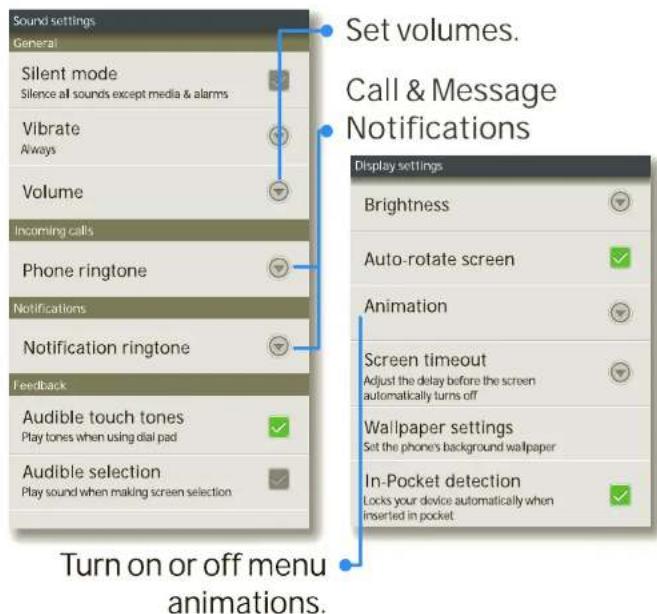

Quick Start: Personalize

Customize your phone's sounds and appearance to make it unique to you!

Sound settings General Silent mode Silence all sounds except media & alarms Vibrate Always Volume Incoming calls Phone ringtone Notifications Notification ringtone Feedback Audible touch tones Play tones when using dial pad Audible selection Play sound when making screen selection Set volumes. Call & Message Notifications Display settings Brightness Auto-rotate screen Animation Screen timeout Adjust the delay before the screen automatically turns off Wallpaper settings Set the phone's background wallpaper In-Pocket detection Locks your device automatically when inserted in pocket. Turn on or off menu animations.

Find it: Menu □> Settings > Sound or Display.

• Home screen: To add widgets, shortcuts, or wallpaper, touch and hold an empty spot until you open the Add to Home screen menu. To move or delete widgets or shortcuts, touch and hold them—then drag them to another spot, another panel, or the trash can.
• Ringtones & display: Touch Menu > Settings to choose Sound, Display, and more.

Tips & tricks

• Volume: To change your ringtone volume from the home screen, just press the volume keys.
- Ringtone for a contact: To set a ringtone for a contact, touch 📊 Dialer > Contacts, touch the contact, then touch Menu 📊 > Edit > Additional info > Ringtone.

- Message alert: To change your new message notification, touch 📷 > Messaging > Menu 📁 > Messaging Settings, then choose Text Messaging, Social Messaging, or Email.

Sounds

• Change your ringtone and notifications: touch Menu [icon] > Settings > Sound.
  To use a song as a ringtone, touch 📷 > Music > Songs, touch and hold the song name, then touch Use as phone ringtone.
• Change your new message notification: touch 📷 > Messaging > Menu 📺 > Messaging Settings, then choose Text Messaging, Social Messaging, or Email.
• Set a ringtone for a contact: touch Dialer > Contacts, touch the

contact, then touch Menu □> Edit > Additional info > Ringtone.

• Set volume for media: Menu > Settings > Sound > Volume
• Play sound on screen selection: Menu □> Settings > Sound > Audible selection

Display Settings

• Set brightness: Menu > Settings > Display > Brightness
• Set animations: Your display's movements look smoother with animation, but a little faster without it. Menu 📄 > Settings > Display > Animation

Language & Region

Set your menu language and region:

Find it: Menu □> Settings > Language & keyboard > Select locale

Apps

Quick Start: Apps

Download games, tools, apps, and more!

Find it: > Market.

- New apps: To read about or download an app in Market, touch it.

Market THE GETAWAY PART Apps see more > Games see more > Books Google Goggles Google Inc Google Maps Google Inc Google Pinyin IME Google Inc. My Apps Settings Accounts Help

- Search for apps.

- Touch an app to open its details or install it. - Touch 📁 to show your downloaded apps, settings, or help.

Note: When installing an app, make sure you read the alerts that tell you what information the app will access. If you don't want the app to have access to this information, cancel the installation.

- Downloaded apps: To show apps you downloaded from Market, touch My apps.

Tips & tricks

- Quick access: For quick access to Market, just touch 🔒 to open the app menu, then touch 🔒 in the top right.

- Trusted apps: Choose your apps and updates carefully, from trusted sites like Market, as some may impact your phone's performance—see "Choose Carefully" on page 14.

- Recent apps: To show the last few apps you've used, touch and hold Home 📄.

• Update: To make your apps update automatically, touch 📷 > Market > Menu 📁 > My apps, touch an app to open details, then touch the Allow automatic updating checkbox.
• Uninstall: To uninstall or manage apps, from the home screen touch Menu ☐ > Settings > Applications > Manage applications, then touch an app.

Manage & Restore Apps

Find it: Menu □> Settings > Applications > Manage applications

Touch an app in the list, then choose Uninstall (for apps you downloaded), Clear cache, Move to SD card (for downloaded apps), or other options.

Android Market is also available on your computer—go to market.android.com. Sign in to browse and manage apps for all your Android™ devices.

If you have trouble removing an app, turn off your phone, then turn it back on—when you see the "Motorola" logo during power-up, press and hold both volume keys until you see the home screen. Your screen will show Safe Mode in the lower left corner, and you can remove the app.

To reinstall apps from Android Market, touch 📷 > 📋 (in the top right) > My apps. The apps you downloaded are listed and available for download.

Choose Carefully

Apps are great. There's something for everyone. Play, communicate, work, or have fun. But remember, choose your apps carefully. Here are a few tips:

- To help prevent spyware, phishing, or viruses from affecting your phone or privacy, use apps from trusted sites, like Market.

• In Market, check the apps' ratings and comments before installing.
• If you doubt the safety of an app, don't install it.
• Like all apps, downloaded apps will use up memory, data, battery, and processing power—some more than others. For example, a simple battery level widget will use less than a streaming music player app. After installing an app, if you're not happy with how much memory, data, battery or processing power it's using, uninstall it. You can always install it again later.
• Just like web browsing, you may want to monitor childrens' access to apps to help prevent exposure to inappropriate content.
• Certain apps may not provide completely accurate information. Take care, especially when it comes to personal health.

Update Your Phone

You can use your phone or computer to check, download, and install phone software updates:

• Using your phone:

If your phone notifies you about an update, follow the instructions to download and install it.

To manually check for updates, touch Menu □> Settings > About phone > System updates.

Your phone downloads any updates over your mobile network. Remember, these updates can be quite large (25MB or more) and may not be available in all countries. If you don't have an unlimited data plan, or mobile network updates are not available in your country, you can update using a computer.

• Using your computer:

On your computer, go to www.motorola.com/support and check the "Software" links. If an update is available, just follow the installation instructions.

Calls

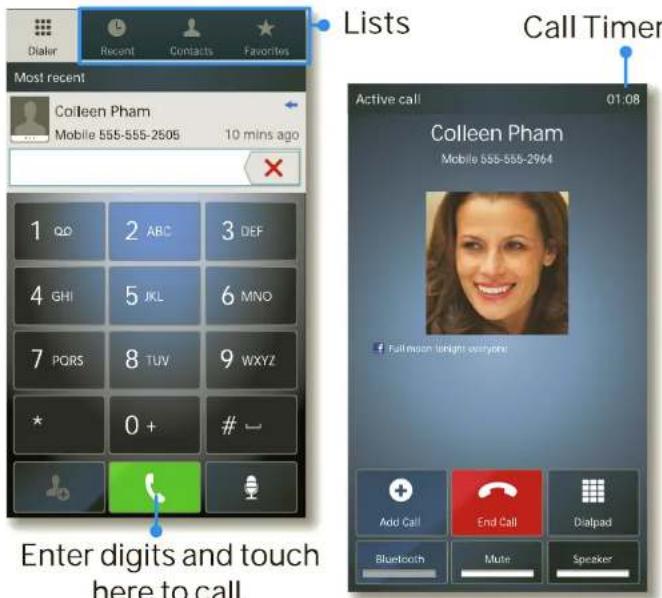

Quick Start: Calls

Dial numbers, see recent calls, and more.

Find it: Dialer

Dialer Recent Contacts Favorites Most recent Colleen Pham Mobile [phone] mins ago 1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUY 9 WXYZ * 0+ # Enter digits and touch here to call. Lists Call Timer Active call 01:08 Colleen Pham Mobile [phone] Full moon tonight everyone! Add Call End Call Dialpad Bluetooth Mute Speaker

• Make a call: In the dialer, enter a number then touch 📞.
- During a call: Touch Menu ☐ to choose Hold. Your touchscreen goes dark to avoid accidental touches. To wake it up, press Power 🔒.

Tips & tricks

• Pause dialing: When dialing, touch Menu ☐ to add a pause (pauses two seconds), or wait (waits for your confirmation).
• Multi-task: To hide the call display during a call, touch Home 📋 or Back ↗. To reopen it, touch 🔒 Dialer.
• Recent calls: To show recent calls, touch 📁 Dialer >Recent.
• Voicemail: A ☐ shows in the status bar when you have new voicemail. To hear it, touch 📊 Dialer then touch and hold 1.

- Forwarding and restrictions: In the home screen, touch Menu [icon] > Settings > Call settings.

Make & Answer Calls

To make a call, touch 📊 Dialer, enter a number, then touch 📊.

Tip: To enter the international dialing code (+), touch and hold 📄. To add a pause or wait after numbers, touch Menu 🔊.

To answer a call, drag Answer to the right (when your phone is unlocked, Answer is just a touch button).

You can press Power 🔒 to ignore the call, or press a volume key to silence the ring.

End Calls

Touch End call.

Note: When you hold your phone to your ear, the touchscreen goes dark to avoid accidental touches. When you move your phone away from your ear, the display lights up again.

Add Call End Call Gialpad Bluetooth Mute Speaker

Your touchscreen might stay dark during calls if the sensor just above it is covered. Don't use covers or screen protectors (even clear ones) that cover this sensor. To find Motorola accessories for your phone, visit

www.motorola.com.

Tip: You can touch Home 📄 or Back ↩ to hide the active call display. To reopen it, touch 🔔 Dialer.

Speed Dial

- To set up your speed dial list, touch Dialer > Menu >> Speed dial setup.

• To call a number in the list, touch 📊 Dialer, then touch and hold the list number.

Favorites

Find it: Dialer > Favorites

Your favorite contacts are listed, followed by numbers you call frequently but haven't tagged as Favorites.

To tag a favorite, open Contacts, touch a contact, then touch the star to the right of their name.

Voice Dial

Find it: Dialer >

Say a number, or a name from your Contacts.

Handsfree

Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely.

During a call:

• To use the speakerphone, touch Speaker.
- To use a connected Bluetooth™ device, touch Bluetooth in the call display.

Mute & Hold

During a call:

• To mute the current call, touch Mute.
- To put a call on hold, touch Menu □> Hold.

Enter Numbers During a Call

To enter numbers during a call, touch Dialpad and touch the numbers.

Add Call End Call Bluetooth Mute Speaker Dialp

Voicemail

When you have a new voicemail, ∞ shows in your status bar. To access voicemail, touch 🔒 Dialer then touch and hold 1.

If you need to change your voicemail number, in the home screen touch Menu □> Settings > Call settings > Voicemail settings.

Tip: If the voicemail system asks for a mailbox number, or if you need help setting up your voicemail, call 611 from your device.

Recent Calls

Find it: Dialer > Recent

• To call a number, touch (on the right.
- To send a text message, store the number, or other options, touch and hold an entry.
• To filter the list, touch the list name (like All calls) at the top.
• To clear the list, touch Menu ☐.

Conference Calls

To start a call between you and two other callers, call the first number. After they answer, touch Add Call and call the next number. When the next number answers, touch Merge.

Your Phone Number

Find it: Menu □> Settings > About phone > Status > My phone number

Your Caller ID

To hide your number from the people you call, touch Menu □> Settings > Call settings > Additional settings > Caller ID.

Call Forwarding & Waiting

Call forwarding can forward calls all the time, or only when your phone is busy, unanswered, or unreachable (not on the network). To set call forwarding, touch Menu > Settings > Call settings > Call forwarding.

Call waiting lets you answer a second call when you're already on a call. To turn off Call waiting and send second calls straight to your voicemail, touch Menu > Settings > Call settings > Additional settings > Call waiting.

Restrict Outgoing Calls

To restrict your phone so that it can only dial a few numbers, touch Menu □□>

Settings > Call settings > Fixed dialing number.

• To turn fixed dialing on, touch FDN disabled.
- To add or delete the allowed numbers, touch Manage FDN list.

Cool Down

In very limited circumstances, such as where your phone has been exposed to extreme heat, you may see "Cool Down" messages. To avoid possible damage to your battery and phone, you should follow these instructions until the phone is within its recommended temperature range. When your phone is in "Cool Down" mode, only emergency calls can be made.

Emergency Calls

Note: Your service provider programs one or more emergency phone numbers that you can call under any circumstances, even when your phone is locked. Emergency numbers vary by country. Your pre-programmed emergency number(s) may not work in all locations, and sometimes an emergency call cannot be placed due to network, environmental, or interference issues.

1. Touch 📁 Dialer (if your phone is locked, touch Emergency Call or touch Menu 📁 > Emergency call).
2. Enter the emergency number.
3. Touch 📊 to call the emergency number.

Note: Your phone can use location based services (GPS and AGPS) to help emergency services find you. See "Location Services (GPS & AGPS)" on page 72.

Contacts

Quick Start: Contacts

Store emails, phone numbers, and addresses for quick access.

Find it: 📁 Dialer > Contacts

Open Contacts. Add a contact. Search your contacts. Create or choose a group to show. Touch a letter for quick access. Flick up or down to scroll. Touch a contact to open details. Touch & hold to send email, delete, and more.

• Open or edit: Touch a contact to open it, then touch Menu > Edit.
• Call, text, or email: Touch and hold a contact, then choose an option.

Tips & tricks

• Groups: To filter the contacts by group (All contacts, Facebook, and so on) touch the filter name at the top.
• Contact pictures: To change which account provides the pictures for your Contacts, from the home screen touch > Accounts > Menu > Picture source.
• Search contacts: From the home screen, just touch Search 🔒 and enter a contact's name.
• Send contacts: Touch and hold a contact, then choose Share name card to send a contact's details in a message or over a Bluetooth connection.

- Shortcuts: Touch and hold a blank spot on your home screen, then touch Widgets > Contact quick tasks.

- Synchronize: On your computer, upload contacts to your Google™ account at contacts.google.com. On your phone, touch > Accounts, choose your Google™ account, then choose Sync Contacts. You can also see these contacts in Gmail™.

Transfer Contacts

• To add your social networking contacts, see "Add Accounts" on page 26.
• To add your email contacts, see "Set Up Messaging" on page 29.
  Tip: If you add a Corporate Sync account, you can send messages to

your coworkers, even if you don't have them stored in your contacts.

- To import contacts from your SIM card (if that didn't happen automatically): Touch 📊 Dialer > Contacts, then touch Menu 📊 > Import/Export > Import contacts from: SIM card. Touch OK to confirm.

- To import contacts from your computer, upload the contacts to your Google™ account at contacts.google.com. On your phone, touch 📷 > 🎋 Accounts, choose your Google™ account, then choose Sync Contacts. You can also see these contacts in Gmail™.

• To get more options and help, go to www.motorola.com/TransferContacts.

Call, Text, or Email Contacts

Find it: Dialer > Contacts

Touch and hold the contact to open Call contact, Send text message, Send email, View contact, or other options.

You can also use "Voice Dial" on page 18.

Edit or Delete Contacts

Find it: Dialer > Contacts

Touch the contact, then touch Menu □> Edit or Delete.

Where are contacts edited or deleted?

Your phone edits the contacts in its memory, and can sync your Google™ account (touch > Accounts, choose your Google account, then choose Sync Contacts). Contact changes won't affect your SIM card.

Link Contacts

You might have two Contacts for the same person; maybe a Facebook friend who is also stored on your SIM card, or one friend with two email addresses. To combine these two contacts:

Find it: Dialer > Contacts

Touch a contact to open it, then touch Menu 📁 > Link contact and touch the second entry. Your phone remembers this connection.

Create Contacts

Find it: 📁 Dialer > Contacts > Menu 📄 Add contact

Touch a text box to type the name and details. When you're finished, touch Menu □□ > Save.

Where are contacts saved? Your phone can save new contacts in its memory and in your Google™ account. To choose

whether contacts are saved in your account, touch 📄 Dialer > Contacts > Menu 📋 > More > Settings > Contact storage. New contacts won't be on your SIM card, but they will download to new Android™ devices when you log into your Google account.

My Details

Find it: Dialer > Contacts > Menu My info

To edit details, touch Menu □> Edit.

Groups

You can put your Contacts into groups that you create (like "friends," "family," or "work"). Then, you can find contacts faster by showing one group at a time.

To create or show a group in your Contacts, touch Contacts: All contacts at the top of your screen and choose the group name.

Social networking

Quick Start: Social Networking

Add a social networking account (like Facebook® or Twitter), then use a Social Networking widget to stay updated.

Find it: 📷 > Accounts > Add account

Kristine Kelley Status update 10 minutes ago Knirstine Kelley Not even ready to go back to 10 minutes ago Touch the picture for contact options. Flick left to show more. Like Comment

Add your social networking accounts, then add a widget: Touch and hold an empty spot on your home screen and choose Widgets > Social Networking

• Show updates: Touch the Social Networking widget to open it, then flick left or right to see updates, or touch the icons at the bottom to respond.

Tips & tricks

• Change widget: To change which accounts or contacts appear in a Social Networking widget, open the widget and touch Menu > Settings.
• Show more: When you open a Social Networking widget, you can touch the Social Networking button to show a list of updates, or touch a person's name to show their info.

Add Accounts

When you add your Facebook or Twitter social networking accounts, friends appear in your phone's Contacts, and status updates appear in Social Status and Social Networking widgets.

Find it: 📷 > Accounts > Add account

Sign into your social networking account with the user name or email and password that you set up on that account (the same as on your computer). If you don't have social networking accounts, you can visit their web sites to set them up.

Note: Your network or other factors might affect the speed of widget updates. To download updates faster, see "Wi-Fi Networks" on page 48.

Update Your Status

After you add a social networking account, you can update your status in a Social Status widget.

To add a Social Status widget, touch and hold an empty spot on your home screen, then touch Widgets.

To update your status, just touch a Social Status widget and enter text. If you have more than one account, you can use the pull-down menu to limit which accounts are updated. When you open the widget, a number on the right side means you have unread status comments (touch it to open them).

Edit & Delete Accounts

Find it: > Accounts

Touch and hold an account, then touch Open account to edit it, or touch Remove account to remove it (along with its contacts and messages).

Text Messaging & Email

Quick Start: Messaging

Send and receive quick text messages or full emails.

Find it: 📷 > Messaging > Universal Inbox

Universal Inbox (%) Lisa Lindsay Charity Bike R Would you be int Porsoring me... Ravi Thakka Benefit for the Please join us Sa Don't forget... Dylan Foster Work Trip Will the presentation Lisa Jones Can you meet right now? I just got an opening in my calendar. Christine Fanning Music I just downloaded these guys, they're pl... Julie Hay Creative Concepts Here are the final concepts for you... Ronda Allen Presentation

Create a message.

Check for messages.

Touch a message to open it, or touch and hold for options.

Flick up for more.

Select multiple messages to move, delete, and more.

Please Don't Text and Drive.

Note: Universal Inbox shows all of your messages together—text, email, and social networking messages. To show only one type of message, touch a message account type instead of

Universal Inbox.

• Open a message: Touch it.
• Forward, or save attachments: Open a message, then touch and hold it to open options.
  • Voice entry: Just touch a text box, then touch 📋 on the touchscreen keyboard.

Tips & tricks

• Widget: Touch and hold an empty spot on your home screen, then touch Widgets > Universal Inbox.
• Universal inbox: To change which messages appear in the Universal Inbox, touch 📄 > Messaging > Universal Inbox, then touch Menu 📄 > Edit Universal Inbox.

Create Messages

Find it: 📷 > Messaging > +

Choose a message type. Then, enter the recipient and message. In text messages and emails, touch Menu ☐ to add files or choose other options. For more, see "Text Entry" on page 31.

Send & Receive Attachments

To send a file in a message, open a new message, touch Menu ☐, and choose the file.

When you receive a message with an attachment, open the message and touch the file name to download it. Then, touch the name again to open it. Some file formats can be converted to HTML for faster viewing, and your phone will show a button that says Get HTML version.

Tip: To send and receive large attachments faster, see "Wi-Fi Networks" on page 48.

Set Up Messaging

To add email accounts, touch >

Accounts > Add account.

• Corporate Sync is for Microsoft Exchange server work email accounts. Enter details from your IT administrator.

Tip: You might need to enter your domain name with your user name (like domain/username). To enter a backslash, touch Symbols SYM.

Note: Some corporate accounts might require you to add a password lock to your phone, for security.

To stop an account from showing the contacts you create on your phone, touch 📊 Dialer > Contacts, touch Menu 📋 > More > Settings, then

uncheck the account under New contacts.

Corporate email requires an enterprise data plan

- Email is for most personal and other accounts that aren't on a Microsoft Exchange Server. For account details, contact the account provider.

To change your settings, touch 📷 >

Messaging > Menu, then touch:

- Manage accounts to change your user name or password (or server settings, for email).

- Edit Universal Inbox to choose which accounts show messages in the Universal Inbox.

- Messaging Settings to set the notification for each account type (along with other preferences, for email).

Tip: You can tell your phone to send email as soon as you hit send (Data push), or set how often your phone sends and receives messages (Fetch schedule).

To get Gmail™ in your Messages widget and Universal Inbox, you'll need to add it as an Email account: Touch >

Messaging > Menu 📄, then touch Manage accounts > Add account > Email and enter your Gmail™ details. If you added your Google account too, turn off its email sync to avoid duplicate email notices: Touch 📋 > 📋 Accounts, touch your Google™ account, and touch the checkmark to turn off Gmail.

Tip: For social network accounts, see "Add Accounts" on page 26.

Instant Messages

You can use:

- Google Talk™: Touch 📷 > talk Talk. To find out more, visit www.google.com/talk

- Web browser: Touch Search 🔒, and enter your IM provider's Web site. Once you're there, follow the link to sign in.

- Apps: To search for an instant messaging app, touch 📷 > 📣 (in the top right). Your IM options will depend on your IM provider.

Text Entry

Quick Start: Text Entry

Anne Send q w e r t y u i o p a s d h j k l z x c v n m SYM

In Swype:

To enter a word, just trace a path through the letters.

To capitalize, go above the keypad.

For double letters, circle the letter.

To choose input methods, touch and hold an empty spot in the text box.

In Multi-touch: Touch a key for each letter, then touch predicted words to enter them.

Budget Meet Meet Meeting Meetings Me ▶ q w e r t y u i o p a s d f g h j k l z x c v b n m ?123

When you touch a text box to enter text, like in a message or search, you have keyboard options (to close the keyboard, touch Back ↩).

- Choose a keyboard: Touch and hold a blank spot in a text box, then choose Input Method > Swype or Multi-touch keyboard.

Swype™ text entry: Drag your finger over the letters of a word, in one continuous motion.

Multi-touch keyboard text entry:

Enter letters by touching them one at a time.

Tips & tricks

- Keyboard adaptation: Your touchscreen keyboard changes, depending on whether you're entering a text message, email, or other text.

- Move the cursor: Touch and hold a word you entered. This opens a

magnifier where you can drag the cursor.

• Copy & paste: Double-tap a word to highlight it (if needed, drag the ends of the highlight). Now touch and hold a blank spot for the copy and paste menu.
• Your dictionary: To add a word you enter often, double-tap the word to highlight it. Now touch and hold a blank spot to open the menu where you can add the word.

If Swype doesn't know a word, touch individual letters to enter it. Swype remembers, so next time you can just drag over the letters.

- Symbols: Touch and hold a key to enter the small number or symbol at the top of it.

To enter several numbers or symbols, touch SYM.

- Apostrophes: Drag through the apostrophe key to enter apostrophes in common contraction (like I'll).

Text Entry Settings

To change your text entry settings, touch Menu □> Settings > Language & keyboard, then:

• To change your Swype settings, touch Swype.
• To edit your word suggestion dictionary for the Multi-touch keyboard, touch User dictionary.
• To change the language for your display, touch Select locale.
• To change the sounds, corrections, and other settings for your touchscreen keyboard, touch Multi-touch keyboard.

Photos & Videos

Quick Start: Photos & Videos

Capture photos and videos to send them to friends or save them for later.

Find it: > Camera or Camcorder

700 Photos/time remaining Last photo or video Front or back camera Zoom Capture Camera or camcorder Flash Brightness Panorama or multi-shot Scene lighting Effects (like black and white) Resolution & more

• Take a photo: Open the camera, then touch ⚙ (or touch and hold to focus, then release to take).

- Record a video: Touch the camcorder icon in the camera or touch 📄>

Camcorder from the home screen. To start or stop recording, press Camera 📷.

Tips & tricks

- Zoom: Press the volume keys.

- Last photo or video: You'll see a thumbnail of your photo or video in the bottom left corner. Touch it to open it, then touch Menu ☐ to see options.

- All photos or videos: To open any photos and videos you captured, touch > Gallery, then touch a photo or video for options like Share.

- Send: To send a video in a message, set the video quality first: Touch Menu 📄 > Settings > Video Resolution >

Medium (QVGA). After you record the video, touch its thumbnail in the lower left, then touch it for sharing options.

• Resolution: In the viewfinder touch Menu > Settings > Picture Resolution.
• Clarify: For the clearest photos and videos, clean the lens with a soft, dry cloth.

View & Share Photos & Videos

Find it: 📷 > Gallery

Tip: To open your last photo or video from the viewfinder, just touch the thumbnail in the bottom left corner.

Touch a folder to show its photos or videos, then touch and hold a thumbnail for options, or just touch it to open it.

• To zoom in, touch the screen with two fingers and then drag them apart. To zoom out, drag your fingers together.

Exterior view of the Arc de Triomphe in Paris at dusk, illuminated with warm lighting (no signage or text visible)

To rotate a picture, place your thumb on the screen and then make an arc with your finger.

- To send or post the photo or video, touch and hold a thumbnail, then touch Share.

To copy photos to/from a computer, go to "File Access" on page 50.

Tip: With Photo Sharing, you can post a photo to more than one social network at the same time.

• To delete the photo or video, touch and hold a thumbnail, then touch Delete. To delete multiple files, touch Menu □> Select multiple, check the thumbnails, then touch Menu □> More > Delete.
• To set a photo as your wallpaper or a contact photo, touch and hold a thumbnail, then touch Set as.
• To edit a photo, , touch and hold a thumbnail, then touch Edit
• To play a slideshow, open a picture, then touch Menu □> More > Slideshow. To stop the slideshow, touch the display. To return to the gallery, touch Back ↩.

Tip: Turn the phone sideways for a widescreen view.

Photo & Video Settings

In the viewfinder, touch Menu > Settings to open a menu.

options
Picture Resolution	Set the resolution of your photo.
Video Resolution	Set the resolution of your videos.
Quick upload album	Choose or add an account for uploading photos
Review Time	Set how long your phone shows photos after you take them.
Storage Location	Set where photos are saved.
Capture Tone	Set whether a sound plays when you take a picture.

YouTube™

Share videos with YouTube users everywhere. You don't need a YouTube account to browse and view videos.

Find it: > YouTube

Note: If you don't have a YouTube account, visit www.youtube.com to find out more. To create an account or sign in, touch Menu > My account.

To Search, Upload, or Share videos, touch Menu ☐.

Music

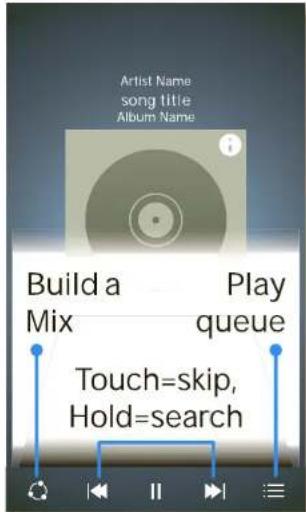

Quick Start: Music

Put music on your phone so you can listen and create playlists anytime.

Find it: > Music

Setup music player MUSIC Now playing My library Podcasts Internet radio FM radio

Set up Media Link.

Artist Name song title Album Name Build a Mix Play queue Touch=skip, Hold=search

• Hide or show the music player: Touch Home 📄, and your music continues to play (▶ shows in the status bar). To show the player again, flick down the status bar and touch the song.
• Stop music: Touch □ in the player.
• Stream music: Touch 📷 > ZumoCast, then follow the prompts to set it up. ZumoCast lets you access videos, music, and other files straight from your computers, without having to upload or sync.

Tips & tricks

• Playlists: Touch and hold a song in your library (or touch Menu when it is playing) to add it to a playlist or show other options. To edit, delete and rename a playlist, touch and hold its name in the music library.
• During a flight: Press and hold Power 🔒 > Airplane mode to turn off

all your network and wireless connections and listen to music during a flight.

- Sync music files: Use a USB cable to connect your phone to a Microsoft Windows XP, Windows Vista or Apple™ Macintosh™ computer. If Motorola Media Link and desktop drivers do not install automatically, visit www.motorola.com/mymedialink.

Your phone can play MP3, M4A, AAC, ACC+, MIDI, and WAV file types.

AT&T Features & Services

Features & Services

• AT&T Navigator®—Get voice-guided, turn-by-turn, GPS-enabled directions. It is the fastest way to get where you are going—whether across town or across the country.
• AT&T Code Scanner—AT&T Code Scanner reads UPC, QR and Data Matrix barcodes that you find on products, in ads or on-line, allowing you to compare prices, reviews, web sites, videos, coupons or learn more about products.
• U-verse TV—Watch LIVE, on-demand & downloadable mobile TV including ESPN Mobile TV, Fox News and more.

Data usage and subscription charges may apply.

More Information

For information on setting up or using these services, visit att.com/Tutorials. To add these services, contact your local AT&T store or call 1-800-331-0500.

Browser

Quick Start: Browser

Open Browser to find a page or just explore.

Find it: > Browser

AT&T 11:28 Search or type URL Connection Share this page. Bookmarks News results for android Android Developers 7 hours ago Official file provides the SDK. Developers' Guide, Reference, and Android Market for the open. developer android com/ - Options Zoom To zoom in or out, pinch two fingers together or apart. Touch to open the menu.

- Web page URL: In the browser or your home screen, just touch Search 🔒 to enter an address.

Note: If you can't connect, contact your service provider.

Tips & tricks

- RSS news feeds: A 📞 at the right of the address bar means you can add the page's RSS news feed to a News app or widget: Touch Menu □> More > RSS Feeds.

- Reload: If a page doesn't load correctly, try touch Menu [icon] > Refresh.

Connect

Your phone uses the mobile phone network (over the air) to automatically connect to the web.

Note: Your service provider may charge to surf the web or download data.

To use a wireless network, touch Menu > Settings > Wireless & networks. Touch Wi-Fi to turn it on, then touch Wi-Fi settings to search for nearby wireless networks. Touch a network to connect. There's more in "Wi-Fi Networks" on page 48.

Download Apps

Warning: Apps downloaded from the web can be from unknown sources. To protect your phone and personal data, only download apps from sources you trust, like "Apps" on page 13.

Note: All apps downloaded are stored in your phone memory.

To download apps:

1. To launch the browser, touch 📷 > Browser.

2. Find the app you want to download and touch the download link.

Manage your downloads

To view files or applications you have downloaded, touch > Browser > More > Downloads.

To clear your download history, touch Menu □> Clear list. To cancel, touch Menu □> Cancel all downloads.

Location

Quick Start: Location

Open Maps or just touch Search 🔒 to find an address, then get directions, check in, or save the location.

Find it: > Maps

Chicago, IL Show your location. Show map layers. Find nearby places. Drag or flick to scroll. Touch to open, then touch to add to Starred Places. Touch to get directions, open starred places, and more.

Google Maps™ offers powerful, user-friendly mapping technology and local business information—including business locations, contact information, and driving directions.

• Find an address: Enter the address in the search box at the top. The map moves to show the address.
• Find nearby businesses or attractions: Touch 🔥 at the top.
- Get directions: Find an address on the map, touch it, then touch 📐.
- Save an address: Touch the address, then touch the star by its name. To show your starred places, touch Menu □> Starred Places.
- Get map help: Touch Menu □> More > Help.

Tips & tricks

• Zoom: To zoom in or out, touch the screen with two fingers and pinch them together or apart.
• Rotate: To rotate a map, touch the screen with two fingers and then drag one in a circle while the other one stays still.
• Send your location: To tell others where you are, touch My Location, touch your name, and choose Send location to others.
• Identify address: Touch and hold a spot on the map to show the nearest address.

Google Maps Navigation™ Beta

Google Maps Navigation Beta is an Internet-connected GPS navigation system with voice guidance.

Find it: 📄 > ▲ Navigation

Follow the prompts to speak or type your destination.

For more, go to

www.google.com/mobile/navigation.

Google Latitude™

Google Latitude lets you see where your friends and family are on Google Maps™. Plan to meet up, check that they got home safely, or just stay in touch. Don't worry, your location is not shared unless you agree to it. After you join Google Latitude, you can invite your friends to view your location, or accept their invitations.

Touch > Latitude and then:

- To add friends, touch Menu □> Add friends.

Touch Select from Contacts or Add via email address, then touch a

contact and Add friends. Your friend will receive an email notice.

• To remove friends, touch a name, then touch Remove.
• To share your location when you receive a request, you can choose Accept and share back (show your location and see theirs), Accept, but hide my location (hide your location, but see theirs), or Don't accept (hide both locations).
• To hide your location, touch your contact name, then touch Menu □□> Settings > Do not detect your location.
• To sign out, touch Menu > Settings > Sign out of Latitude.

Screen Connections

Quick Start: Screen Connections

The ATRIX™ 2 has a dual-core 1GHz processor, 1GB of RAM, and 8GB of internal memory. Make the most of its

Select an application to launch Webtop in your phone this eE Gallery down print and cover Music Access, Remove and share music Mirror on display Access and display all the words application is a larger display Remember my selection Optional Dock or HDMI Cable Webtop application in your TV or Monitor HDMI Mobile View App Tray Full Desktop Browser

computing power with the webtop application.

Connect to a display using an optional dock or HDMI™ cable:

• HDMI: An optional HDMI cable lets you connect your HDMI display and use your phone as a controller.
• Lapdock™: An optional Lapdock gives you a display, full keyboard, and touchpad.
• HD Multimedia Dock: An optional HD Multimedia Dock lets you connect an HDMI display, USB keyboard, and USB mouse.

Tips & tricks

• Games and apps on the big screen:
Open the webtop application, then open a game or app in the mobile view of your phone. In apps like Maps and Gallery, you can still pinch-to-zoom on your phone's display

• Games and apps on the big screen: Open the webtop application, then open a game or app in the mobile view of your phone. In apps like Maps and Gallery, you can still pinch-to-zoom on your phone's display

• Other docks: You can do more with other docks too:

A Standard Dock shows an alarm and shortcuts you can set for each dock, plus it lets you connect headphones or speakers.

A Vehicle Dock shows shortcuts you can set to maps, navigation, and Internet services like voice search and radio.

Webtop Application

The webtop application lets you browse, or use web apps, on a large screen in a full Firefox browser. Create and share documents, spreadsheets, and

presentations, with online tools like Google Docs™.

To open the webtop application, connect your ATRIX 2 to a TV or display using optional docks. Docks also let you use a full keyboard and mouse.

• In the Phone window, you can open your phone apps.
- At the bottom of the screen, you'll see App Shortcuts.

You can open multiple 🔍 Firefox browsers.

- In the top right of the screen, you'll see icons for status and Settings.

For help in the webtop application, open ⚙️ Settings > Help in the top right of the screen.

When you're done using the webtop application, just disconnect your phone from the cable or dock.

Bluetooth™ & Wi-Fi Connections

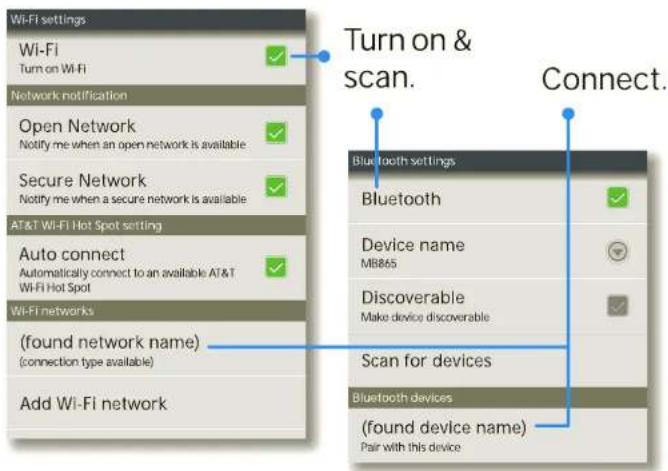

Quick Start: Bluetooth & Wi-Fi Connections

Connect your phone to Bluetooth headsets or fast Wi-Fi networks.

Wi-Fi settings Wi-Fi Turn on Wi-Fi Network notification Open Network Notify me when an open network is available Secure Network Notify me when a secure network is available AT&T Wi-Fi Hot Spot setting Auto connect Automatically connect to an available AT&T Wi-Fi Hot Spot Wi-Fi networks (found network name) (connection type available) Add Wi-Fi network Turn on & scan. Connect. Bluetooth settings Bluetooth Device name MB865 Discoverable Make device discoverable Scan for devices Bluetooth devices (found device name) Pair with this device

Bluetooth™ & Wi-Fi Connections

Find it: Menu □> Settings > Wireless & networks > Bluetooth settings or Wi-Fi settings

• Connect a Bluetooth device: Touch Menu > Settings > Wireless & networks > Bluetooth > Bluetooth settings > Scan for devices (or Bluetooth, if it is off). Touch a device that your phone found, to connect it.
• Connect a Wi-Fi network: Touch Menu [■] > Settings > Wireless & networks > Wi-Fi settings.
• Make your phone a hotspot: Touch Menu > Settings > Wireless & networks > Tethering & Mobile hotspot > Mobile hotspot. Other devices can find your phone as a WiFi network, and use it to connect to the Internet.

Tips & tricks

• Connect DLNA™ devices: Touch > DLNA to find DLNA Certified devices

on your Wi-Fi network. They can play or transfer the videos, pictures, and music stored on your phone.

- Extend battery life: Turn off Bluetooth power and Wi-Fi power when you're not using them.

- Find or stop connections: Turn Bluetooth or Wi-Fi power off to stop a connection. Turn them off and on to search for a new connection. To add a quick switch, touch and hold a blank spot on your home screen, then touch Widgets > Bluetooth toggle or WiFi toggle.

- Turn off all connections: To quickly turn off all wireless and network connections, press and hold Power 🔒, then touch Airplane mode.

Bluetooth Handsfree Devices

Note: This feature requires an optional accessory.

To connect with a new device, you need to pair with it. You only need to do this once for each device—to connect again, just turn on the device.

1. Make sure the device you are pairing with is in discoverable mode.
   Refer to the guide that came with the device for details.
2. Touch Menu 📁> Settings > Wireless & networks > Bluetooth settings.
3. Touch Bluetooth to turn on and scan. If Bluetooth power is already on, touch Scan for devices.
4. Touch a device to connect.
5. If necessary, touch OK, or enter the device passkey (like 0000) to connect

to the device. When the device is connected, the Bluetooth icon 📋 appears in the status bar.

Note: Using a mobile device or accessory while driving may cause distraction and may be illegal. Always obey the laws and drive safely.

After you connect:

- To reconnect with a device, turn on the device or touch the device name in the Bluetooth devices list.

- To disconnect a device, turn off the device, or touch the device name in the devices list and touch Menu □> Disconnect.

- To turn off Bluetooth power: Touch Menu > Settings > Wireless & networks > Bluetooth.

Wi-Fi Networks

To connect a network in your range:

1. Touch Menu □> Settings > Wireless & networks > Wi-Fi settings.

2. Touch Wi-Fi to turn on and scan. If Wi-Fi is already on, touch Menu □□> Scan. Your phone lists the networks it finds within range.

Tip: To show your phone's MAC address or other Wi-Fi details, touch Menu □□> Advanced.

1. Touch a network to connect. If necessary, enter pass codes from the network administrator and touch Connect.

When Wi-Fi power is on and your phone finds a network you've used, it automatically reconnects and shows in the status bar.

To turn off Wi-Fi power: Touch Menu [icon] > Settings > Wireless & networks > Wi-Fi.

Wi-Fi hotspot

Your can make your phone a Wi-Fi hotspot to provide portable, convenient internet access to other Wi-Fi enabled devices.

Note: Keep it secure. To protect your phone and hotspot from unauthorized access, it is strongly recommended that you set up hotspot security (WPA2 is the most secure), including password.

To set up your phone as a Wi-Fi hotspot:

1. Turn off Wi-Fi power by touching Menu □> Settings > Wireless & networks > Wi-Fi.

2. Touch Menu □> Settings > Wireless & networks > Tethering & Mobile hotspot

3. Touch Mobile hotspot to turn on the hotspot.

4. Touch Wi-Fi hotspot settings to change hotspot security and configuration:

5. SSID—Enter a unique name for your hotspot.

6. Security—Select the type of security you want: Open or WPA2. For WPA2, enter a unique password that others will need to access your Wi-Fi hotspot.

Note: WPA2 is recommended by IEEE.

- Channel—If you notice interference after your hotspot has been active for a while, you can try different channels.

1. Touch Save when the settings are complete.

When your Wi-Fi hotspot is active, other Wi-Fi enabled devices can connect by entering your hotspot's SSID, selecting a Security type, and entering the correct Wireless password.

DLNA™ Media Devices

You can use DLNA Certified computers, TVs, and other devices to play or transfer the videos, pictures, and music stored on your phone.

1. Make sure your phone is connected to a Wi-Fi network that has another DLNA Certified device.
2. Touch > DLNA
3. Touch Play media, Copy media to server, Copy media to phone, or Share media.

Your phone searches for DLNA devices on your network. To search again, touch Menu [■] > Refresh.

1. Choose a device to connect.

For more about DLNA devices, visit www.dlna.org.

Airplane Mode

Use airplane mode to turn all your wireless connections off—useful when flying. Press Power 📄 > Airplane mode.

Note: When you select airplane mode, all wireless services are disabled. You can then turn Wi-Fi and/or Bluetooth back on, if permitted by your airline. Other wireless voice and data services (such as calls and text messages) remain off in airplane mode. Emergency calls to your region's emergency number can still be made.

File Access

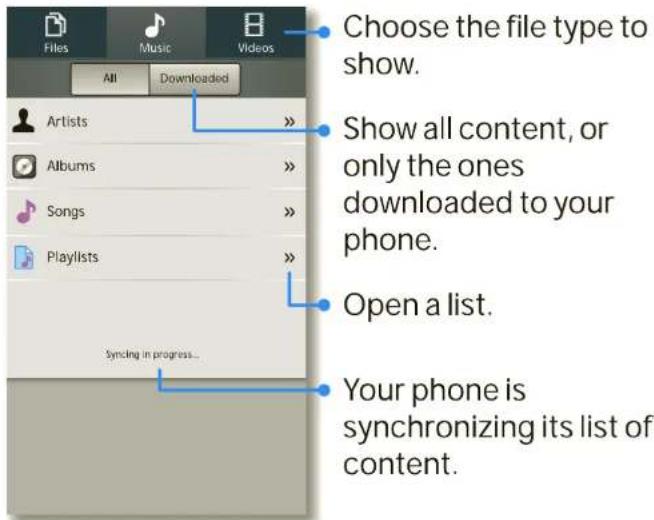

Quick Start: File Access

Stream videos and music from your computer to your phone, or any browser.

Find it: 📄 > ZumoCast

Create or log into your ZumoCast account. On your computer, install

Choose the file type to show. Show all content, or only the ones downloaded to your phone. Open a list. Your phone is synchronizing its list of content.

ZumoCast from www.zumocast.com and log in to choose folders to share.

• File types: Choose to open your document Files, Music, or Videos.
• Streaming or downloaded: Choose to show All content, updated live from your computer, or only the files Downloaded to your phone.
• Update the file list: Touch Menu > Refresh to update the list of files from your computer.

Tips & tricks

- From any browser: Go to www.zumocast.com and log into your account to see your files.

View Files with a Computer

Phone Portal connects your phone's memory card to your computer with a cable or a Wi-Fi network.

Note: Phone Portal works best with Internet Explorer 7 or newer, with Java script and cookies enabled.

Open your recent activity (Home), Contacts, Photos, Settings, File Manager, or Support.

Open details about your phone's network signal, battery, or memory.

MOTO PHONE PORTAL Name Contacts Photos Settings File Manager Software and Support Mobile Inbox All SMS Calls Recent Photos Early 2016 Thunlar Songt Mary Mar 4, 2016 Dealy Thunlauy Mary Mar 5, 2016 Back in my room, Realty Joey Mar 5, 2016 Only alive closed for ... Mary Mar 5, 2016 08:00 Jill Vallner Mar 5, 2016 Are you alone? Coach's Mar 5, 2016 Delete All AI Compose English (US)

Show All recent activity, Choose your language. or only your SMS (text messages) or Calls.

Note: To connect a Wi-Fi network, see "Bluetooth™ & Wi-Fi Connections" on page 45. Most public Wi-Fi networks (like the ones at coffee shops) don't let devices connect to each other. In that case, you need a USB cable connection.

Touch > Phone Portal

• To use your Wi-Fi network connection, touch Connect with Wi-Fi.

Your phone shows a URL.

Enter the URL in the browser on any computer on the network to open the Phone Portal home screen (note the: before the last number in the URL).

• To use a USB-to-micro USB cable, connect your phone and computer with the cable. Your phone shows a URL.

Illustration of a device connected to a laptop via cable, showing a USB cable inserted into a black USB drive (no text or symbols present)

Enter the URL in computer's browser to open the Phone Portal home screen (note the: before the last number in the URL)

If your computer needs to download drivers for your phone, visit www.motorola.com/support. If a camera connection window opens, just close it.

If Phone Portal doesn't connect, flick down the your phone's status bar, touch the and choose the Motorola Phone Portal connection.

Tip: Right-click 📂 in your computer task bar to choose the Motorola program that automatically launches when you connect your device.

View Files on Your Phone

Use Quickoffice to view and edit files on your memory card.

Find it: > Quickoffice

Touch a file or folder to open, or touch and hold a file for options. You can edit most text or spreadsheet files:

• Place your cursor by touching the text.
• Select text by double-tapping it.
• Open a keyboard, choose formatting, save the file, or choose other options by touching Menu.

Schedule

Quick Start: Schedule

You can start your day with the alarm, and synchronize your calendar with your Google™ account!

Find it: >31 Calendar

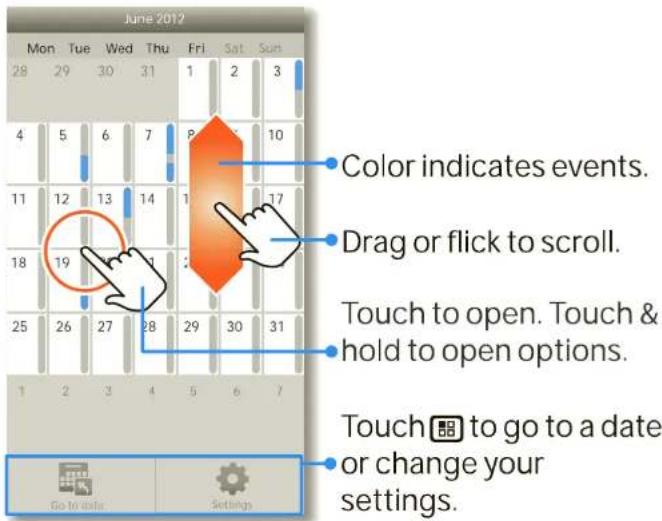

June 2012 Mon Tue Wed Thu Fri Sat Sun 28 29 30 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 17 18 19 20 21 25 26 27 28 29 30 31 1 2 3 4 5 6 7 Color indicates events. Drag or flick to scroll. Touch to open. Touch & hold to open options. Touch to go to a date or change your settings.

• Create an event: Touch 📄> Calendar > Menu 📋> More > New event. Enter event details and touch Save.
• Edit or delete an event: Touch 📄 > 31 Calendar, touch the event to open it, then touch Menu 📋 > Edit event or Delete event.

Tips & tricks

• Synchronize: Calendar synchronizes with your Google account calendar, which you can open on any computer at calendar.google.com (or open the calendar from your Gmail™). To turn off sync, touch 📷 > 📋 Accounts, touch your Google™ account, then uncheck Sync Calendar.
• Alarms: You can set a reminder on an event when you create or edit it. You can also set an alarm or countdown timer by touching 📷 > ✅ Alarm & Timer.

- Bedside clock: You can purchase a Motorola dock to turn your phone into an alarm clock, weather station, music player and more, all while recharging it on your desk or night stand.

Alarm Clock

Find it: 📷 > √ Alarm & Timer

To turn on an alarm, touch the check box.

To add an alarm, touch Menu □> Add alarm, then enter alarm details.

To set a snooze period, in the Alarm Clock list touch Menu □> Settings > Snooze duration.

When an alarm sounds, drag Dismiss to turn it off or touch the screen to snooze.

To cancel a snoozed alarm, drag down the status bar bar and touch the alarm name.

To use the timer, just open the alarm clock, touch Timer at the top of the screen, and enter the countdown time.

Date & Time

Set date, time, time zone, and formats:

Find it: Menu □> Settings > Date & time

Security

Quick Start: Security

Protect your information, in case your phone is lost or stolen.

Find it: Menu □> Settings > Location & security

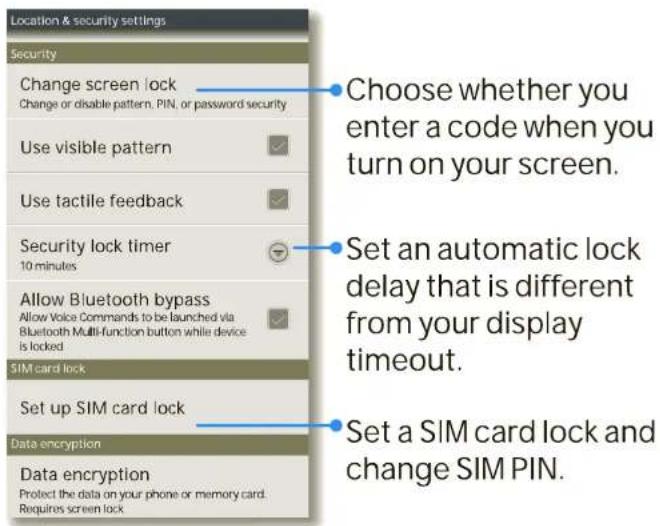

Location & security settings Security Change screen lock Change or disable pattern, PIN, or password security Use visible pattern Use tactile feedback Security lock timer 10 minutes Allow Bluetooth bypass Allow Voice Commands to be launched via Bluetooth Multi-function button while device is locked SIM card lock Set up SIM card lock Data encryption Data encryption Protect the data on your phone or memory card. Requires screen lock Choose whether you enter a code when you turn on your screen. Set an automatic lock delay that is different from your display timeout. Set a SIM card lock and change SIM PIN.

Note: You can make emergency calls on a locked phone ("Emergency Calls" on page 21). A locked phone still rings, but you need to unlock it to answer.

- Screen lock: To set a lock pattern, PIN, or password that you must enter when you wake up the screen, touch Menu > Settings > Location & security > Set up screen lock. Some Corporate Sync accounts might require you to add a Password to your phone, for security.

If you forget your lock password or pattern, you will need to reset your phone (see "Reset" on page 56).

- SIM lock: To set a SIM card PIN that you must enter when you turn on your phone, touch Menu > Settings > Location & security > Set up SIM card lock > Lock SIM card. Enter your SIM PIN code. To change your code, choose Change SIM PIN.

Caution: If you enter an incorrect PIN code three times, your phone locks your SIM card and asks for your PIN unlock code. Contact your service provider for your PIN unlock code.

Tips & tricks

- Restrict dialing: To restrict your phone so that it can only dial a few numbers, touch Menu > Settings > Call settings > Fixed dialing number.

Reset

To reset your phone to factory settings and erase all the data on your phone, touch Menu □> Settings > Privacy > Factory Data Reset > Reset Phone.

Warning: All downloaded apps and user data on your phone will be deleted. Data on your memory card will not be deleted.

Tips & Tricks

Make it faster and easier to get the most out of your phone every day.

Battery Tips

Your phone is like a small computer, giving you a lot of information and apps, at 3G speed, with a touch display! Depending on what you use, that can take a lot of power.

To start getting the most out of your battery, touch Menu > Settings > Battery Manager > Battery mode. In Battery Manager, touch the battery image to show what's using the most battery.

To save even more battery life between charges, you could reduce:

- recording or watching videos, listening to music, or taking pictures.

- widgets that stream information to your home screen, like news or weather.

- unused online accounts that you registered ("Edit & Delete Accounts" on page 27).

- Wi-Fi and Bluetooth™ use: touch Menu > Settings > Wireless & network settings, then touch items to turn them off or on.

- GPS use: Touch Menu > Settings > Location & security > Use GPS satellites.

- Email updates: Touch 📋 Messaging > Menu 📋 > Messaging Settings > Email > Email delivery > Fetch schedule, then choose a longer interval or Manually. To check manually, touch 📋 at the top of your inbox.

- network speed: Touch Menu > Settings > Wireless & networks > Mobile networks > Select network > 2G Only saves battery.

• network searching: If you are out of coverage, to keep your phone from looking for networks, press and hold Power 🔒 to open the Power key menu, then touch Airplane mode.
• display brightness: Touch Menu 📄> Settings > Display > Brightness > (dimmer setting).
• display timeout delay: Touch Menu > Settings > Display > Screen timeout > (shorter setting).

Accessibility

See, hear, speak, feel, and use. Accessibility features are there for everyone, helping to make things easier.

Voice recognition

• Dialing and commands: Touch 📷 > Voice Commands. To dial, say "Call" and then a contact name or phone number. You can also say a command

from the list shown, like "Send Message " or "Go To

"

• Search: Touch and hold Search 🔒 to open voice search, then say what you want to search for, like "Motorola accessories".
• Text entry: Touch a text entry field to open the touchscreen keyboard. Touch 📄, then say what you want to type.

Tip: Speak naturally but clearly, like using a speakerphone.

Voice readouts

Note: You might need to download text-to-speech software (data charges may apply).

To turn on voice readouts, touch Menu > Settings > Accessibility. Touch Accessibility to enable the settings, then touch Voice Readouts.

- Menus and screens: When you touch an item in a menu or screen, your phone speaks the name. To select an item, double-tap it.

Note: Touching a home screen widget or shortcut will open it.

- Dialer & text entry: As you type, your phone speaks each number or letter.

- Notification: When you flick the status bar down, your phone speaks all of the notifications.

Tip: Navigate through your apps and menus to hear how voice readouts work on your phone.

Caller ID

When you want to hear who's calling:

- Read out loud: Have your caller announced-touch Menu 📁 > Settings > Call settings > Caller ID Readout.

- Ringtones: Assign a unique ringtone to a contact-touch 📄 Dialer > Contacts, open a contact, then touch Menu 📋 > Edit. Ringtones are listed under Additional info.

Voice settings

Find it: 📷 > Voice Commands

Menu 📷 > Settings

You can refine recognition of your voice (Adaptation) and set options like prompts and shortcuts.

Volume & vibrate

Find it: Menu □> Settings > Sound > Volume or Vibrate

Tip: To set separate volumes for calls and notifications (like new messages), choose Volume and uncheck Use incoming call volume for notifications.

Zoom

• Magnification window: You can open a magnification window that you can drag around the screen: Touch
  Menu > Settings > Accessibility. Touch Accessibility to enable the settings, then touch Zoom Mode.
• Pinch to zoom: You can pinch to zoom on maps, web pages, and photos: To zoom in, touch the screen with two fingers and then drag them apart. To zoom out, drag your fingers together.

Display brightness

Find it: Menu □> Settings > Display

Brightness

Uncheck Automatic brightness to set your own level.

Touchscreen & keys

You can hear or feel when you touch the touchscreen. Touch Menu > Settings > Sound:

• Touchscreen: To hear screen touches (click), select Audible selection.
• Keys: To feel screen keyboard touches (vibrate), select Haptic feedback.
• Screen lock: To hear when you lock or unlock the screen (click), select Screen lock sounds.

Messages

Create, send, and receive text messages, IMs, email, and more, all in one place.

Find it: 📷 > Messaging > Universal inbox

To make text entry even easier, you can use features like auto-complete, auto-correct, and auto-punctuate-touch Menu

Settings > Language & keyboard. Of course if you don't want to type at all, then use your voice-touch 📋 on the touchscreen keyboard.

Hearing aids

To help get a clear sound when using a hearing aid or cochlear implant, your phone may have been rated for use with hearing aids. If your phone's box has "Rated for Hearing Aids" printed on it, then please read the following guidance.

Note: Ratings are not a guarantee of compatibility (see "Hearing Aid Compatibility with Mobile Phones" on page 76). You may also want to consult your hearing health professional, who should be able to help you get the best results.

- Call volume: During a call, press the side volume keys to set a call volume that works for you.

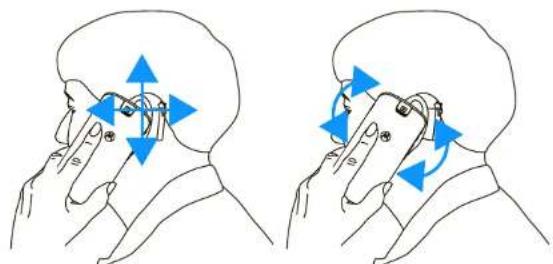

- Position: During a call, hold the phone to your ear as normal, and then rotate/move it to get the best position for speaking and listening.

Diagram illustrating hand massage technique with blue arrows indicating movement and pressure points on a human head

TTY

You can use your phone in TTY mode with standard teletype machines. Touch Menu □> Settings > Call settings > TTY mode and select the mode you need:

- TTY full: Type and read text on your TTY device.

- TTY HCO: Hearing-Carry-Over-type text on your TTY device and listen to voice replies on your phone's speaker.

- TTY VCO: Voice-Carry-Over-speak into your phone and read text replies on your TTY device.

Note: You'll need a cable/adapter to connect your TTY device to the headset jack on your phone.

Refer to your TTY device guide for mode and usage information.

Apps

Want more? No problem. Android Market™ provides access to thousands of apps, and many provide useful accessibility features.

Find it: 📷 > 📠 (in the top right)

Connections Quick Reference

Follow the references to find out how to use a USB ♂, HDMI HDMI, Wi-Fi WiFi, or Bluetooth™ ✉ connection.

To...		HDMI
transfer files	50	-	51	47
hear music	-	43	49	47
play videos	-	43	49	47
show pictures	-	43	49	-
make handsfree calls	-	-	-	47
remote control	-	-	-	47
use controllers and keyboards	-	-	-	47
manage contacts and more	50	-	51	47

Troubleshooting

Crash recovery

In the unlikely event that your phone stops responding to touches and key presses, try a quick reset. Remove the back cover and battery ("Assemble & Charge" on page 5), then replace and turn on your phone as usual.

Service & repairs

If you have questions or need assistance, we're here to help.

Go to www.motorola.com/repair (United States) or www.motorola.com/support (Canada), where you can select from a number of customer care options. You can also contact the Motorola Customer Support Center at: 1-800-734-5870 (United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).

Safety, Regulatory & Legal

Battery Use & Safety

The following battery use and safety information applies to all Motorola mobile devices. If your mobile device uses a non-removable main battery (as stated in your product information), details related to handling and replacing your battery should be disregarded—the battery should only be replaced by a Motorola-approved service facility, and any attempt to remove or replace your battery may damage the product.

Important: Handle and store batteries properly to avoid injury or damage. Most battery issues arise from improper handling of batteries, and particularly from the continued use of damaged batteries.

DON'Ts

• Don't disassemble, crush, puncture, shred, or otherwise attempt to change the form of your battery.
• Don't let the mobile device or battery come in contact with liquids.* Liquids can get into the mobile device's circuits, leading to corrosion.

• Don't allow the battery to touch metal objects. If metal objects, such as jewelry, stay in prolonged contact with the battery contact points, the battery could become very hot.

• Don't place your mobile device or battery near a heat source.* High temperatures can cause the battery to swell, leak, or malfunction.

• Don't dry a wet or damp battery with an appliance or heat source, such as a hair dryer or microwave oven.
• Do avoid leaving your mobile device in your car in high temperatures.*
• Do avoid dropping the mobile device or battery. ^ Dropping these items, especially on a hard surface, can potentially cause damage. ^
• Do contact your service provider or Motorola if your mobile device or battery has been damaged by dropping, liquids or high temperatures.
  * Note: Always make sure that the battery compartment and any connector covers are closed and secure to avoid direct exposure of the battery to any of these conditions, even if your product information states that your mobile device can resist damage from these conditions. Important: Motorola recommends you always use Motorola-branded batteries and chargers for quality assurance and safeguards. Motorola's warranty does not cover damage to the mobile device caused by non-Motorola batteries and/or chargers. To help you identify authentic Motorola batteries from non-original or counterfeit batteries (that may not have adequate safety protection),

DOs

Motorola provides holograms on its batteries. You should confirm that any battery you purchase has a "Motorola Original" hologram.

If you see a message on your display such as Invalid Battery or Unable to Charge, take the following steps:

• Remove the battery and inspect it to confirm that it has a "Motorola Original" hologram;
• If there is no hologram, the battery is not a Motorola battery;
• If there is a hologram, replace the battery and try charging it again;
• If the message remains, contact a Motorola authorized service center.

Warning: Use of a non-Motorola battery or charger may present a risk of fire, explosion, leakage, or other hazard.

Proper and safe battery disposal and recycling: Proper battery disposal is not only important for safety, it benefits the environment. You can recycle your used batteries in many retail or service provider locations. Additional information on proper disposal and recycling can be found at

www.motorola.com/recycling

Disposal: Promptly dispose of used batteries in accordance with local regulations. Contact your local recycling center or national recycling organizations for more information on how to dispose of batteries.

Warning: Never dispose of batteries in a fire because they may explode.

Battery Charging

Notes for charging your product's battery:

• During charging, keep your battery and charger near room temperature for efficient battery charging.
• New batteries are not fully charged.
• New batteries or batteries stored for a long time may take more time to charge.
• Motorola batteries and charging systems have circuitry that protects the battery from damage from overcharging.

Third Party Accessories

Use of third party accessories, including but not limited to batteries, chargers, headsets, covers, cases, screen protectors and memory cards, may impact your mobile device's performance. In some circumstances, third party accessories can be dangerous and may void your mobile device's warranty. For a list of Motorola accessories, visit

www.motorola.com/products

Driving Precautions

Responsible and safe driving is your primary responsibility when behind the wheel of a vehicle. Using a mobile device or accessory for a call or other application while driving may cause distraction. Using a mobile device or accessory may

be prohibited or restricted in certain areas, always obey the laws and regulations on the use of these products.

While driving, NEVER:

• Type or read texts.
• Enter or review written data.
• Surf the web.
• Input navigation information.

- Perform any other functions that divert your attention from driving.

While driving, ALWAYS:

• Keep your eyes on the road.
• Use a handsfree device if available or required by law in your area.
• Enter destination information into a navigation device before driving.
• Use voice activated features (such as voice dial) and speaking features (such as audible directions), if available.
• Obey all local laws and regulations for the use of mobile devices and accessories in the vehicle.
• End your call or other task if you cannot concentrate on driving.

Remember to follow the "Smart Practices While Driving" in this guide and at

www.motorola.com/callsmart (in English only).

Seizures/Blackouts

Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when playing videos or games. These may occur even if a person has never had a previous seizure or blackout.

If you have experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your physician before playing videos or games or enabling a flashing-lights feature (if available) on your mobile device.

Discontinue use and consult a physician if any of the following symptoms occur: convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or disorientation. It is always a good idea to hold the screen away from your eyes, leave the lights on in the room, take a 15-minute break every hour, and stop use if you are tired.

Caution About High Volume Usage

Warning: Exposure to loud noise from any source for extended periods of time may affect your hearing. The louder the volume sound level, the less time is required before your hearing could be affected. To protect your hearing:

- Limit the amount of time you use headsets or headphones at high volume.

- Avoid turning up the volume to block out noisy surroundings.

- Turn the volume down if you can't hear people speaking near you.

If you experience hearing discomfort, including the sensation of pressure or fullness in your ears, ringing in your ears, or muffled speech, you should

Symbol Key

Your battery, charger, or mobile device may contain symbols, defined as follows:

Symbol	Definition
	Important safety information follows.
	Do not dispose of your battery or mobile device in a fire.
	Your battery or mobile device may require recycling in accordance with local laws. Contact your local regulatory authorities for more information.
	Do not dispose of your battery or mobile device with your household waste. See “Recycling” for more information.
	Do not use tools.
	For indoor use only.

Radio Frequency (RF) Energy

Exposure to RF Energy

Your mobile device contains a transmitter and receiver. When it is ON, it receives and transmits RF energy. When you communicate with your mobile device, the system handling your call controls the power level at which your mobile device transmits. Your mobile device is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy.

RF Energy Operational Precautions

For optimal mobile device performance, and to be sure that human exposure to RF energy does not exceed the guidelines set forth in the relevant standards, always follow these instructions and precautions:

• When placing or receiving a phone call, hold your mobile device just like you would a landline phone.
• If you wear the mobile device on your body, always place the mobile device in a Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not use a body-worn accessory supplied or approved by Motorola, keep the mobile device and its antenna at least 2.5 cm (1 inch) from your body when transmitting.

- Using accessories not supplied or approved by Motorola may cause your mobile device to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved accessories, visit our website at: www.motorola.com.

RF Energy Interference/Compatibility

Nearly every electronic device is subject to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances, your mobile device may cause interference with other devices.

Follow Instructions to Avoid Interference Problems Turn off your mobile device in any location where posted notices instruct you to do so.

In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If your mobile device offers an airplane mode or similar feature, consult airline staff about using it in flight.

Implantable Medical Devices If you have an implantable medical device, such as a pacemaker or defibrillator, consult your physician before using this mobile device. Persons with implantable medical devices should observe the following precautions:

- ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the implantable medical device when the mobile device is turned ON.

- DO NOT carry the mobile device in the breast pocket. - Use the ear opposite the implantable medical device to minimize the potential for interference. - Turn OFF the mobile device immediately if you have any reason to suspect that interference is taking place.

Read and follow the directions from the manufacturer of your implantable medical device. If you have any questions about using your mobile device with your implantable medical device, consult your healthcare provider.

Regulatory Information

Your Motorola mobile device is designed to comply with national and international regulatory requirements. For full compliance statements and details, please refer to the regulatory information in your printed product guide.

Specific Absorption Rate (FCC)

YOUR MOBILE DEVICE MEETS FCC LIMITS FOR EXPOSURE TO RADIO WAVES.

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves (radio frequency electromagnetic fields) adopted by the Federal Communications Commission (FCC). These limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

The radio wave exposure guidelines use a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6 W/kg.

Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands. The highest SAR values under the FCC guidelines for your device model are listed below:

Head SAR	UMTS 1900, Wi-Fi, Bluetooth	1.01 W/kg
Body-worn SAR	UMTS 1900, Wi-Fi, Bluetooth	1.15 W/kg

During use, the actual SAR values for your device are usually well below the values stated. This is because, for purposes of system efficiency and to minimize interference on the network, the operating power of your mobile device is automatically decreased when full power is not needed for the call. The lower the power output of the device, the lower its SAR value. If you are interested in further reducing your RF exposure then you can easily do so by limiting your usage or simply using a hands-free kit to keep the device away from the head and body. Additional information can be found at www.motorola.com/rfhealth.

European Union Directives Conformance Statement

The following CE compliance information is applicable to Motorola mobile devices that carry one of the following CE marks:

C€0168

C€0168①

[Only Indoor Use Allowed In France for Bluetooth and/or Wi-Fi]

Hereby, Motorola declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC
• All other relevant EU Directives

IMEI: 350034/40/394721/9

C€0168

Type: MC2-41H14

Product

Approval

Number

The above gives an example of a typical Product Approval Number. You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte (in English only). To find your DoC, enter the Product

Approval Number from your product's label in the "Search" bar on the website.

FCC Notice to Users

The following statement applies to all products that bear the FCC logo on the product label. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. See 47 CFR Sec. 15.19(a)(3).

Motorola has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user's authority to operate the equipment. See 47 CFR Sec. 15.21.

For products that support Wi-Fi 802.11a (as defined in the product specifications available at www.motorola.com), the following information applies. This equipment has the capability to operate Wi-Fi in the 5 GHz Unlicensed National Information Infrastructure (U-NII) band. Because this band is shared with MSS (Mobile Satellite Service), the FCC has restricted such devices to indoor use only (see 47 CFR 15.407(e)). Since wireless hot spots operating in this band have the same restriction, outdoor services are not offered. Nevertheless, please do not operate this device in Wi-Fi mode when outdoors.

Industry Canada Notice to Users

Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN

7.1.5. This Class B digital apparatus complies with Canadian ICES-003.

Location Services (GPS & AGPS)

The following information is applicable to Motorola mobile devices that provide location based (GPS and/or AGPS) functionality. Your mobile device can use Global Positioning System (GPS) signals for location-based applications. GPS uses satellites controlled by the U.S. government that are subject to changes implemented in accordance with the Department of Defense policy and the Federal Radio Navigation Plan. These changes may affect the performance of location technology on your mobile device. Your mobile device can also use Assisted Global Positioning System (AGPS), which obtains information from the cellular network to improve GPS performance. AGPS uses your wireless service provider's network and therefore airtime, data charges, and/or additional charges may apply in accordance with your service plan. Contact your wireless service provider for details.

Your Location

Location-based information includes information that can be used to determine the approximate location of a mobile device. Mobile devices which are connected to a wireless network transmit location-based information. Devices enabled with GPS or AGPS technology also transmit location-based information. Additionally, if you use applications that require location-based information (e.g. driving directions), such applications transmit location-based information. This location-based information may be shared with third parties, including your wireless service provider, applications providers, Motorola, and other third parties providing services.

Emergency Calls

When you make an emergency call, the cellular network may activate the AGPS technology in your mobile device to tell the emergency responders your approximate location.

AGPS has limitations and might not work in your area. Therefore:

• Always tell the emergency responder your location to the best of your ability; and
- Remain on the phone for as long as the emergency responder instructs you.

Navigation

The following information is applicable to Motorola mobile devices that provide navigation features. When using navigation features, note that mapping information, directions and other navigational data may contain inaccurate or incomplete data. In some countries, complete information may not be available. Therefore, you should visually confirm that the navigational instructions are consistent with what you see. All drivers should pay attention to road conditions, closures, traffic, and all other

factors that may impact driving. Always obey posted road signs.

Smart Practices While Driving

Check the laws and regulations on the use of mobile devices and their accessories in the areas where you drive. Always obey them. The use of these devices may be prohibited or restricted in certain areas—for example, handsfree use only may be required. Go to www.motorola.com/callsmart (in English only) for more information.

Your mobile device lets you communicate by voice and data—almost anywhere, anytime, wherever wireless service is available and safe conditions allow. When driving a car, driving is your first responsibility. If you choose to use your mobile device while driving, remember the following tips:

• Get to know your Motorola mobile device and its features such as speed dial, redial and voice dial. If available, these features help you to place your call without taking your attention off the road.
• When available, use a handsfree device. If possible, add an additional layer of convenience to your mobile device with one of the many Motorola Original handsfree accessories available today.
• Position your mobile device within easy reach. Be able to access your mobile device without removing your eyes from the road. If you receive

an incoming call at an inconvenient time, if possible, let your voicemail answer it for you

• Let the person you are speaking with know you are driving; if necessary, suspend the call in heavy traffic or hazardous weather conditions. Rain, sleet, snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving. Jotting down a "to do" list or going through your address book takes attention away from your primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your car is not moving or before pulling into traffic. If you must make a call while moving, dial only a few numbers, check the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may be distracting. Make people you are talking with aware you are driving and suspend conversations that can divert your attention away from the road.
• Use your mobile device to call for help. Dial 911 or other local emergency number in the case of fire, traffic accident, or medical emergencies (wherever wireless phone service is available).
• Use your mobile device to help others in emergencies. If you see an auto accident, crime in progress, or other serious emergency where

lives are in danger, call 911 or other local emergency number (wherever wireless phone service is available), as you would want others to do for you.

- Call roadside assistance or a special non-emergency wireless assistance number when necessary. If you see a broken-down vehicle posing no serious hazard, a broken traffic signal, a minor traffic accident where no one appears injured, or a vehicle you know to be stolen, call roadside assistance or other special non-emergency wireless number (wherever wireless phone service is available).

Privacy & Data Security

Motorola understands that privacy and data security are important to everyone. Because some features of your mobile device may affect your privacy or data security, please follow these recommendations to enhance protection of your information:

• Monitor access—Keep your mobile device with you and do not leave it where others may have unmonitored access. Use your device's security and lock features, where available.
• Keep software up to date—If Motorola or a software/application vendor releases a patch or software fix for your mobile device that updates the device's security, install it as soon as possible.

- Secure Personal Information—Your mobile device can store personal information in various locations including your SIM card, memory card, and phone memory. Be sure to remove or clear all personal information before you recycle, return, or give away your device. You can also backup your personal data to transfer to a new device.

Note: For information on how to backup or wipe data from your mobile device, go to www.motorola.com/support

- Online accounts—Some mobile devices provide a Motorola online account (such as MOTOBLUR). Go to your account for information on how to manage the account, and how to use security features such as remote wipe and device location (where available).

- Applications and updates—Choose your apps and updates carefully, and install from trusted sources only. Some apps can impact your phone's performance and/or have access to private information including account details, call data, location details and network resources.

- Wireless—For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi networks. Also, when using your device as a hotspot (where available) use network security. These precautions will help prevent unauthorized access to your device.

- Location-based information–Location-based information includes information that can be used to determine the approximate location of a mobile device. Mobile phones which are connected to a wireless network transmit location-based information. Devices enabled with GPS or AGPS technology also transmit location-based information. Additionally, if you use applications that require location-based information (e.g. driving directions), such applications transmit location-based information. This location-based information may be shared with third parties, including your wireless service provider, applications providers, Motorola, and other third parties providing services.

- Other information your device may transmit—Your device may also transmit testing and other diagnostic (including location-based) information, and other non-personal information to Motorola or other third-party servers. This information is used to help improve products and services offered by Motorola.

If you have further questions regarding how the use of your mobile device may impact your privacy or data security, please contact Motorola at [e-mail], or contact your service provider.

Use & Care

To care for your Motorola mobile device, please observe the following:

liquids

Don't expose your mobile device to water, rain, extreme humidity, sweat, or other liquids. If it does get wet, don't try to accelerate drying with the use of an oven or dryer, as this may damage the mobile device.

extreme heat or cold

Don't store or use your mobile device in temperatures below -10°C (14°F) or above 60°C (140°F). Don't recharge your mobile device in temperatures below 0°C (32°F) or above 45°C (113°F).

microwaves

Don't try to dry your mobile device in a microwave oven.

dust and dirt

Don't expose your mobile device to dust, dirt, sand, food, or other inappropriate materials.

cleaning solutions

To clean your mobile device, use only a dry soft cloth. Don't use alcohol or other cleaning solutions.

shock and vibration Don't drop your mobile device.

protection To help protect your mobile device, always make sure that the battery compartment and any connector covers are closed and secure.

Recycling

Mobile Devices & Accessories Please do not dispose of mobile devices or electrical accessories (such as chargers, headsets, or batteries) with your household waste, or in a fire. These items should be disposed of in accordance with the national collection and recycling schemes operated by your local or regional authority. Alternatively, you may return unwanted mobile devices and electrical accessories to any Motorola Approved Service Center in your region. Details of Motorola approved national recycling schemes, and further information on Motorola recycling activities can be found at: www.motorola.com/recycling

Packaging & Product Guides Product packaging and product guides should only be disposed of in accordance with national collection and recycling requirements. Please contact your regional authorities for more details.

California Perchlorate Label

Some mobile phones use an internal, permanent backup battery on the printed circuit board that may contain very small amounts of perchlorate. In such cases, California law requires the following label:

Perchlorate Material – special handling may apply when the battery is recycled or disposed of. See www.dtsc.ca.gov/hazardouswaste/perchlorate (in English only).

There is no special handling required by consumers.

Hearing Aid Compatibility with Mobile Phones

Some Motorola phones are measured for compatibility with hearing aids. If the box for your particular model has "Rated for Hearing Aids" printed on it, the following explanation applies. When some mobile phones are used near some hearing devices (hearing aids and cochlear implants), users may detect a buzzing, humming, or whining noise. Some hearing devices are more immune than others to this interference noise, and phones also vary in the amount of interference they generate.

The wireless telephone industry has developed ratings for some of their mobile phones, to assist hearing device users in finding phones that may be compatible with their hearing devices. Not all phones have been rated. Phones that are rated

have the rating on their box or a label on the box. To maintain the published Hearing Aid Compatibility (HAC) rating for this mobile phone, use only the original equipment battery model.

This phone has been tested and rated for use with hearing aids for some of the wireless technologies that it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Contact your service provider or Motorola for information on hearing aid compatibility. If you have questions about return or exchange policies, contact your service provider or phone retailer.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use a rated phone successfully. Trying out the phone with your hearing device is the best way to evaluate it for your personal needs.

M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference to hearing devices than phones that are not labeled. M4 is the better/higher of the two ratings.

T-Ratings: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with a hearing device's telecoil ("T Switch" or "Telephone

Switch") than unrated phones. T4 is the better/higher of the two ratings. (Note that not all hearing devices have telecoils in them.) Hearing devices may also be measured for immunity to this type of interference. Your hearing device manufacturer or hearing health professional may help you find results for your hearing device. The more immune your hearing aid is, the less likely you are to experience interference noise from mobile phones.

Software Copyright Notice

Motorola products may include copyrighted Motorola and third-party software stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola and third-party software providers certain exclusive rights for copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted software. Accordingly, any copyrighted software contained in Motorola products may not be modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of Motorola or any third-party software provider, except for the normal, non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.

Content Copyright

The unauthorized copying of copyrighted materials is contrary to the provisions of the Copyright Laws of the United States and other countries. This device is intended solely for copying non-copyrighted materials, materials in which you own the copyright, or materials which you are authorized or legally permitted to copy. If you are uncertain about your right to copy any material, please contact your legal advisor.

Open Source Software Information

For instructions on how to obtain a copy of any source code being made publicly available by Motorola related to software used in this Motorola mobile device, you may send your request in writing to the address below. Please make sure that the request includes the model number and the software version number. MOTOROLA MOBILITY, INC.

OSS Management

600 North US Hwy 45

Libertyville, IL 60048

USA

The Motorola website opensource.motorola.com

(in English only) also contains information

regarding Motorola's use of open source.

Motorola has created the

opensource.motorola.com website to serve as a

portal for interaction with the software

community-at-large.

To view additional information regarding licenses, acknowledgments and required copyright notices for open source packages used in this Motorola mobile device, please touch Menu Key > Settings

> About phone > Legal information

Open source licenses. In addition, this Motorola device may include self-contained applications that present supplemental notices for open source packages used in those applications.

Export Law Assurances

This product is controlled under the export regulations of the United States of America and Canada. The Governments of the United States of America and Canada may restrict the exportation or re-exportation of this product to certain destinations. For further information contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and International Trade.

Product Registration

Online Product Registration: www.motorola.com/us/productregistration (in English only)

Product registration is an important step toward enjoying your new Motorola product. Registering permits us to contact you for product or software updates and allows you to subscribe to updates on new products or special promotions. Registration is not required for warranty coverage.

Please retain your original dated sales receipt for your records. For warranty service of your Motorola Personal Communications Product you will need to provide a copy of your dated sales receipt to confirm warranty status. Thank you for choosing a Motorola product.

Service & Repairs

If you have questions or need assistance, we're here to help.

Go to www.motorola.com/repair (United States) or www.motorola.com/support (Canada), where you can select from a number of customer care options. You can also contact the Motorola Customer Support Center at 1-800-734-5870 (United States), 1-888-390-6456 (TTY/TDD United States for hearing impaired), or 1-800-461-4575 (Canada).

Motorola Limited Warranty for the United States and Canada

What Does this Warranty Cover?

Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its mobile telephones ("Products"), Motorola-branded or certified accessories sold for use with these Products ("Accessories"), and Motorola software contained on CD-ROMs or other tangible media and sold for use with these Products ("Software") to be free from defects in materials and workmanship under normal consumer usage for the period(s)

outlined below. This limited warranty is a consumer's exclusive remedy, and applies as follows to new Motorola Products, Accessories, and Software purchased by consumers in the United States or Canada, which are accompanied by this written warranty:

Products and Accessories

Products Covered	Length of Coverage
Products and Accessories as defined above, unless otherwise provided for below.	One (1) year from the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.
Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap^TM covers and cases.	Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection.	Limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
Products and Accessories that are Repaired or Replaced.	The balance of the original warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.

Exclusions (Products and Accessories)

Normal Wear and Tear. Periodic maintenance, repair and replacement of parts due to normal wear and tear are excluded from coverage.

Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are covered by this limited warranty.

Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are excluded from coverage.

Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of non-Motorola branded or certified Products,

Accessories, Software or other peripheral equipment are excluded from coverage.

Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are excluded from coverage.

Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts, are excluded from coverage.

Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any communication service or signal you may subscribe to or use with the Products Accessories or Software is excluded from coverage.

Software

Products Covered	Length of Coverage
Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or floppy disk).	Ninety (90) days from the date of purchase.

Exclusions (Software)

Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in combination with any hardware or software applications provided by third parties, that the operation of the software products will be uninterrupted or error free, or that all defects in the software products will be corrected.

Software NOT Embodied in Physical Media.

Software that is not embodied in physical media (e.g. software that is downloaded from the Internet), is provided "as is" and without warranty.

Who is Covered?

This warranty extends only to the first consumer purchaser, and is not transferable.

What Will Motorola Do?

Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories or parts. No data, software or applications added to your Product, Accessory or Software, including but not limited to personal contacts, games and ringer tones, will be reinstalled. To avoid losing such data, software, and applications, please create a back up prior to requesting service.

How to Obtain Warranty Service or Other Information

USA	1-800-734-5870
Canada	1-800-461-4575
TTY	1-888-390-6456

You will receive instructions on how to ship the Products, Accessories or Software, at your expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.

What Other Limitations are There? ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING

NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.

Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.

Copyright & Trademarks

Motorola Mobility, Inc.

Consumer Advocacy Office

600 N US Hwy 45

Libertyville, IL 60048

www.motorola.com

Note: Do not ship your product to the above address. If you need to return your product for repairs, replacement, or warranty service, please contact the Motorola Customer Support Center at: 1-800-734-5870 (United States)

1-888-390-6456 (TTY/TDD United States for hearing impaired)

1-800-461-4575(Canada)

Certain features, services and applications are network dependent and may not be available in all areas; additional terms, conditions and/or charges may apply for voice, messaging, data, and other services. Contact AT&T Mobility for details. 4G speeds delivered by HSPA+ with enhanced backhaul. Not available everywhere. Deployment ongoing. Compatible device and data plan required. Learn more at att.com/network.

All features, functionality, and other product specifications, as well as the information contained in this guide, are based upon the latest available information and believed to be accurate at the time of printing. Motorola reserves the right to change or modify any information or specifications without notice or obligation.

Note: The images in this guide are examples only.

MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Gmail, YouTube, Google Books, Google Docs, Google Maps Navigation Beta, Google Calendar, Android, Android Market, and other marks are trademarks of Google, Inc. AT&T, the AT&T logo and all other AT&T marks contained herein are trademarks of AT&T Intellectual Property and/or AT&T affiliated companies. All other product or service names are the property of their respective owners.

Portions ©2011 Motorola, Mobility Inc. Portions ©2011 AT&T Intellectual Property. All rights reserved.

Caution: Motorola does not take responsibility for changes/modification to the transceiver.

Product ID: MOTOROLA ATRIX™ 2 (Model MB865) Manual Number: 68016171001-A
