BRUGSANVISNING GSRM40 Body-Solid
Body-Solid® Built for Life


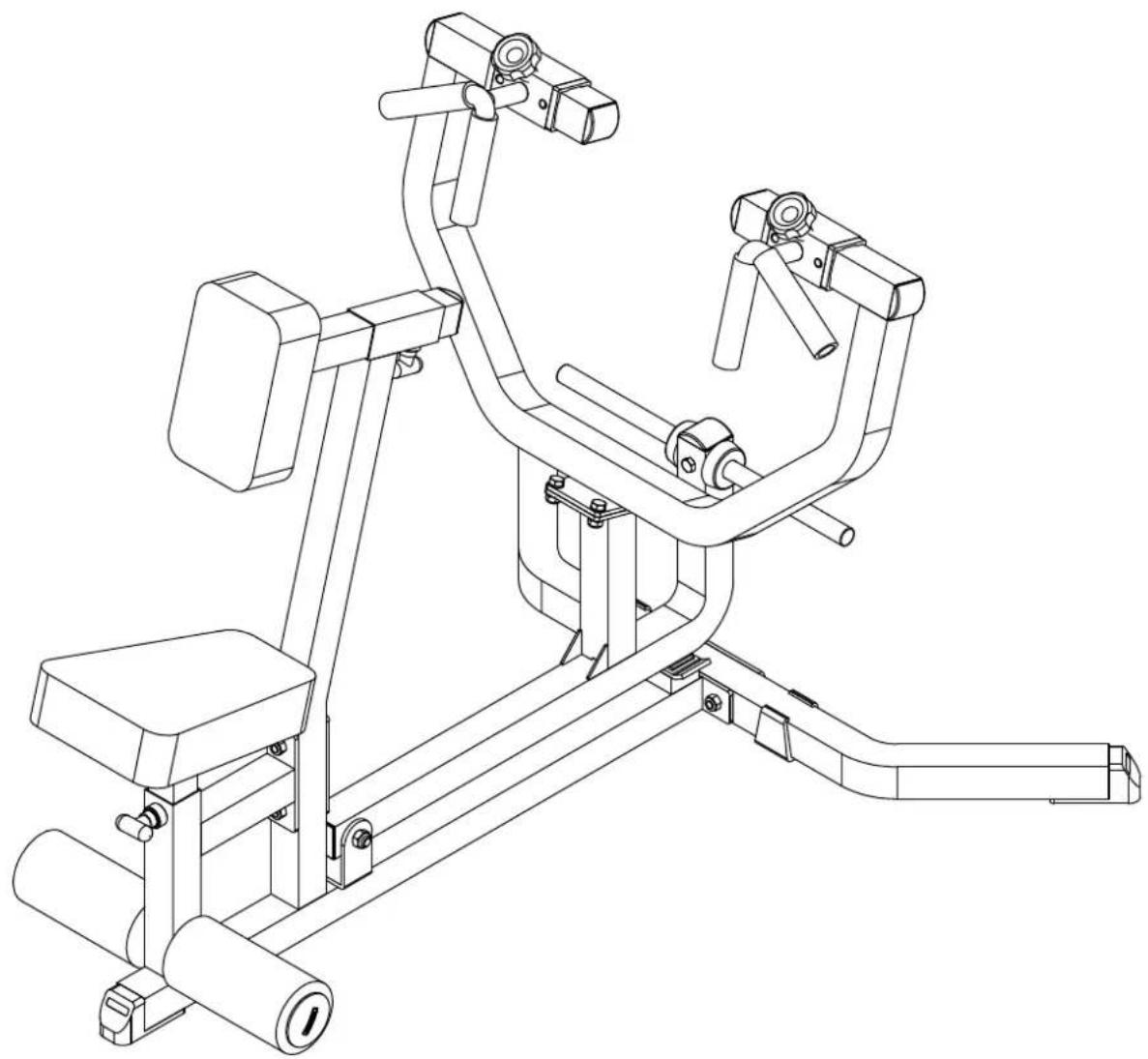

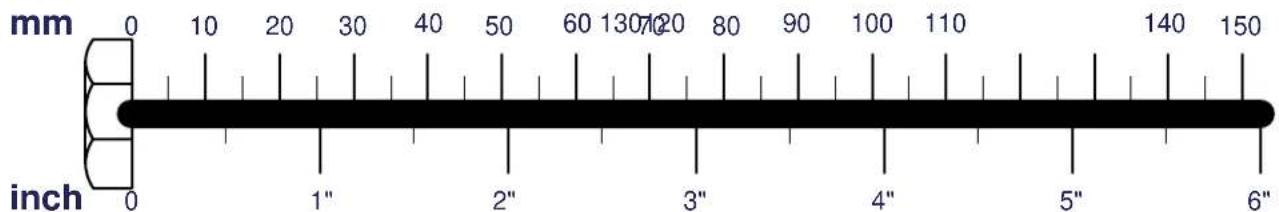

Line drawing of a fitness machine with adjustable arms and legs (no text or symbols)Hardware List (in scale)
KEY #1 HEX HEAD BOLT M12 X 75 PARTIAL THREAD QTY.4
KEY #4 NYLON LOCK NUT M12 QTY.4
KEY #7 SPRING WASHER 5/16" QTY.8
KEY #5 NYLON LOCK NUT M12 QTY.4
KEY #8 WASHER M10 (19 OD) QTY.8
KEY #6 WASHER 5/16" (24 OD) QTY.8

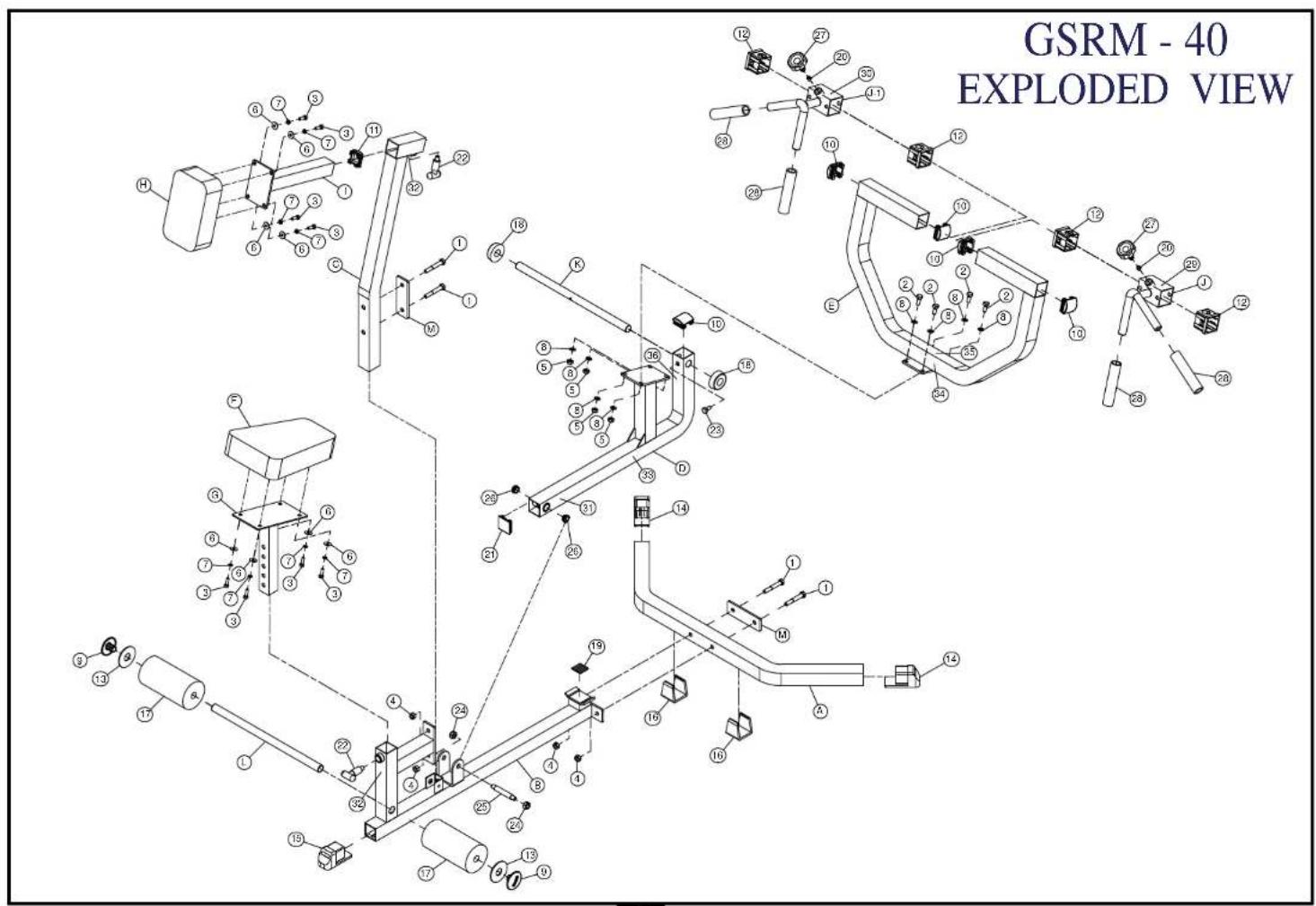

Hardware List
| Part# | Qty Description | ||||
| 1 | 4 Hex Head Bolt M12x75 | ||||
| 2 | 4 | Hex Head Bolt M10x25 | |||
| 3 8 Hex Head Bolt | 5/16"x1" | ||||
| 4 | 4 | Nylon Lock Nut | M12 | ||
| 5 | 4 | Nylon Lock Nut | M10 | ||
| 6 | 8 | W | a | 5/16" s | h |
| 7 | 8 | Spring Washer | 5/16" | ||
| 8 | 8 | W | a | M10x19 OD s | h |
| 9 | 2 | Round End Cap | ∅1" | 9211-022 | |
| 10 | 5 | Convex End Cap | 2"x2" | 9211-087 | |
| 11 | 1 | Convex End Cap | 1 3/4"x1 3/4" | 9211-091 | |
| 12 | 4 | Nylon Bushing | 60x50 9211-033 | ||
| 13 | 2 | Nylon Washer | ∅3" 9214-008 | ||
| 14 | 2 | Foot Cap | 2"x2"x1.8T 9211-024 | ||
| 15 | 1 | Foot Cap | 2"x2"x2.5T 9211-025 | ||
| 16 | 2 | Rubber Clip | 2"x2" | 9212-010 | |
| 17 | 2 | Foam Roller 4"x23x8" 9161-054 | |||
| 18 2 Rubber Dount ∅2 1/2"x3/4" 9310-012 | |||||
| 19 | 1 | Rubber Pad | 1 1/2"x1 1/2" | 9310-001 | |
| 20 | 2 | Rubber Dount V Style | ∅6x∅13 | 9214-004 | |
| 21 | 1 | Flat End Cap | 2"x2" | 9211-005 | |
| 22 | 2 | Pop Pin | 8250-012 | ||
| 23 | 1 | Hex Head Bolt M10x20 | |||
| 24 | 2 | Nylon Lock Nut | 1/2" | ||
| 25 | 1 Shaft | 5/8"x105 | 8260-007 | ||
| 26 | 2 | Copper Bushing | 8520-002 pre-installed | ||
| 27 | 2 | Knob | 9215-002 pre-installed | ||
| 28 | 4 | Foam Grip | 9162-002 pre-installed | ||
| 29 | 1 | Right Sticker | 9440-053 pre-installed | ||
| 30 | 1 | Left Sticker | 9440-054 pre-installed | ||
| 31 | 1 | Maintenance Lable | 9440-103 pre-installed | ||
| 32 | 2 | Pop Pin Sticker | 9440-104 pre-installed | ||
| 33 | 1 | Warning Sticker | 9440-105 pre-installed | ||
| 34 | 1 | BodySolid Logo | 9440-027 pre-installed | ||
| 35 | 1 | BodySolid Plate | 9440-199 pre-installed | ||
| 36 | 1 | Warning Sticker | 9440-217 pre-installed | ||
Mainframe List
| Part# | Qty Description | |
| A | 1 | Front Support |
| B | 1 | Main Frame |
| C | 1 | Upright Frame |
| D | 1 | Support Shelf |
| E | 1 | Adjustable Frame |
| F 1 Seat Pad | ||
| G | 1 | Seat Pad Adjustable Frame |
| H 1 Back Pad | 9132-006 | |
| I | 1 | Back Pad Adjustable Frame |
| J | 1 | Right Handle Frame |
| J-1 | 1 Left Handle Frame | |
| K | 1 | Foam Roller Bar ∅1"x510 |
| L | 1 | Foam Roller Bar ∅1"x1.6Tx473 |
| M | 2 | Plate 50x6Tx150 8312-062 |
