BRUGSANVISNING GLP Body-Solid

Body-Solid

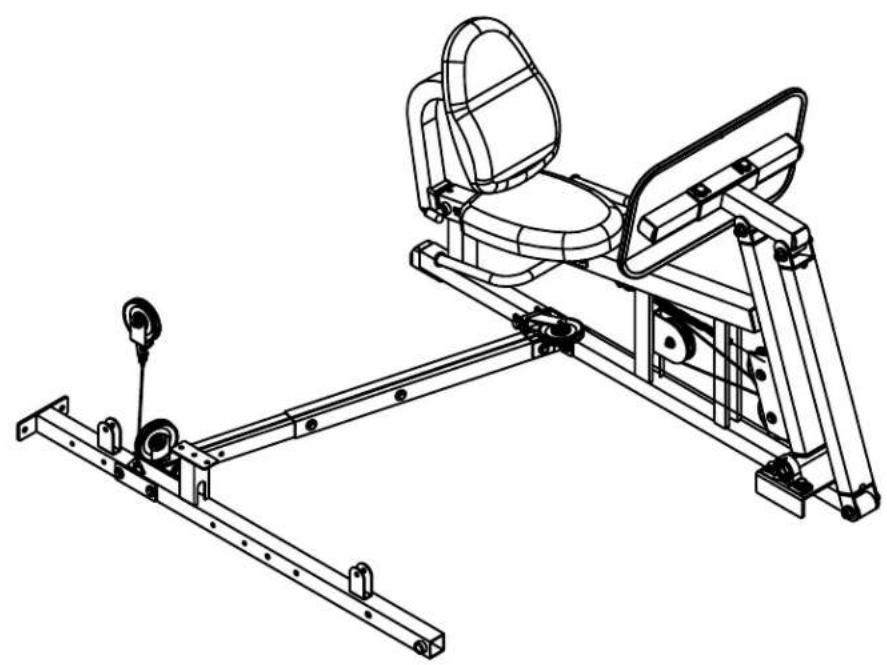

Body-Solid GLP - Body-Solid - 1

natural_image Technical line drawing of a stationary exercise machine with levers and suspension components (no text or symbols)

Body-Solid GLP - Body-Solid - 2

text_image BODY SOLID STRENGTH TRAINING EQUIPMENT

BODY-SOLID, Inc.

1900 S. Des Plaines Ave.

Forest Park, IL 60130 USA

Phone:(708)427-3555

Fax:(708)427-3556

www.bodysolid.com

GLP ASSEMBLY INSTRUCTIONS

HARDWARE ILLUSTRATION
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 1

natural_image Pure technical line drawing of a mechanical component with no text or symbols

Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 2

(A1)HEX BOLT 1/2"X3 1/4" PARTIAL THREAD QTY.2
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 3

natural_image Pure mechanical shaft diagram without any text, numbers, or symbols

Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 4

(A2)HEX BOLT 3/8"X1 3/4" PARTIAL THREAD QTY.3
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 5

natural_image Pure mechanical diagram of a bolt with threaded end and flanged shaft (no text or symbols)

Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 6

(A3)HEX BOLT 13/8"X2" PARTIAL THREAD QTY.2
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 7

natural_image Pure technical line drawing of a mechanical component with no text or symbols

Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 8

(A4)HEX BOLT 3/8"X3" PARTIAL THREAD QTY.5
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 9

natural_image Pure technical line drawing of a bolt or nut (no text or symbols)

Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 10

(A5)HEX BOLT 3/8"X3 1/4" PARTIAL THREAD QTY.2
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 11

natural_image Pure mechanical shaft diagram without any text, numbers, or symbols

Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 12

(A7)HEX BOLT 3/8"X4 1/4" PARTIAL THREAD QTY.2
Body-Solid GLP - GLP ASSEMBLY INSTRUCTIONS - 13

text_image 1 2 3 4 5 6

GLP ASSEMBLY INSTRUCTIONS

HARDWARE ILLUSTRATION

Body-Solid GLP - HARDWARE ILLUSTRATION - 1

Body-Solid GLP - HARDWARE ILLUSTRATION - 2

(A8)HEX BOLT 5/16"X1" PARTIAL THREAD QTY.4

Body-Solid GLP - HARDWARE ILLUSTRATION - 3

natural_image Pure technical line drawing of a bolt and nut assembly (no text or symbols)

Body-Solid GLP - HARDWARE ILLUSTRATION - 4

(A9)HEX BOLT 5/16"X3 1/4" PARTIAL THREAD QTY.2

Body-Solid GLP - HARDWARE ILLUSTRATION - 5

natural_image Technical line drawing of a bolt with no text or symbols

Body-Solid GLP - HARDWARE ILLUSTRATION - 6

(A10)HEX BOLT 3/8"X2 1/2" PARTIAL THREAD QTY.2

Body-Solid GLP - HARDWARE ILLUSTRATION - 7

natural_image Pure technical line drawing of a mechanical component with no text or symbols

Body-Solid GLP - HARDWARE ILLUSTRATION - 8

(A11)HEX BOLT 1/2"X3" PARTIAL THREAD QTY.1

Body-Solid GLP - HARDWARE ILLUSTRATION - 9

natural_image Pure mechanical diagram of a bolt and spring assembly without any text or symbols

Body-Solid GLP - HARDWARE ILLUSTRATION - 10

(A12)HEX BOLT 1/2"X3 1/2" PARTIAL THREAD QTY.1

Body-Solid GLP - HARDWARE ILLUSTRATION - 11

text_image 1 2 3 4 5 6

GLP ASSEMBLY INSTRUCTIONS

HARDWARE ILLUSTRATION

Body-Solid GLP - HARDWARE ILLUSTRATION - 1

Body-Solid GLP - HARDWARE ILLUSTRATION - 2
(B1)NYLON LOCK NUT 1/2" QTY.4

Body-Solid GLP - HARDWARE ILLUSTRATION - 3

Body-Solid GLP - HARDWARE ILLUSTRATION - 4
(B2)NYLON LOCK NUT 3/8" QTY.16

Body-Solid GLP - HARDWARE ILLUSTRATION - 5

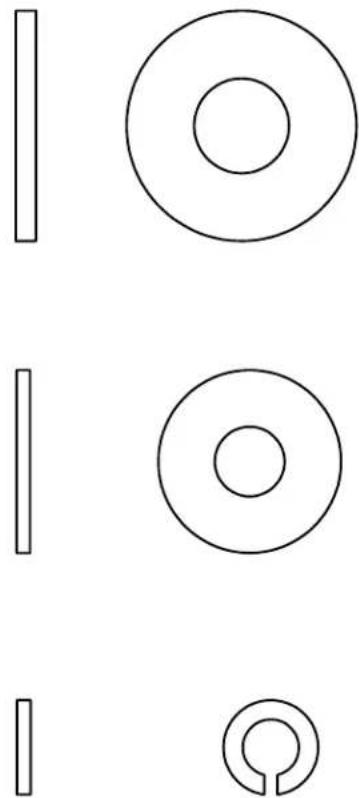

natural_image Simple geometric diagram showing a vertical rectangle and a concentric circle (no text or symbols)

(C4)5/16"(I.D.)FLAT WASHER

Body-Solid GLP - HARDWARE ILLUSTRATION - 6

natural_image Simple geometric shapes: a vertical rectangle and a concentric circle (no text or symbols)

(C5)1/2"(I.D.)FLAT WASHER

Body-Solid GLP - HARDWARE ILLUSTRATION - 7

natural_image Pure geometric shapes including vertical bars, concentric circles, and a circular symbol (no text or labels)

(C3) 5/16"SPRING WASHER QTY.6

Body-Solid GLP - HARDWARE ILLUSTRATION - 8

text_image 1 2 3 4 5 6

GLP ASSEMBLY INSTRUCTIONS

HARDWARE ILLUSTRATION

D2.

D3. 2"x2" Foot Cap (9211-025)----[1PCS]

D4. 45X60 Nylon Bushing (9211-047)----[1PCS]

D6.

D7.

D1 D2 D3 D4
Body-Solid GLP - HARDWARE ILLUSTRATION - 1

Body-Solid GLP - HARDWARE ILLUSTRATION - 2

Body-Solid GLP - HARDWARE ILLUSTRATION - 3

Body-Solid GLP - HARDWARE ILLUSTRATION - 4

natural_image Isometric line drawing of a rectangular mechanical part with a circular hole and mounting holes (no text or symbols)

D6
Body-Solid GLP - HARDWARE ILLUSTRATION - 5

D7
Body-Solid GLP - HARDWARE ILLUSTRATION - 6

D8
Body-Solid GLP - HARDWARE ILLUSTRATION - 7

D9
Body-Solid GLP - HARDWARE ILLUSTRATION - 8

GLP ASSEMBLY INSTRUCTIONS

PARTS ILLUSTRATION SHEET

A1[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 1

natural_image Isometric line drawing of a 1PCS rectangular frame with mounting holes (no text or symbols)

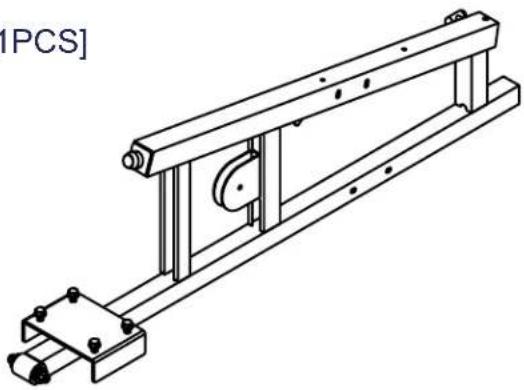

B[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 2

natural_image Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

C[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 3

D[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 4

natural_image Technical line drawing of a mechanical bracket or support structure (no text or symbols)

E[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 5

natural_image Simple line drawing of a two-hinged metal rod or bracket (no text or symbols)

F[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 6

G[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 7

text_image BODY-SOLID

H[2PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 8

J[2PCS]
8312-090
K[2PCS]
8510-005
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 9

Body-Solid GLP - PARTS ILLUSTRATION SHEET - 10

L[1PCS]
9121-045
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 11

M[1PCS]
9111-049
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 12

O[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 13

P[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 14

N1[1PCS]
Q[1PCS]
Body-Solid GLP - PARTS ILLUSTRATION SHEET - 15

natural_image Isometric line drawing of a 3D rectangular beam with mounting holes and a label 'N1[1PCS]' (no other text or symbols)

Body-Solid GLP - PARTS ILLUSTRATION SHEET - 16

GLP.1-122005

ues A4 Bolt for G2B,G3S,G6B,G5S-(2PCS each)

IF Mode B:

ues A7 Bolt for G4I,G10B--(2PCS each)

Mode B:50X75 Steel Tube
Body-Solid GLP - GLP.1-122005 - 1

text_image 50X75 A7x2 C2x2 J

Please adjust the length between A1 to N1 approximately to 1112mm

Suitable TO model:G6B,G5S,G10B

Body-Solid GLP - GLP.1-122005 - 2

text_image (1112) A1 N1

Please adjust the length between A1 to N1 approximately to 862mm

Suitable TO model:G2B,G3S,G4I

Body-Solid GLP - GLP.1-122005 - 3

text_image (862) A1 N1

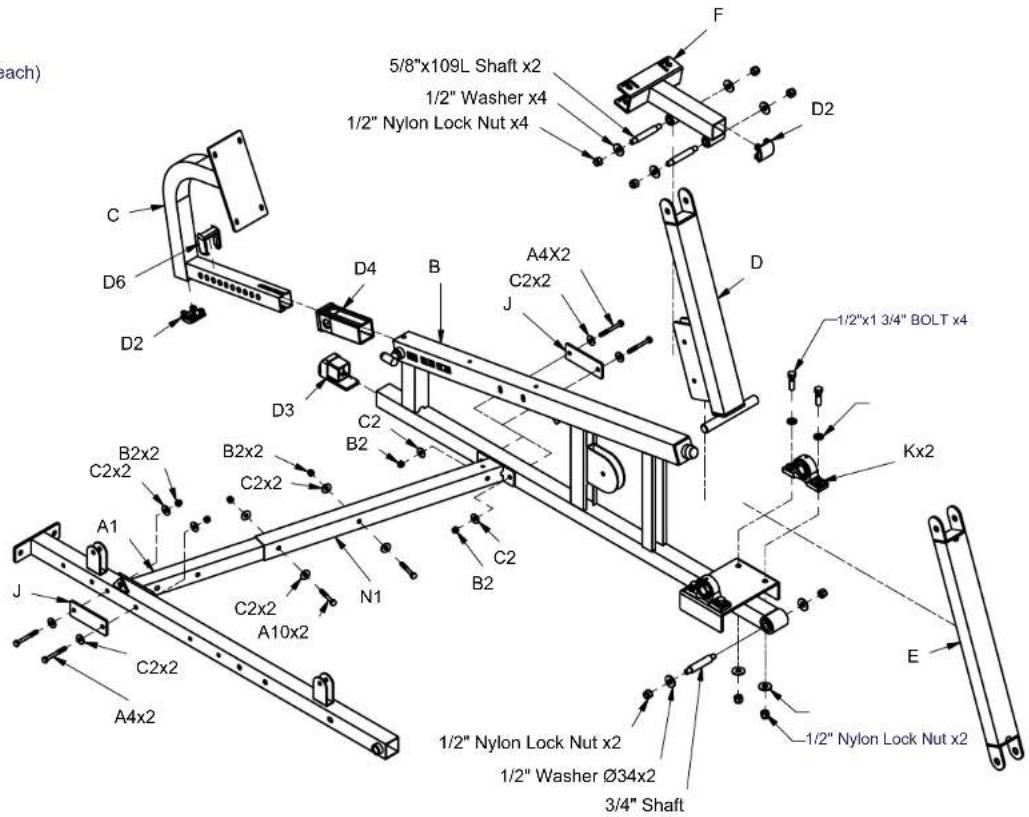

Body-Solid GLP - GLP.1-122005 - 4

text_image each) 5/8"x109L Shaft x2 1/2" Washer x4 1/2" Nylon Lock Nut x4 C D6 D2 D4 B A4X2 C2x2 J D3 C2 B2 B2x2 C2x2 A1 N1 C2x2 A10x2 C2x2 A4x2 J Kx2 E 1/2" Nylon Lock Nut x2 1/2" Washer Ø34x2 3/4" Shaft 1/2" Nylon Lock Nut x2

GLP.1-122005

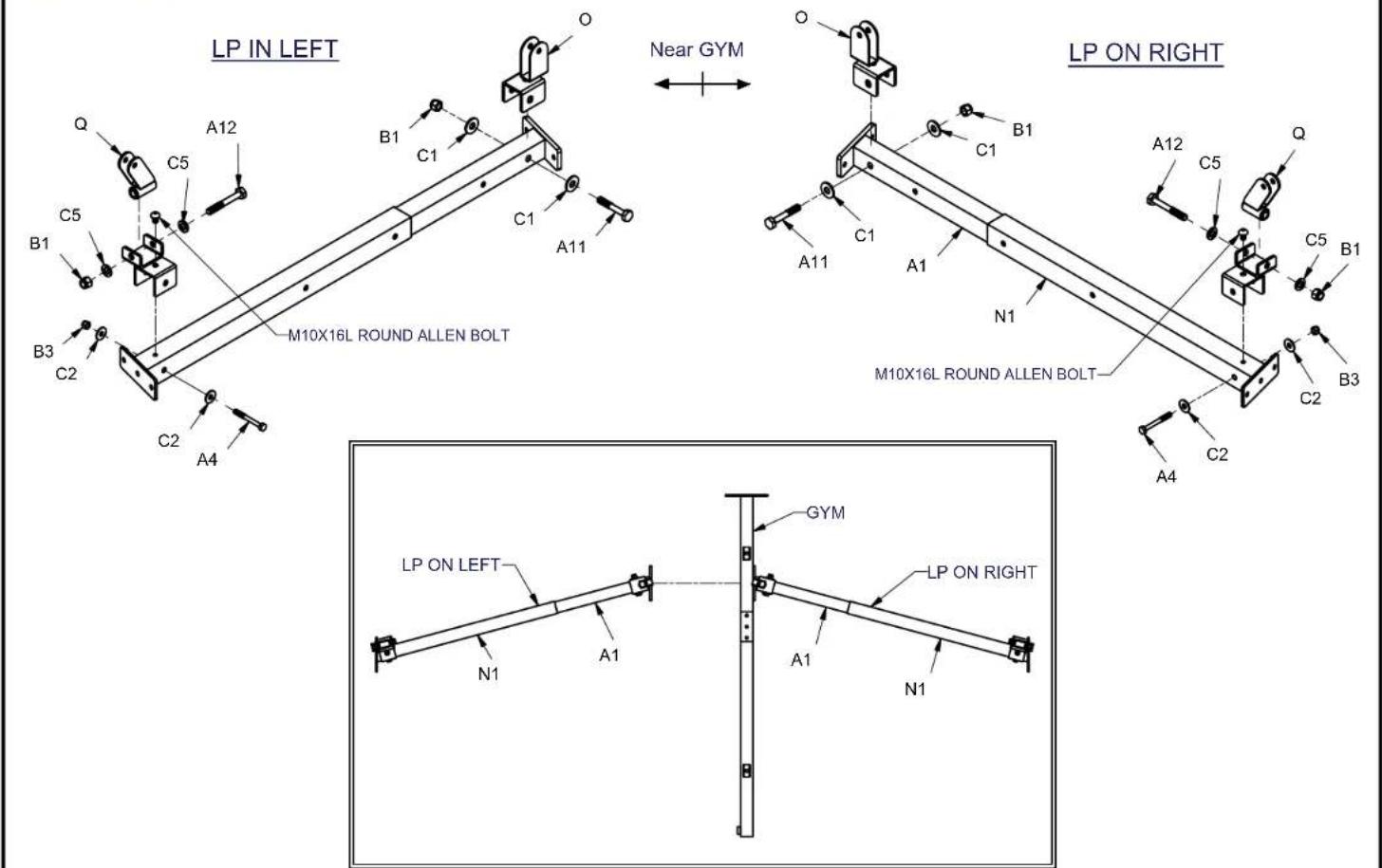

Body-Solid GLP - GLP.1-122005 - 5
PAGE 4.2

GLP.1-122005

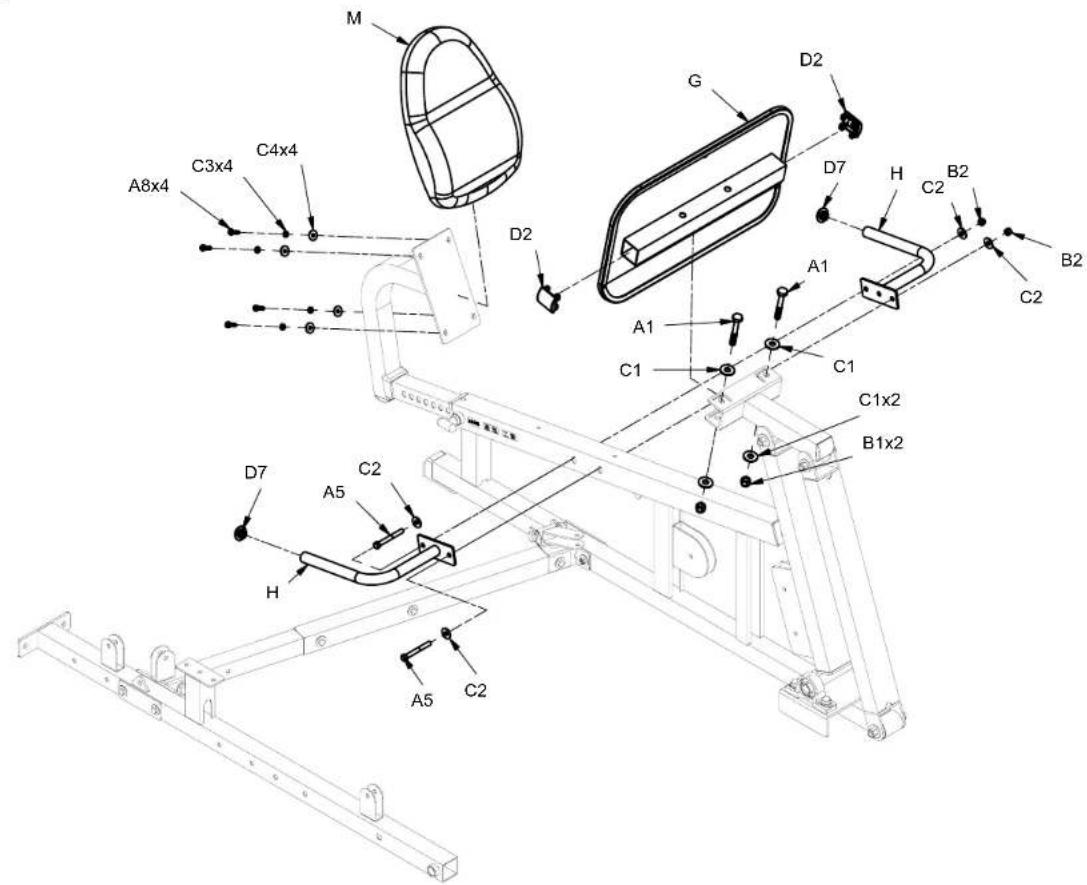

Body-Solid GLP - GLP.1-122005 - 6

text_image M C3x4 C4x4 A8x4 D2 G D7 H B2 A1 C2 B2 C2 A1 C1 C1x2 B1x2 D7 C2 A5 H A5 C2

PAGE 5

GLP.1-122005

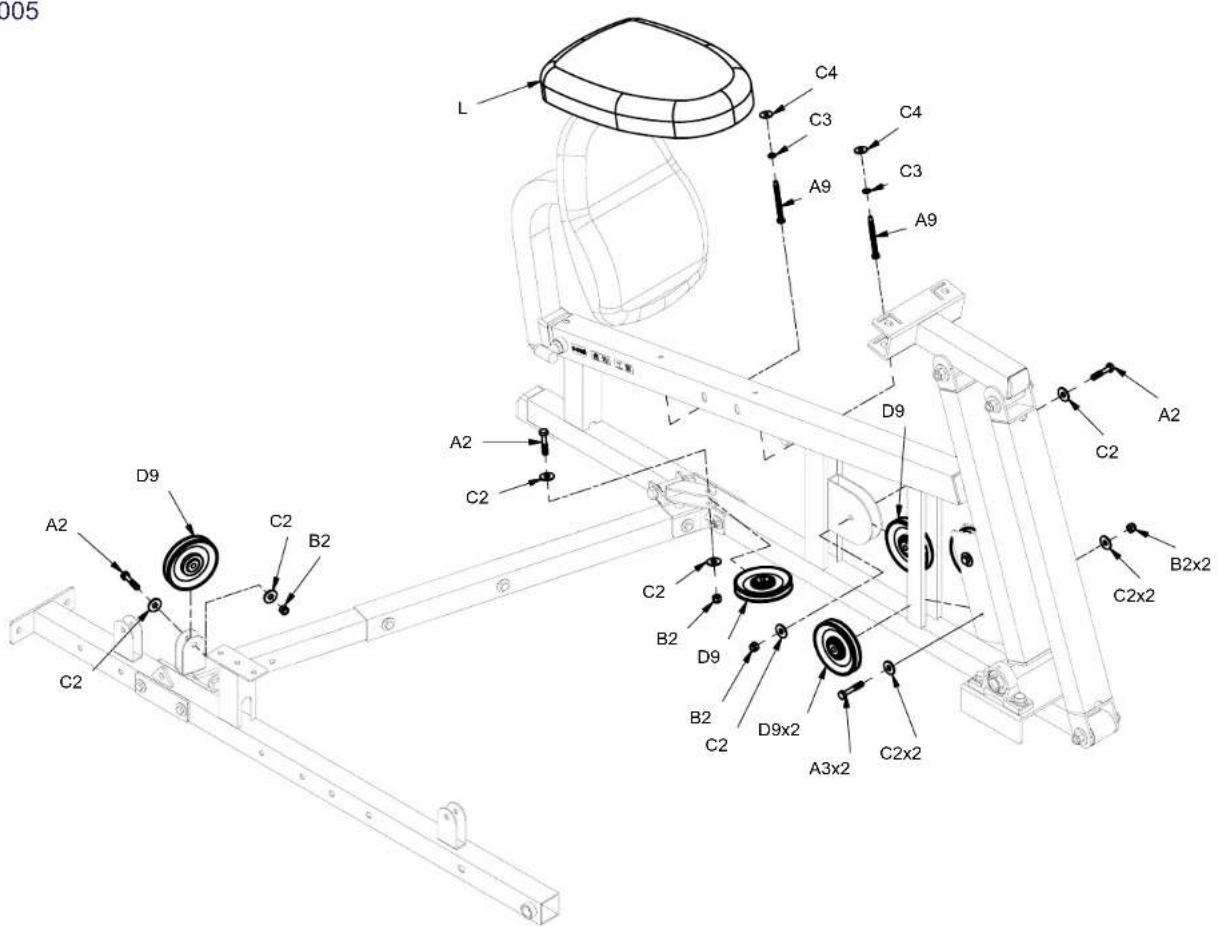

Body-Solid GLP - GLP.1-122005 - 7

text_image 005 L C4 C3 C4 A9 C3 A9 D9 A2 C2 A2 D9 B2 C2 B2 C2 D9x2 B2x2 C2x2 C2x2 C2x2 C2x2 C2x2 C2x2 C2x2 C2x2 C2x2

PAGE 6

GLP.1-122005

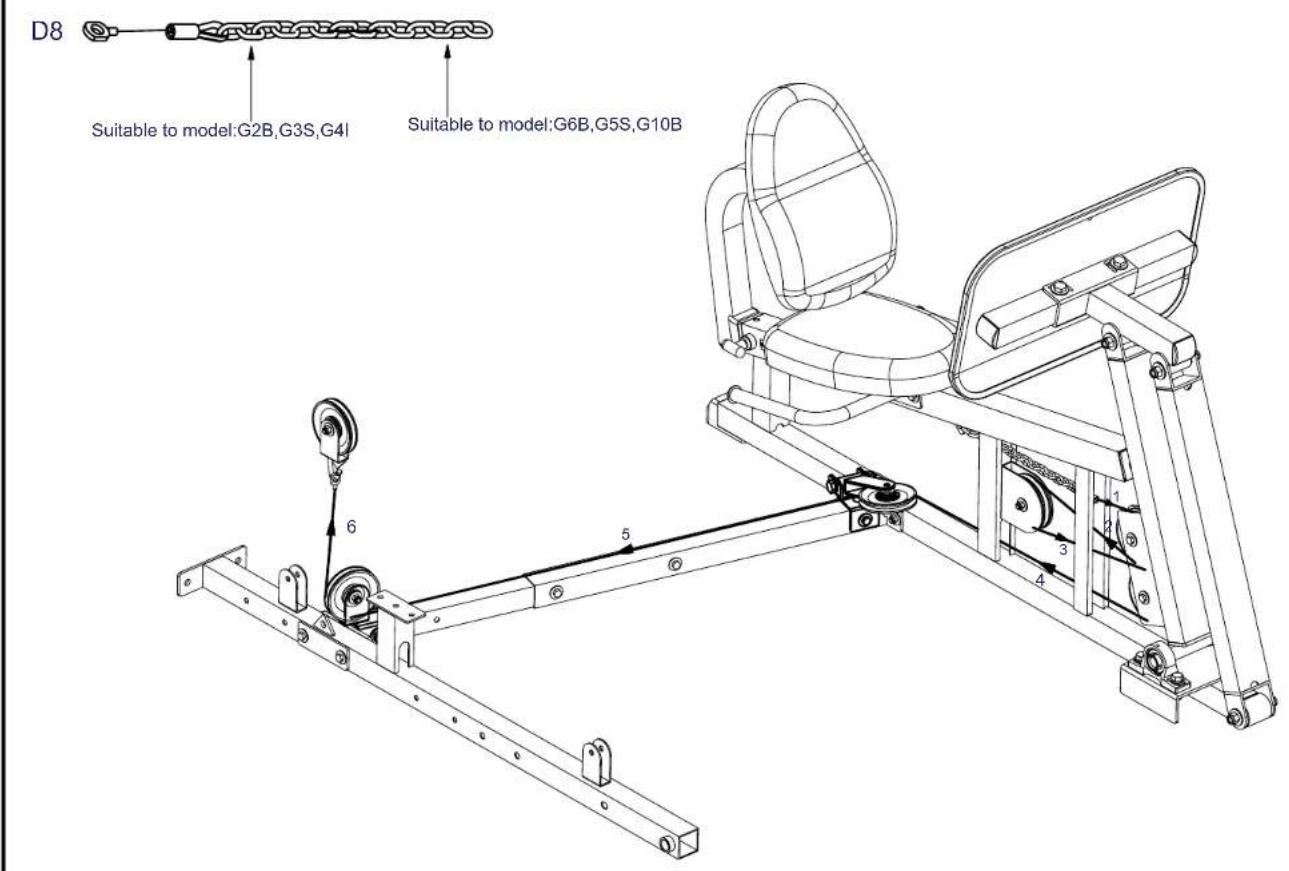

Body-Solid GLP - GLP.1-122005 - 8

text_image D8 Suitable to model:G2B,G3S,G4I Suitable to model:G6B,G5S,G10B 6 5 1 2 3 4

PAGE 7
