BRUGSANVISNING AEAD36 Hestan
SINGLE AND DOUBLE ACCESS DOORS
• Available in 18", 24", 30", 36" and 42" widths
- Recessed Marquise Accented™ panel with commercial grade handle(s)*
• Door alignment adjustability
DRAWER AND DOOR DRAWER COMBOS
• Available in 16" (double drawer), 30", 36" and 42" (door drawer combo) widths
- Recessed Marquise Accented™ panel with commercial grade handle*
• Heavy gauge welded body construction
CLEAN UP
PAPER TOWEL DISPENSER
- Can be mounted horizontally or vertically (left or right opening)
• Heavy gauge welded body construction - Recessed Marquise Accented™ panel with commercial grade handle*
COUNTERTOP
TRASH CHUTE
• Heavy gauge welded body construction
• Complimentary to Trash Storage
- Stainless steel top cover with Marquise Accented™ handle
- Commercial grade cutting board that slides for easy access to chute
TRASH STORAGE DRAWER
• Available in 20" width
• Heavy gauge welded body construction
- Slide out trash bin that is easily removable for emptying and cleaning
- Full extension slides
- Recessed Marquise Accented™ panel with commercial grade handle*
* Panels available in Aspire signature color finishes
www.hestanaspire.com
phone 888.905.7463
3375 E. La Palma Ave., Anaheim, CA 92806
ASPIRE
H E S T A N
NOTES:
1) Trash Chute AETC cutout depends on type of countertop used. Please refer to installation instructions for details.
2) Paper Towel Dispenser AEPTD16 can be installed in 3 different orientations using these cutout dimensions. Please refer to installation instructions for details.

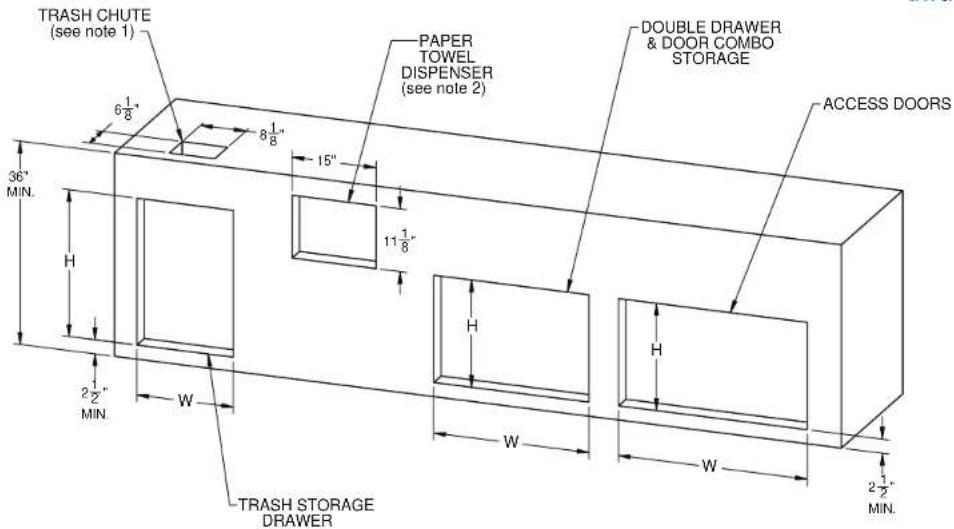

STORAGE and CLEANUP
| Models | Description | Cutout DimensionsPro | |||
| W (in.) | W (in.) | D (in.) | H (in.) | ||
| AEAD_xx Single Access Door | 18" or 24" | 15-7/8", 21-7/8" | n/a | 19" | |
| AEADxx | Double Access Doors | 30", 36", 42" | 27-7/8", 33-7/8", 39-7/8" | n/a | 19" |
| AEDR16 | Double Drawers | 16" | 13-7/8" | 23^-3/8" | 19" |
| AESDRxx | Double Drawer and Storage Door Combination | 30", 36", 42" | 27-7/8", 33-7/8", 39-7/8" | 23^-3/8" | 19" |
| AETRC20 | Trash Storage Drawer | 20" | 17-1/4" | 18" | 26" |
| AGTC | Countertop Trash Chute | - | 6-1/8" | 8^-1/8" | n/a |
| AEPTD16 | Paper Towel Dispenser | 16" | 11-1/8" 10 | -1/8" | 15" |
Aspire by Hestan products are approved for outdoor use only. Hestan Commercial Corporation reserves the right to change materials and specifications without notice.
