BRUGSANVISNING RCX-570 FOCAL
AUDITOR
RCX-570
2-way coaxial Kit, elliptic
- Butyl surround High resistance
- Inverted dome tweeter Smoothness and precision
• Polypropylene cone Robustness and efficiency
• 1" (25mm) voice coil Kapton former
• Steel basket Rigid and compact
WHAT MAKES THE DIFFERENCE
- Compatible with Jeep®, Dodge®, Ford® cars
• Power / compactness ratio
TECHNICAL CHARACTERISTICS
Diameter: 5"x7" (130x180mm)
Voice coil diameter: 1" (25mm)
Max. power: 120W
Nom. power: 60W RMS
Sensitivity (2.83V/1m): 91.6dB
Frequency response: 60Hz - 21kHz
Inverted dome tweeter: 025/32" (20mm)
Accessories: Available without grilles
Performance
AUDITOR
RCX-570
Woofer (5x7")

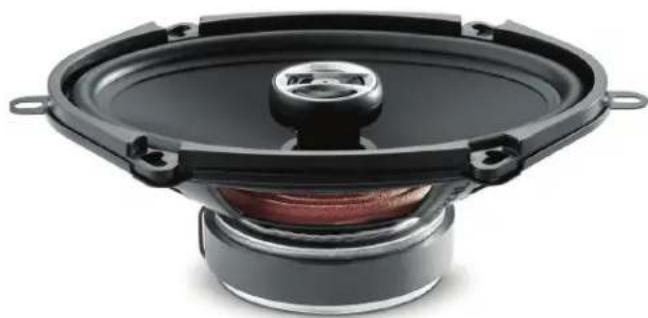

- Polypropylene cone
- Steel basket

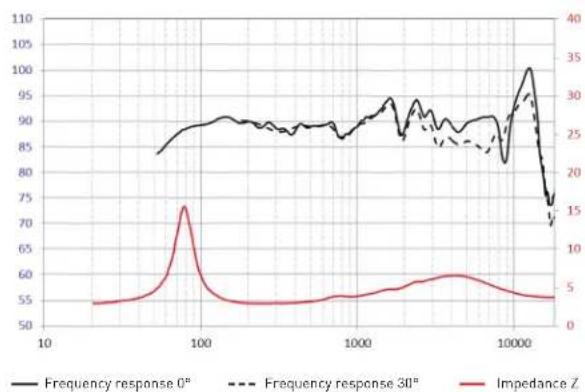

FREQUENCY RESPONSE/IMPEDANCE
line
| X Value | Frequency response 0° | Frequency response 30° | Impedance Z | | ------- | --------------------- | ---------------------- | ----------- | | 10 | ~85 | ~85 | ~5 | | 100 | ~90 | ~90 | ~75 | | 1000 | ~85 | ~85 | ~5 | | 10000 | ~100 | ~100 | ~5 |SPECIFICATIONS
Nominal power 60W RMS
Maximum power 120W
Sensitivity (2,83V/1m) 91.6dB
Frequency response 60Hz-21kHz
Cone type Polypropylene
Surround type Butyl
Nom. impedance 4Ω
DC resistance 2.80
VC diameter 25mm 1"
Net weight 1000g 2.20lbs
PARAMETERS
Fs 80Hz
| Vas | 91 |
| Qts | 0.83 |
| Qes | 1 |
| Qms | 5 |
| Re | 2.8Ω |
| Sd | 150cm ^2 |
| Cms | 0.25mm/N |
| Mms | 16g |
| BI | 4.8 N/A |

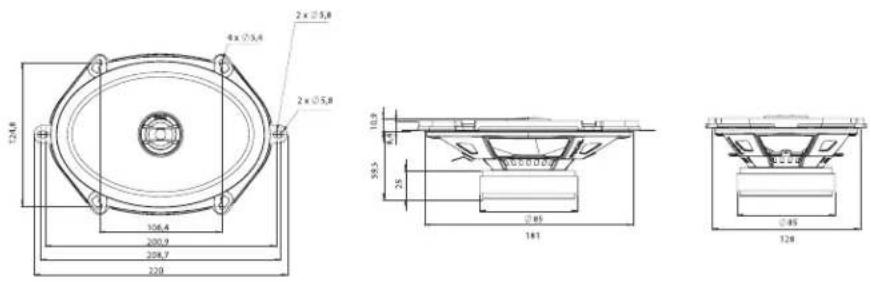

MECHANICAL DRAWING
