BRUGSANVISNING Virtus 602 Morel

Virtus Installation Guide Virtus 62, 62.2, 63, 63.2 Components MW6,MW6.2, MT120N, MT120.4N, VWB25.4, MXR200.4, MXR300.4V

Virtus

Installation Guide

Virtus

62, 62.2, 63, 63.2

Components

MW6,MW6.2,MT120N,

MT120.4N, VWB25.4,

MXR200.4,

MXR300.4V

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Virtus speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at www.morelhifi.com

Virtus Components

6.5" Woofer

X2

X2

X8

X8

VWB25.4 Midrange

X8 X8 X2X2

MT120N/MT120.4N Tweeter

X2

X2

X2

X4

X2 X2

SURFACE OPTIONS

MXR200.4/MXR300.4V Crossover

Technical line drawing of a dual-chamber electronic device with ports and connectors (no text or symbols)

X2

X6 X6

Virtus Woofer, Tweeter, Crossover mounting

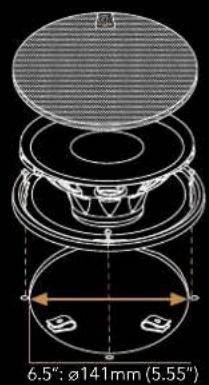

Unit 6.5"

6.5"; Ø141mm (5.55")

MT120N/MT120.4N Tweeter

Flush Mount ① ② c47mm (2°) ③ ④ CUCK Surface Mount ① ② 25mm (1°) ③

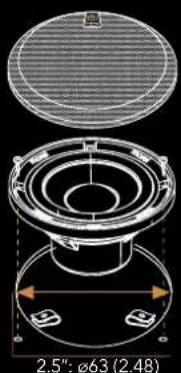

CrossoverVWB25.4 Midrange

Technical diagram of a speaker or fan assembly with top and side views, showing internal components and dimensional annotation (no text labels or symbols)

Technical line drawing of a car dashboard with control panels and buttons (no text or symbols)

2-WAY System

2-WAY System Wiring

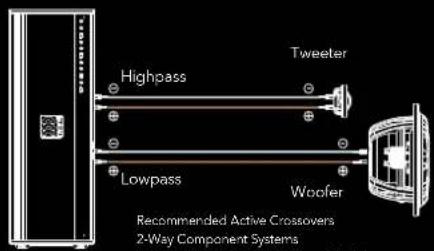

ACTIVE SET UP

Highpass Tweeter Lowpass Woofer Recommended Active Crossovers 2-Way Component Systems

Recommended Active Crossovers
2-Way Component Systems
Tweeter HP: 2,800Hz @ 12dB or 24dB slope
Woofer LP: 2,800Hz @ 12dB or 24dB slope

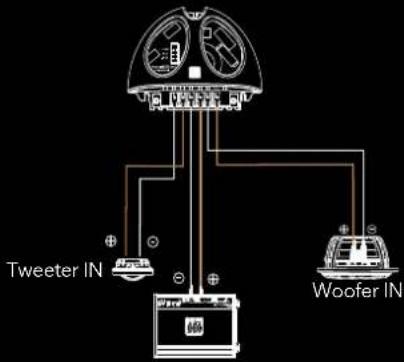

PASSIVE SET UP

Tweeter IN Woofer IN

2-WAY System Alignment

Use the red jumper to determinate the tweeter +/- dB level + 2 dB 0 dB -2 dB WOOFER TWEETER 90 1000 Hz 2000 Hz 3200 Hz 20000 Hz + 2dB 0dB (FLAT) - 2dB

3-WAY System

3-WAY System Wiring 3-WAY System Alignment

ACTIVE SET UP (Outputs must be filtered)


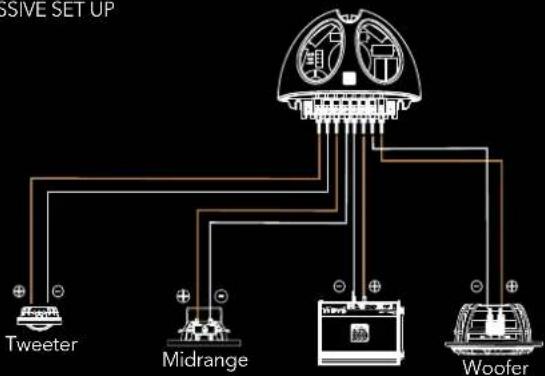

PASSIVE SET UP

ASSIVE SET UP Tweeter Midrange Woofer

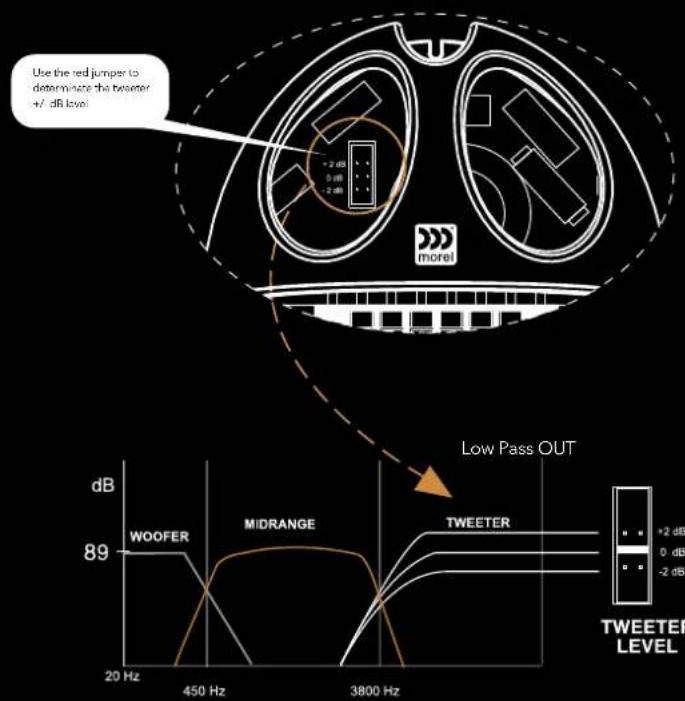

Use the red jumper to determine the tweter +/ dB level WOOFER 89 450 Hz 3800 Hz Low Pass OUT TWEETER LEVEL +2 dB 0 dB -2 dB

Specifications

DRIVER UNIT VIRTUS MW6		VIRTUS MW6.2
Nominal Impedance (Ohms)	4	2
Power Handling Wrms	140	120
Max. Trans.Per Handling Wrms	300	260
Sensitivity (2.83V/1M)	88 dB	90 dB
Frequency Response Hz	55-4000	55-4000
Resonant Freq. Fs Hz	65	65.7
Voice Coil Diameter mm (inch)	54 (2.1)	54 (2.1)
Voice Coil Height mm (inch)	10 (0.4)	10 (0.4)
Voice Coil Type/ Former	Aluminum	Aluminum
Voice Coil Wire	HexatechTM aluminum	HexatechTM aluminum
DC Resistance (Ohms)	3.5	1.9
Voice Coil Induct. @1 kHz (MHz)	0.33	0.10
Magnet System	Double ferrite rear vented	Double ferrite rear vented
HE-Magnetic Gap Height mm (inch)	4 (0.16)	4 (0.16)
B-Flux Density (T.M.)	0.65	0.68
BL Product/BXL	3.41	2.95
Max. Linear Ex/Xmax mm (inch)	6+3(0.23+0.118)	6+3(0.23-0.118)
Suspension Compliance CMS - mm/N	0.57	0.42
Electrical Q Factor QES	1.3	1.27
QTS	0.9	0.9
GMS	2.88	3.09
Mech Resistance RMS - Ohm/meter	1.49	1.84
Moving Mass MMS - gr/ ounce	10.67 (0.38)	13.82 (0.48)
Equiv. Can Air Load VAS - L (cu.ft)	11.38 (0.45)	8.76 (0.30)
Effective Piston Area SD sq.cm (sq. inch)	119 (18.45)	119 (18.45)
Cone Type	Formed Paper	Formed Paper
Cone Material	Composite cellular fiber	Composite cellular fiber
Unit Diameter mm (inch)	165 (6.50)	165 (6.50)
Mounting Depth mm (inch)	61 (2.36)	61 (2.36)
Mounting Cutout mm (inch)	141 (5.55)	141 (5.55)
Net Weight Kg (lb)	0.739 (1.61)	0.734 (1.62)

TWEETER / MIDRANGE VWB25.4		MT120.4N (62.2)	MT120N (62)
Nominal Impedance (Ohm)	4	4	8
Power Handling (WRms)	40	80	80
Max Transient Power Handling W (10ms)	80	250	250
Sensitivity (Ω.83V/1M) db	86	91	90
Frequency Response Hz	90-20000	1800-22000	1800-22000
FS Hz	110	1200	1200
Voice Coil Diameter mm (inch)	20(0.78)	28(1.125)	28(1.125)
Voice Coil Former	F-berg-ass	Aluminium	Aluminium
Voice Coil Wire	Copper	Copper	Copper
DC Resistance Ohm	5,2	4	5,2
Magnet System	Double Neodymium	Neodymium	Neodymium
Cone / Dome Type	Formed Aluminum	Acuflex ^14 hand coated soft dome	Acuflex ^14 hand coated soft dome
Cone / Dome Material	Aluminum	Silk	Silk
Unit Diameter mm (inch)	77(3)	43.00(1.69)	43.00(1.69)
Mounting Depth mm (inch)	34.2(1.34)	13.2(0.52)	13.2(0.52)
Mounting Cutout mm (inch)	63(2.48)	47.00(2)	47.00(2)
Net Weight Kalls	0.15(0.33)	0.07(0.15)	0.07(0.15)

CROSSOVER	MXR200.4	MXR300.4V
Crossover Point	W: 2200Hz / 18dB	W: 500Hz / 12dB
	T: 2200Hz / 12dB	M:18dB/ 2800Hz/ 12dB
		T: 2800Hz / 12dB
Crossover Controls	Tweeter +/- 3dB	Tweeter +/- 2dB
Wiring Options	N/A	N/A

* Morel operates a policy of continuous product design improvement, consequently specifications are subject to alteration without prior notice.

Wishing you many years of sound enjoyment!

Morel, Ness Ziona, 70400 Israel.

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

Morel America, Chandler, AZ, USA

Toll free number:1-877-667-3511

Fax: [phone]

E-mail: [e-mail]

www.morelhifi.com
