BRUGSANVISNING CMIP8222 LTS
Quick Installation Guide


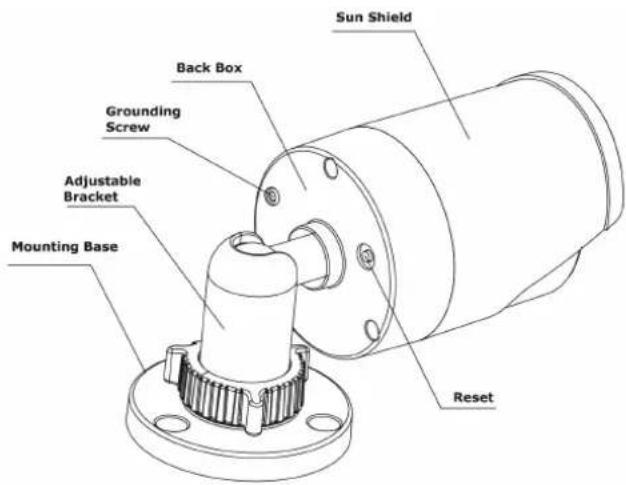

Sun Shield Back Box Grounding Screw Adjustable Bracket Mounting Base ResetProduct Structure Diagram
Installation
Note:
Please make sure that the ceiling is strong enough to withstand three times the weight of the camera and the housing.
Steps:

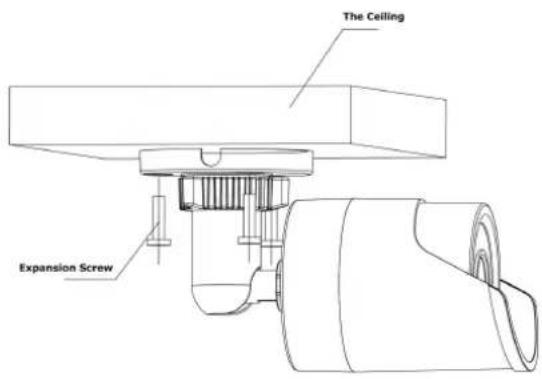

- Install the Camera
This series of camera is designed as a whole compact structure, and you only need to secure the mounting base to the ceiling with the supplied P A4 screws.


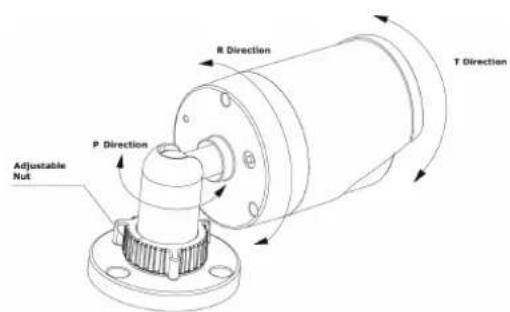

The Ceiling Expansion Screw2. Three-Axis Adjustment
Loosen the adjusting nuts on the bracket, and adjust the camera from P/R/T direction.
P Direction: 0\~360°adjustable.
T Direction: 0\~90°adjustable.
R Direction: 0\~360°adjustable
Adjust the lens to the surveillance angle. Tighten the adjusting nuts to complete the installation.
