BRUGSANVISNING SWC6GBLBIHVADA Summit
SWC6GBLBIHVADA


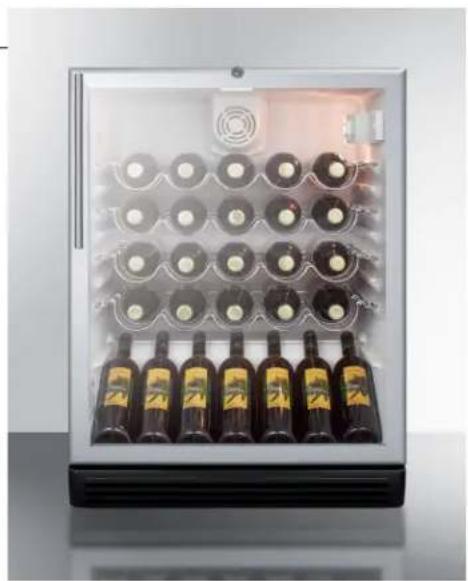

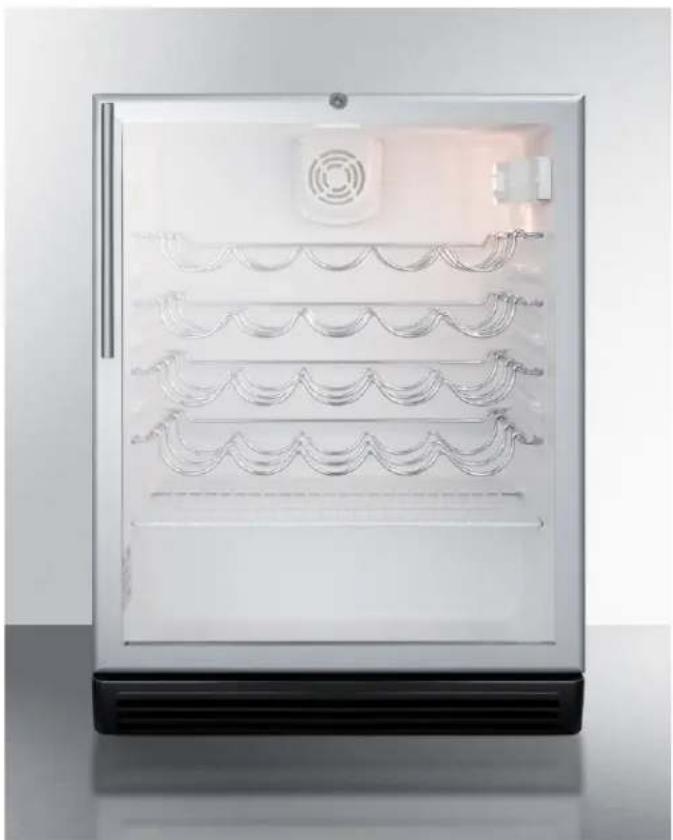

Exterior view of a modern stainless steel refrigerator with clear glass doors and wavy top panels (no text or symbols visible)32.25" x 23.63" x 23.5" (H x W x D)
ADA compliant, commercially approved wine cellar for built-in undercounter use, with glass door, black cabinet and lock
Highlights:
32" height fits under lower ADA compliant counters
European built wine cellar designed for safe storage with elegant display
Commercially approved to NSF-7 standards
Product Features:
Commercially approved ETL-S listed to NSF-7 for use in foodservice establishments
ADA compliant 32" high to fit under lower ADA compliant counters
Built-in capable Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully finished black cabinet Allows the unit to be used freestanding
Double pane tempered glass door Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
Professional handle Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry
Factory installed lock Keyed lock for secure interior, conveniently located at the top of the door
Scalloped steel shelving Curved shelves designed for the ideal storage of wine bottles
Half-sized wire shelf Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
SWC6GBLBIHVADA Specifications:
Overview
| Height of Cabinet 32.0" (81 cm) | |
| Height to Hinge Cap 32.25" (82 cm) | |
| Width 23.63" (60 cm) | |
| Depth 23.5" (60 cm) | |
| Capacity 5.5 cu.ft. (156 L) | |
| Defrost Type Automatic | |
| Door Glass | |
| Cabinet Black | |
| US Electrical Safety UL | |
| Canadian Electrical Safety | ULC |
| Sanitation ETL-S | |
| Amps 1.3 | |
| Voltage/Frequency 115 V AC/60 Hz | |
| Weight 115.0 lbs. (52 kg) | |
| Shipping Weight 120.0 lbs. (54 kg) | |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves Yes | |
| Shelf Type Scalloped | |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
Condensor Location
