BRUGSANVISNING SCFF53BXSSHH Summit

SCFF53BFR

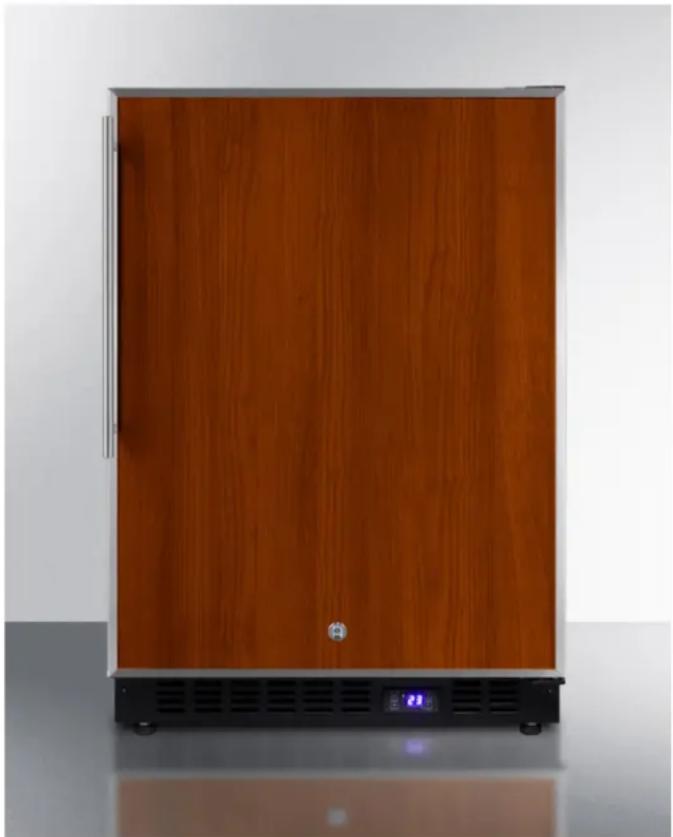

Exterior view of a modern stainless steel refrigerator with wooden panel and digital display (no visible text or symbols)

$$ 3 4 ^ {\prime \prime} \times 2 3. 6 3 ^ {\prime \prime} \times 2 3. 5 ^ {\prime \prime} (H \times W \times D) $$

Frost-free built-in undercounter all-freezer for residential or commercial use, with stainless steel door frame for slide-in panels

Highlights:

True frost-free operation saves you maintenance by preventing icy buildup

Flexible design allows built-in or freestanding use in 24" wide spaces

Stainless steel door frame accepts slide-in panels for a custom look

Product Features:

Frost-free operation No-frost convenience eliminates the need to manually defrost the unit

Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets

Stainless steel door frame Two-piece U-shaped door frame in stainless steel accepts slide-in panels, allowing users to create a custom look to match or complement adjacent cabinetry (panel size: 29 3/4" H x 23" W at up to 1/4" thick)

Pro style handle Stainless steel handle adds an attractive touch

Digital thermostat Electronic controls offer easy and intuitive temperature management

Recessed LED light Elegant lighting with an on/off switch located on the control panel

Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock Keyed lock for a secure interior

Open door alarm Audible alarm will sound if the door is left open longer than one minute

SCFF53BFR Specifications:

Overview

Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety	ETL-C
Sanitation ETL-S
Energy Usage/Year 390.0kWh/year
Amps 0.9
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	98.0 lbs. (44 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years

Freezer

Door Swing	RHD
Reversible	Factory Reversible
Interior Height	26.0" (66 cm)
Interior Width	19.0" (48 cm)
Interior Depth	16.0" (41 cm)
Shelf Type	Chrome
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Fan Type Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.24 oz.
High Side PSI	270.0
Low Side PSI	105.0
Sabbath Mode	Yes

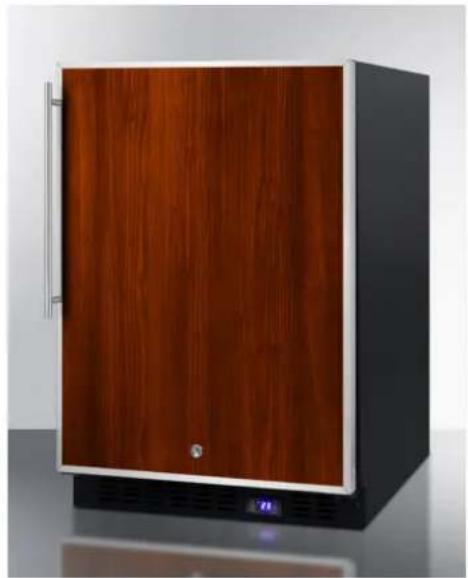

Exterior view of a modern black and white refrigerator with wooden doors and a digital display (no visible text or symbols)
