BRUGSANVISNING SCFF53BXSSTB Summit
SCFF53BFRIM


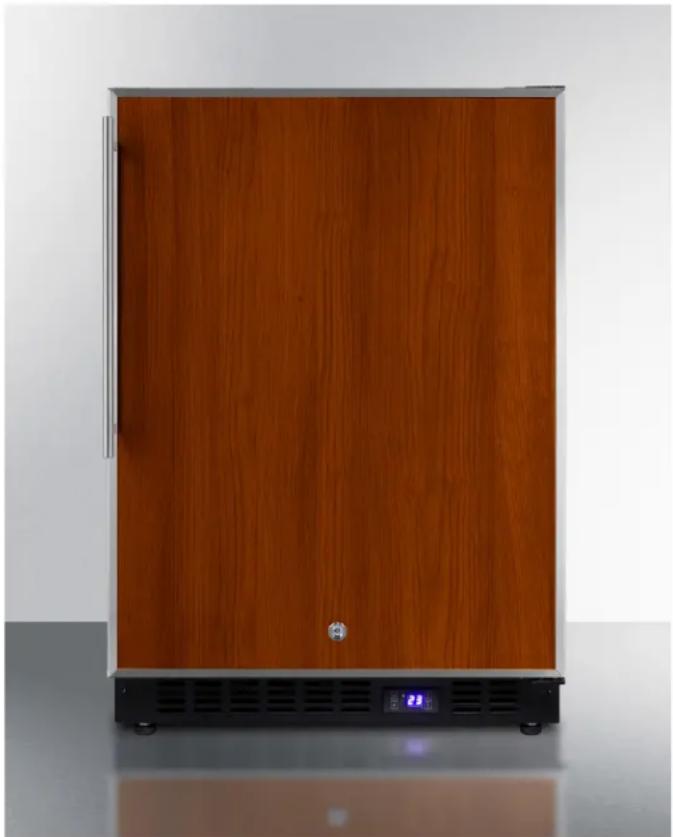

Exterior view of a modern stainless steel refrigerator with wooden panel and digital display (no visible text or symbols)34" x 23.63" x 23.5" (H x W x D)
Frost-free built-in undercounter all-freezer for residential use, with icemaker, stainless steel door frame for slide-in panels, and black cabinet
Highlights:
True frost-free operation saves you maintenance by preventing icy buildup
Flexible design allows built-in or freestanding use in 24" wide spaces
Stainless steel door frame accepts slide-in panels for a custom look
Product Features:
Built-in capable Make the best use of space by installing your freezer under the counter and flush with other cabinets
Frost-free operation No-frost convenience eliminates the need to manually defrost the unit
Stainless steel door frame Two-piece U-shaped door frame in stainless steel accepts slide-in panels, allowing users to create a custom look to match or complement adjacent cabinetry (panel size: 29 3/4" H x 23" W at up to 1/4" thick)
Digital thermostat Electronic controls offer easy and intuitive temperature management
Factory installed icemaker Produces a steady supply of ice for added entertaining convenience
Recessed LED light Elegant lighting with an on/off switch located on the control panel
Pro style handle Stainless steel handle adds an attractive touch
Adjustable shelves Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Factory installed lock Keyed lock for a secure interior
SCFF53BFRIM Specifications:
Overview
| Height of Cabinet 34.0" (86 cm) | |
| Width 23.63" (60 cm) | |
| Depth 23.5" (60 cm) | |
| Depth with Handle 25.35" (64 cm) | |
| Depth with door at 90° 45.63" (116 cm) | |
| Capacity 4.72 cu.ft. (134 L) | |
| Defrost Type Frost-Free | |
| Door Panel-Ready | |
| Cabinet Black | |
| US Electrical Safety ETL | |
| Canadian Electrical Safety | ETL-C |
| Energy Usage/Year 390.0kWh/year | |
| Amps 0.9 | |
| Voltage/Frequency 115 V AC/60 Hz | |
| Weight | 100.0 lbs. (45 kg) |
| Shipping Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type Interior and | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.8 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 106.0 |
| Sabbath Mode | Yes |
