BRUGSANVISNING SWC6GBLHVADA Summit
SWC6GBLHVADA


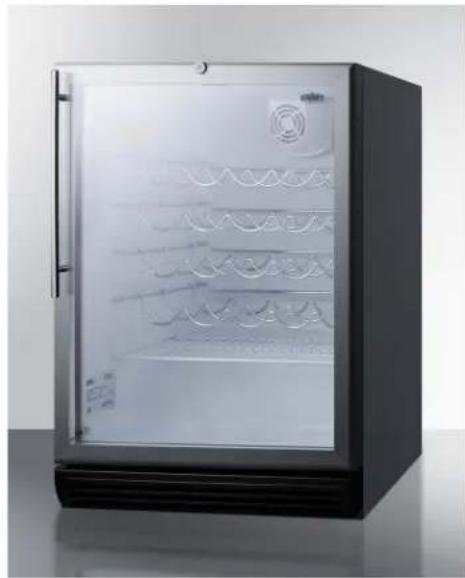

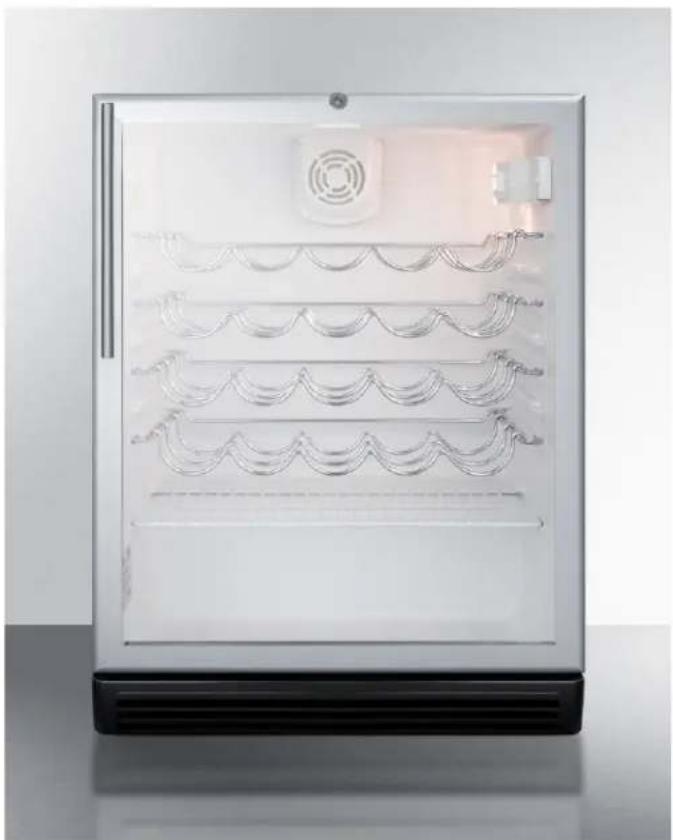

Exterior view of a modern stainless steel refrigerator with clear glass doors and wavy top panels (no text or symbols visible)32.38" x 23.63" x 23.5" (H x W x D)
ADA compliant, commercially approved wine cellar for freestanding use with glass door, black cabinet, and towel bar handle
Highlights:
European built wine cellar designed for safe storage with elegant display
32" high to meet ADA guidelines for lower counters
Commercially approved to NSF-7 standards
Product Features:
ADA compliant 32" high for use in ADA compliant settings
| Commercially approved ETL-S listed to NSF-7 for use in foodservice establishments | |
| Double pane tempered glass door | Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch |
| Professional handle Vertically mounted thin handle (14mm) in brushed stainless steel matches many popular styles of cabinetry | |
| Factory installed lock Keyed lock for secure interior, conveniently located at the top of the door | |
| Automatic defrost Reduced maintenance with auto defrost system | |
| Internal fan Fan-forced cooling helps to maintain a more evenly cooled interior | |
| Scalloped steel shelving Curved shelves designed for the ideal storage of wine bottles | |
| Half-sized wire shelf Sits on top of the compressor and features wire slots ideal for holding bottles on their sides | |
SWC6GBLHVADA Specifications:
Overview
| Height of Cabinet 32.0" (81 cm) | |
| Height to Hinge Cap 32.38" (82 cm) | |
| Width 23.63" (60 cm) | |
| Depth 23.5" (60 cm) | |
| Capacity 5.5 cu.ft. (156 L) | |
| Defrost Type Automatic | |
| Door Glass | |
| Cabinet Black | |
| US Electrical Safety UL | |
| Canadian Electrical Safety | ULC |
| Sanitation ETL-S | |
| Amps 1.3 | |
| Voltage/Frequency 115 V AC/60 Hz | |
| Weight 115.0 lbs. (52 kg) | |
| Shipping Weight 120.0 lbs. (54 kg) | |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Wine Cellar | |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves Yes | |
| Shelf Type Scalloped | |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
