BRUGSANVISNING WNM1307DK Summit
WNM1307DFK


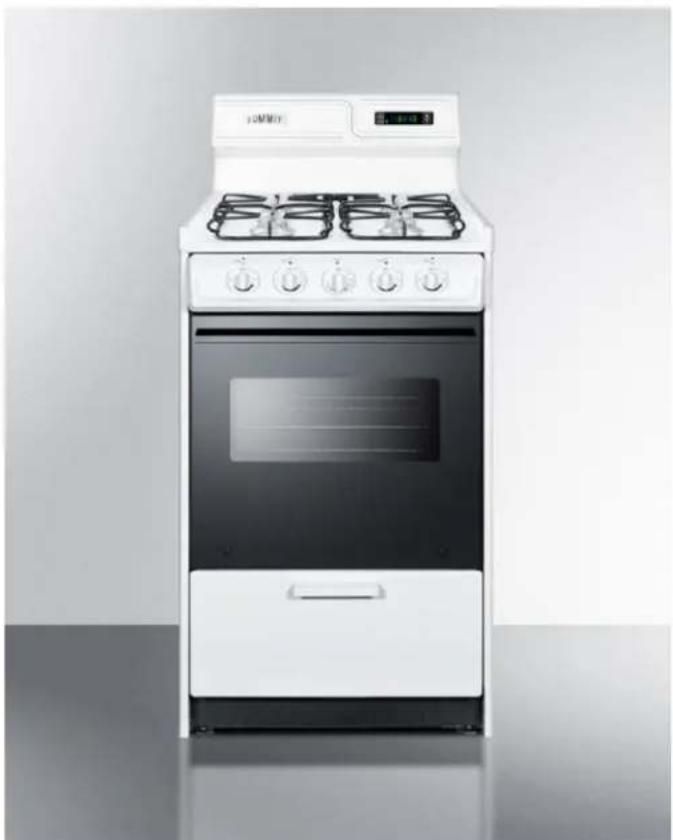

Modern white and black electric stove with four stovels and a front panel, displayed against a plain background (no visible text or symbols)$$ 4 4 ^ {\prime \prime} \times 2 0 ^ {\prime \prime} \times 2 4 ^ {\prime \prime} (H \times W \times D) $$
Deluxe gas range in slim 20" width with sealed burners, black glass oven door, and white porcelain top; replaces WTM1307DFK
Highlights:
Slim 20 inch width fits easily in small kitchens
Lower broiler compartment provides even heat distribution
Four sealed gas burners for cleaner cooking
Gas spark ignition adds convenience and safety
Product Features:
Slim 20 inch width Apartment sized to fit in small or galley kitchens
Gas range Natural gas range; can be converted to LP Gas in our shop or ordered with KIT LP for conversion
Electronic ignition Gas spark ignition for automatic lighting of burners
Four sealed burners Easy cleanup on boil-overs and accidental spills
Porcelain construction Removable oven top constructed from solid white porcelain
Black glass oven door Stylish look with solid construction
Oven window with light Provides a convenient and full-lit view of oven contents
Broiler drawer Lower compartment for separate broiling with even heat distribution
Broiler pan included Two-piece porcelain broiler tray with grease well
WNM1307DFK Specifications:
Overview
| Height 44.0" |
| Width 20.0" |
| Depth 24.0" |
| Door Black |
| Cabinet White |
| Weight 150.0 lbs. |
| Shipping Weight 150.0 lbs. |
| Parts & Labor Warranty | 1 Year |
Gas Range
Ignition Spark
| LP Convertible With KitLP | Accessory |
| Oven Capacity 2.46cu.ft | |
| Cooktop Surface Porcelain | |
| Burner Type Sealed | |
| Number of Burners | 4 |
| Burner #1 BTU | 9000.0 |
| Burner #2 BTU | 9000.0 |
| Burner #3 BTU | 9000.0 |
| Burner #4 BTU | 9000.0 |
| Burner Controls | Digital |
| Oven Controls | Digital |
| Oven Light | Yes |
| Cooking Timer | Yes |
| Backguard | Yes |
| Backguard Display | Yes |
| Oven Window | Yes |
| Oven Interior Height 14.0" | |
| Oven Interior Width | 16.0" |
| Oven Interior Depth | 19.0" |
| Broiler Location | Below Oven |
| Broiler Door | White |
| Oven Door | Black Glass |
