BRUGSANVISNING C 310-R Clockaudio

Slim Line Series Cardioid Microphones with Mini XLR Connector designed for use in boardrooms, conferencing and a wide variety of applications requiring easily detachable gooseneck microphones with good consistent sound quality.

Clockaudio C 310-R - 1

natural_image Simple curved line drawing with no text or symbols
  • Semi Rigid goosenecks or Rigid shaft
  • Slimline unobtrusive design
    ■ Engineered in high quality brass
  • Mini XLR connector for easy interchange
    ■ Cardioid condenser microphone
    ■ C3 series wideband quality
  • Easy connection to SM20-RF, SM80-RF and SM80S-RF shock mounts, PPA-RF, S140-RF or CW9004 wireless microphone base
    ■ Finished in satin black

SPECIFICATIONS

Type:Condensor (black electret)
Polar Pattern:Cardioid
Frequency Response:50 Hz - 18 KHz
Sensitivity:-47dB +/- 3dB @ 1 KHz(0dB = 1 V/Pa)
Impedance:200 Ohms
S/N Radio:64dB(A)
Maximum SPL:125dB 1% THD
Power Requirements:PPA-RF, SM20-RF, SM80-RF,SM80S-RF, S140-RF,CW9004
Termination:3 pin female Mini XLRconnector.Pin 1 Phase -Pin 2 Phase +Pin 3 not used.
Accessories:W2 Windshield included
Dimensions:
Head Diameter:0.5" (12mm)
Shaft Diameter:0.2" (6mm)
Overall Length:C 312-SR 7.85" (200mm)C 313-SR 11.8" (300mm)C 314-SR 15.75" (400mm)
Net Weight:.2oz (29gms)
Finish:Satin Black

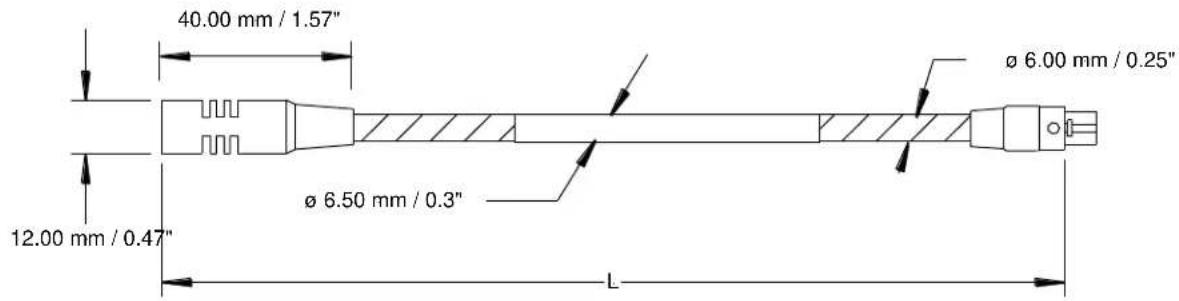

Clockaudio C 310-R - 2

text_image 40.00 mm / 1.57" ø 6.00 mm / 0.25" ø 6.50 mm / 0.3" 12.00 mm / 0.47" L

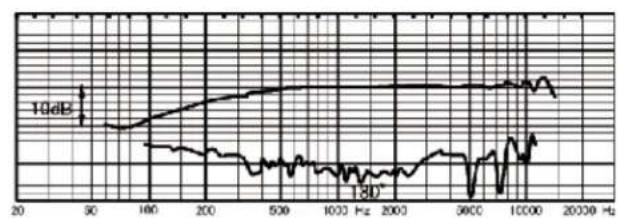

Clockaudio C 310-R - 3

line | Frequency (Hz) | Amplitude (dB) | | -------------- | -------------- | | 20 | ~0.8 | | 50 | ~0.9 | | 100 | ~1.0 | | 200 | ~1.1 | | 500 | ~1.2 | | 1000 | ~1.3 | | 2000 | ~1.4 | | 3000 | ~1.5 | | 10000 | ~1.6 | | 20000 | ~1.7 |

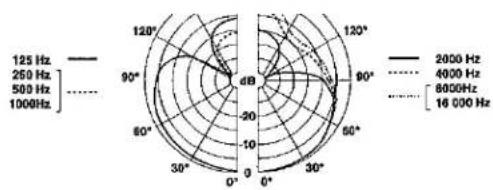

Clockaudio C 310-R - 4

radar | Frequency Range | Angle (°) | Value (dB) | | --------------- | --------- | ---------- | | 125 Hz | 0° | -20 | | 125 Hz | 30° | -10 | | 125 Hz | 60° | 0 | | 125 Hz | 90° | 10 | | 125 Hz | 120° | 20 | | 250 Hz | 0° | -15 | | 250 Hz | 30° | -5 | | 250 Hz | 60° | 5 | | 250 Hz | 90° | 15 | | 250 Hz | 120° | 25 | | 500 Hz | 0° | -10 | | 500 Hz | 30° | -8 | | 500 Hz | 60° | -3 | | 500 Hz | 90° | 2 | | 500 Hz | 120° | 10 | | 1000 Hz | 0° | -5 | | 1000 Hz | 30° | -3 | | 1000 Hz | 60° | -1 | | 1000 Hz | 90° | 5 | | 1000 Hz | 120° | 15 | | 2000 Hz | 0° | -8 | | 2000 Hz | 30° | -4 | | 2000 Hz | 60° | -1 | | 2000 Hz | 90° | 8 | | 2000 Hz | 120° | 28 | | 4000 Hz | 0° | -3 | | 4000 Hz | 30° | -1 | | 4000 Hz | 60° | 3 | | 4000 Hz | 90° | -7 | | 4000 Hz | 120° | -18 | | 8000 Hz | 0° | -6 | | 8000 Hz | 30° | -3 | | 8000 Hz | 60° | -1 | | 8000 Hz | 90° | 6 | | 8000 Hz | 120° | 22 | | 16000 Hz | 0° | -4 | | 16000 Hz | 30° | -2 | | 16000 Hz | 60° | -5 | | 16000 Hz | 90° | -8 | | 16000 Hz | 120° | -16 |
