BRUGSANVISNING Smart Body Bike

Abstract line drawing with geometric shapes and no visible text or symbols

DAILY USE

After each workout, wipe the cycle down with tissue paper. Once a month, we recommend to wipe the side covers and posts with an oily cloth to protect them from sweat etc. Only use Vaseline oil. Never use alcohol or chemicals. If it is necessary to move the cycle, handle it with care and avoid bumps. Use the handlebars in locked position and wheel the cycle. DO NOT lift by the saddle or handles. Front and seat posts are fitted individually to each bike so DO NOT switch them from one cycle to another.

Line drawing of a skis with 'BODY RICE' label and measurement markings (no other text or symbols)

RUBBER FEET

To ensure that the cycle is in level, always adjust the rubber after moving the cycle. Every second year the rubber feet should be replaced as the rubber hardens and becomes unable to absorb the impact.

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

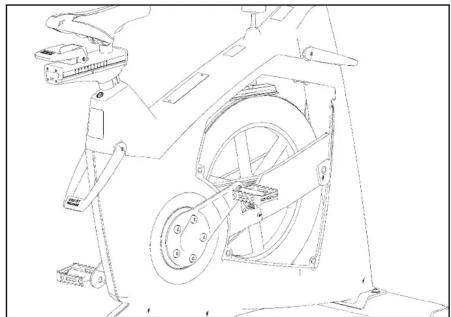

INSIDE INSPECTION

Inspect the Kevlar® brake pad after the first month and hereafter every third month. Replace the brake unit before the Kevlar® brake pad is worn through and reveals the black rubber. At every inspection the cycle should be vacuum cleaned inside. Also check that the ribs on the Poly-V belt and pulley are clean. Polish the flywheel edge with 3M Scotch-Brite™ pad to prevent dirt from collecting on the edge.

Technical line drawing of a mechanical component with no visible text or symbols

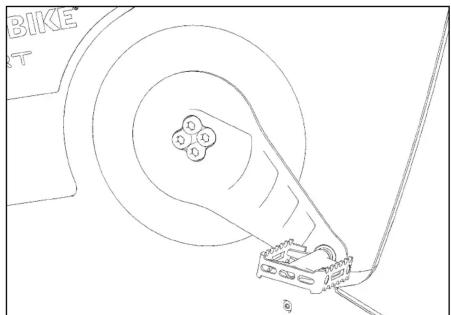

PEDALS

Tighten the pedals every 2 weeks to prevent them from getting loose or breaking off. The pedals should always be screwed on in the direction of the handlebar. Use a 15mm pedal wrench to tighten the pedal. Pedals should be changed once a year or at least after 1500 hours of cycling.

QUICK MANUAL BODY BIKE SMART

Download and read full instructions on www.body-bike.com/marketing/manuals

Edition 1.2

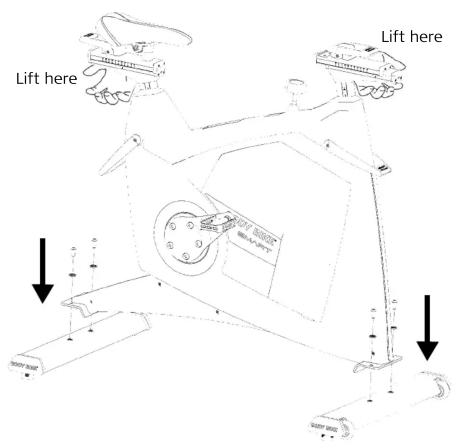

STABILIZERS
READ ME

x 2 M8x20

x 2 ∅8 washer Ribs facing up

Torque wrench Allen 5mm Tighten to 12Nm

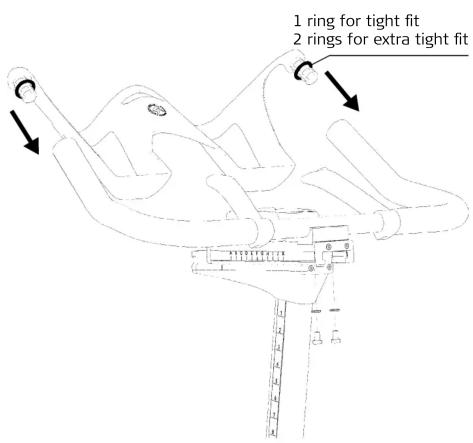

HANDLEBAR
READ ME

x 2 M6x10

x 2 ∅6 dual washer

Torque wrench Allen 5mm Tighten to 12 Nm

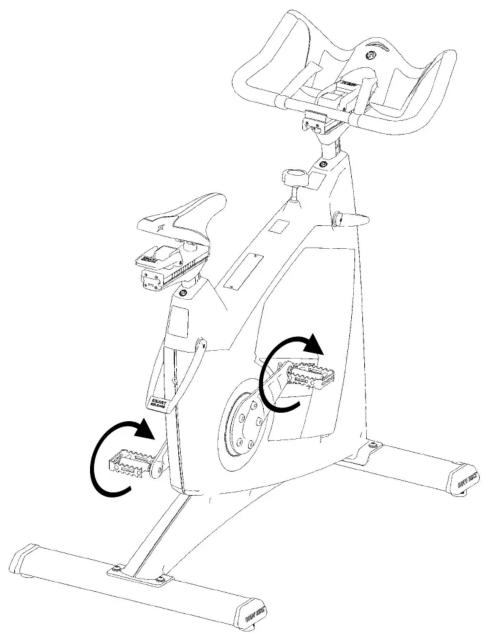

PEDALS
READ ME

Line drawing of a stationary exercise bike with rotating buttons and seat components (no text or symbols)
