BRUGSANVISNING GS324 NETGEAR
Installation
24-Port Gigabit Ethernet Unmanaged Switch GS324

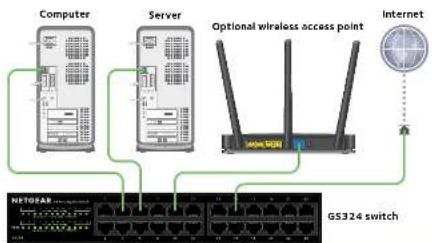

Step 1. Connect the equipment.
Step 2. Connect to power.


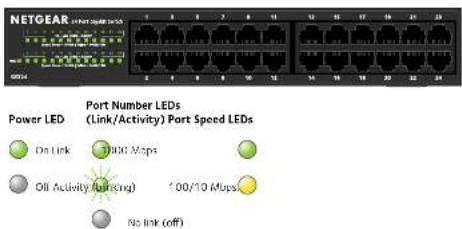

Pure electrical circuit lines without any symbolsStep 3. Check the status.
| Specification Description | |
| Network interface RI-45 connector | for 10BASE-T, 100BASE TX or 1000BASE T |
| Network cable Category S (Car S) or better Ethernet cable | |
| Parts 24 | |
| Power 100-240VAC 50/60 Hz, 1.0A | |
| Power consumption 11.1W max | |
| Weight 1.31 kg (2.90 lb) | |
| Dimensions (W x U x H) 252 x 180 | x 44 mm |
| 9.92 x 7.09 x 1.73 in | |
| Operating temperature 0 -40°C (32 -104°F) | |
| Operating humidity 10% -90% relative humidity, nonconducing | |

November 2015
NETGEAR, Inc. 350 East Plumeria Drive Se. Inst. CA 08134, USA
Support
Thank you for purchasing this NETGEAR product. You can visit www.netgear.com/support to register your product, get help, access the latest downloads and user manuals, and join our community. We recommend that you use only official NETGEAR support resources.
For the current EU Declaration of Conformity, visit http://support.netgear.com/opp/answers/detail/a_id/11621/.
For regulatory compliance information, visit http://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the power supply.
