BRUGSANVISNING LE32C658M2W SAMSUNG

LCD TV

QUICK SETUP GUIDE

The Supplied Accessoris

• Remote Control & Batteries (AAA x 2)
- Owner's Instructions

- Blanking Bracket

• Cleaning Cloth
• Power Cord

- Cable tie

(46 \~ 55 inch TVs)
- Holder-Ring (4ea)

See separate guide for installing the stand.

- Stand (1EA)

or

• Guide Stand (1EA)

(M4 X L12)

- Screws (9EA)

(32 inch model only: 8EA)

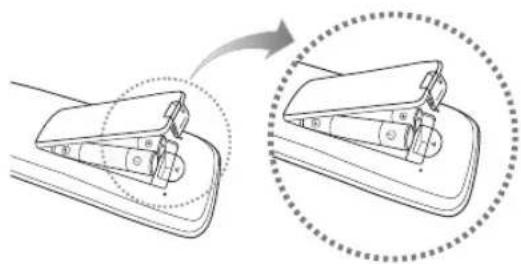

Installing Batteries in the Remote Control

Technical illustration of a mechanical assembly with two views showing internal components (no text or symbols)

NOTE

• Use the remote control within 23 feet from the TV.
• Bright light may affect the performance of the remote control. Avoid using nearby special fluorescent light or neon signs.
• The colour and shape may vary depending on the model.

BN68-02747A-00

Preset Step 1 Step 2

Front Rear

Front Rear

Technical diagram of a mechanical assembly with mounting base and bolts (no text or symbols)

Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models (Depending on the model)

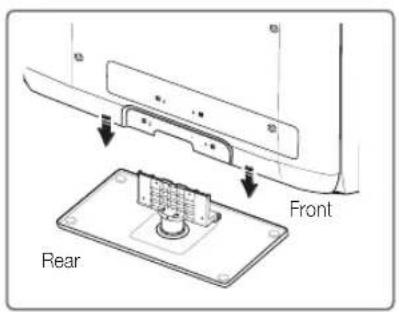

Step 1. Attach your LCD TV to the stand.

Two or more people should carry the TV.
Make sure to distinguish between the front and back of the stand when assembling them.
To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.

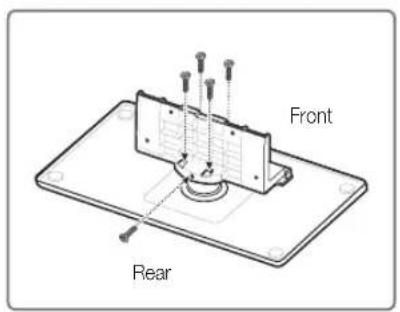

Step 2. Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.

Assembling the Cables

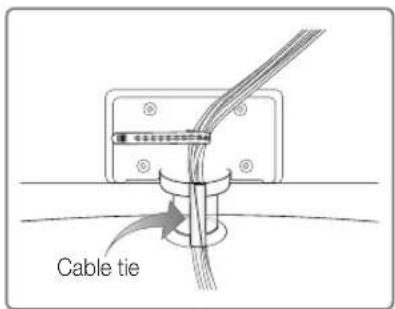

Enclose the cables in the Cable tie so that the cables are not visible through the transparent stand.

Overly rigid or thick cables can damage input jacks over long term use.

Cable tie

Using the remote control buttons

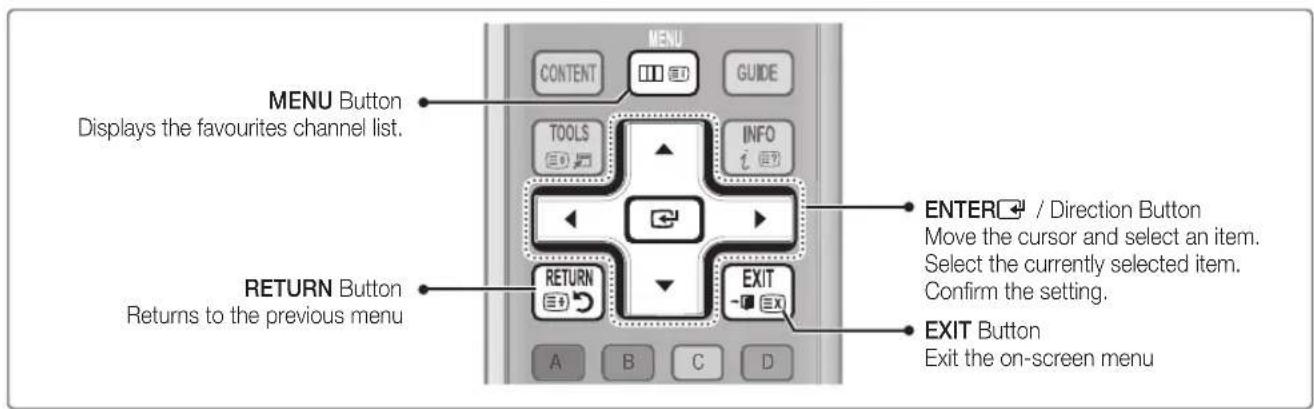

MENU Button Displays the favourites channel list. RETURN Button Returns to the previous menu CONTENT GUIDE TOOLS INFO EXIT / Direction Button Move the cursor and select an item. Select the currently selected item. Confirm the setting. EXIT Button Exit the on-screen menu

When the TV is initially powered on, basic settings proceed automatically and subsequently. If you want to reset this feature, press the MENU button to display menu. You can set the Plug & Play by selecting Setup → Plug & Play.

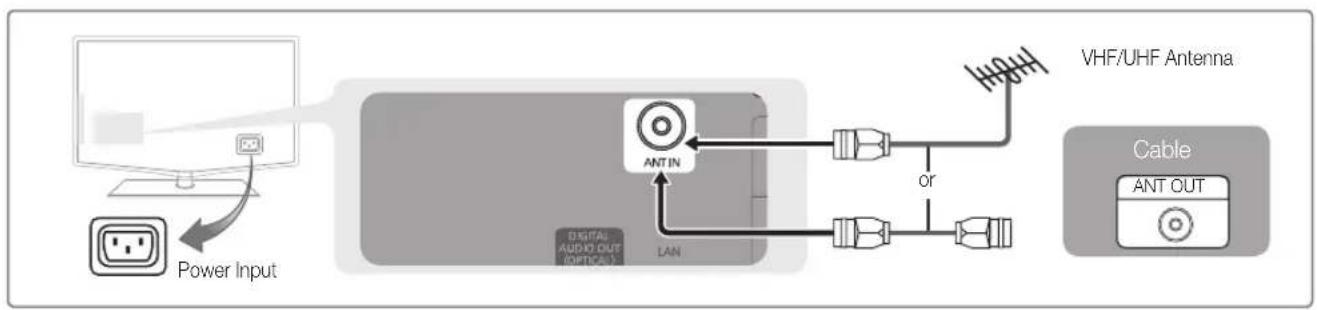

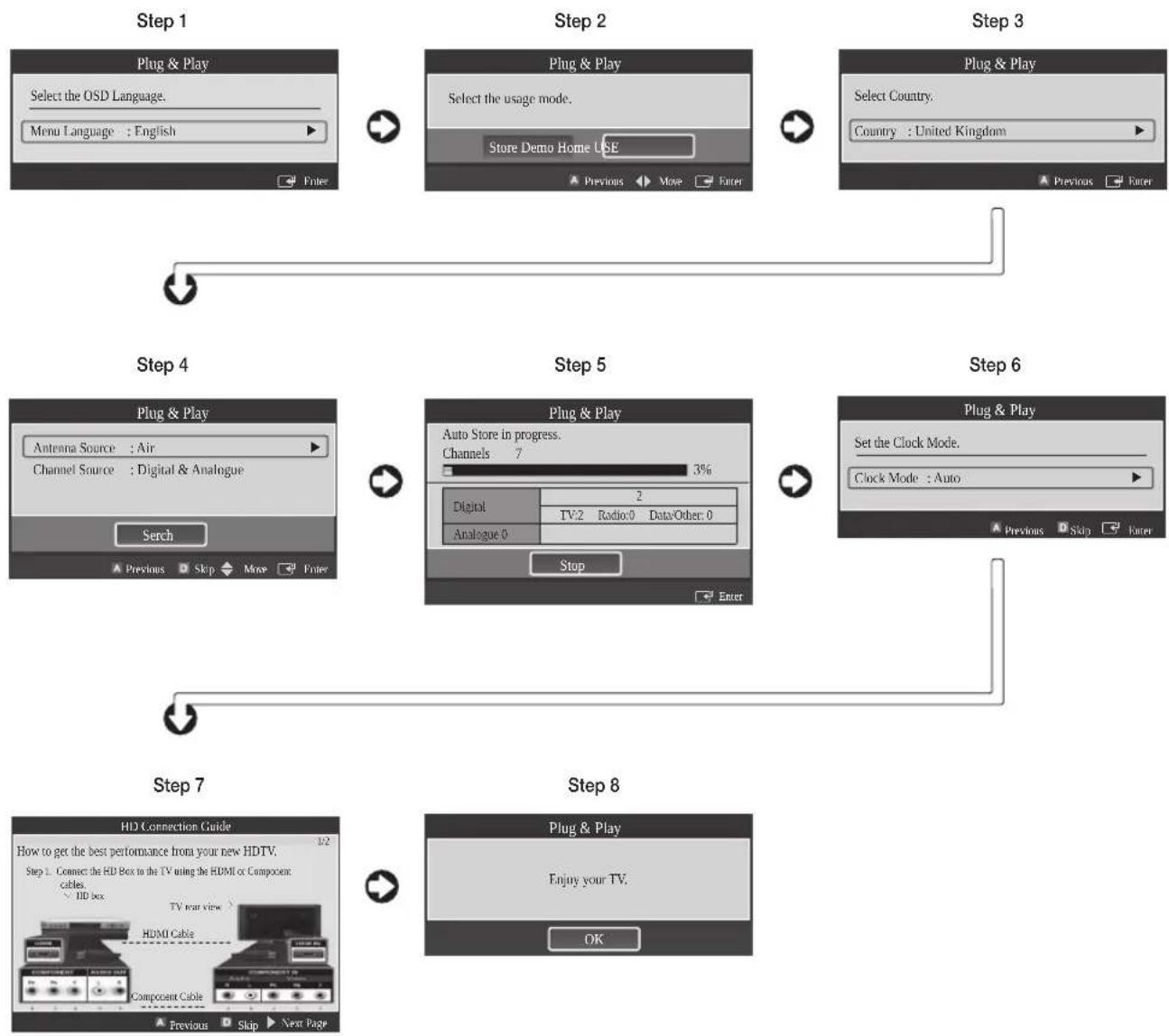

On the screen, you can set as follows.

The each step may vary depending on the Antenna source.


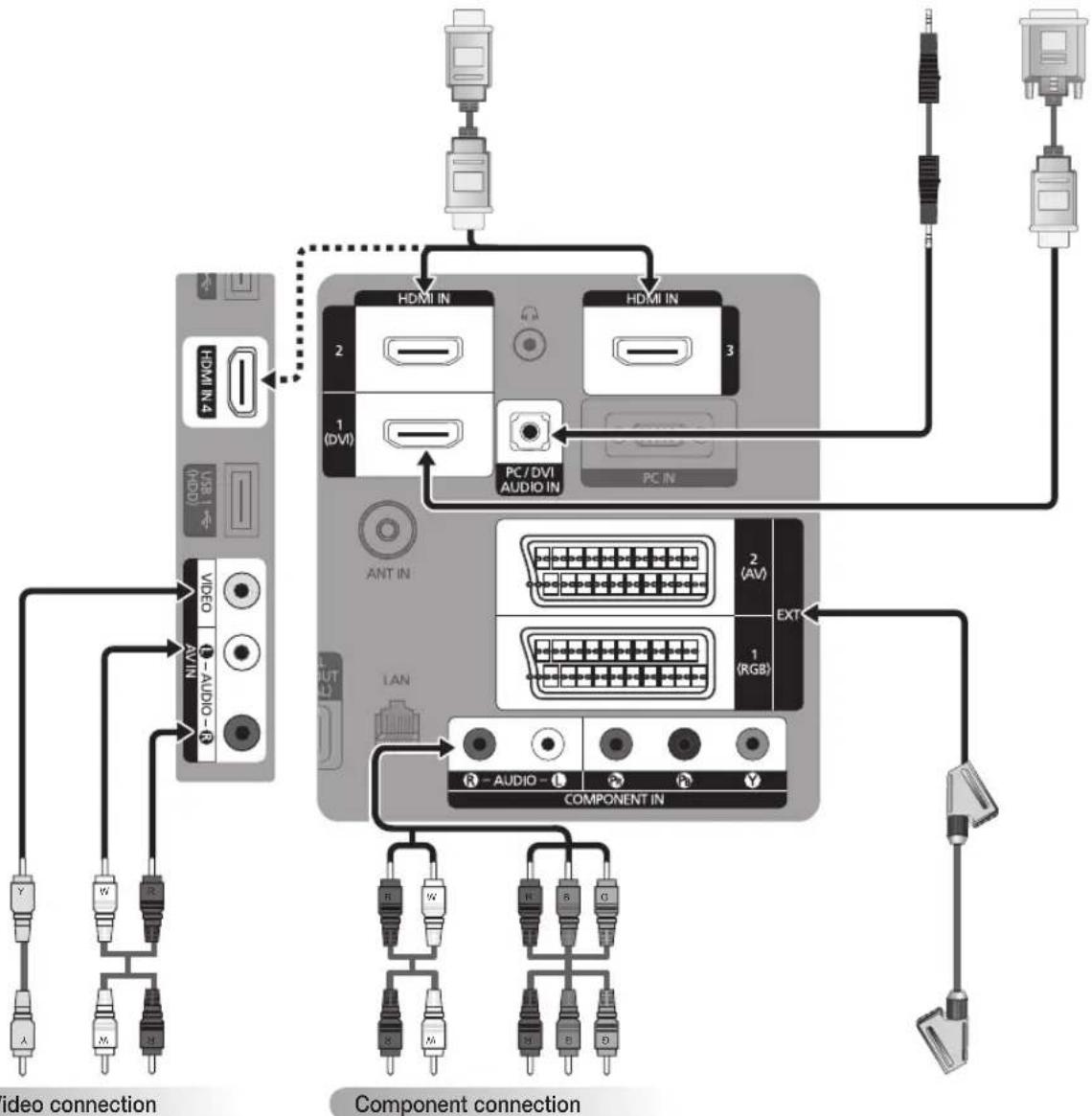

    A["Audio/Video connection"] --> B["HD connection"]
    B --> C["Using an HDMI Cable"]
    C --> D["HD connection"]
    D --> E["Using a DVI Cable"]
    E --> F["HD connection"]
    F --> G["Component connection"]
    G --> H["PC/DVI AUDIO IN"]
    G --> I["PC IN"]
    H --> J["ANT IN"]
    H --> K["ANT IN (DVI)"]
    H --> L["ANT IN (RGB)"]
    I --> M["PARTIC ENBRIDGE"]
    I --> N["PARTIC ENBRIDGE (AV)"]
    I --> O["PARTIC ENBRIDGE (RGB)"]
    J --> P["LAN"]
    K --> Q["LAN"]
    L --> R["LAN"]
    M --> S["COMPONENT IN"]
    N --> T["COMPONENT IN (AV)"]
    O --> U["COMPONENT IN (RGB)"]
    P --> V["OUTPUT"]
    Q --> W["OUTPUT"]
    R --> X["OUTPUT"]

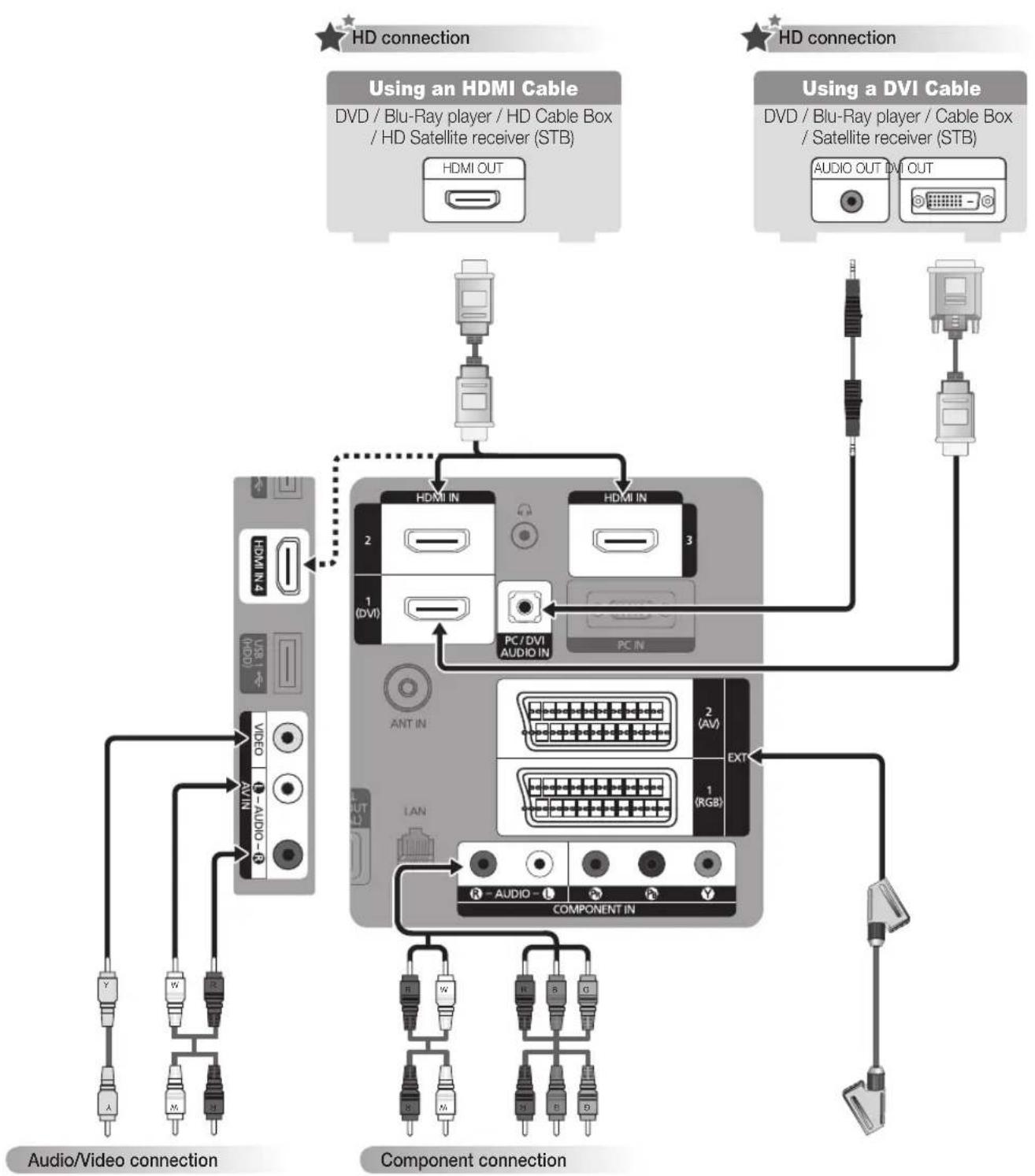

Using an Audio/Video Cable VCR AUDIO OUTVIDEO OUT

DVD / Blu-Ray player / HD Cable Box / HD Satellite receiver (STB)

DVD / Blu-Ray player / Cable Box / Satellite receiver (STB)

Using a Component Cable
DVD / Blu-Ray player / Cable Box / Satellite receiver

Using a Scart Cable
VCR / DVD
