Connecting a AV device


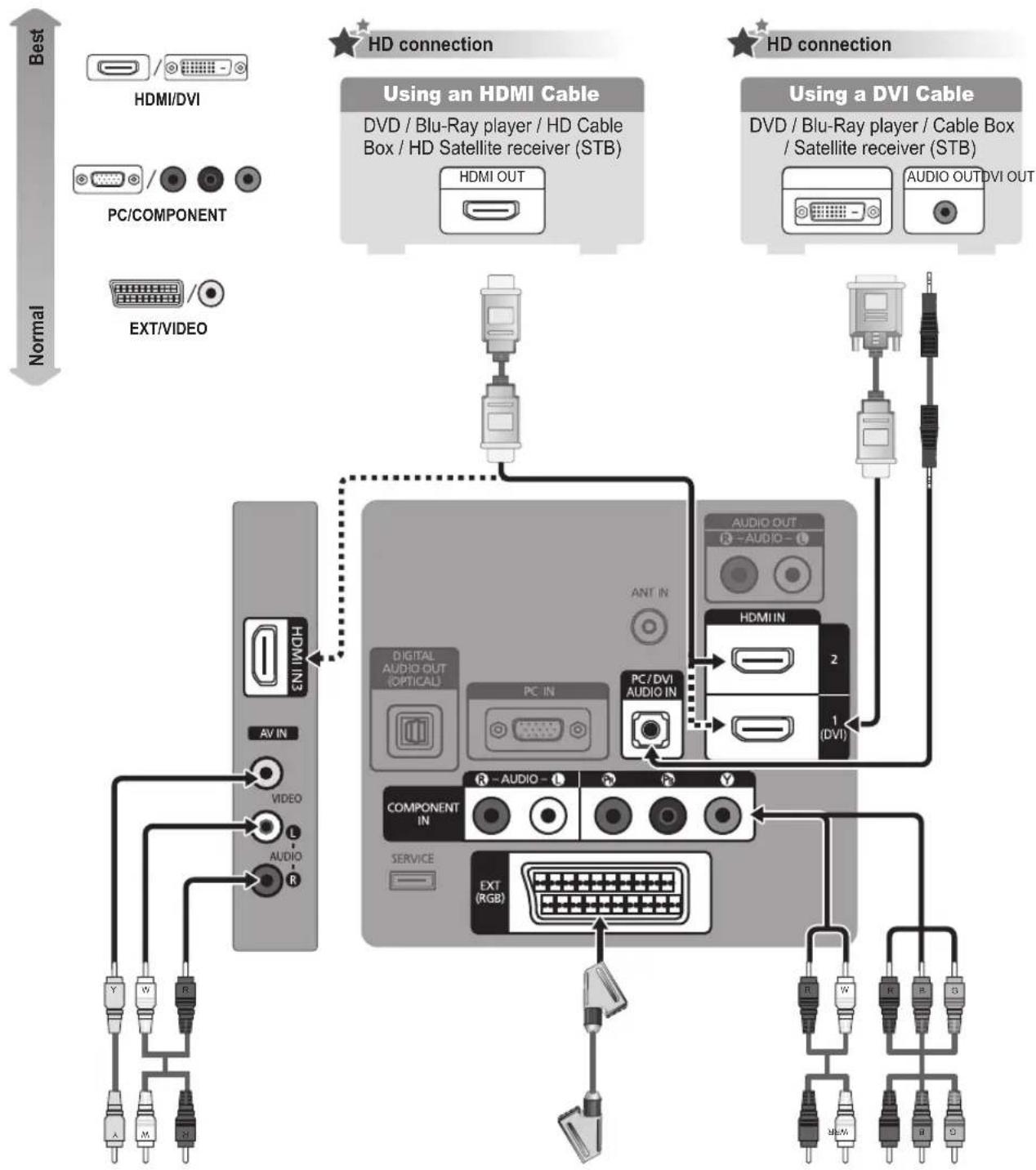

Audio/Video connection

Using an Audio/Video Cable

VCR AUDIO OUTVIDEO OUT

Using a Scart Cable

Component connection
Using a Component Cable

DVD / Blu-Ray player / Cable Box / Satellite receiver

LCD TV

QUICK SETUP GUIDE

The Supplied Accessories

Remote Control & Batteries (AAA x 2) Power Cord Cover-Bottom

Cleaning Cloth User Manual Stand Screw X 4

Stand

Installing Batteries in the Remote Control

Diagram of a mechanical device with a rotating lever and base plate (no text or symbols)

BN68-02365F-01

Installing the Stand

Preset Step 1 Step 2

Back Front

Line drawing of a computer monitor with a small screen and a base, showing no text or symbols.

Technical diagram showing a device with labeled parts and measurement annotations

☑ Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models (32inch models) only.

Step 1. Attach your LCD TV to the stand.

Two or more people should carry the TV.
Make sure to distinguish between the front and back of the stand when assembling them.
To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.

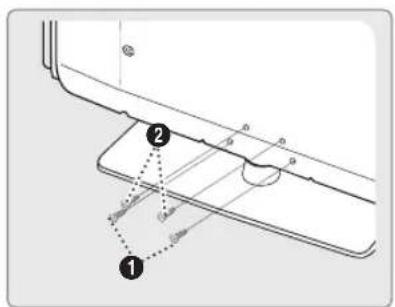

Step 2. Fasten two screws at position ① and then fasten two screw at position ②.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.

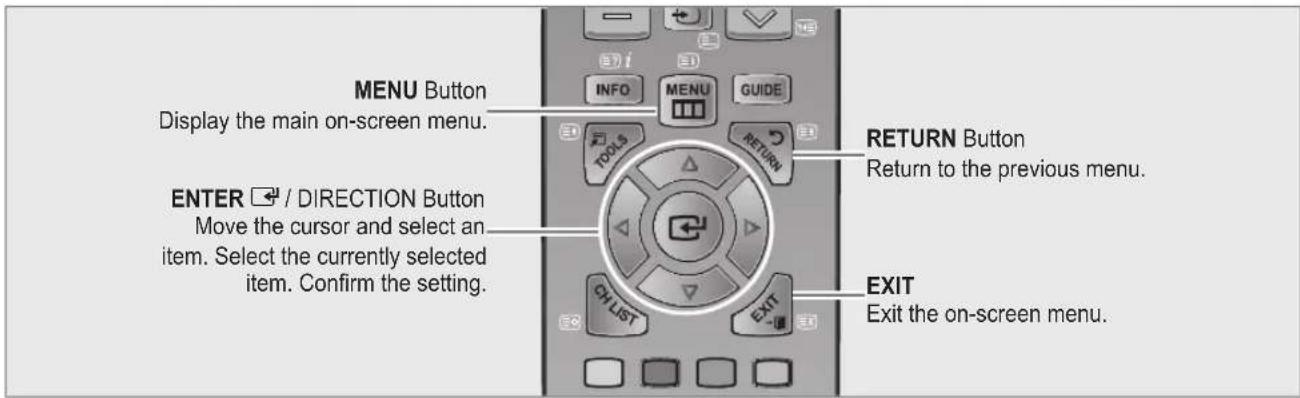

Using the remote control buttons

MENU Button Display the main on-screen menu. ENTER / DIRECTION Button Move the cursor and select an item. Select the currently selected item. Confirm the setting. RETURN Button Return to the previous menu. EXIT Exit the on-screen menu.
