BRUGSANVISNING LE46A696M1M SAMSUNG
LCD TV
quick start guide
imagine the possibilities
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at
www.samsung.com/global/register
Connections
Caution
- When connecting an external device, match the colour of the connection terminal to the cable.
- The product colour and shape may vary depending on the model.
• Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel configuration. - Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

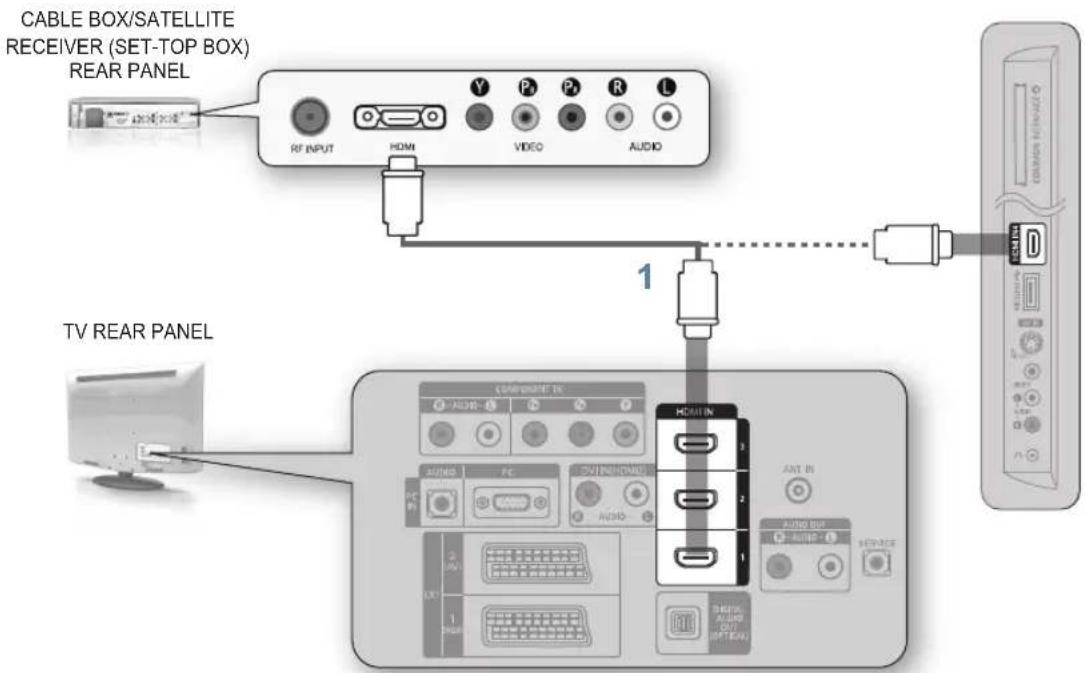

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX) VIA HDMI
No additional Audio connection is needed for an HDMI to HDMI connection.

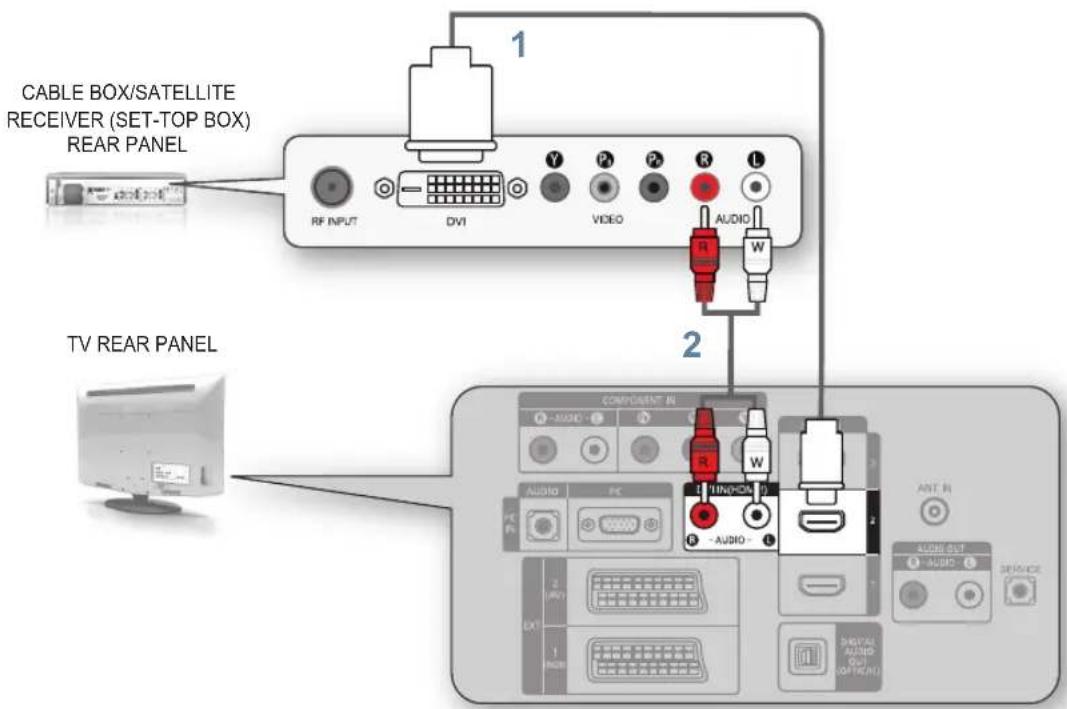

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX) VIA DVI
Connect an HDMI Cable (Not supplied) between the HDMI IN 2 jack on the TV and the HDMI jack on the Cable Box/Satellite receiver (Set-Top Box).
-
Connect Audio Cables (Not supplied) between the DVI IN(HDMI 2) [R-AUDIO-L] jack on the TV and the Cable Box/Satellite receiver (Set-Top Box).
When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN2 jack.


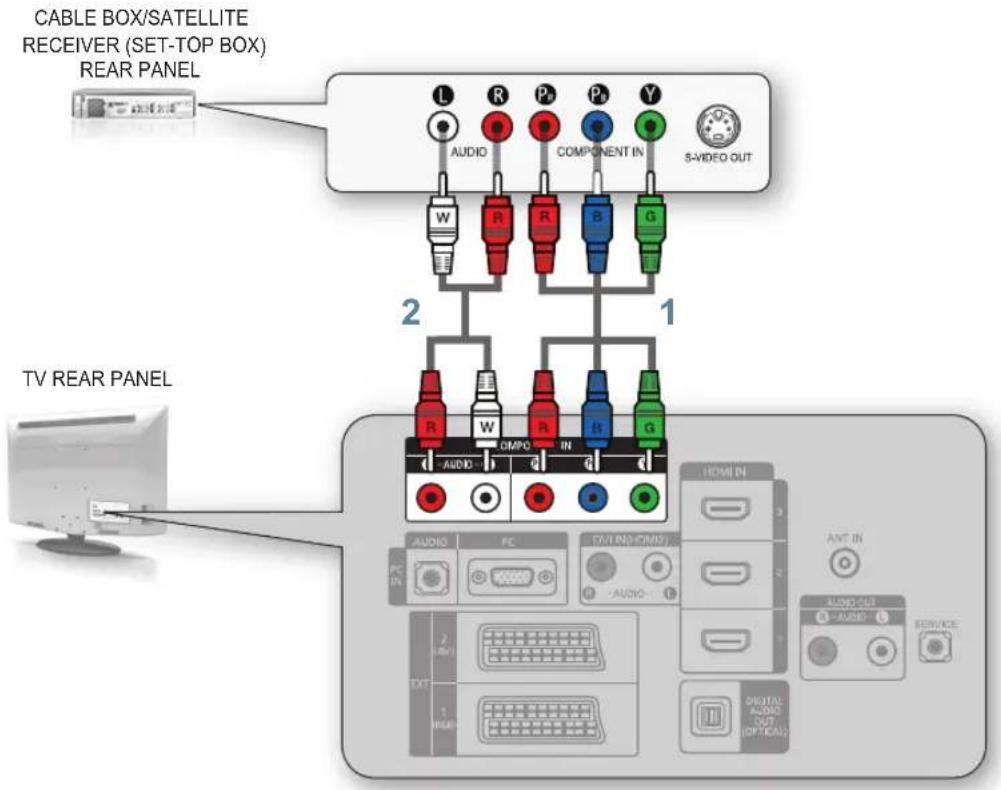

CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX) REAR PANEL L R P P Y AUDIO COMPONENT IN S-VIDEO OUT W R R B G 2 1 TV REAR PANEL A B C D E F G HOMIN AUDIO PC EXTR/IN/EXTR/ AVIO ANT IN AUDIO OUT SERVICE EXT DIGITAL AUDIO OUT (OFTICAL)- Connect a Component Cable (Not supplied) between the COMPONENT IN [Y, PB, PR] jacks on the TV and the COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).
- Connect Audio Cables (Not supplied) between the COMPONENT IN [R-AUDIO-L] jacks on the TV and the AUDIO OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).
Storing Channels Automatically
You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.
- Press the MENU button to display the menu.
Press the ▲ or ▼ button to select "Channel", then press the ENTER 📊 button.
-
Press the ▲ or ▼ button to select "Auto Store", then press the ENTER button.
-
Press the ▲ or ▼ button to select the channel source to memorize.
Press the ENTER button to select "Start".
Digital & Analogue: "Digital" and "Analogue" channels.
Digital: "Digital" channels.
Analogue: "Analogue" channels.
☑ Scans for all channels with active broadcast stations and stores them in the TV's memory.
If you want to stop Auto Store, press the ENTER Button.
The "Stop Auto Store?" message will be displayed.
Select "Yes" by pressing the ◀ or ▶ button, then press the ENTER ⏻ button.
- Press the EXIT button to exit.
If a channel is locked using the "Child Lock" function, the PIN input window appears.
| My TV is out of order. Why? Try this. | ||
| TV HD is displayed, but the visual quality is not good. | ·The visual quality may be degraded when the broadcasting stations convert the analog signal to digital. (Although you are watching digital broadcasting, the video source is analog.) | ·Check the transmitting signal of the corresponding cable TV network or broadcasting station. |
| The picture on the TV screen is broken intermittently (a mosaic or distorted). | ·This may occur when the broadcast signal received by the TV is too weak or unstable. | ·Check the transmitting signal of the corresponding cable TV network or broadcasting station.·If you are using a publicly shared antenna, check the signal by asking your apartment manager. |
| I cannot control the TV using the remote control. | ·When the battery is flat.·When it is not in TV mode.·When the remote control malfunctions temporarily. | ·Replace the battery and then retry.·Press the TV button on the remote control to select TV mode. |
| A strange sound is generated by the TV. | ·Sound may be generated by the temporary swelling and shrinking of the plastics in the TV due to temperature and humidity changes.·Temporary electronic oscillation sounds may be generated due to the characteristics of the TV | ·Some noise can be heard due to the characteristics of the product. |
