Changing the condensation drain

i

Condensation will form in the appliance as it dries the laundry.

You must ensure that the drain hose is connected when you operate the appliance.

If there is no drain hose connected to the appliance, the condensation water from the appliance will run into the condensation container. In this case, you will need to empty the condensation container each time the dryer finishes drying the laundry, and also if it becomes full before drying is complete. Connect the drain hose as follows:

1

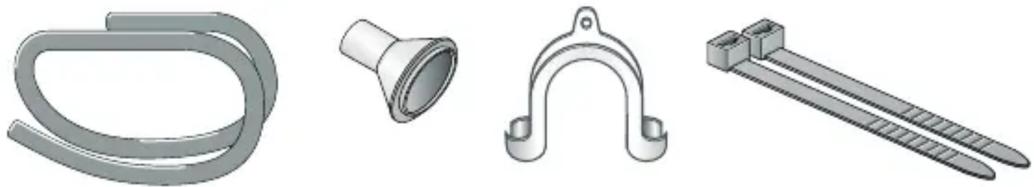

Four metallic mechanical components: a curved pipe, a conical port, a U-shaped bracket, and a triangular fork (no text or symbols)

Remove the accessories from the dryer drum.

2

Diagram of a computer monitor with an abstract screen and cable, no text or symbols present

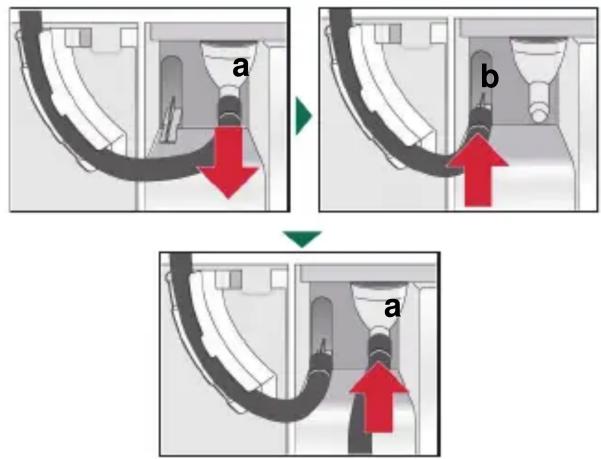

When the dryer is delivered direct from the factory, the hose for discharging the condensation into the condensate container is fastened to the adapter.

Disconnect the hose from the adapter (a) and place it in the 'parked' position on the hose clip (b). Then remove the drain hose from the accessory and fasten it to the empty adapter (a).

3

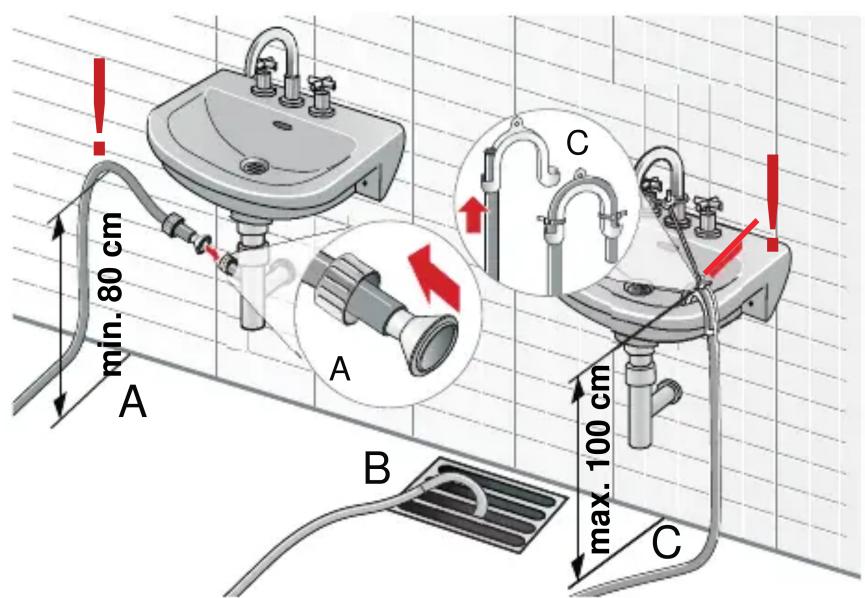

Depending on how you connect the hose (A, B or C), fit the drain hose with the remaining accessories. Check the dimensions.

i

Do not plug the drain of the wash basin and check that the water can flow away quickly. Blocked water can be drawn back into the dryer and cause damage.

To prevent leaks or water damage, secure the drain hose against slipping out of position. Do not kink the drain hose. The difference in height between the installation surface and the drain should not exceed 100 cm. The minimum height for a drain in a siphon is 80 cm.

Changing the condensation drain

4

3D diagram of a file drawer with a red arrow indicating direction (no text or symbols)

Fully pull out the condensate container.

5

Diagram showing a car interior with a red arrow pointing to a component, no text or symbols present

Turn the condensate container by 180^ onto its underside and release the stopper which is fitted there.

Isometric illustration of a mechanical assembly with a red tool inserted into a component (no text or symbols)

Turn the container back by 180^ and press the stopper into the opening on the upper side of the condensate container.

6

3D illustration of a file drawer with a red arrow pointing to the drawer (no text or symbols)

Push the container back in until it locks into place.

i

If you want to drain the condensation water back into the condensation container, reverse these steps.
