BRUGSANVISNING NA3310W Speed Queen

Speed Queen

A Raytheon Company

OPERATING INSTRUCTIONS For Home Laundry Automatic Washers

Models:

NA 4520 NA 3511

NA 4521 NA 3310

NA 3510 NA 3311

KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE. (If the washer changes ownership, be

sure this manual accompanies the washer.)

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

Operating Instructions

To Wash Clothes

IMPORTANT: Before using your new washer, make sure the washer cord is plugged into a 120 Volt electrical outlet that has the proper grounding and polarity, that washer hoses are connected to hot and cold water faucets, and that faucets are turned on. Be sure the drain hose is not kinked and is inserted into a drain. See INSTALLATION INSTRUCTIONS for details of proper washer installation. Keep these instructions for future reference.

1 Get clothes ready for washing. Empty pockets and cuffs. Sort items into separate loads. Pretreat stains and heavily soiled areas. Consult the Handbook (supplied with the washer) for information on how to get the best cleaning results.
2 Measure and add detergent to the washtub.
3 Add clothes loosely into the washtub. The bulk of the clothes rather than the weight will determine load size.
4 Close the loading door. The washer will not agitate or spin with the loading door open.

WARNING

DO NOT by-pass the loading door switch by permitting the washer to agitate or spin with the loading door open.

5 Set WASH/RINSE temperatures.

TEMPERATURE

WASH RINSE

NOTE: The washer will provide a cold rinse in all TEMPERATURE settings except on models equipped with a HOT wash WARM rinse setting. DO NOT use a warm rinse with permanent press or other synthetic fabrics. A warm rinse can cause wrinkling in some garments. Cold rinses will save you money and energy and cold rinses help reduce wrinkling in permanent press and synthetics.

6 Set LOAD SIZE WATER LEVEL control. Use RESET if agitation has started and more water is needed.

LOAD SIZE

WATER LEVEL

CAUTION

Holding the LOAD SIZE WATER LEVEL control in the RESET position can cause flooding of the washer.

(continued)

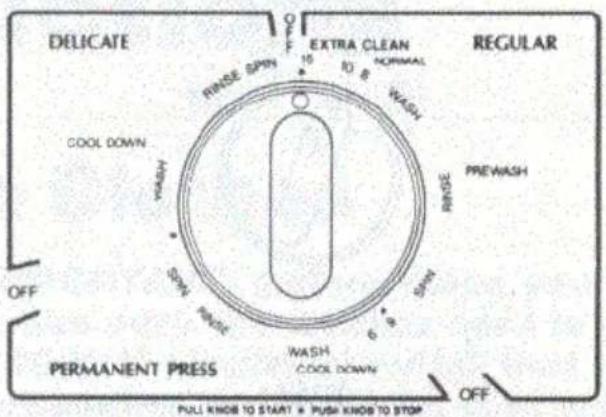

7 Select cycle according to the type of fabric being washed. Push the timer knob in and turn clockwise to the desired cycle and wash time.

8 Pull the timer knob out to start the water fill. Agitation will begin when the water reaches the level you selected.

The washer will stop (pause) for approximately two minutes before the wash and rinse spins. Do not turn the timer through these pauses. They are part of the cycle.

Timer

Although the washer cycles are automatic, the timer may be reset to lengthen, shorten or repeat a portion of a cycle.

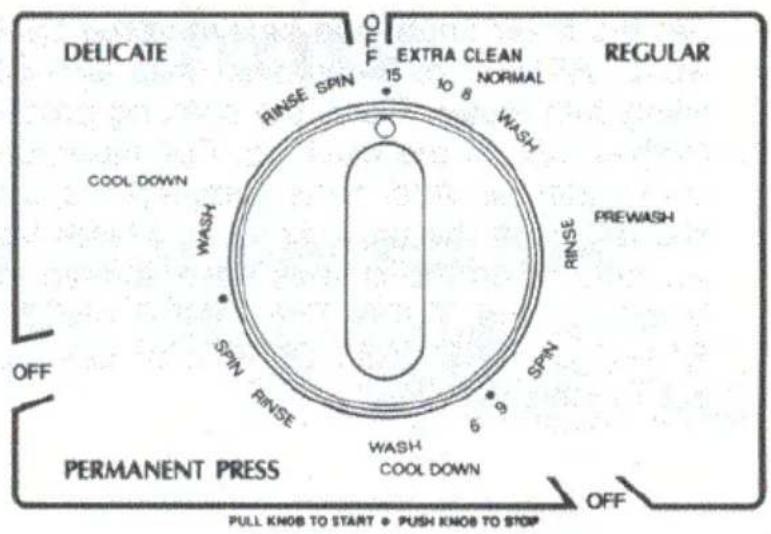

To set or reset the timer, push timer knob in to stop the washer. Hold timer knob in firmly while turning it clockwise to the setting desired. Pull timer knob out to start the washer.

Automatic Cycles

REGULAR

Use for sturdy items, like play or work clothes, towels, T-shirts, etc. The wash time selection will depend on the type of fabric and the amount of soil. For the best results when cleaning heavily soiled items, use a longer wash time (15 minutes maximum). Lightly soiled items require less wash time.

PREWASH

Prewash items are heavily soiled or stained. The water temperature is controlled by the rinse portion of the temperature knob. Wash items immediately after prewashing.

PERMANENT PRESS

Use for permanent press items and synthetics. The wash time selection will depend upon the type of fabric and amount of soil. The PERMANENT PRESS cycle automatically cools the temperature of the fibers before the spin. After wash the agitation stops, the washtub spins slowly, partially drains and then stops. Cold water will then be automatically added to the washtub until the proper water level is reached. This happens one or two times, depending on the size of the load and type of drain the washer is connected to. When the COOL DOWN is complete, the washer will pause for approximately one minute before continuing the cycle.

DELICATE

Wash delicate items usually washed by hand on this cycle. A full tub of warm water is recommended (even for small load) to allow the delicate items to move freely through the water. More water helps reduce fabric wear, wrinkling and provides for a clean wash.

The wash portion of this cycle alternates between short periods of agitation and longer periods of soaking. Cycle includes a cold water rinse.

(continued)

Soaking

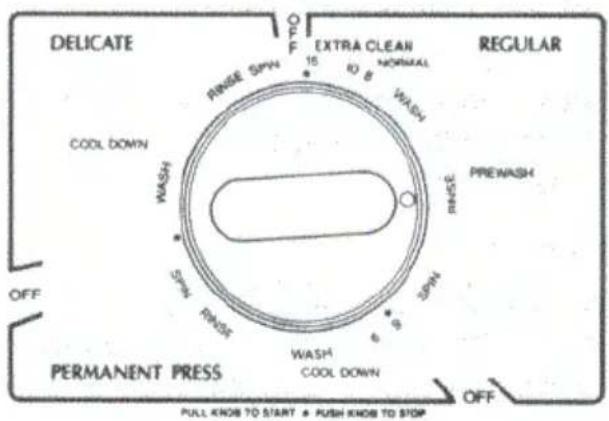

Set the timer knob (see below) in the center of the word "RINSE" or the washer may spin without first filling with water. Place the soaking product and clothes load in the washtub. Pull timer knob out to start water fill. After fill is completed and agitation has started, push the timer knob in. This will stop the washer. When the clothes have soaked the desired length of time, TURN THE TIMER KNOB TO THE START OF THE LAST SPIN, then pull the timer knob out to start the spin.

Cycle Chart

(Times are approximate)

REGULAR

Wash fill ..... time can vary

Wash agitation . up to 15 min.

Pause ..... 1 min. 50 sec.

Spin ..... 1 min. 30 sec.

Spin & spray ..... 1 min.

Spin .... 1 min. 30 sec.

Pause 27 sec.

Rinse fill ..... time can vary

Pause 22 sec.

Rinse agitation ..... 5 min.

Pause ..... 1 min. 50 sec.

Spin 7 min.

PERMANENT PRESS

Wash fill ..... time can vary

Wash agitation .. up to 9 min.

Pause ..... 1 min. 50 sec.

Cool-down .... time can vary

Pause ..... 1 min. 23 sec.

Spin ..... 1 min. 25 sec.

Spin & spray ..... 40 sec.

Spin ..... 1 min. 40 sec.

Pause 27 sec.

(continued)
