BRUGSANVISNING Transformer XX Topeak

MAXIMUM BIKE

WEIGHT CAPACITY

25 kgs

Topeak Transformer XX - 1

Transformer ^™ XX fits most bikes, however, it will not work with bikes that do not have seatstays or chainstays.

OPERATING INSTRUCTIONS

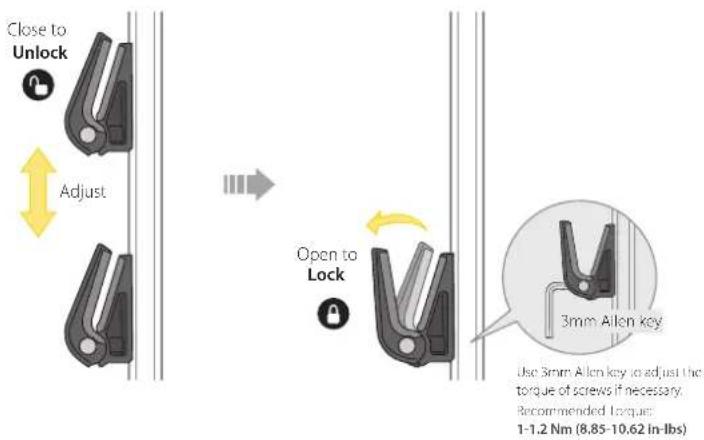

Close hook and slide to adjust to proper height. Open hook to lock in position.

Close to Unlock Adjust Open to Lock 3mm Allen key Use 3mm Allen key to adjust the torque of screws if necessary. Recommended torque: 1-1.2 Nm (8.85-10.62 In-lbs)

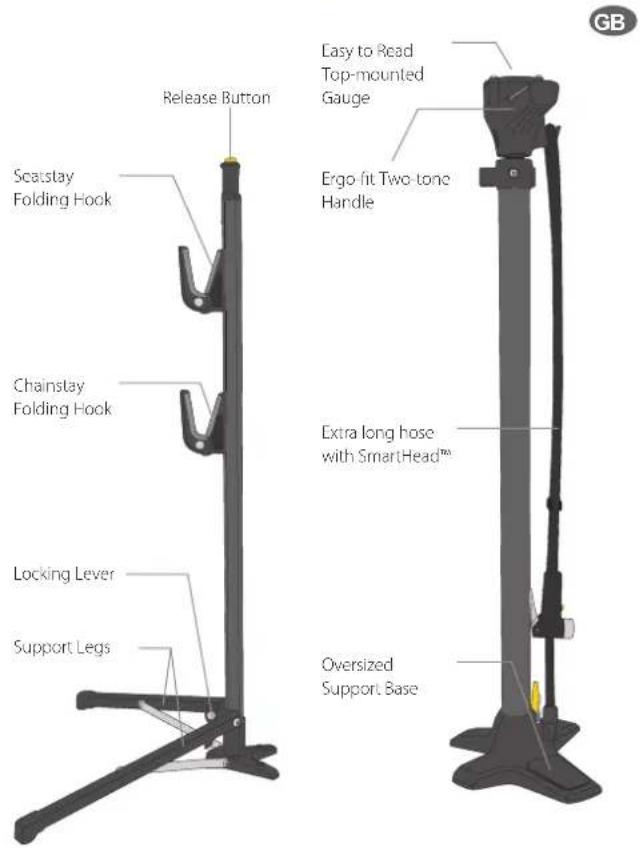

Release Button Seatstay Folding Hook Chainstay Folding Hook Locking Lever Support Legs Easy to Read Top-mounted Gauge Ergo fit Two-tone Handle Extra long hose with SmartHead™ Oversized Support Base GB

HOW TO SEPARATE TRANSFORMER™ XX STAND

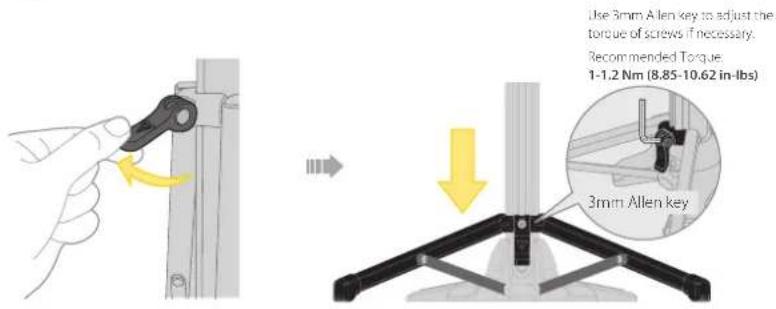

1 Use the QR locking lever to open or close the support legs completely.

Use 3mm Allen key to adjust the torque of screws if necessary. Recommended Torque: 1-1.2 Nm (8.85-10.62 in-lbs) 3mm Allen key

2 Press Release Button to separate Transformer™ XX.

1 PRESS 2

WARNING

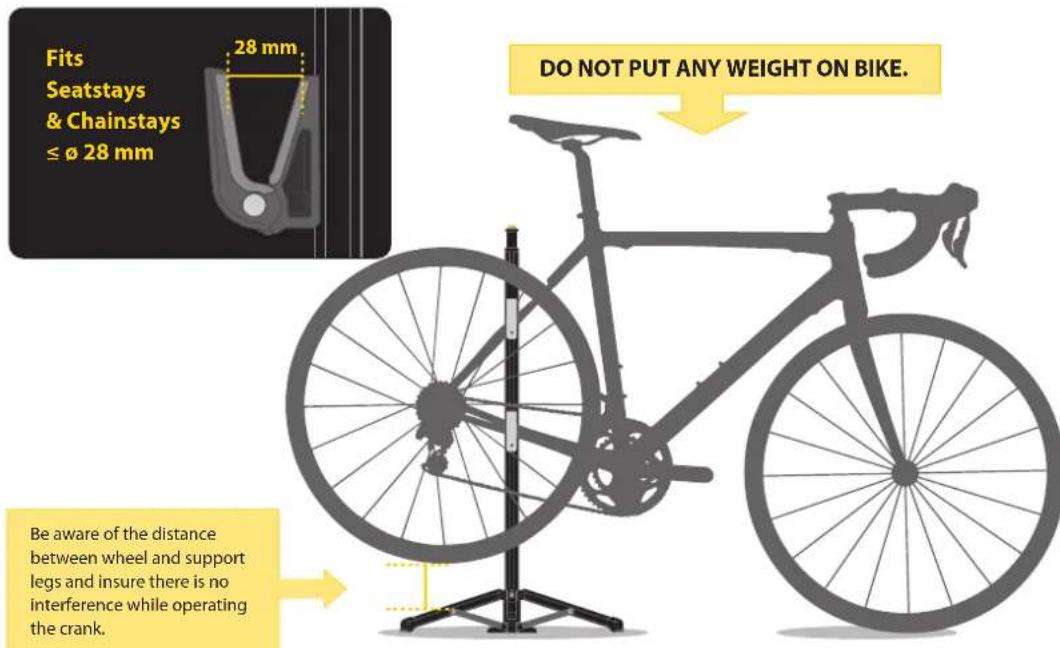

Fits Seatstays & Chainstays ≤ø 28 mm 28 mm DO NOT PUT ANY WEIGHT ON BIKE. Be aware of the distance between wheel and support legs and insure there is no interference while operating the crank.

Topeak Transformer XX - WARNING - 2

natural_image Two-step diagram showing a hand holding a vertical object and a stand with cross marks, both without any text or symbols.

Avoid bodily harm when folding support legs.

DO NOT use on grass, loose dirt, gravel, uneven or soft surfaces. Check the stability of the Transformer™ XX periodically to insure safe storage of your bikes.

WARRANTY

2-year Warranty: A mechanical components against manufacturing defects only. Warranty Claim Requirements

To obtain warranty service, you must have your original sales receipt. Items returned without a sales receipt will assume that the warranty begins on the date of manufacture. All warranties will be void if the product is damaged due to user crash, abuse, system alteration, modification, or used in any way not intended as described in this manual.

* The specifications and design are subject to change without notice. Please contact your Topeak dealer with any questions.

For USA customer service call 1-800-250-3Gn8 www.topeak.com
