WS-120 Wall Scanner User Manual

Note: please read this manual carefully before using the detector a observe safety rules and cautions in the manual; the manual shall subject to change without prior notice.

A: Sensing aperture, mark hole	B: Result display
C: Live wire mode	D: Auto mode
E: Metal/nonmetal mode	F: ON/OFF
G: Backlight/alarm ON/OFF	H: Nonskid mat
I: Detecting area	J: Sensing window
K: Battery case

Applications

WS-120 is a handhold wall scanner for quick detection of magnetic metals in wall, rooftop and floor, such as reinforcing steels, iron pipes, and nonmagnetic metals such as aluminum pipes, copper pipes, and nonmetal materials such as beams, PVC water pipes, as well as electrified objects such as live wires.

Technical Data

Maximum scanning depth

Ferrous metal: 110 mm

Non-ferrous metals: 110 mm

Copper conductors (Live): 50 mm

Wood: 25 mm

Working temperature: -10°C\~+50°C

Storage temperature: -20°C\~+70°C

Humidity: ≤75% Altitude: ≤2000m

Battery: 3*1.5V AAA

Dimensions: 185*85*33mm

Weight: 180g

A B C D E F G H I J K

LCD Display

1: Scale bar;sensing strength of search	2: Scale point;central position of the searched
3: Auto searching mode	4: Magnetic metal, or nonmagnetic metal
5: Metal or nonmetal	6: Live wire
7: Error	8: Battery level
9: Alarm mute

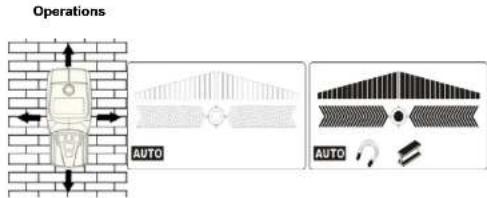

Operations AUTO AUTO

Figure 1
Figure 2
Figure 3

Always put the detector close to the wall surface and slowly mo 1, sensing aperture (A) turns green and the system enters standt when any object is detected, scale bar (1) shall be gradually ful sensing aperture (A) turns red and alarm. see figure 2 for sensi you want to find the central position, please move the detector I over the hided object repeatedly and observe the scale point (2) of the scale bar and point). when the scale bar is full and central point is displayed as figure 3, it means the central position is got.

1. ON/OFF

Short press ^① to turn on the detector and long press for 3s to. After turning on, the detector initiates automatically and the scale displays in full and then disappears, it enters standby status; when operation on the detector in 3 minutes, the detector shall turn off automatically.

2. AUTO Mode

The detection mode is defaulted as auto after its turn-on, you in auto mode by key in other mode;

If more than one object are detected in auto mode, the icons displaying sequence is live → metal → magnetic → nonmagnetic → nonme

3. metal mode

Short press I key to enter metal mode (for magnetic/nonmagnet metals)

Long press ^① key to enter nonmetal mode (for wood and PVC

4. AC Wire

Press key to switch to AC detection mode

Only AC wires (>110V, 50\~60Hz) can be detected

Only solid wires can be detected, not for twisted pairs

5. Turn On/Off Alarm Tone

Short press key to turn on/off alarm tone;

Turn on/off backlight

Long press key to turn on/off the screen backlight (press and the key for 3s)

6. Battery Installation and Replacement

Screw off the fastening screws and open the battery cover upwards(4) intake out the batteries when not used, to prevent battery leakage and 3 AAA batteries (alkaline) inside, please note the polarities. corrosion;

Battery level:

Full

2/3 full or less

1/3 full or less

Replace with new

7. Calibration

When you move the detector close to an area without metal objects) Keep the sensing window (J) clean, it fails to sense whether it's close to you can that the scale bar is full and with alarm, that probably little wall surface if it's dirty or covered;

interrupted by the environment, in that case, please calibrate the defect is easier to detect the live wire if it has been connected to working load by manual and restore it to factory setting. (such as lamp or electric appliance). It's hard to detect the live wires laid

a) Firstly don't put the detector close to the wall surface, just open air, no touching or covering on the detecting area (I).
b) Short press key in auto mode, and key in metal mode you see that the scale bar becomes full and then disappears. standby status, it indicates the calibration is completed.
Inside insome walls that can isolate the current;
8) Static electricity might cause inaccurate detection, in order to improve the detection, you may put your other hand flatly close on the wall surface bearing the detector to eliminate the static electricity;
9) You may mark the position where the object is found; If the object's edge

c) Error might also happen if the battery is not enough, 1/3 battery terminal point is detected, mark the above position at the mark hole (A); is required at least. 10) The detector is designed with temperature monitor unit. Constant

Cautions

1) Before turning on the detector, please ensure no water on the area to be detected, use cloth to wipe up if necessary, don't let any the device, keep it away from the direct sunshine; 2) Don't use the detector in extreme weather, if there is great temperature; Don't use the detector until its temperature is close to the environment;

(3) Keep away from electric tools or transmitting devices such as WLAN, UMTS, flying radar, launching tower, microwave oven and other such property;

(4) intaked out the batteries when not used, to prevent battery leakage and corrosion;

5) Precision and depth might be weakened by environment factors such as wall constitutions (metal building materials, current conducting walls, ceramic tiles or sound absorbing materials), big water content, an sort, size and position of the object(s), all of them shall affect. Hence it's advised to take necessary protective measures according to other notices before boring or cutting the wall;

(6) Keep the sensing window (J) clean, it fails to sense whether it's close to the wall surface if it's dirty or covered;
(7) This easier to detect the live wire if it has been connected to working load (such as lamp or electric appliance). It's hard to detect the live wires laid

Key thermal point is detected, mark the above position at the mark hole (A); 10) The detector is designed with temperature monitor unit. Constant temperature inside the detector can ensure accurate detection; if alarm icon 11) is displayed, it indicates the temperature is out of working range or there is great difference in temperature; Tum off the detector and let it restore normal temperature, and then turn it on again.

Maintenance

wet 10 keep the detector clean and dry all the time to ensure accurate detection and safe operation;

diff?Don't put the detector into water or other liquids, use dry and soft cloth to wipe up, any detergent or solvent is not allowed;

3) Don't stick any label or mark on the detecting areas, front and back, especially metal nameplate;

devio's Don't remove the nonskid mat on the back side.

Warranty

1) If the detector is unable to turn on or work in normal, pleas

attached protective jacket to the dealer or factory for repair servic

paper&) Any damage arising from dismantlement without permit, improve

and cheapening or wrong operation, and the conditions of warranty paper

theordetectieales paper, shall be out of the warranty:

3) Please observe the above provisions and we shall offer one-year product

warranty.
