BRUGSANVISNING County MIO
COUNTY / MONTANA
3-seater+divan assembly


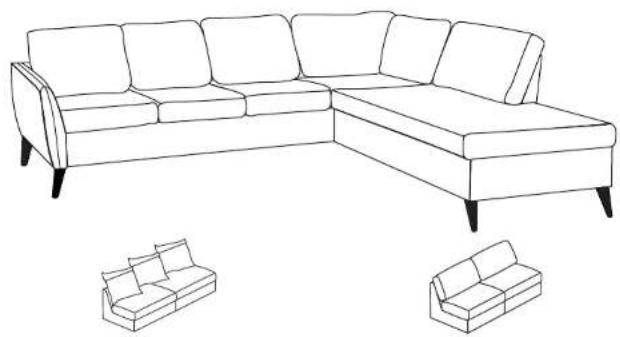

Line drawing of a U-shaped sofa with two separate views of the lower side (no text or symbols)Montana
County

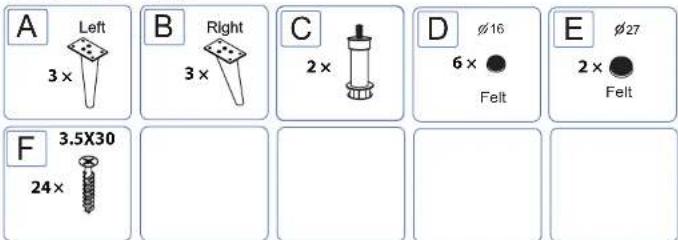

Components - Fittings
The legs must be checked after some time of using.
If is it necessary tightened / screwed again.

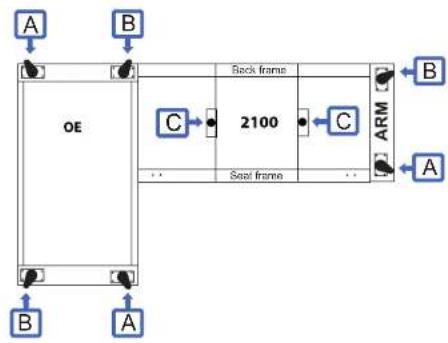

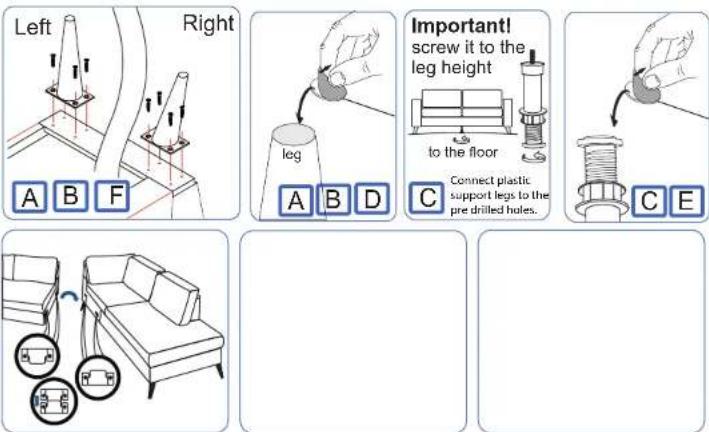

Left Right A B F Important! screw it to the leg height to the floor C Connect plastic support legs to the pre drilled holes. C E
