BRUGSANVISNING X-Comfort THERMALTAKE

ACCESSORIES

A

Seat Back x 1

B

Seat Base x 1

©

Z Support Mechanism x 1

D

Five-star base x 1

E

Caster wheels x 5

F-1

Gas lift piston x 1 Piston cover x 1

Side Cover x 2

H-M8

Allen key x 1_M8

H-M6

①-M8

K-C

Lumbar pillow x 1

L-FIT

Lumbar pillow x 1

M

Headrest x 1

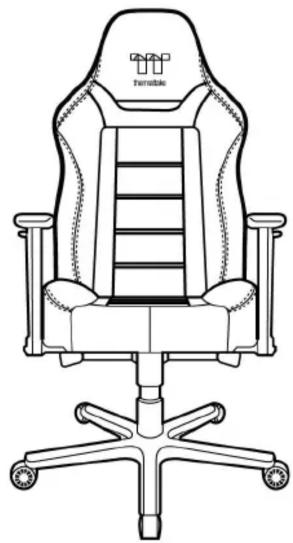

Line drawing of a vintage office chair with ladder and star-shaped legs (no text or symbols)

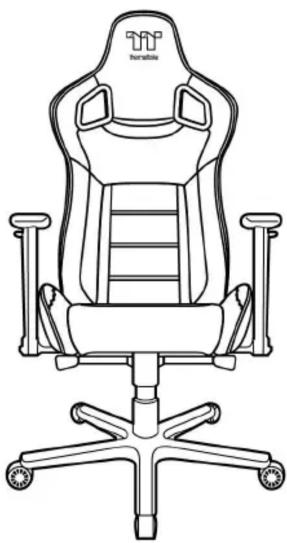

Line drawing of a modern office chair with adjustable armrests and star-shaped legs (no text or symbols)

Attention

Please make sure the angle of the adjuster on the seat base is set at 90 degrees (As shown in Ⓑ)

STEP by STEP

1. Install the caster wheels, gas lift piston and piston covers onto the five-star base. Please note: when installing the caster wheels, hold the wheels at a 90-degree with a firm grip of the hand; and do not use tools to knock it into place or the ground as to prevent damage.
2. Put seat back onto the seat base.
3. Take out the M8 screws and use M8 allen key to fix the seat back onto the seat base.

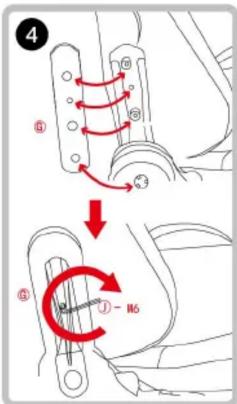

4. Keep the hole sites on the recliner covers aligned with M8 screws, Fix the plastic cover with M6 screw.
5. Mount the Z Support mechanism underneath the seat base using 4x M8 screws. (The screws have been tightened underneath the seat base. Please pay attention to the direction of the Z Support mechanism and make sure the handle is in the right direction.)
6. Insert the gas lift piston onto the notch of the mechanism.
