BRUGSANVISNING UT-1001-KIT Havis

INSTALLATION INSTRUCTIONS:

  1. Review the parts list and ensure you have all parts and tools required for assembly.
  2. If converting another UT-1000 series product, first remove the existing side lugs and rear fences.

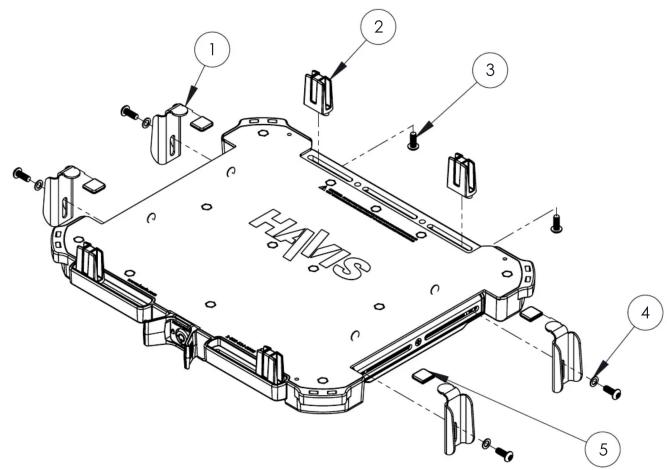

  3. Loosely assemble the new kit to the base tray as shown in the exploded view.
  4. Adjust and tighten the new kit according to the configuration instructions in the UT-1000 Series owner's manual or go to www.havis.com for more information.

NOTE: Retain all unused hardware for possible future re-use.
HAVS 1 2 3 4 5

UT-1001-KIT HARDWARE CONTENTS
REPLACEMENT PARTS
ITEM NO.DESCRIPTIONHAVIS PART NUMBERQTY.
1BRACKET, HOLD DOWN LUG, SHORT, UT-100 SERIESUT-0112-SM4
2FENCE, REAR, UT-200 SERIESUT-0124-ML2
3SCREW, BUTTON HEAD, PIN-IN-TORX, #10-32 X 0.5"HW-BH-0118/GSM333287
4WASHER, BELLEVILLE, SERRATED, #10HW-SW-1262/GSM310895
5CAP - 0.45" X 0.5", 0.04" THKHW-CA-0001/GSM411204
6INSTALLATION INSTRUCTIONS, UT-1001-KITUT-1001-KIT_INST1
TOOLS
7L-KEY TAMPER-RESISTANT, T25, 2-13/32" LHW-AW-0006/GSM502611

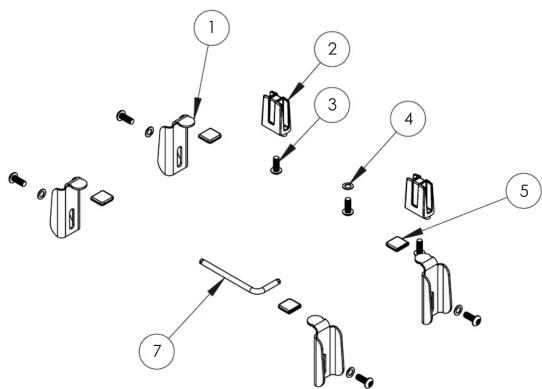

Exploded view diagram of a mechanical assembly with numbered parts and labeled features

PRODUCT I.D.UT-1001-KITDATE09-14-17
PRODUCT NAMEUT-1001 KIT
Havis UT-1001-KIT - INSTALLATION INSTRUCTIONS: - 31-000-024-19900WWW.HAVIS.COMWEIGHT: (LBS)
REV. DATE9-17
DRAWING NUMBER:UT-1001-KIT_INST_9-17WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER,IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING ANDDOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO TO IT WILL NOT INTERFERE WITH VEHICLEOPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAYDEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF ANACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS ANDMOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFOREOPERATING VEHICLE.PRODUCT DESCRIPTIONREPLACEMENTPARTS KIT, UT-1001HAVIS1-800-524-9900WWW.HAVIS.COMWEIGHT: (LBS)REV. DATE9-17
