BRUGSANVISNING S-8972 SWIT
USER MANUAL
SWIT Electronics Co., Ltd.
Tel: +86-25-85805753
Fax: +86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
Characteristics
- High performance Li-ion battery pack, rechargeable.
- Battery digital information readable by cameras.
- 4-step LED power indicator.
- 5.5mm Pole DC output and charging socket.
- Build-in multiple protective circuit design.
Caution
- Never attempt to open the battery pack.
- Use SWIT charger or the chargers recommended by SWIT.
- Keep the battery pack terminals clean.
- Never short-circuit the battery pack terminals.
- Never expose the battery pack to rain, fire or moisture.
- Never expose the battery pack to temperature above 60^ C.
- Avoid strong mechanical shock.
- The battery pack may become warm in use or while being charged. This is normal.
Charging
- The battery pack is not fully charged when it is purchased. Charge the battery before use.
- Use SWIT charger or the chargers recommended by SWIT.
- The battery pack should be charged within a temperature range of 0-40°C
Discharging
- Fully charged battery pack will discharge naturally and please use it as soon as it gets charged.
- At low temperature, the running time of battery pack usually decreases.
- The internal impedance of battery pack will be greater at low temperature, which may cause the automatically circuit cutting.
LED indicator
The four-step LEDs indicate the remaining capacity when press the "CHECK" button.


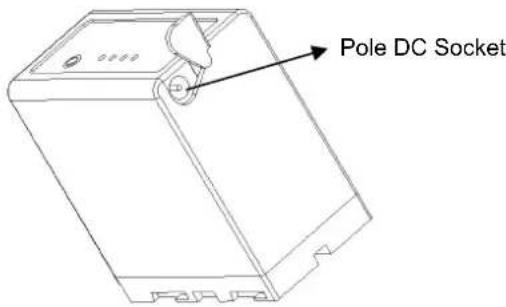

SWIT CheckDC socket
The 5.5mm pole socket can be used as 7.2V DC output or charging input. (By SWIT S-3010D)
- Open the rubber cover and plug in 5.5mm pole lead to DC output or charge.
- Close the rubber cover when disconnected, to keep the socket away from dust.
Please keep in cool, dry and clean place.
Specifications
| Model | Nominal voltage | Capacity Max output Original battery Dimension Mass | |||||||
| S-8972 7. | 2V 47Wh 66 | 00mAh | 30W 4A | SONY NP-F970 71×39×70mm | 300g | ||||
| S-8D62 7 | 2V 47Wh 66 | 00mAh | 30W 4A | Panasonic CGA-D54S | 66×37×82mm | 300g | |||
| S-8BG6 7 | 2V 36Wh 51 | 00mAh | 30W 4A | Panasonic VW-VBG6 66×36×82mm | 244g | ||||
| S-8823 7 | 2V 18Wh 25 | 00mAh | 15W 2A | JVC BN-VF823 | 53×32×72mm | 130g | |||
| S-8845 7 | 2V 47Wh 66 | 00mAh | 30W 4A | Canon BP-970G | 71×39×70mm | 300g | |||
