BRUGSANVISNING RRF14 Middle Atlantic
Features
- Tapped for 10-32 threads
- Threaded rack rail is 1/8'' [3mm] thick
- Suitable for use in 19-1/8" [486mm] wide openings
• Sold in pairs


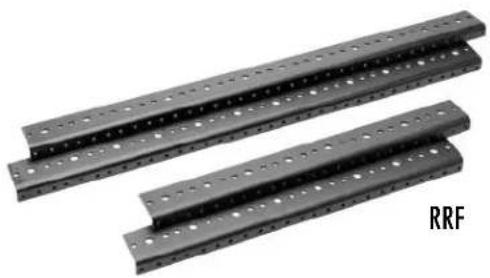

Two black metal structural beams with perforated holes, labeled 'RRF' (no other text or symbols)RRF basic dimensions


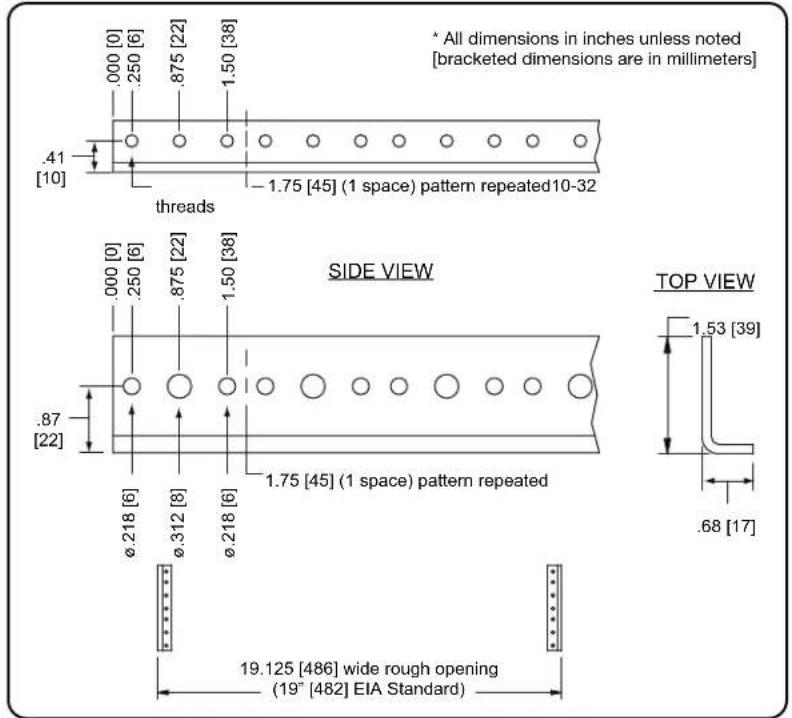

All dimensions in inches unless noted [bracketed dimensions are in millimeters] .41 [10] threads 1.50 [38] .875 [22] .250 [6] .000 [0] .41 [SIDE VIEW] .87 [22] .250 [6] .000 [0] .875 [22] .250 [6] .312 [8] .218 [6] .218 [6] 1.75 [45] (1 space) pattern repeated 1.75 [45] (1 space) pattern repeated TOP VIEW 1.53 [39] .68 [17] 19.125 [486] wide rough opening (19" [482] EIA Standard)| RACKINGPART # LENGTH HEIGHT MATERIALRRF2 3.50" (2 spaces) 0.125" steel |
| RRF4 7.00" (4 spaces) 0.125" steel |
| RRF6 10.50" (6 spaces) 0.125" steel |
| RRF8 14.00" (8 spaces) 0.125" steel |
| RRF12 21.00" (12 spaces) 0.125" steel |
| RRF14 24.50" (14 spaces) 0.125" steel |
| RRF16 28.00" (16 spaces) 0.125" steel |
| RRF18 31.50" (18 spaces) 0.125" steel |
| RRF21 36.75" (21 spaces) 0.125" steel |
| RRF27 47.25" (27 spaces) 0.125" steel |
| RRF45 78.75" (45 spaces) 0.125" steel |
Architects' and Engineers' Specifications
EIA/TIA compliant RRF Series Rackrail shall be Middle Atlantic Products model number RRFx (refer to chart). Rackrail shall be 1/8" thick steel. Rail shall be x rockspaces in length (refer to chart) pre-treatment process shall be 3 stage iron phosphate. Steel rackrail shall be finished with a durable black e-coat. Rackrail shall be GREENGUARD Indoor Air Quality Certified for Children and Schools. Rackrail shall be RoHS EU Directive 2002/95/EC compliant. Rackrail
shall be manufactured by an ISO 9001 and ISO 14001 registered company. Rackrail shall be warranted to be free from defects in material or workmanship under normal use and conditions for the lifetime of the product.
