BRUGSANVISNING Hydros III Orvis

Close-up of a gold-colored flywheel with visible blades and hub (no text or symbols)

THE ORVIS COMPANY Andover, Hampshire SP10 3RWRW visit orvis.com MADE IN CHINA

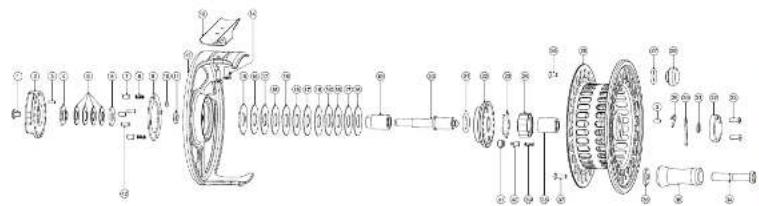

1 Drag Knoh Screw

2 Drag Knob

§ Pie 1

1. Drag Nut

6 Spring Washer

6 Spacer

1. Drag Knob Clicker

2. Drag Knoh Chickar Spring

9 Plastic Plate

10 Drag Knish Stopper 11 Spinello Nat

11 Spanish Nut

12 Frame

13 Foot

14 Foot Screw

15 Push Plate

16 Drag Washer

17 Drag Disc 1

18 Drag Disc 2

19 S.S. Bushing

20 Spindle

21 O-Ring

23 Frame LID

1. Spring Clin

2. One-Way Buring

25 Counter Weight Screw

1. Spusel

27 O-Ring

38 Counter Weight

29 Quick-Release Spring

30 Quick-Release Kuy

31 Quick-Release Cover Pad

82 Quick-Release Cover

33 Quick-Release Cover Screw

1. Handle Shaft

2. Handle Knob

3. Handle Washer

4. Handle Screen

88 Brass Bushing

39 Clicker Spring

40 Clicker

41 Clicker Housing

18 Pin 2

INTRODUCTION

With a proven, sealed drug system and the benefits of a large arbor reel, the Hydros reel offers maximum line pick up, optimum drag consistency, and superior fish-stepping power.

- Center line drag with a carbon and stainless steel surface to fight big fish - Precision machined and anodized from 60% aircraft grade aluminaa - Heavily ventilated for optimum weight and balance on your fly rod - Inadees and numbered drag knob for repeatable drag adjustment - Easily interchangeable spinol

DRAG OPERATION

Hydrus rack features a dependable center line drug system. To adjust the drug, turn the knob (figure 1) clockwise to increase resistance, and counterclock wise to decrease it. The minimum drug setting should never be less than the pressure required to prevent over-running of the line or fast runs. Additional shall may be applied by palrading the good rim with your fingers or palms. The easy drug adjustment is infinitely variable, providing wide ranging and controllable settings.

SPOOL REMOVAL

The spoil release is located in the middle of the reel spoil. To remove, depress the spoil release latch while simultaneously lifting the spoil out of the reel body.

RIGHT-HAND CONVERSION

All Hydrox reels have the drag factory installed for left-hand wind (Figure 2). To change your reel to right-hand wind, until the one way returns (part #20) by squeezing the retaining age. Remove one-way bearing (part #21) and flip over. Replace clutch returner.

ROUTINE MAINTENANCE

Your new Hydras reel has been properly lubricated (just is skipping. However, it should be clearance and lubricated after excessive use or after counter with ear or sand. Your reel should receive routine cleaning and maintenance at last twice each year. Lightly lubricate all moving components—handle center spindle, and gear shaft with Perm red labe, which is available at tackle shops. Do not put the red away wet, or into a wet red case or tackle box. For extended storage, extensive rack line and backing and known the drug.

HYDROS Capacity Chart

LINE WEIGHT I II III IV V VI
WF1 100
WF2	75
WF3	50	150
WF4		125
WF5		100	160
WF6			125
WF 7			100	225
WF8			200
WF9				175	250
WF10					225
WF11					200	350
WF12						325
WF13						300

Hydros Reel Specifications

I Reel | weight: 4.1 oz. | 3 inches II Reel | weight: 4.5 oz. | 3/2 inches III Reel | weight: 4.9 oz. | 3/3 inches

IV Reel | weight: 7.9 oz | 4 inches V Reel | weight: 8.8 oz | 4½ inches VI Reel | weight: 10 oz | 4½ inches

Capacity in Yards

All capacities are quoted using 20-lb Dacron ^® backing. * Hydros V & VI reel is quoted using 30 lb Dacron ^® backing.

GUARANTEE

Your Oreis Hydrus Reel is unconditionally guaranteed against defects in materials and workmanship. If you have any problems, simply send your reel and a £7.95 cheque to the following address:

The Oreis Company Inc., Clearwater House, Unit 28 North Way, Andover, Hampshire SP10 5RW

If the rest is in any way defective in materials or workmanship, your £7.95 repair cheque will be returned to you at once. Your rest will be completely serviced (cleaned, labor and, and returned to your postpaid for a fee of £1.95, plus cost of parts. Damaged reels can be repaired on an individual basis, and repair work will be billed at the hourly shop rate, plus parts. We will provide a written estimate upon receipt of the rest prior to any work being done.

QUESTIONS?

If you have any questions about the operations and maintenance of your new reel, Ovis Technical Advisors are always available. Email: reel [e-mail]
