BRUGSANVISNING Seven-Z NEBO

NEBO

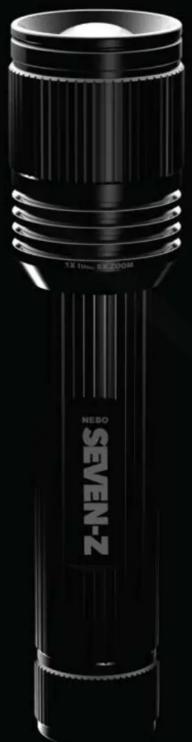

SEVEN-Z

770 LUMEN LED FLASHLIGHT

with OC™ Technology & Flex Power™

Black NEVO SEVEN-Z flashlight with visible model number and branding (no text-heavy elements)

user manual
item #6294

OPTIMIZED
CLARITY

The OC ^™ (Optimized Clarity) Technology creates a perfectly

dispersed beam of intense, pristine light that is as bright on the edge as it is in the center when used in flood mode

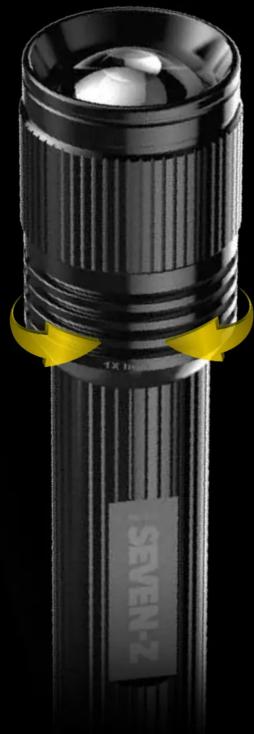

6x ADJUSTABLE ZOOM

The SEVEN-Z is equipped with a 6x adjustable zoom that changes from spotlight to floodlight with a simple twist of the bezel.

1. Turn the head of the flashlight clockwise for floodlight, perfect for short-range lighting.

2. Turn the head of the flashlight counter-clockwise for spotlight, perfect for focusing light up to 322 meters.

Black Isosoft pen with yellow directional arrows indicating motion (no text or symbols on body)

Floodlight with OC™

(simulation of light beam size below is based on a surface 2 meters away)

Silhouette of a person standing under a bright circular frame (no text or symbols)

Spotlight
(Light travels 322 meters)

2 LIGHT MODES

• High: 770 Lumens

• Low: 220 Lumen

REAR GLOW BUTTON

The Rear Glow-in-the-dark Button uses hard/soft touch technology allowing settings to be changed in two different ways while maintaining constant control of the flashlight..

Hard touch: Simply click through the functions

(light will turn off in between settings) NOTE: Light will reset to first setting (High ON) after being off for 1 second.

Soft touch: Press button halfway with no click. This allows the user to cycle through the settings quickly without the light turning off between setting

FLEX-POWER™

The SEVEN-Z is fueled by FLEX-POWER™, technology that allows the flexibility to use different quantities of batteries for power the light. SEVEN-Z will function with 3 AA, 6 AA or with the optimal 9 AA batteries for full 770 lumen of power.

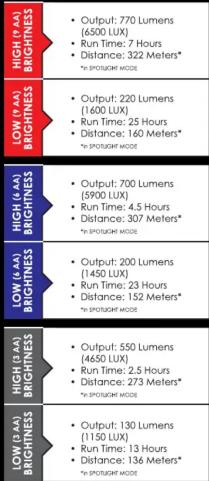

PERFORMANCE & RUN TIMES

See below the light modes and different performance specifications when using FLEX-POWER ^™ .

BATTERY INSTALLATION

To access the battery compartment, unscrew (counter-clockwise) the end cap where the button is located.

Remove the battery cartridge from the battery compartment.

Remove old batteries and dispose of properly insert new batteries with the negative end facing the spring in the battery cartridge. The battery cartridge can be inserted in any direction.

Reattach the knurled battery cap, by turning clockwise.

WHAT'S INCLUDED

SEVEN-Z™ flashlight

Nine AA alkaline batteries

User manual

Gift box

Warning: This product may contain a chemical known to the state of California to cause cancer and birth defects and other reproductive harm.

QUALITY GUARANTEE This product is guaranteed against all defects in mentorship and materials for the original owner for one year from the date of purchase. Damage to or failure of the flashlight or any component thereof due to alteration, misuse, battery leakage or back of maintenance will void any and all guarantees. Damage by leakage of batteries should be taken up with the manufacturer of the battery using their damage claim instructions. For any additional information call 1-809-255-6061.

All copyrighted and copyrightable materials, including, without limitation, the

go, design, text, graphics, pictures, copywriting and the selection a arrangement ("Materials") thereof are ALL RIGHTS RESERVED Copyright © 2015 Alliance Sports Group

DISTRIBUTED BY NEBO®

A DIVISION OF ALLIANCE SPORTS GROUP L.P. 3025 N. GREAT SOUTHWEST PARKWAY, GRAND PRAIRIE, TX 75050

www.nebotools.com
