TTM120 - Brødrister KENWOOD - Gratis brugsanvisning og manual

BRUGSANVISNING TTM120 KENWOOD

KENWOOD ① ② ③ ④ ⑤ ⑥

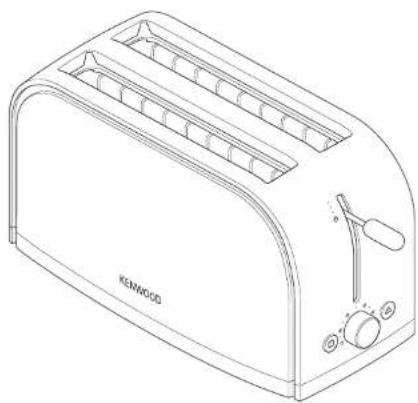

Technical diagram of a toaster with labeled parts including front panel, side panel, and front door.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Use the carriage over to lift the toast to Peek & View™ at any time without cancelling the toasting cycle.

ecoslot™

1 slot setting, only heats what you need, saving 50% energy.

before using your Kenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.

safety

• Burnl food can catch fire, so: never leave your toaster or unattended;
  keep your toaster away from anything (og curtains) that could catch fire;
  set the browning control lower for thin or dry bread;
  never warm food with a topping or filling (og pizza): if it drips into the toaster, it could catch fire.
  Clean the crumb tray regularly: crumbs can smoke or burn.

• To avoid electric shocks, never let the toaster, cord or plug get wet; or

put your hand or anything metal, cg a knife or foil, into the toaster.

- Always unplug the toaster when not in use, before clearing or attempting to clear jammed bread.

- Never cover your loaster with a plate or anything else - it could overheat and catch fire.

- Never let the cord hang down where a child could grab it.

• We recommend that you do not use your toaster directly under wall cupboards.

• Do not move the toaster whilst it is in operation.
• Never touch hot surfaces especially the metal top area.
• Never use an unauthorised attachment or accessory.
• Never use a damaged Ioaster. Got it checked or repaired: see 'Service & Customer Care'.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

- Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

• Make sure your electricity supply is the same as the one shown on the underside of your toaster.
• This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

Important - UK only

- The wires in the cord are coloured as follows:

Green and Yellow = Earth, Blue - Neutral,

Brown = Live.

- The appliance must be protected by a 13A approved (BS1362) fuse

- WARNING: THIS APPLIANCE MUST BE EARTHED.

Note:

• For non-rewirable plugs the fuse cover MUST be refitted when replacing the fuse. If the fuse cover is lost then the plug must not be used until a replacement can be obtained. The correct fuse cover is identified by colour and a replacement may be obtained from your Korwood Authorised Repairer (see Service).
• If a non-rewireable plug is cut off it must be DESTROYED IMMEDIATELY. An electric shock hazard may arise if an unwanted non-rewireable plug is inadvertently inserted into a 13A socket outlet.

before using for the first time 1 Wrap excess cord around the cord storage device on the underside of the toaster ①.

• Operate the toaster once on a medium setting without bread. (The lever will not stay down unless the toaster is plugged in).
• As with all new heating elements, your toaster may arrive a slight burning smell when it is first switched on. This is normal and not a cause for concern.

key

① Peek & View™ carriage lever (with 'HII-Rise™' for extra lift) ② cancel button with indicator light
③browning control
④buttonsleith indicator light

⑤crumb tray
⑥ ecoslot™
⑦cord wrap

to use your toaster

1 Plug the loasler into the power supply.
2 Move the browning control to the desired selling. Use a low selling for light toasting and for thin or dry bread.
3 Insert the bread, muffins, bagels etc.
4 Lower the lever 2 until it locks. The 'cancel' button will illuminate. (The lever will not stay down unless the loaster is plugged in).
- To least frozen bread, move the browning control to the defrost position
- To toast one or two slices of bread, place the bread into the ecoslot™ lower the carriage lover and press the ecoslot. The ecoslot™ button will illuminate.
- Use the carriage lever to lift the toast to Peek & View™ at any time without cancelling the toasting cycle.
- To stop toasting during the cycle, press the 'cancel' button, the toast will pop up and the 'cancel' button light will go off.
5 Your toast will pop up automatically, to raise it higher, lift the lever.

hints on using your

toaster

• Select a lower setting for light browning or for dry breed.
• Dry/slak bread toasts more quickly than fresh bread and thinly sliced bread toasts more quickly than thickly sliced bread. Therefore the browning control should be set at a lower setting than usual.

• For best results ensure that the bread slices are of an even thickness, freshness and size.

• In order to achieve uniform browning we recommend you want a minimum of 30 seconds between each loafing so that the control can automatically reset. Alternatively select a lower setting when additional loafing is carried out.

• For best results larger slices of bread are best positioned long ways in the slot.

care and cleaning

1 Before cleaning, unplug your toaster and let it cool down.
2 Slide out the crumb tray 3. Clean, then replace. Do this regularly: crumbs can smoke or even burn.
3 Wipe the outside of the toaster with a damp cloth, then dry. Do not use abrasives.

service & customer

care

• If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.
  If you need help with:
  • using your toaster or
• servicing or repairs (in or out of guarantee)
  @call Kenwood customer care on 023 9239 2333. Have your model number ready - it's on the underside of your toaster.
• spares and attachments
• call 0870 2413653.
  other countries
• Contact the shop where you bought your toaster.
• Designed and engineered by Kenwood in the UK.
• Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN

ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to disclose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

guarantee (UK only)

If your toaster goes wrong within one year from the date you bought it, we will repair or replace it free of charge provided:

• you have not misused, neglected or damaged it;
• It has not been modified (unless by Kenwood);
• It is not second-hand;
• it has not been used commercially;
• you have not fitted a plug incorrectly; and
  • you supply your receipt to show when you bought it.

This guarantee does not affect your statutory rights.

Head Office Address:

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK www.kenwoodworld.com

Designed and engineered by Kenwood in the UK

Made in China

40217/1

KENWOOD

Line drawing of a Kenwood 3rd-to-4 grater with handle and control buttons (no text or symbols on body)

TTM120 series
