BRUGSANVISNING 072.8000-222 SmartMetals

072.8000-222 Back to back kit incl. bracket VESA 200

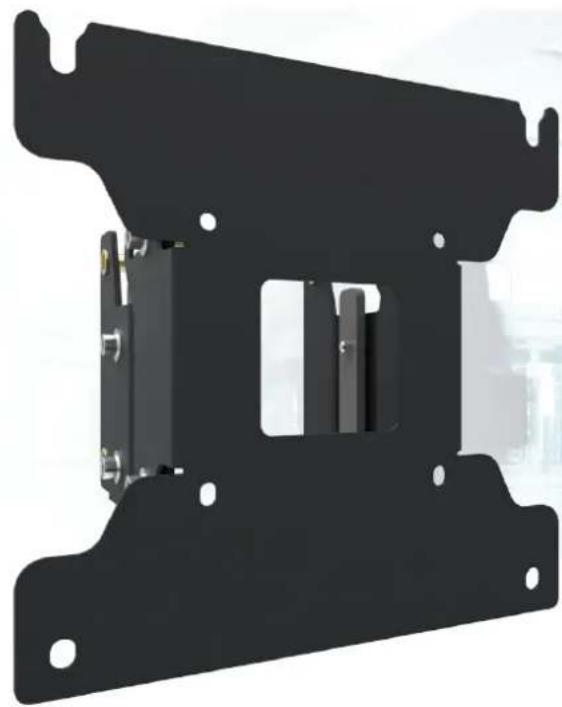

SmartMetals 072.8000-222 - 072.8000-222 Back to back kit incl. bracket VESA 200 - 1

natural_image Black plastic mechanical component with mounting holes and internal slots (no text or symbols)

Airport terminal interior with digital kiosk displaying 'Kuwaiti Bank' signage and a person pushing a cart in the distance.

MOUNTING INSTRUCTIONS

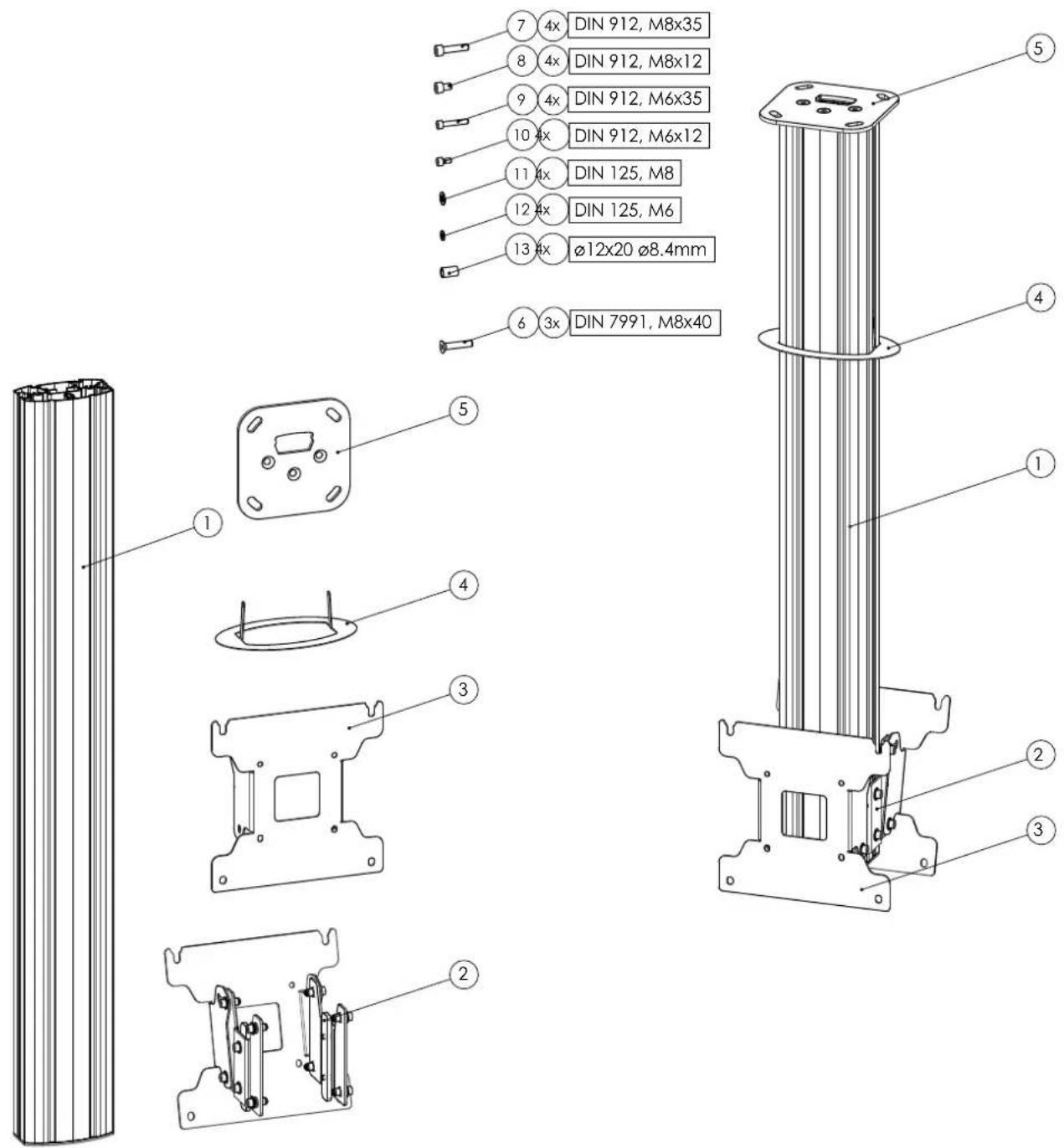

7 4x DIN 912, M8x35 8 4x DIN 912, M8x12 9 4x DIN 912, M6x35 10 4x DIN 912, M6x12 11 4x DIN 125, M8 12 4x DIN 125, M6 13 4x Ø12x20 Ø8.4mm 6 3x DIN 7991, M8x40

MOUNTING INSTRUCTIONS

MOUNTING INSTRUCTIONS

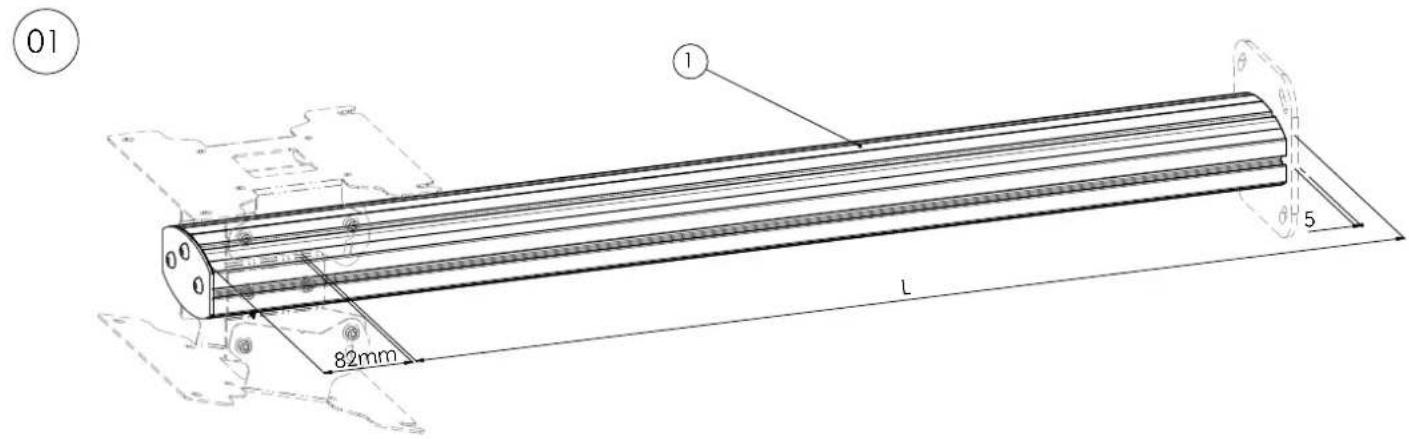

01 ① 00 0 82mm L 5

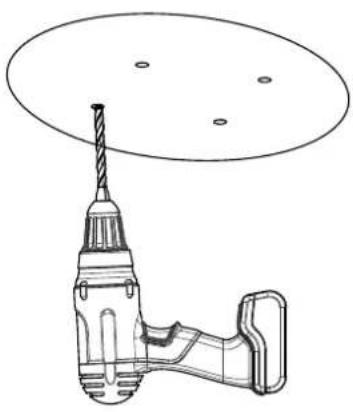

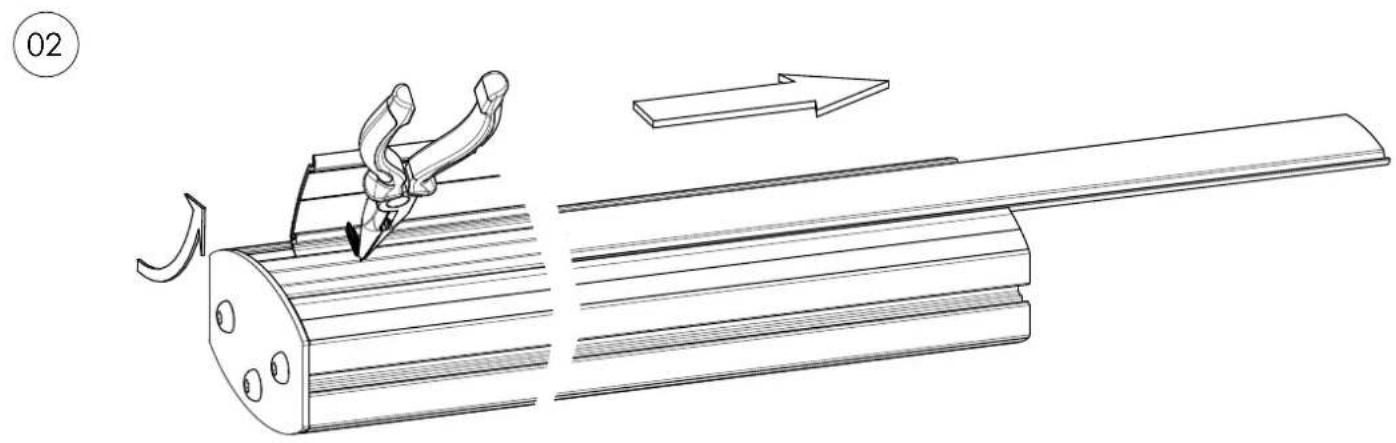

SmartMetals 072.8000-222 - MOUNTING INSTRUCTIONS - 2

natural_image Technical illustration of a mechanical assembly with a tool and directional arrow (no text or symbols)

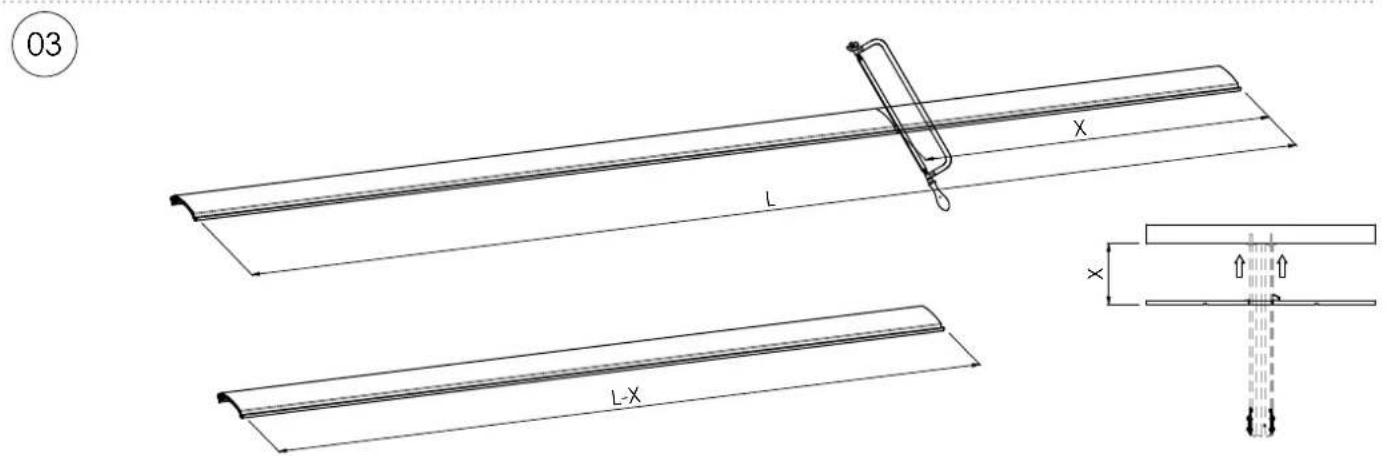

03 L X L-X X

MOUNTING INSTRUCTIONS

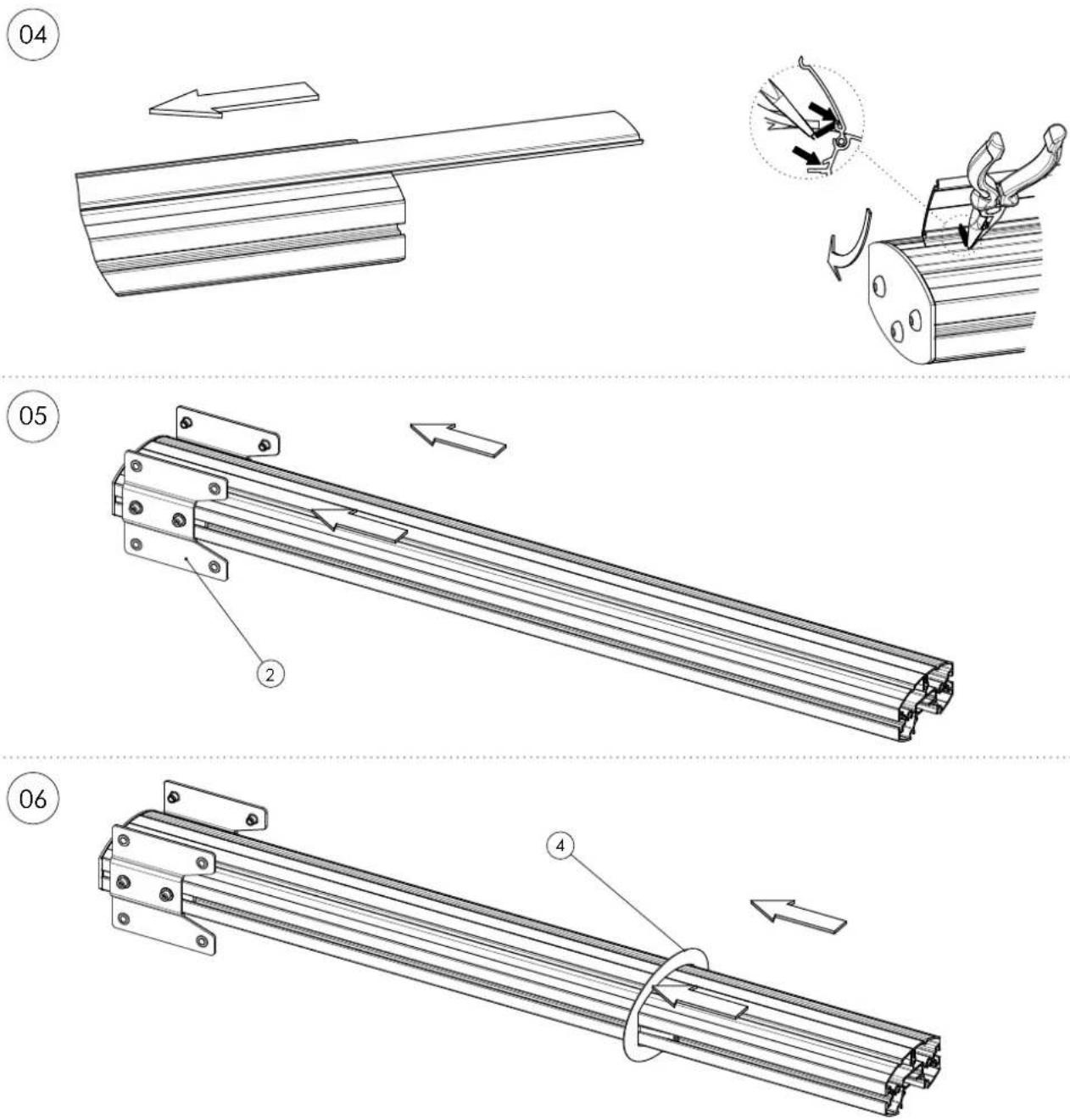

SmartMetals 072.8000-222 - MOUNTING INSTRUCTIONS - 1

MOUNTING INSTRUCTIONS

07

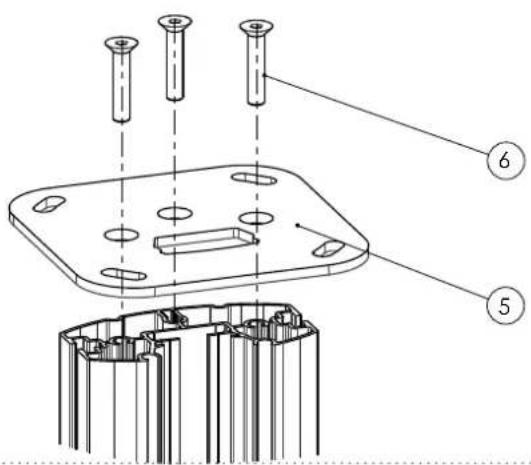

Technical diagram of a mechanical assembly with numbered parts, showing exploded and assembled views of a component.

08
SmartMetals 072.8000-222 - MOUNTING INSTRUCTIONS - 2

natural_image Line drawing of a drill bit with a coiled drill head and a circular component above (no text or symbols)

(107) (107) φ151

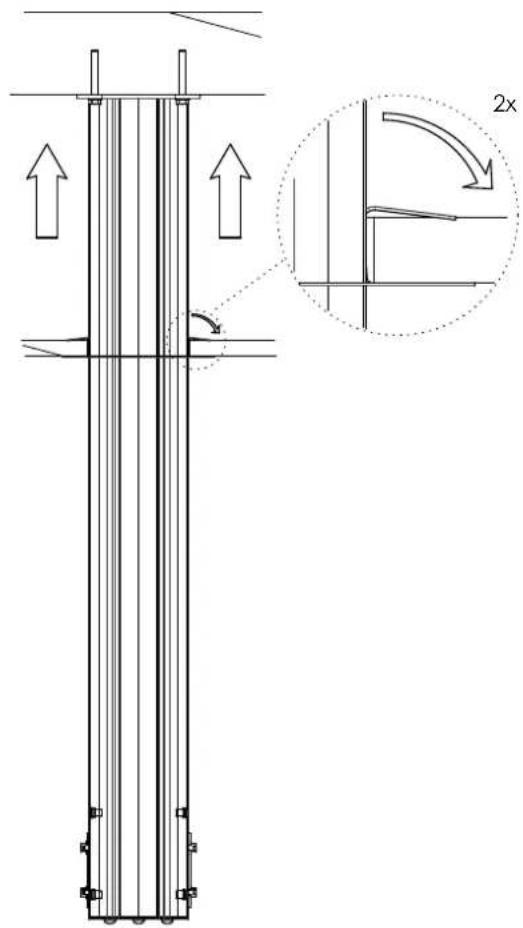

Technical diagram showing structural connection details with arrows and a magnified inset highlighting a 2x increase in slope.

SmartMetals 072.8000-222 - MOUNTING INSTRUCTIONS - 5

natural_image Technical line drawing of a cylindrical structural component with vertical supports and horizontal beams (no text or symbols)

MOUNTING INSTRUCTIONS

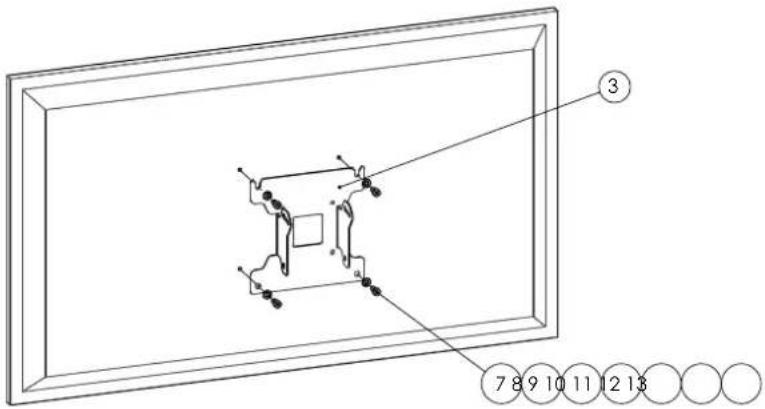

09 VESA 200!

③ 7 8 9 10 11 12 13

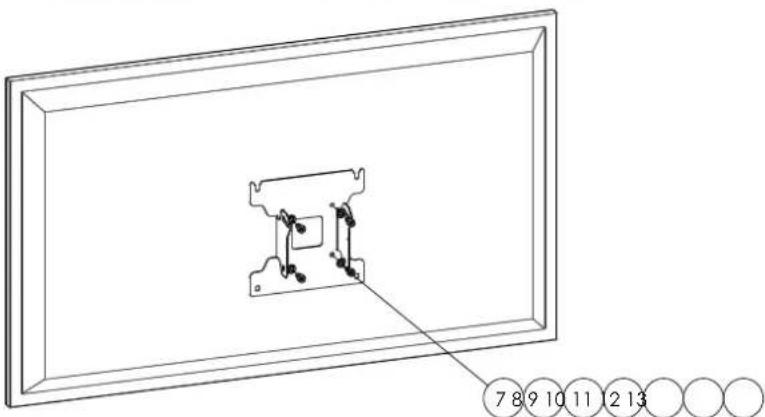

10 VESA 100!

7 8 9 10 11 12 13 ○ ○ ○

11

SmartMetals 072.8000-222 - MOUNTING INSTRUCTIONS - 3

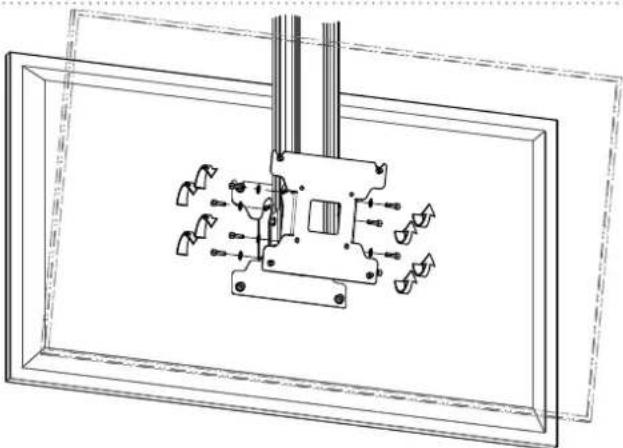

natural_image Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

SmartMetals 072.8000-222 - MOUNTING INSTRUCTIONS - 4

natural_image Technical diagram of a mechanical assembly with bolts and a wire, no visible text or symbols

CONTACT

SMARTSELECTOR

Find your solution fast and easy with the mobile SmartSelector. Scan the QR code and find your solutions within 3 steps with the mobile SmartSelector

TRY NOW!

SmartMetals Mounting Solutions B.V.

Handelsweg 4

4231 EZ Meerkerk

The Netherlands

P +31(0)183352942

F +31(0)183352909

E info@SmartMetals.eu

W www.SmartMetals.eu

QR code image containing encoded data, no visible human-readable text

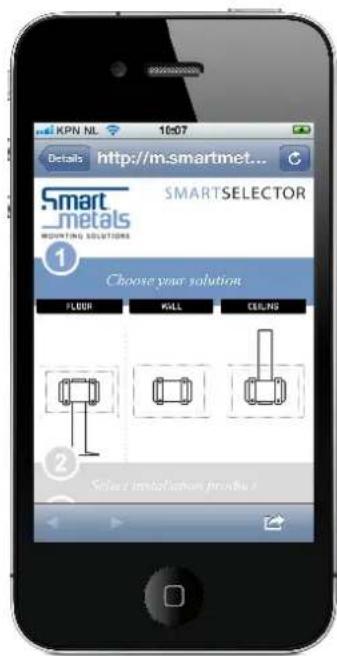

KPN NL 10:07 Details http://m.smartmet... SMARTSELCTOR SMART_metals MOVATING SOLUTIONS Choose your solution FLUOR WALL CEILING Select installation preview 1
