BRUGSANVISNING B 53 Microlab
microlab
just listen
B53 USB stereo speaker system
Features:
• Stereo speakers with USB audio functions
- Unique and aesthetic diamond shaped speaker cover
• Quality speaker drivers
- No external driver needed, self install within Windows ^TM operating system
• Works with iMac USB audio driver too
- Support notebook and desktop computers with USB port


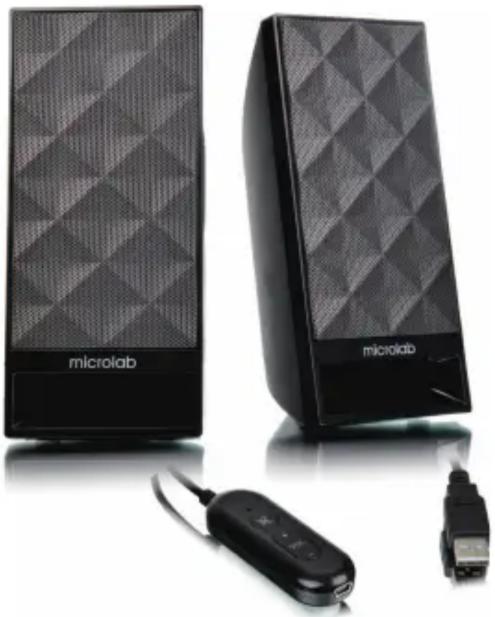

Two black Microlab audio speakers with textured screens and connected devices (no visible text or symbols on the devices themselves)Specifications:
AMPLIFIER
• Output power: 3 Watt RMS
• Power distribution: 1.5 Watt x 2
• Harmonic distortion: < 1% 1 W 1 kHz
• Frequency response: 55 Hz - 20 kHz
• Signal/Noise ration: > 75 dB
- Separation: > 45 dB
SPEAKERS
• Speaker driver type: 2.5" x 2
• Speaker rated power: 5 Watt x 2, 6 ohm
•
INTERFACES
• Output: mini USB
- Input: USB type A
POWER
• Power supply: 5V 500 mA
PACKAGE CONTENTS
• B53 speakers x 2
- USB audio adapter
- User manual
DIMENSION
- Product dimension: 80 x 178 x 83 mm (W x H x D)
• Product net weight: 0.7 kg - Product giftbox dimension: 200 x 92 x 207 mm
• Giftbox gross weight: 0.9 kg - Export carton dimension: 478 x 416 x 432 mm
• Export carton gross weight: 19 kg
Warranty Notice: *1 Year Warranty
Microlab Electronics Company Limited
Baozi South Road, Microlab Industrial Park, Shenzhen Grand Industrial Zone, PingShan New District, Shenzhen, China 518122
Tel: +86 75586243211 Fax: +86 75528290000
Email: jennifersheng@microlab.cn
EAN: 694519885191 8
Ver: 1.0
Product image, Terms and Specifications are subject to changes without further notice
© 2011 Microlab Electronics Co., Ltd
