BRUGSANVISNING Regel S 490 Pro Broil King

Broîl King®

Broil King

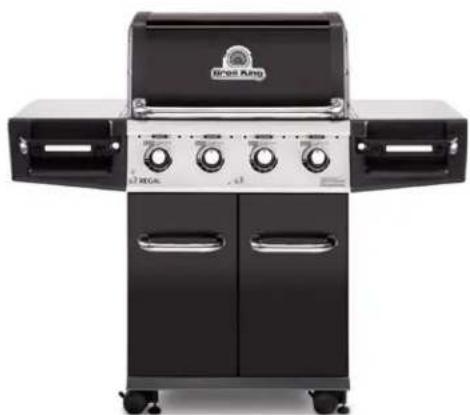

REGAL 420

9562-52

9562-53

Exterior view of a black Roast Rung gas stove with four control knobs and open doors (no visible text or symbols)

Broil King

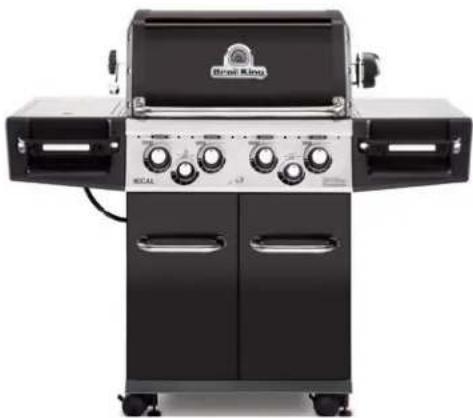

REGAL 490

9562-82

9562-83

Exterior view of a black Roast Roast Kecal gas stove (no signage or text visible)

Broil King

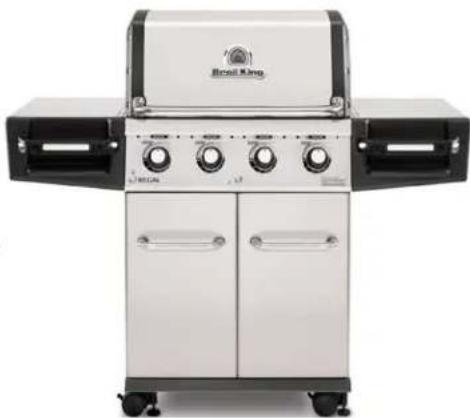

REGAL 420 PRO

9563-12

9563-13

Exterior view of a stainless steel breast King gas stove (no signage or text visible on body)

Broil King

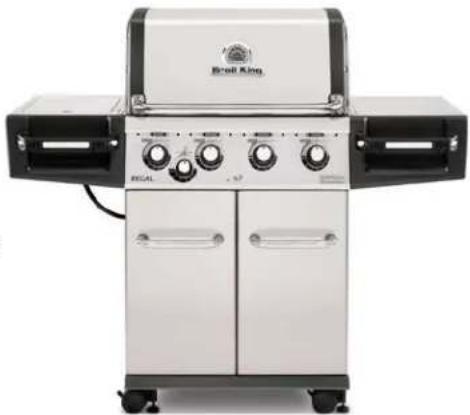

REGAL 440 PRO

9563-22

9563-23

Exterior view of a standard Roetal King gas stove with control panel and side door (no visible text or symbols)

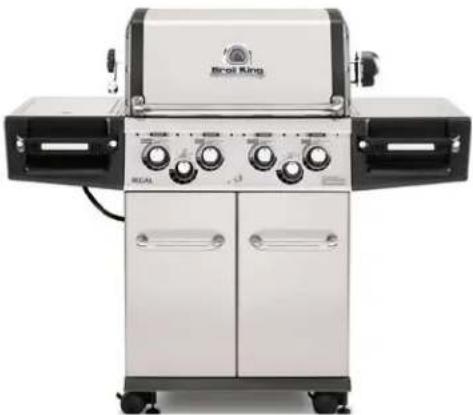

Broil King

REGAL 490 PRO

9563-42

9563-43

Exterior view of a Roetal King gas stove with control panel and door open (no visible text or symbols)

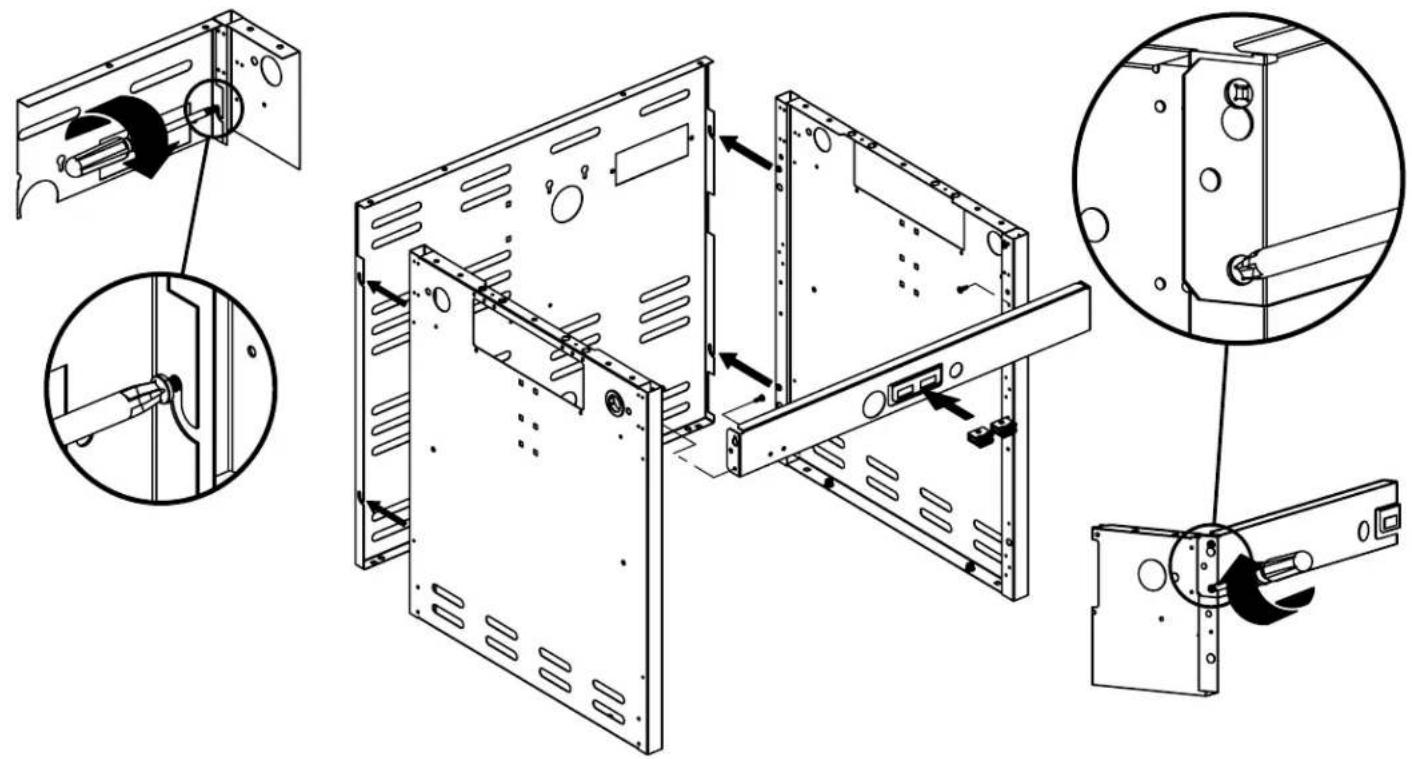

1

(4)

(4)

(4)

(2)

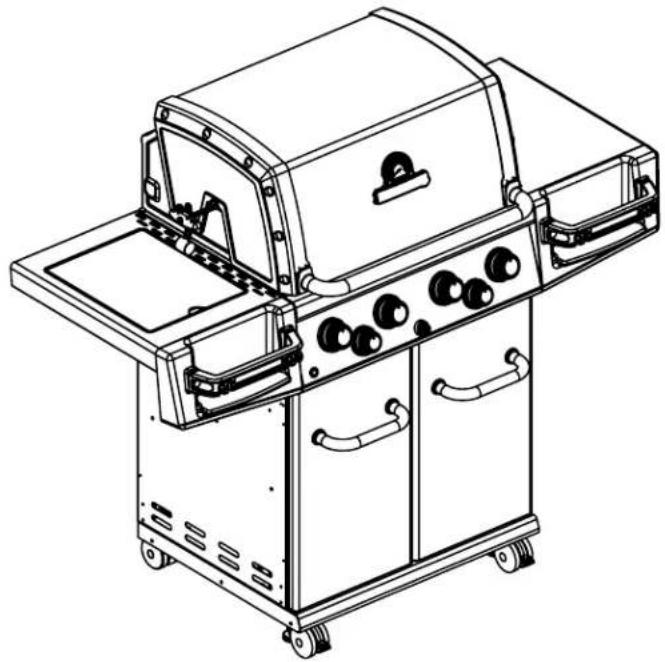

Line drawing of a portable electric grill with control panel and wheels (no text or symbols)

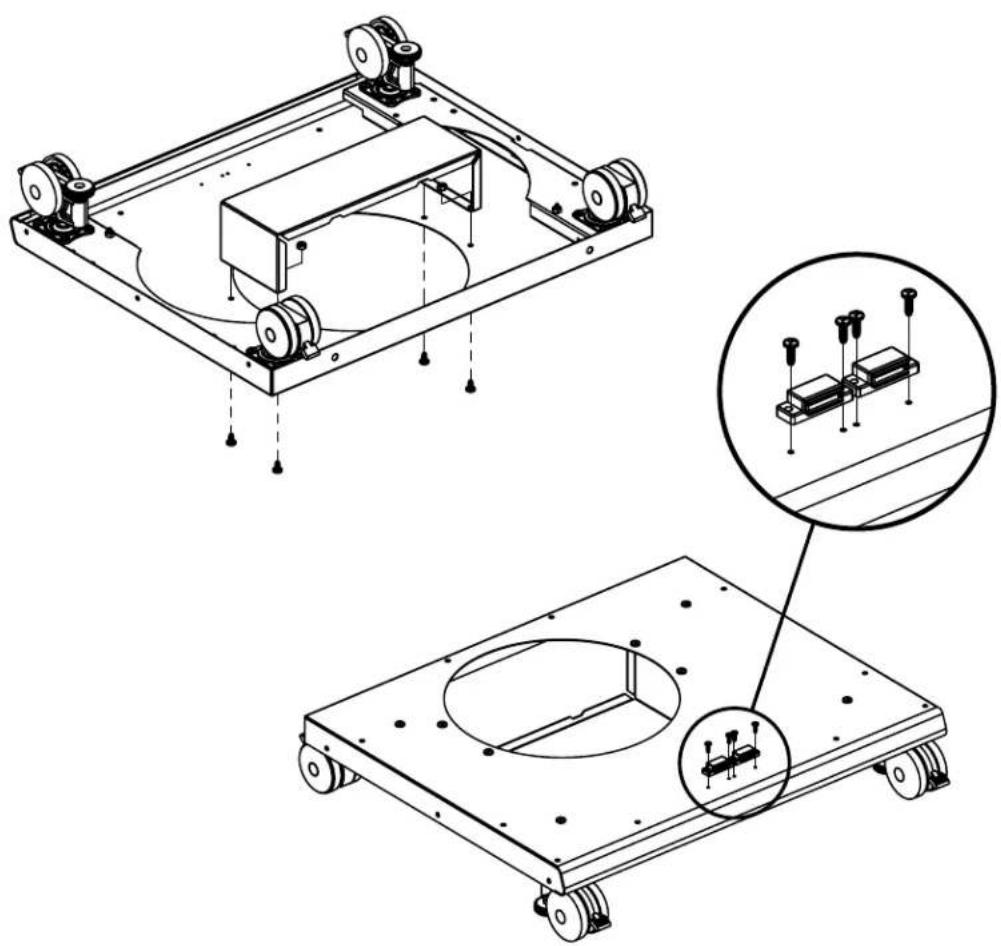

Technical line drawing of a mechanical assembly with two views: top shows a frame with wheels and a central component, bottom shows a circular opening with labeled parts (no text or symbols present)

2

(2) (2)

Technical line drawing of a computer drive assembly showing internal components and mounting features (no text or labels)

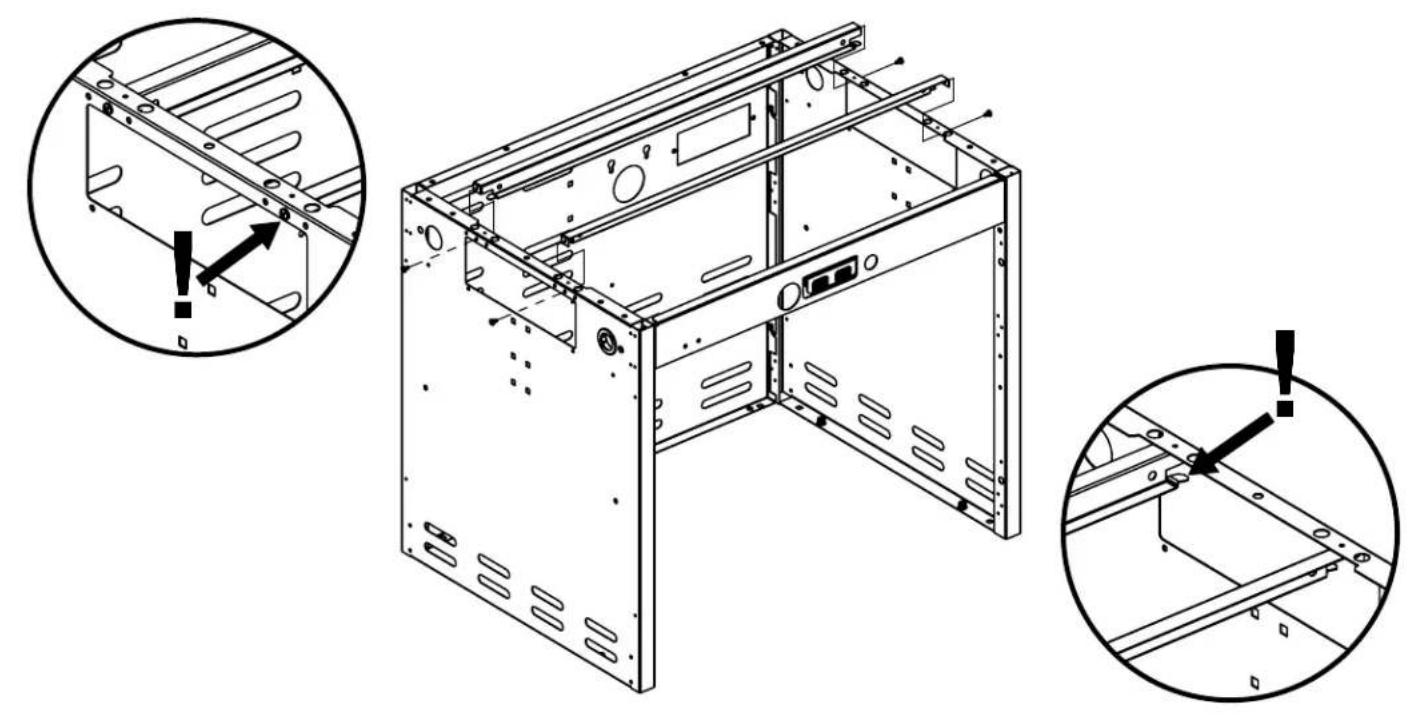

3

(4)

Technical line drawing of a computer case with internal components and mounting holes, showing three orthographic views (no text or symbols present)

4

(6)

Technical line drawing of an internal combustion engine housing assembly, showing internal components and component details (no text or labels)

5

(2)

Technical line drawing of an electronic device chassis with internal components and a magnified inset showing assembly details (no text or symbols)

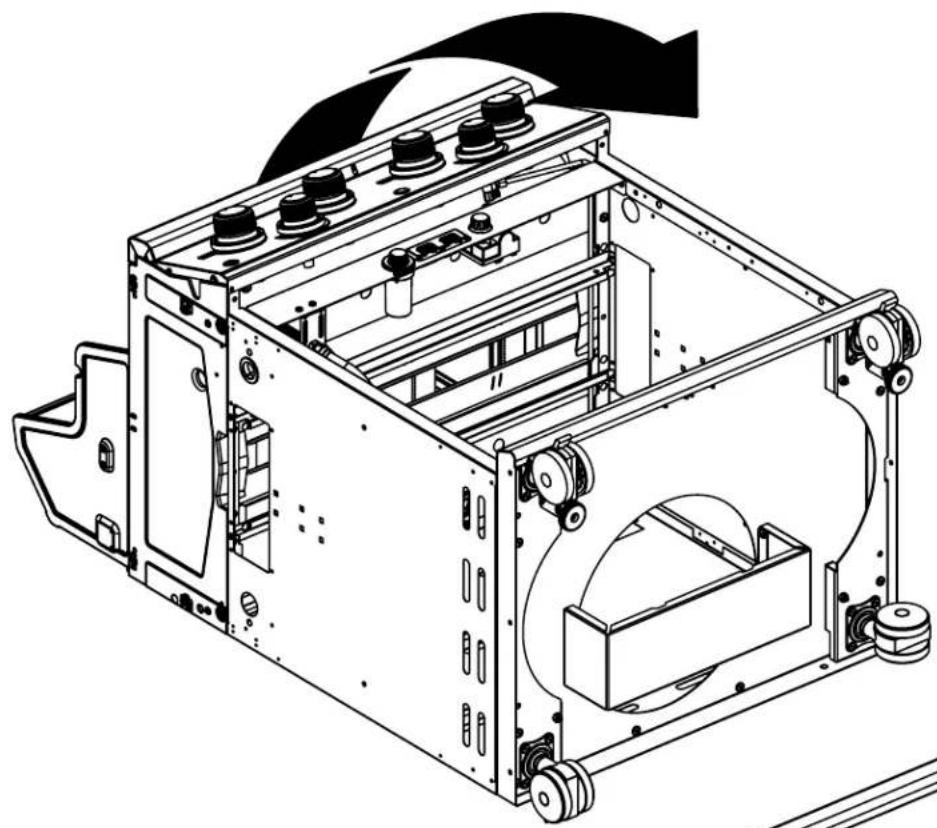

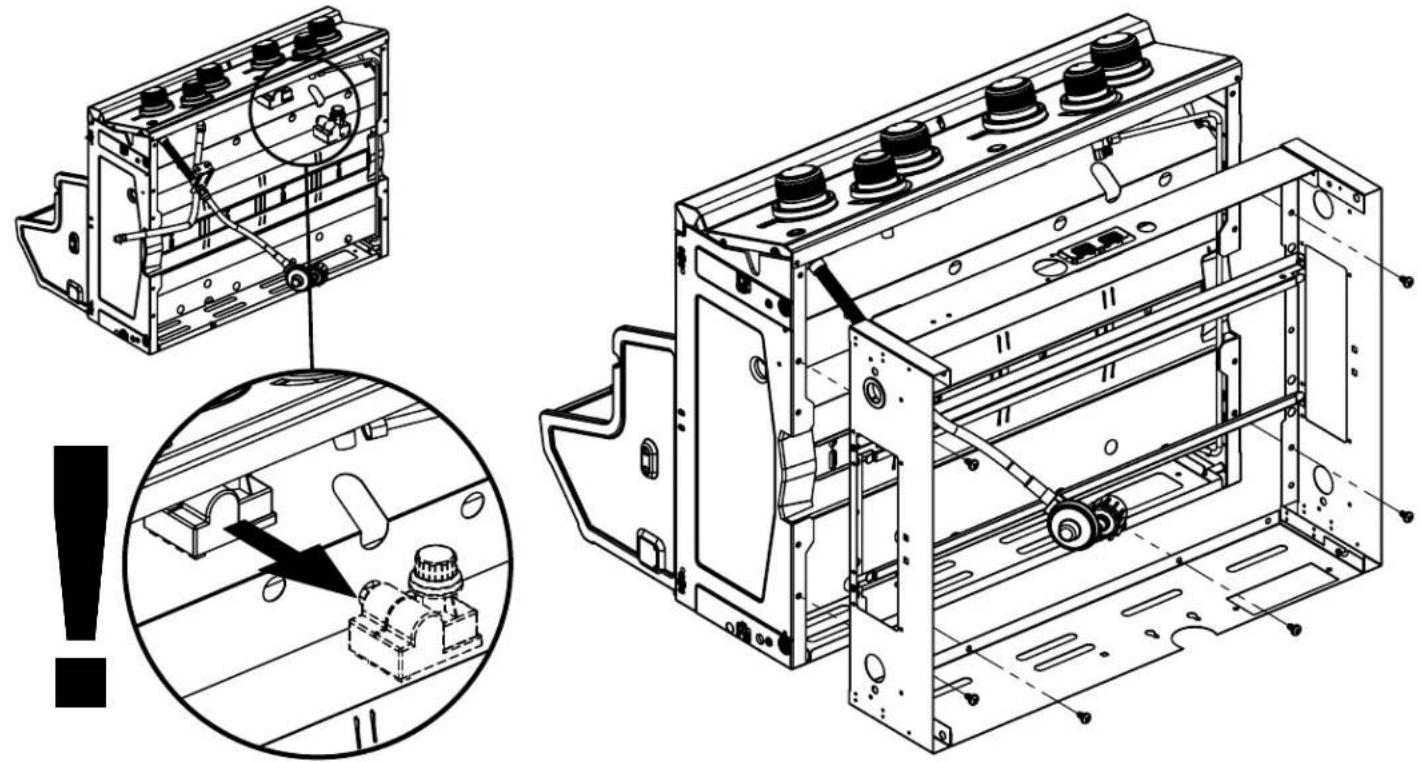

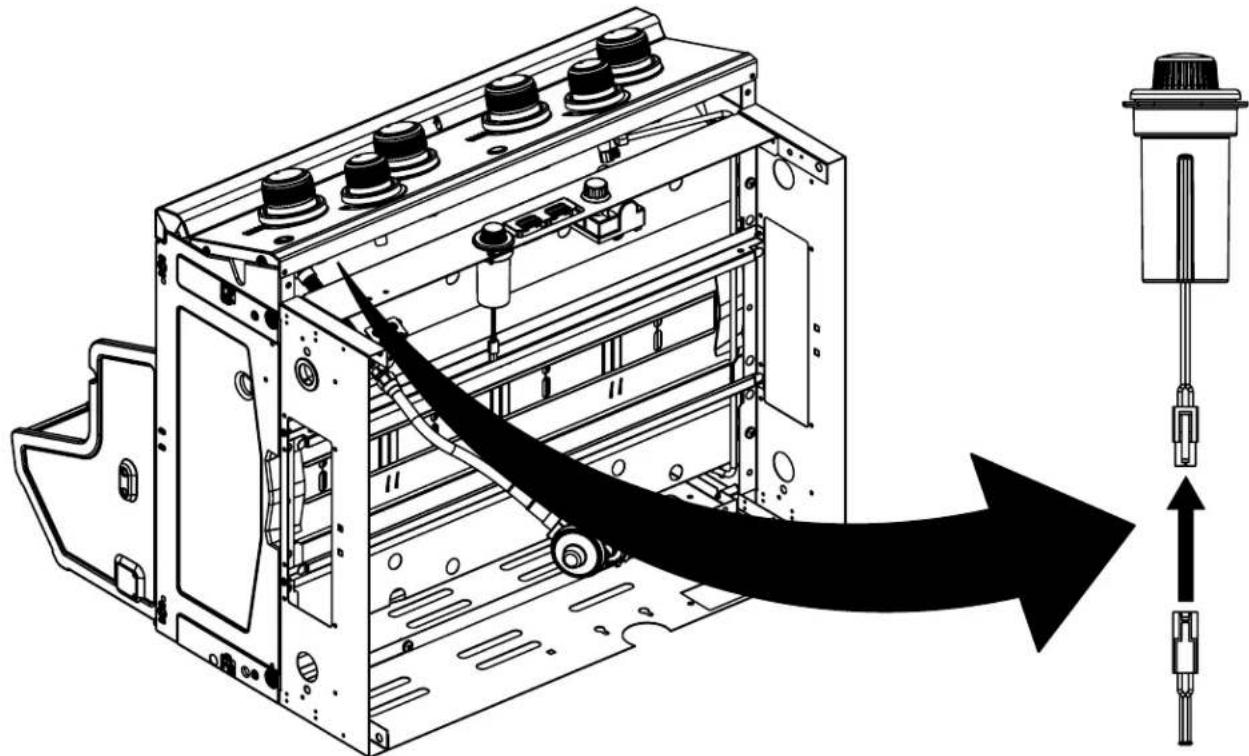

6

Technical line drawing of an internal electronic device with a black arrow indicating assembly or connection, showing no text or symbols.

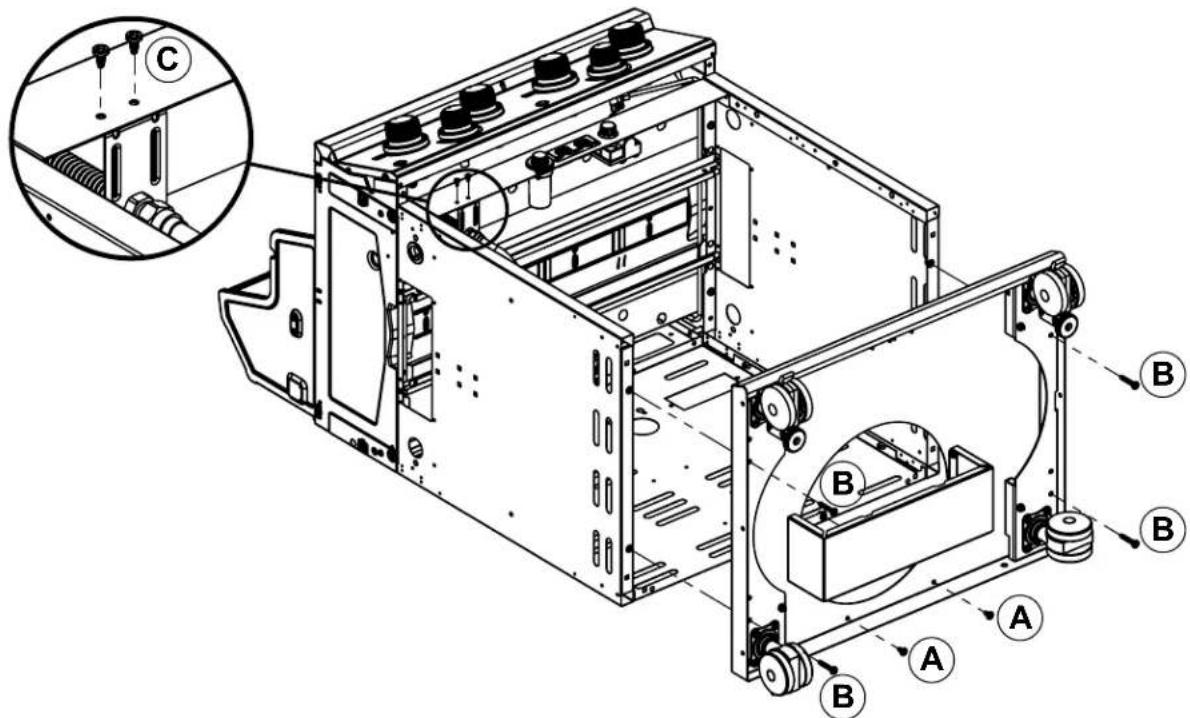

7

(2)

A

(4)

B

(2)

C

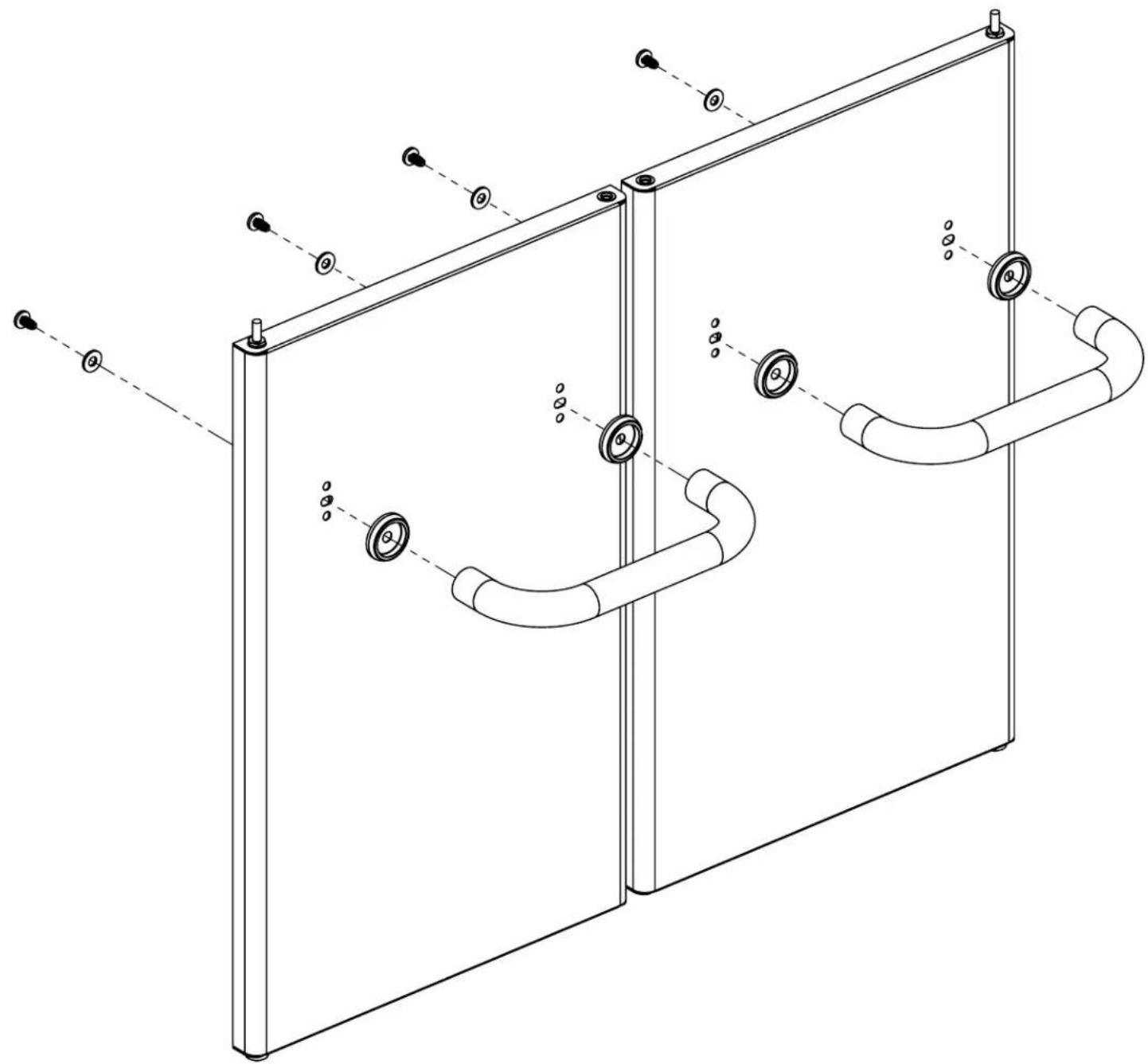

8

Technical line drawing of an internal mechanical assembly with rollers and housing (no text or symbols)

Technical line drawing of a mechanical device casing with internal components and mounting holes (no text or symbols)

9

(4) (4)

Technical line drawing of a door frame with pipe fittings and mounting holes (no text or symbols)

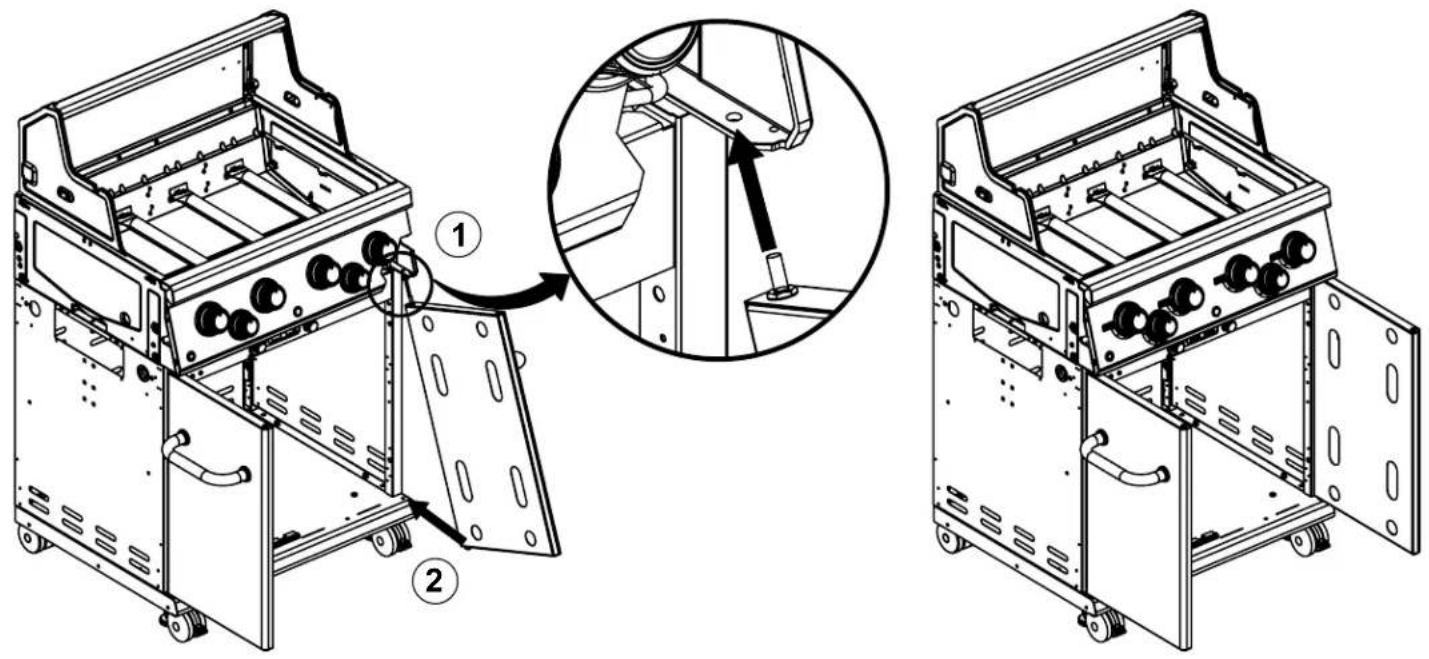

10

(2)


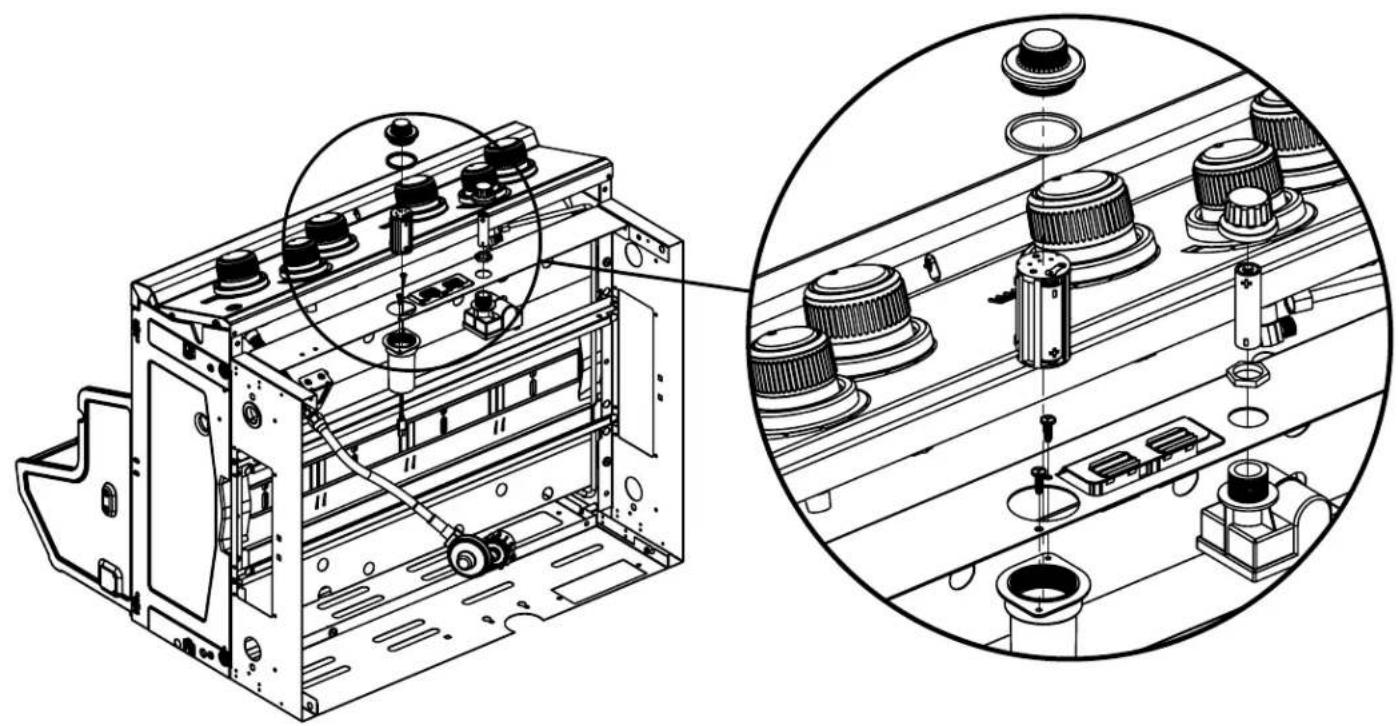

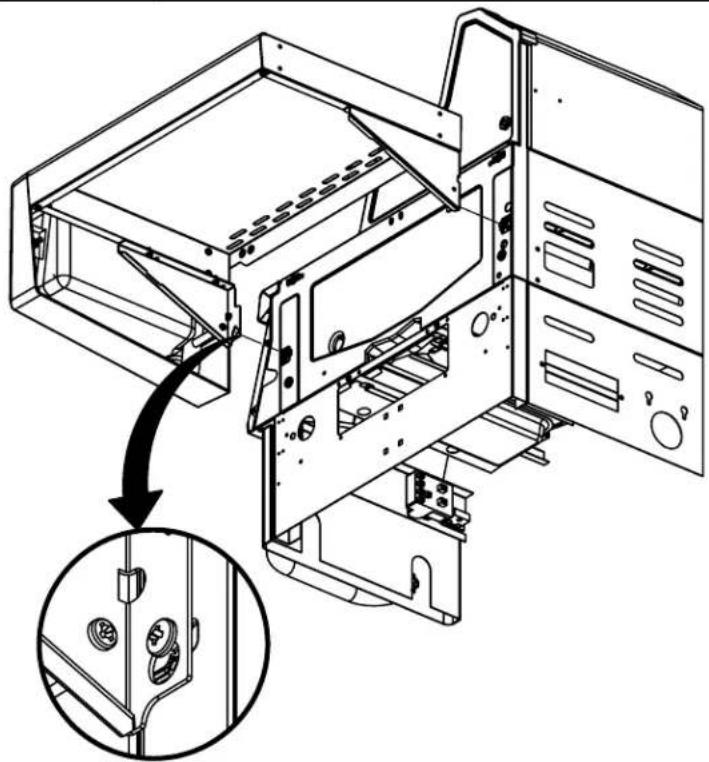

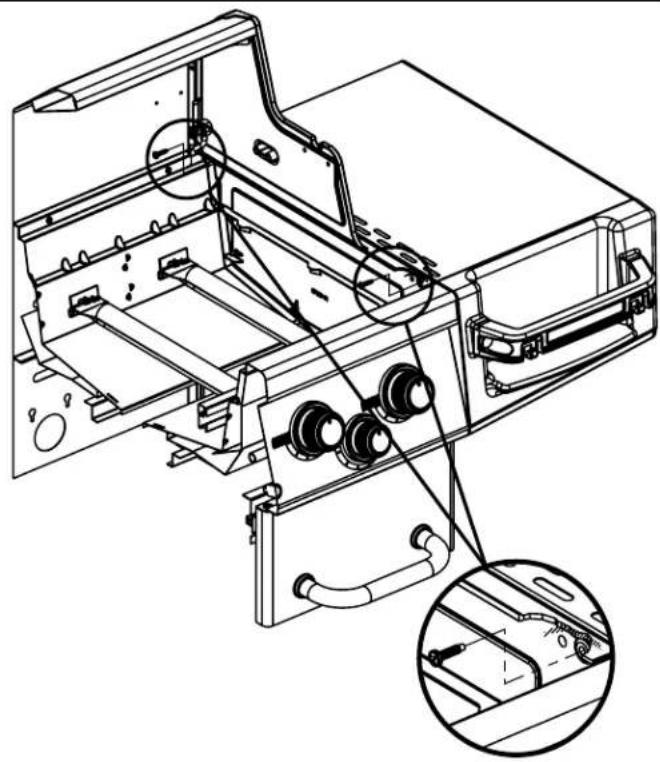

11

Technical line drawing of a computer case with an inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and a magnified inset showing a close-up view (no text or symbols)

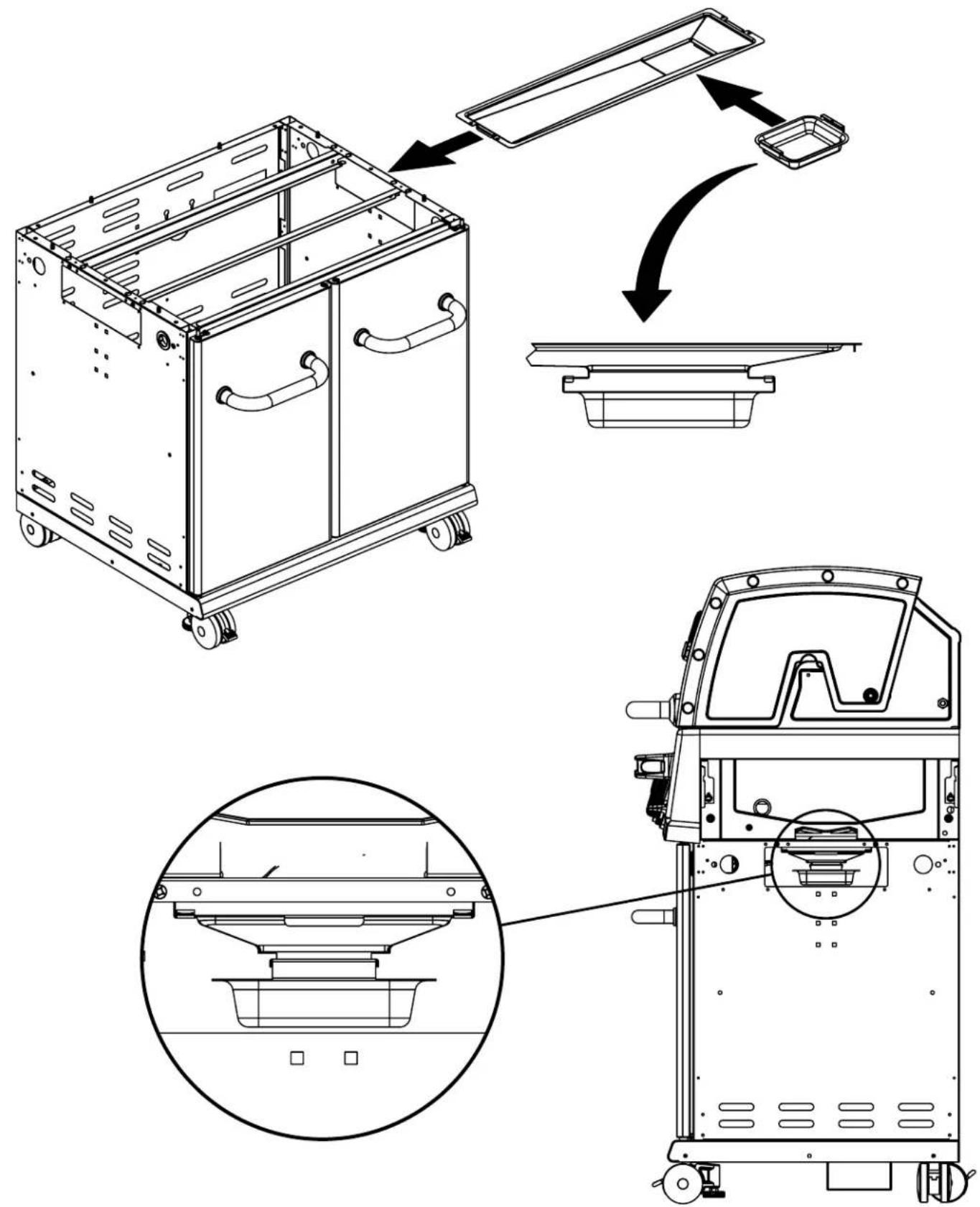

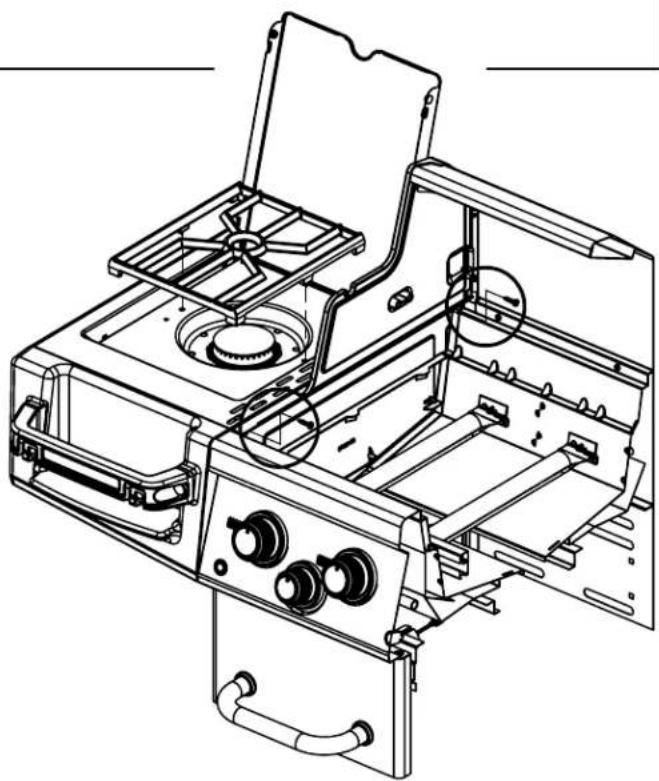

12

Technical line drawing of a mechanical device with mounting bracket and control panel (no text or symbols)

Technical line drawing of a portable air conditioner unit with fan, vent, and control panel (no text or labels)

13

9562-82 9562-83

9563-22 9563-23

9563-42 9563-43

(1)

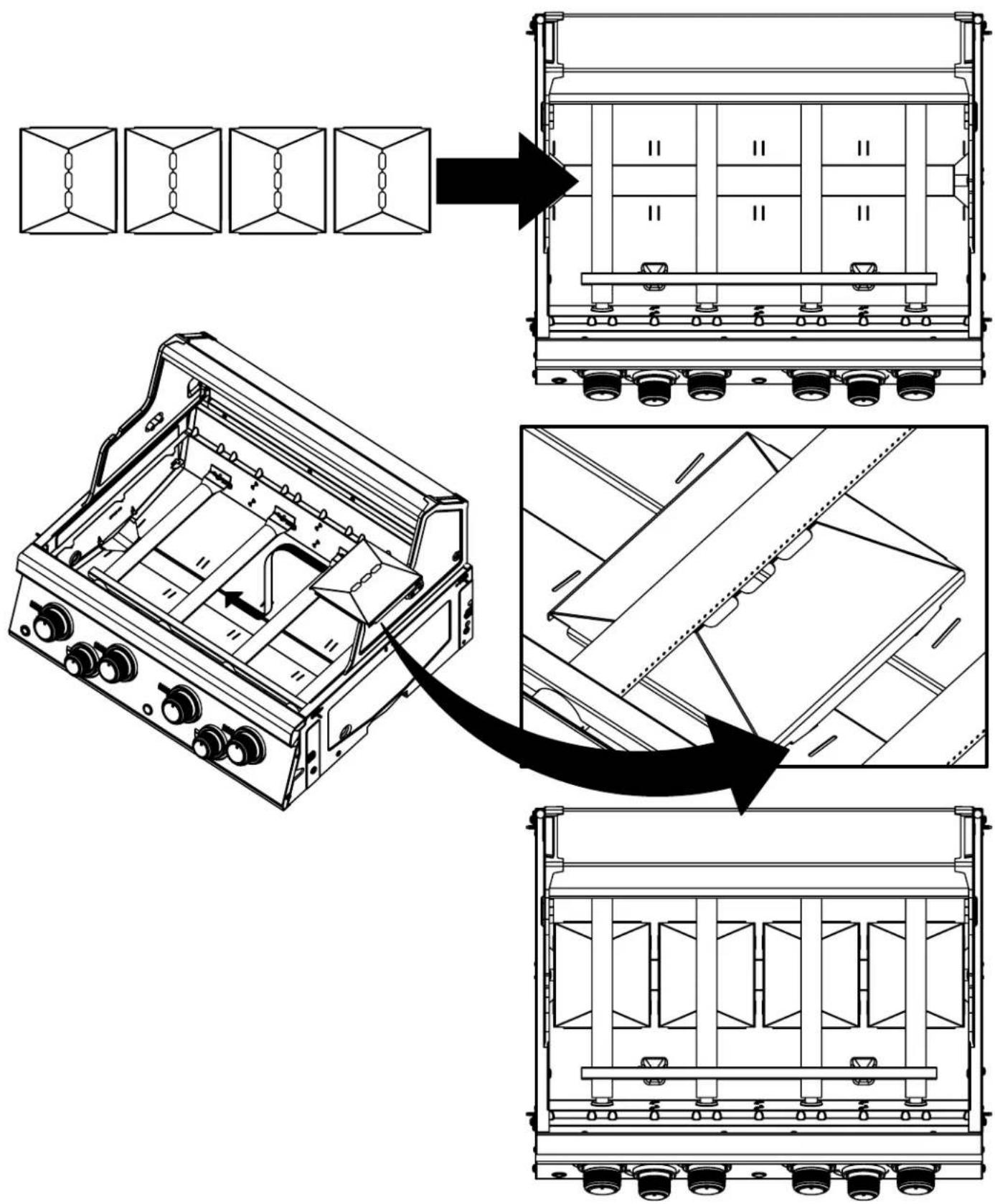

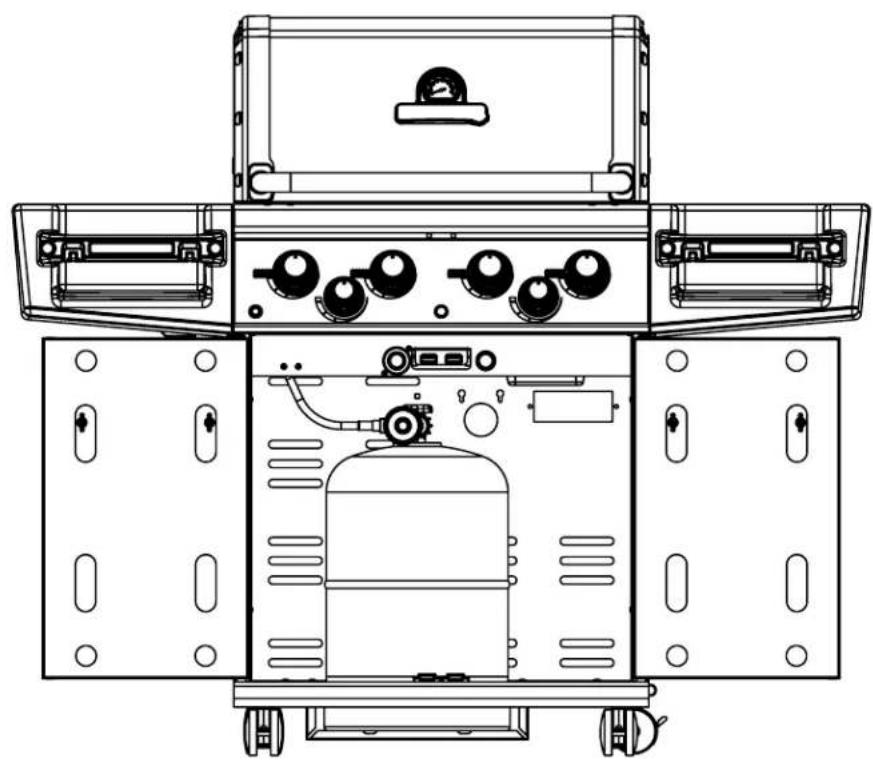

14

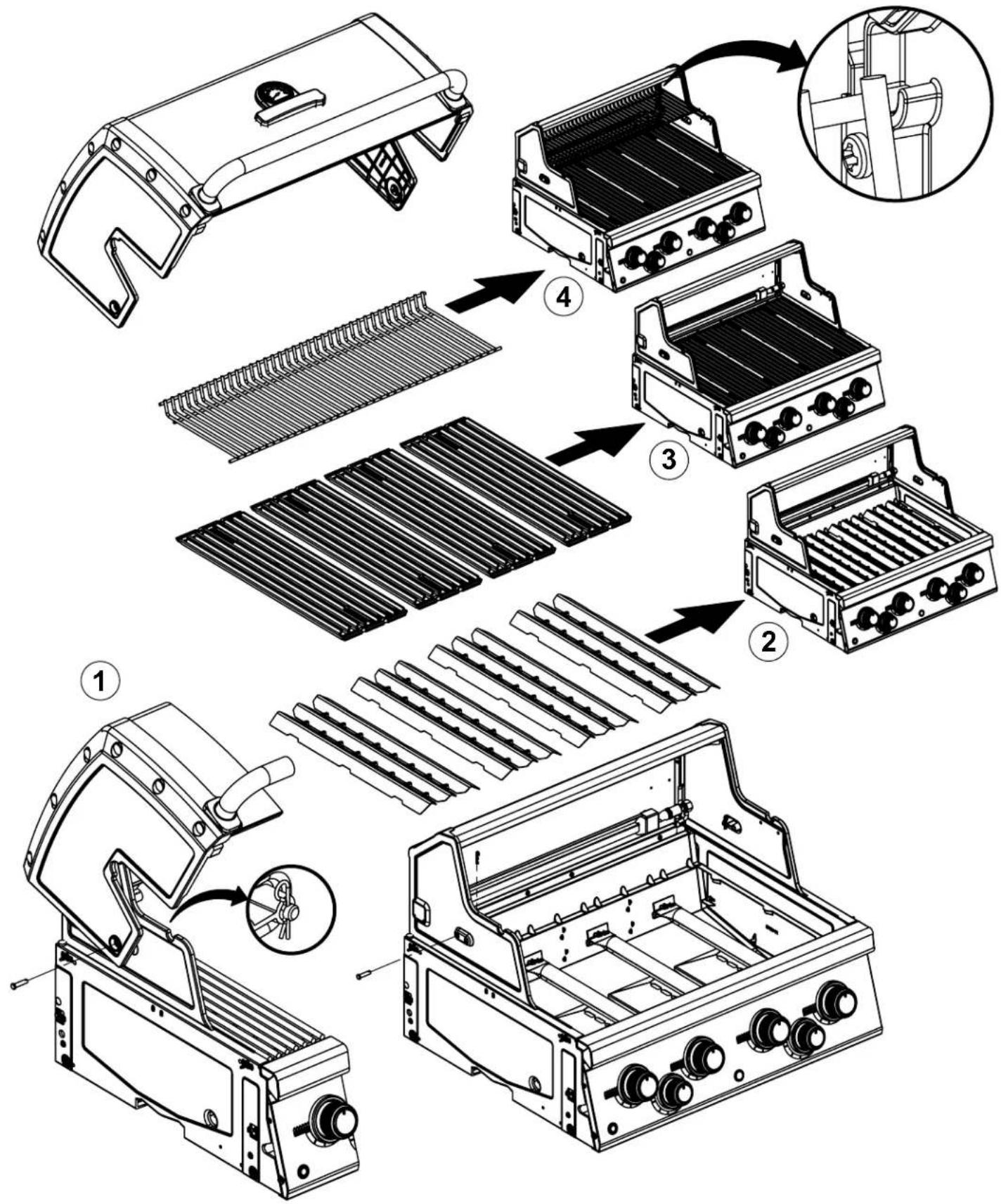

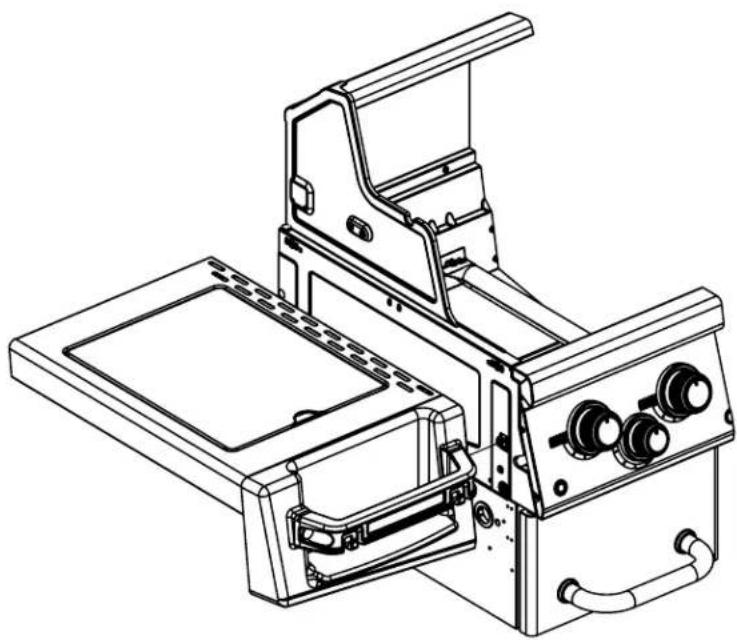

15

(2)

(2)

Technical line drawing of a portable gas stove with open doors and control panel (no text or symbols)

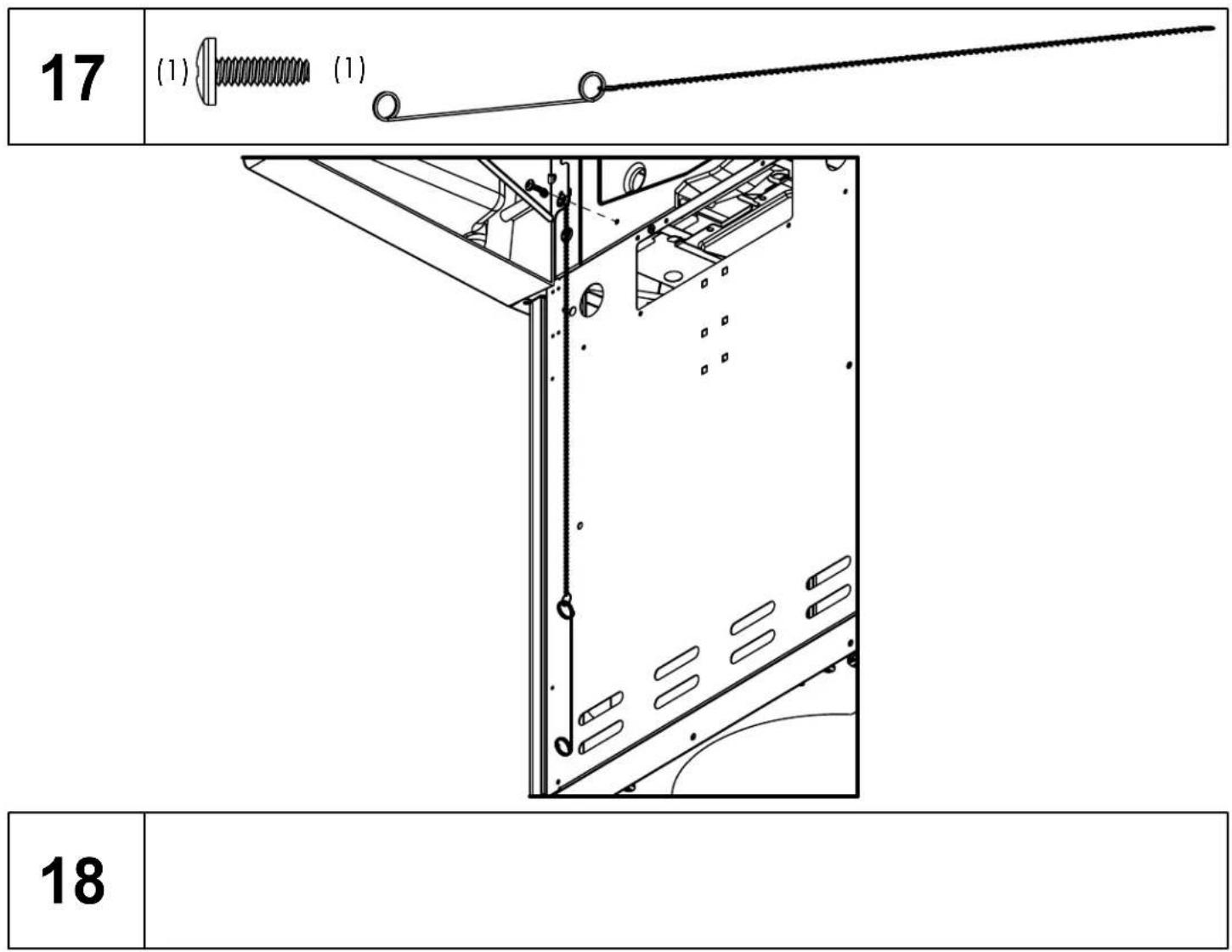

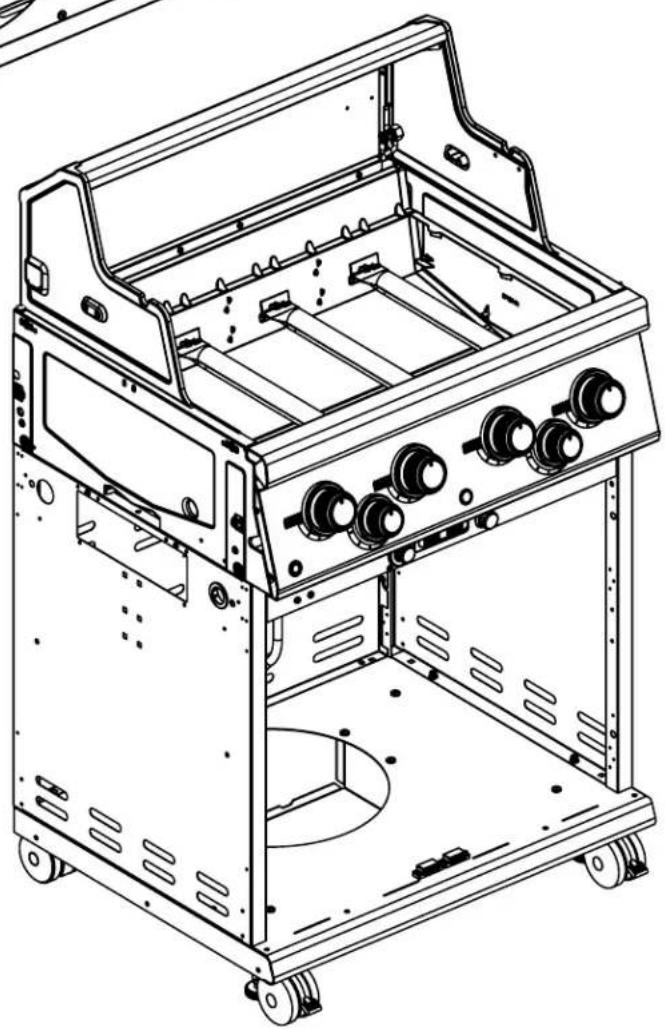

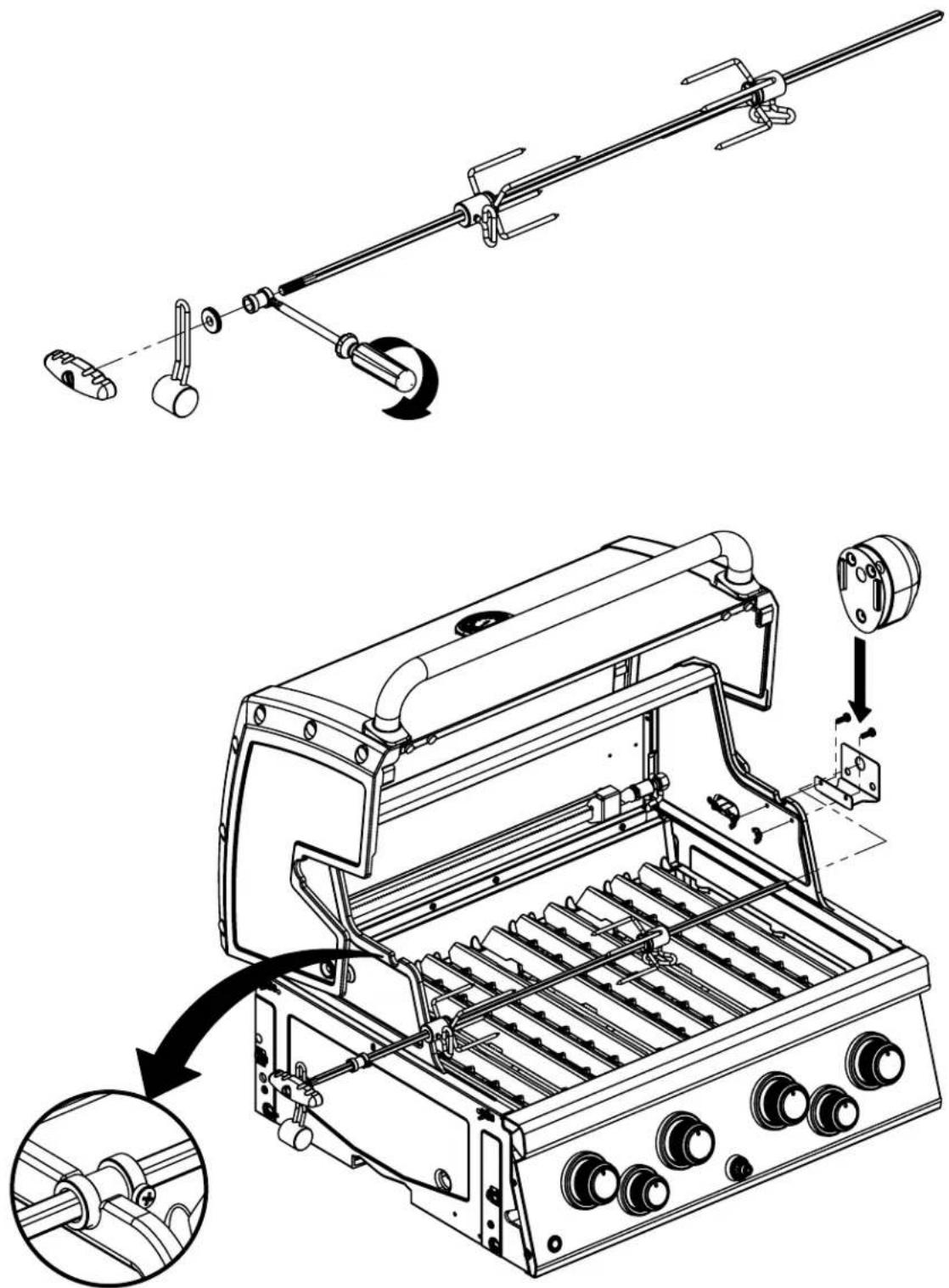

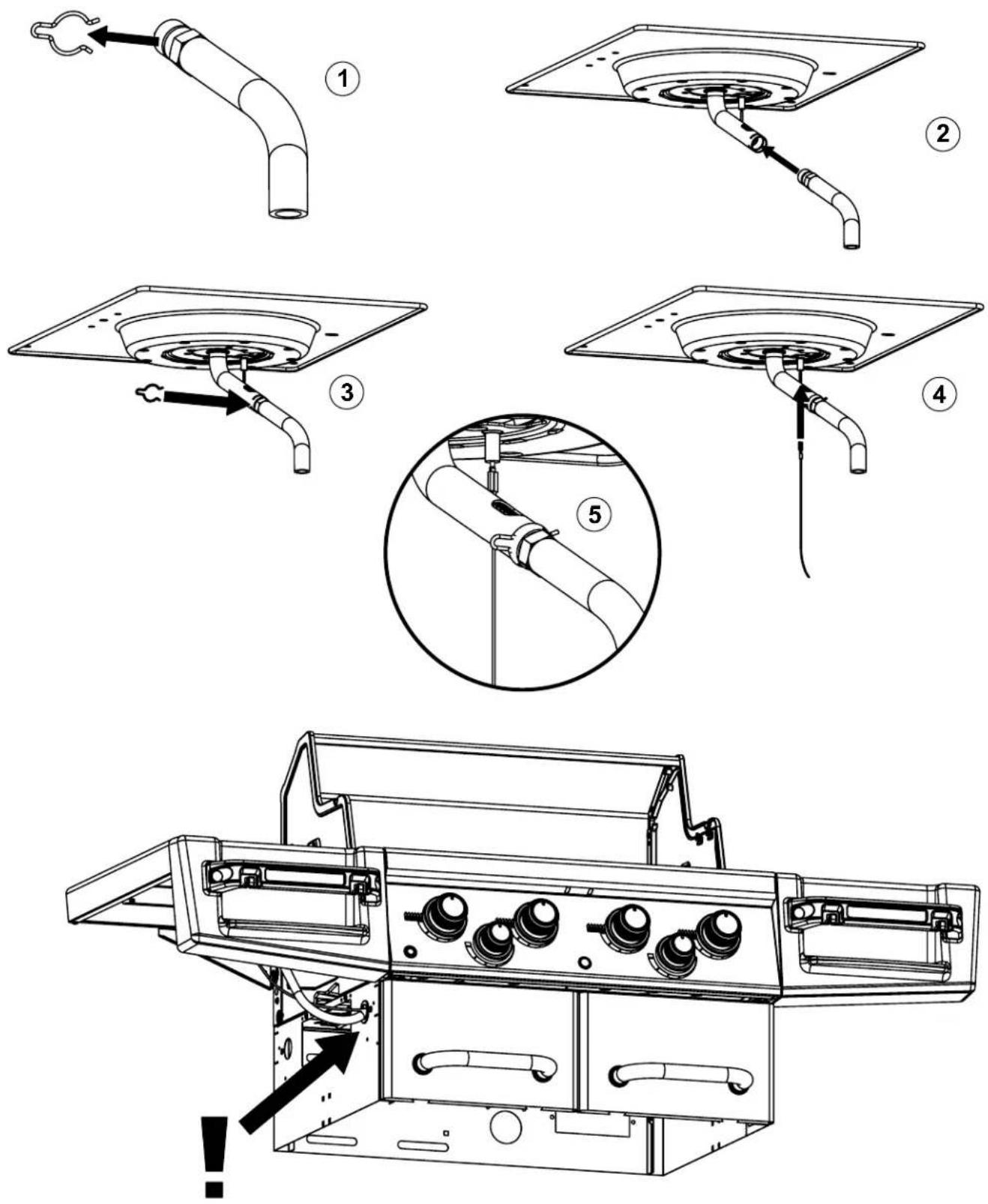

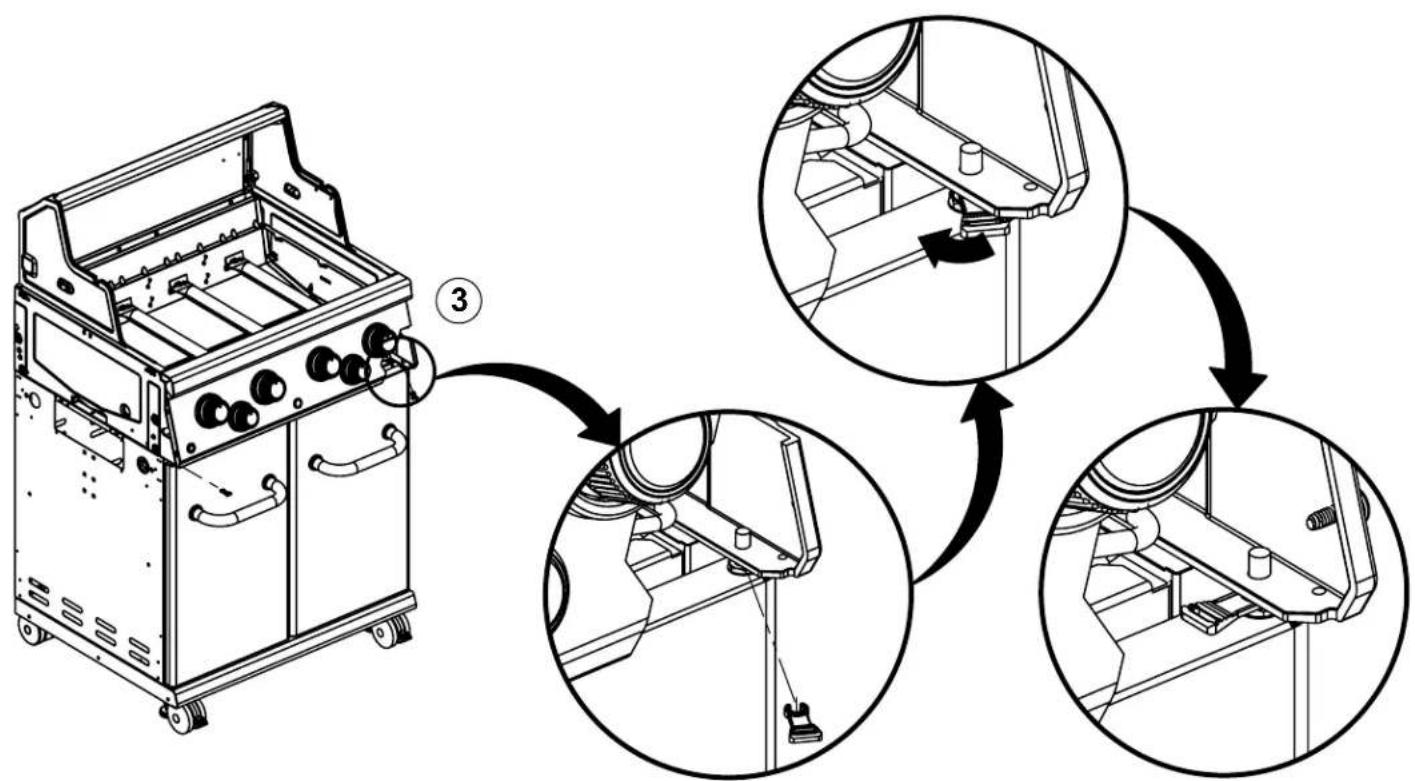

19

9562-82 9562-83 9563-42 9563-43

(2)

(2)

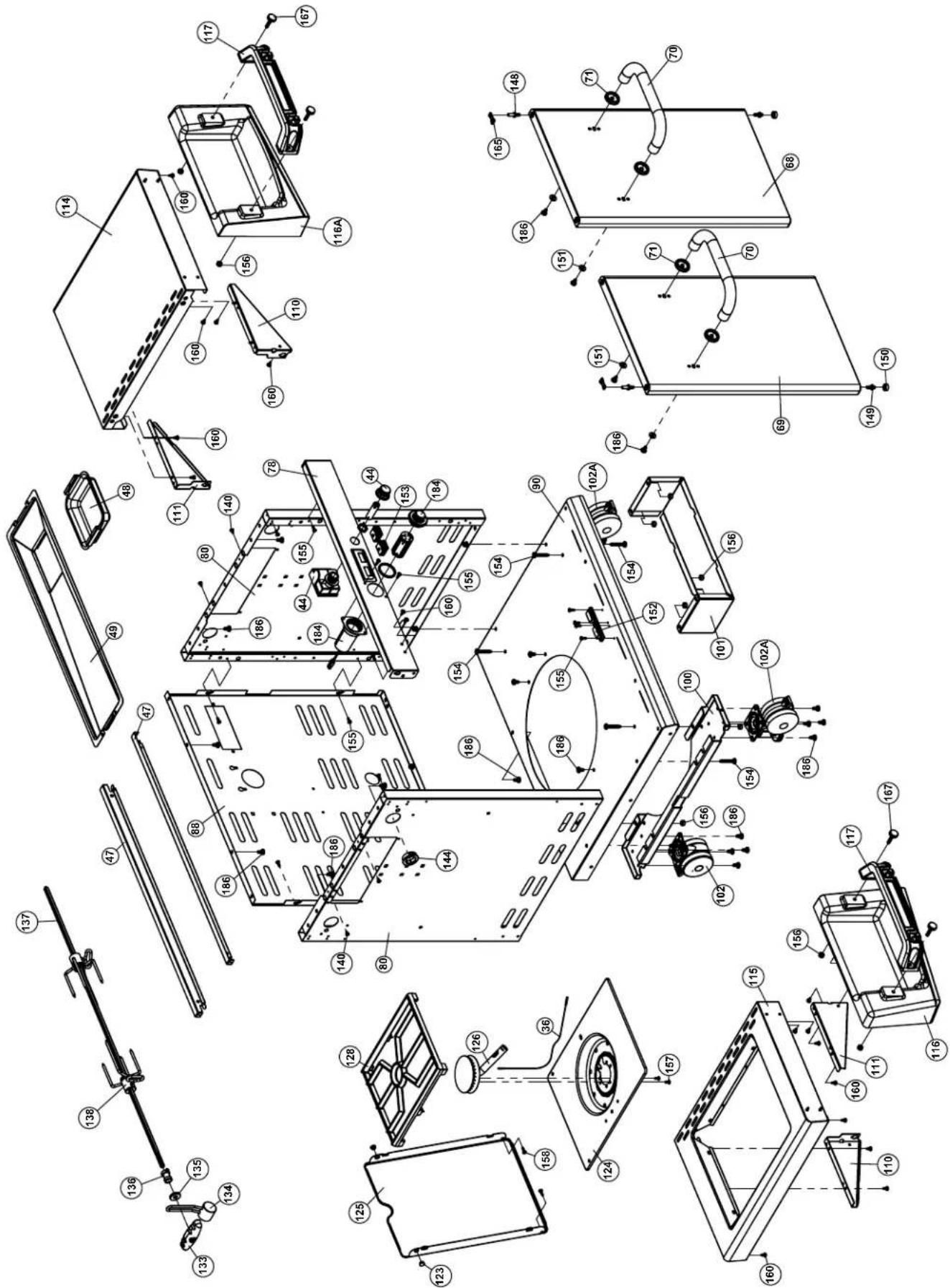

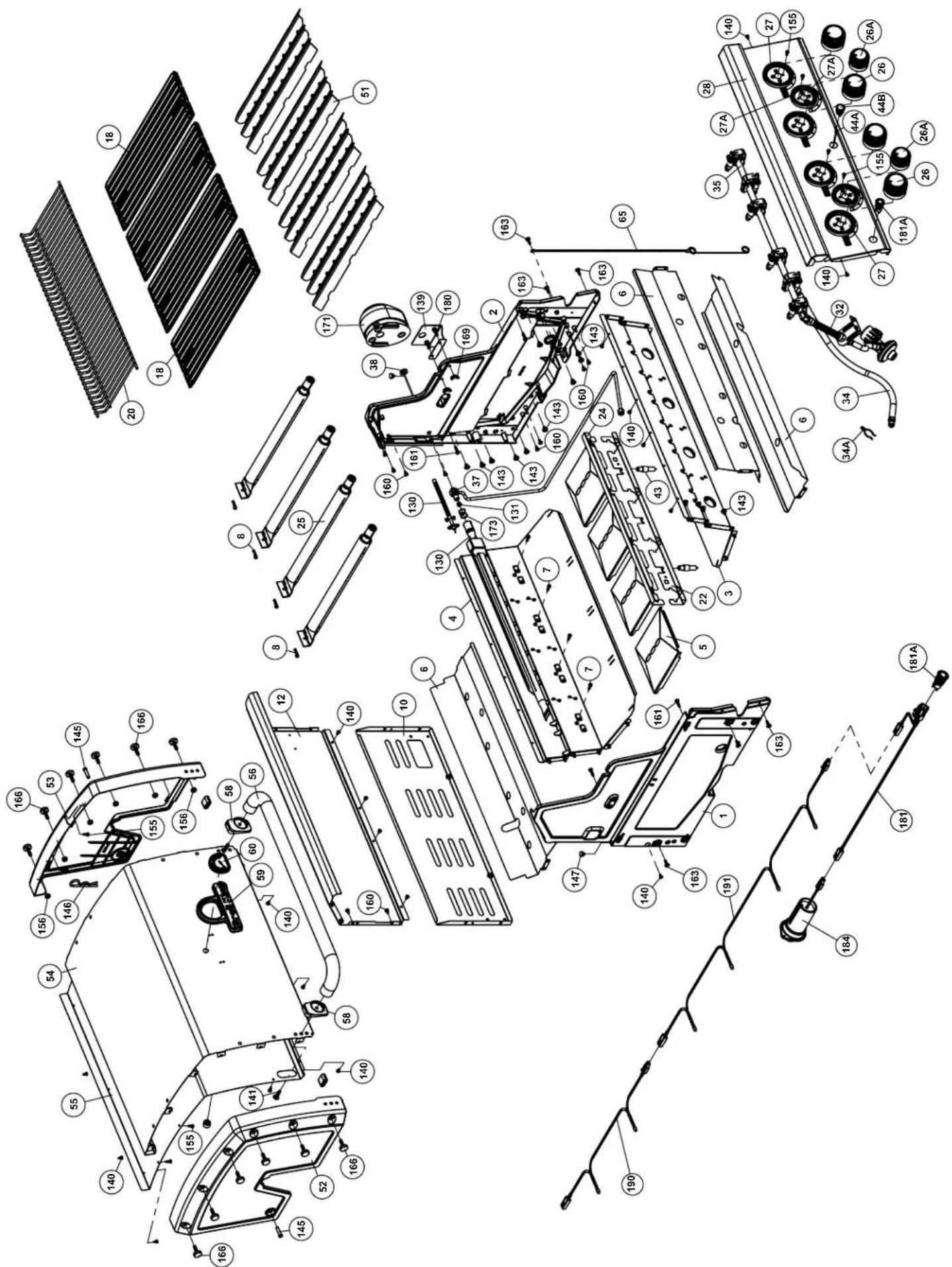

PARTS LIST / LISTE DES PIECES

KEY #	ITEM #	DESCRIPTION	9562-52	9562-53	9562-82	9562-83	9563-12	9563-13	9563-22	9563-23	9563-42	9563-43
1	87109-931	PANEL - SIDE LEFT	1	1	1	1	1	1	1	1	1	1
2	87109-911	PANEL - SIDE RIGHT	1	1	1	1	1	1	1	1	1	1
3 27205-014 PANEL - FRONT INNER 1 1 1 1 1 1 1 1 1
4	27205-924R	PANEL - INNER REAR	1	1	1	1	1	1	1	1	1	1
5	27249-904	GREASE SHIELD	4	4	4	4	4	4	4	4	4	4
6	27005-91	HEAT SHIELD	3	3	3	3	3	3	3	3	3	3
7	Y-11544	BURNER SCREW	4	4	4	4	4	4	4	4	4	4
8	S21242	CLIP	4	4	4	4	4	4	4	4	4	4
10	82305-021R	PANEL - REAR COOKBOX	1	1	1	1	1	1	1	1	1	1
12	82315-021	PANEL - HOOD	1	1	1	1	1	1	1	1	1	1
18	22005-281	GRID	4	4	4	4	•	•	•	•	•	•
	22022-284	GRID	•	•	•	•	2	2	2	2	2	2
20	22005-991	GRID - WARMING RACK	1	1	1	1	1	1	1	1	1	1
22	22225-014	COLLECTOR BOX - FRONT LOWER	1	1	1	1	1	1	1	1	1	1
24	22215-014	COLLECTOR BOX - FRONT UPPER	1	1	1	1	1	1	1	1	1	1
25	22909-104D	BURNER	4	•	4	•	4	•	4	•	4	•
	22909-104E	BURNER	•	4	•	4	•	4	•	4	•	4
26	22001-769	CONTROL KNOB	4	4	4	4	4	4	4	4	4	4
26A	22001-669	CONTROL KNOB	•	•	2	2	•	•	1	1	2	2
27	22002-264	CONTROL BEZEL	4	4	4	4	4	4	4	4	4	4
27A	22001-164	CONTROL BEZEL	•	•	2	2	•	•	1	1 2 2
28	22005-814	CONTROL COVER	1	1	•	•	1	1	•	•	•	•
	22005-834	CONTROL COVER	•	•	•	•	•	•	1	1	•	•
	22005-884	CONTROL COVER	•	•	1	1	•	•	•	•	1	1
32	10111-15A	HOSE	1	1	1	1	1	1	1	1	1	1
34	S13473-073	HOSE-SIDE BURNER	•	•	1	•	•	•	1	•	1	•
	S13473-079	HOSE-SIDE BURNER	•	•	•	1	•	•	•	1	•	1
34A	Y-11230	CLIP	•	•	1	1	•	•	1	1	1	1
35	29005-012	CONTROL ASSEMBLY	1	•	•	•	1	•	•	•	•	•
	29005-015	CONTROL ASSEMBLY	•	1	•	•	•	1	•	•	•	•
	29005-032	CONTROL ASSEMBLY	•	•	•	•	•	•	1	•	•	•
	29005-035	CONTROL ASSEMBLY	•	•	•	•	••	•	1	•	•
	29005-072	CONTROL ASSEMBLY	•	•	1	•	•	•	•	•	1	•
	29005-075	CONTROL ASSEMBLY	•	•	•	1	•	•	•	•	•	1
36	10342-T18	ELECTRODE - SIDE BURNER	•	•	1	1	•	•	1	1	1	1
37	20809-957	REAR BURNER GAS TRAIN	•	•	1	1	•	•	•	•	1	1
38	Y-11990	NUT - REAR BURNER	•	•	1	1	•	•	•	•	1	1
43	10342-E13	ELECTRODE	2	2	2	2	2	2	2	2	2	2
44	10342-42	ELECTRONIC IGNITOR - DOUBLE	1	1	•	•	1	1	•	•	•	•
	10342-43	ELECTRONIC IGNITOR - TRIPLE	•	•	•	•	•	•	1	1	•	•
	10342-44	ELECTRONIC IGNITOR - QUAD	•	•	1	1	•	•	•	•	1	1
44A	25070-92	IGNITOR WIRE HARNESS	1	1	1	1	1	1	1	1	1	1
44B	25070-93	IGNITOR BUTTON	1 1 1 1 1 1 1 1 1
47	21035-991	GREASE RAIL	2	2	2	2	2	2	2	2	2	2
48	22009-901	GREASE PAN	1	1	1	1	1	1	1	1	1	1
49	27055-901	GREASE TRAY	1	1	1	1	1	1	1	1	1	1
51	22209-904	FLAV-R-WAVE ®	4	4	4	4	4	4	4	4	4	4
52	86101-631	SIDE PANEL - CRESENT LEFT	1	1	1	1	1	1	1	1	1	1
53	86101-611	SIDE PANEL - CRESENT RIGHT	1	1	1	1	1	1	1	1	1	1

PARTS LIST / LISTE DES PIECES

KEY #	ITEM #	DESCRIPTION	9562-52	9562-53	9562-82	9562-83	9563-12	9563-13	9563-22	9563-23	9563-42	9563-43
54 86305-611 LID - OUTER PANEL 1 1 1 1 ·····
	86305-614 LID - OUTER PANEL ····· 1 1 1 1 1
55 86205-61 LID - INNER PANEL 1 1 1 1 1 1 1 1
56	24005-12A	HANDLE	1	1	1	1	1	1	1	1	1	1
58	54009-936	HANDLE - BEZEL	2	2	2	2	2	2	2	2	2	2
59	10081-BK630	NAMEPLATE	1	1	1	1	1	1	1	1	1	1
60	10571-6	HEAT INDICATOR	1	1	1	1	1	1	1	1	1	1
65	20005-000	MATCH LIGHT - STICK	1	1	1	1	1	1	1	1	1	1
68	22275-111A	DOOR	1	1	1	1	•	•	•	•	•	•
	22275-114A	DOOR	•	•	•	•	1	1	1	1	1	1
69	22275-131A	DOOR	1	1	1	1 ·····
	22275-134A	DOOR	•	•	•	•	1	1	1	1	1	1
70	21071-13	HANDLE	2	2	2	2	2	2	2	2	2	2
71	21070-13	HANDLE - BEZEL	4	4	4	4	4	4	4	4	4	4
78	21335-111	BRACKET - DOOR CATCH	1	1	1	1	1	1	1	1	1	1
80	21109-905R	SIDE PANEL	2	2	2	2	2	2	2	2	2	2
88	21305-925R	PANEL - REAR	1	1	1	1	1	1	1	1	1	1
90	21795-935	BASE	1	1	1	1	1	1	1	1	1	1
100	21039-911	BRACKET - CASTOR SUPPORT	2	2	2	2	2	2	2	2	2	2
101	21039-301	LOWER TANK SUPPORT	1	1	1	1	1	1	1	1	1	1
102	10892-23	CASTOR	2	2	2	2	2	2	2	2	2	2
102A	10892-285	CASTOR	2	2	2	2	2	2	2	2	2	2
110	23030-631	SHELF BRACKET	2	2	2	2	2	2	2	2	2	2
111	23030-611	SHELF BRACKET	2	2	2	2	2	2	2	2	2	2
114	23101-614	SHELF	1	1	1	1	1	1	1	1	1	1
115	23100-654	SHELF - SB	•	•	1	1	•	•	1	1	1	1
	23101-614	SHELF	1	1	•	•	1	1	•	•	•	•
116	23401-631	SHELF FRONT	1	1	1	1	1	1	1	1	1	1
116A	23401-611	SHELF FRONT	1	1	1	1	1	1	1	1	1	1
117	23009-608	HANDLE	2	2	2	2	2	2	2	2	2	2
123	Y-12117	SIDE BURNER LID STOP	•	•	2	2	•	•	2	2	2	2
124	23000-271 SHELF-SIDE BURNER		••	1 1 ••		1 1 1 1
125	23000-254	COVER-SIDE BURNER	•	•	1	1	•	•	1	1	1	1
126	10390-R81A	SIDE BURNER	•	•	•	1	•	•	•	1	•	1
	10390-R81D	SIDE BURNER	•	•	1	•	•	•	1	•	1	•
128	23009-98	GRID	•	•	1	1	•	•	1	1	1	1
130	27905-354E	REAR BURNER	•	•	1	1	•	•	•	•	1	1
131	10693-099	REAR BURNER ORIFICE	•	•	1	1	•	•	•	•	1	1
133	S15271	ROTISSERIE HANDLE	•	•	1	1	•	•	•	•	1	1
134	S15270	ROTISSERIE COUNTER BALANCE	•	•	1	1	•	•	•	•	1	1
135	S15299	ROTISSERIE WASHER	•	•	1	1	•	•	•	•	1	1
136	S15263	ROTISSERIE BUSHING	•	•	1	1	•	•••		1 1
137	S15256	ROTISSERIE SPIT ROD	•	•	1	1	•	•	•	•	1	1
138	S15287	ROTISSERIE FORK	•	•	2	2	•	•	•	•	2	2
139	57039-901	ROTISSERIE BRACKET	•	•	1	1	•	•	•	•	1	1
140	S21125	SCREW #8 X 1/2	22	22	22	22	22	22	22	22	22	22
141	Y-12860	SCREW	2	2	2	2	2	2	2	2	2	2
143	Y-12855	BOLT 1/4-20 X 3/8	24	24	24	24	24	24	24	24	24	24
144	Y-12220	BUSHING	•	•	1	1	•	•	1	1	1	1

PARTS LIST / LISTE DES PIECES

KEY #	ITEM #	DESCRIPTION	9562-52	9562-53	9562-82	9562-83	9563-12	9563-13	9563-22	9563-23	9563-42	9563-43
145 S21235 HINGE PIN 2 2 2 2 2 2 2 2 2
146 S21233 HITCH PIN CLIP 2 2 2 2 2 2 2 2 2
147 Y-11231 LID BUMPER 6 6 6 6 6 6 6 6 6
148	10240-20	DOOR PIN	2	2	2	2	2	2	2	2	2	2
149	10240-19	DOOR PIN	2	2	2	2	2	2	2	2	2	2
150	Y-12124	DOOR PIN CAP	2	2	2	2	2	2	2	2	2	2
151	Y-12857	WASHER	4	4	4	4	4	4	4	4	4	4
152	Y-12222	MAGNET	2	2	2	2	2	2	2	2	2	2
153	Y-12223	SNAP IN MAGNET	2	2	2	2	2	2	2	2	2	2
154	Y-11560	SCREW 1/4-20 X 1-1/2	8	8	8	8	8	8	8	8	8	8
155 S21124 SCREW #8 X 1/2		30		30	32	32	30	30	31	31	32	32
156	Y-11793	NUT 1/4-20	24	24	24	24	24	24	24	24	24	24
157	Y-12835	SCREW #6-32 X 1/4	•	•	2	2	•	•	2	2	2	2
158	Y-12646	SCREW - SHOULDER #8 X 1/2	•	•	2	2	•	•	2	2	2	2
160	Y-29304	BOLT #10-24 X 3/8	37	37	37	37	37	37	37	37	37	37
161	Y-29310	SCREW	4	4	4	4	4	4	4	4	4	4
163	S35094	SCREW #10-24 X 5/8	7	7	7	7	7	7	7	7	7	7
165	Y-12127	DOOR CLIP	2	2	2	2	2	2	2	2	2	2
166	Y-11981	BOLT	12	12	12	12	12	12	12	12	12	12
167 Y-11987 BOLT 1/4-20 X 1 4 4 4 4 4 4 4 4 4
169	S21061	WING NUT	•	•	2	2	•	•	•	•	2 2
171	S15242	ROTISSERIE MOTOR	•	•	1	1	•	•	•	•	1	1
173	S21362	SPRING	•	•	1	1	•	•	•	•	1	1
180	S35095	BOLT	•	•	2	2	•	•	•	•	2	2
181	25030-73	LIGHT SWITCH WIRE HARNESS	1	1	1	1	1	1	1	1	1	1
181A	25070-95	LIGHT SWITCH	1	1	1	1	1	1	1	1	1	1
184	25080-80	BATTERY PACK	1	1	1	1	1	1	1	1	1	1
186	Y-12865	SCREW 1/4-20 X 1/2	32	32	32	32	32	32	32	32	32	32
190	25020-82	LED WIRE HARNESS	1	1	1	1	1	1	1	1	1	1
191	25020-84	LED WIRE HARNESS	1	1	1	1	1	1	1	1	1	1
