BRUGSANVISNING FD-300NP-STAR Brickcom

2 Megapixel Professional Low- Lux Indoor Dome

FD-200Np V6

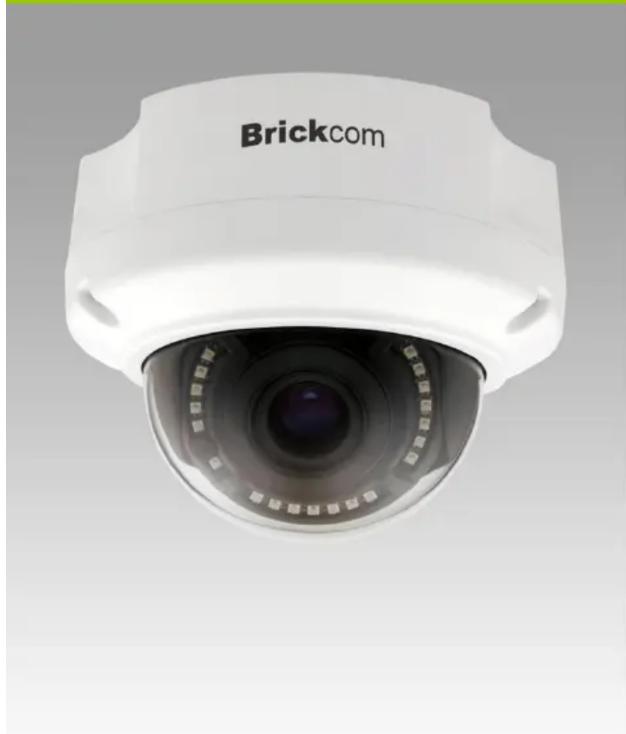

Front view of a white Brickcom security camera with lens and control buttons (no visible text or symbols on the device itself)

Photo Indication & Dimension Diagram

3D mechanical component diagram showing a camera lens assembly with highlighted parts (no text or symbols)

H.264 High profile • 1080p @ 30fps

• Sony Exmor 2-Megapixel Fixed Dome Camera
• SmartFocus ^ Upgrade to Focus Rapidly and Remotely
• HDTV Video Quality (Full HD 1080p @ 30fps)
• Brickcom WDR Enhancement® Technology
• H.264, MPEG-4, and MJPEG Triple-Codec Compression
• i-Mode for Different Environments
• Removable IR-Cut Filter & Auto Light Sensor for Day and Night Function
• Smart IR to Get a Better Illuminated Image
• 1 DI/DO for External Alarm and Sensor Devices
• TV out Connector Supported
  ■ P-Iris
• 3-Axis Design
• Two-Way Audio
• Built-in Micro SD / SDHC / SDXC Memory Card Slot for Local Storage

OnVIF

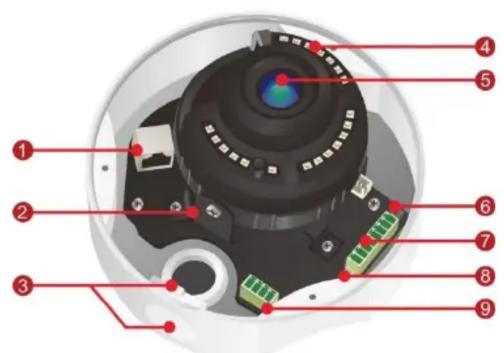

1 RJ45 Connector
(For Ethernet and 802.3 af PoE Plus)
② Tilt Screw
3 Conduit Plug and Hole
4 LEDs
5 Lens
6 Reset Button

7 Terminal Block (For Audio in/out, DIDO)
8 TV Out Connector
9 Terminal Block (For DC12V / AC24V)
10 Micro SD Card Slot

Camera

Models	FD-200Np V6
Hardware System	Flash: 32MBRAM: 256MB DDR
Image Sensor	Sensor Type : 1/2.8" Sony Exmor CMOS Sensor Sensor Resolution : 2M (1920 x 1080)
Lens	Lens Type: Board/Motorized/vari-foca LensIRIS: F1.4Focal Length: f=2.8~12mmView Angle: (H°/V°/D°)(H )96°~35° /(V )52°~20° /(D) 106°~40°
Local Storage	Built-in Micro SD/SDHC/SDXC Max.64G Memory Card Slot
Day & Night ICR	Triggered by Light sensor, Scheduling,Digital Input
Minimum Illumination	0 Lux(IR On, B/W)0.001 Lux(F1.4,B/W)0.002 Lux(F1.4,Color)
IR Illuminators	Built –In IR Illuminators,60m (Visible distance)25m (Detail distance)IR LED: 20pcs
Video
Compression Streaming	H.264 / MPEG4 / MJPEGSimultaneous multiple streams
Video Setting	i-Mode Image Management:Smart Auto/ Indoor/ Outdoor/ Car Plate/ Sport/Schedule/ Digital Input/ Elevator/ Reserved SceneAuto Exposure Control/Gain/ White Balance ControlManual Exposure Control: 1/32000 s ~ 1 sManual Gain Control: 1 ~ 48
Image Resolution	2M (1920 x 1080) • (30fps)
WDR	60dB

Events and Alarm Management

Events	Motion Detection/ Schedule/ Audio Detection/ Digital Input/ Temperature Alarm/ Auto IR Focus for Day & Night
Alarm	Stream/Snapshot to FTP/Email/Samba/SD-Card HTTP/Email Notification/ Digital Output

Audio

Audio Streaming	2-way Audio Support
Audio Compression	G.711/AMR
Audio Input/ Output	Line input (Unbalanced, 1.4 Vp-p, 1 Vrms) / Line output

General

Communication	Ethernet: one 10/100Mbps RJ-45Supported Protocols: TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP, RTCP, IPv6
Power Input	DC12V 1A / 802.3af PoEAC24V
Temperature/Environment	Operating Temperature:-40°C ~ 50°C (-40°F ~ 122°F)Start-up Temperature:-20°C ~ 50°C (-4°F ~122°F)Operating Humidity: 10% ~ 90%
Max. Power Consumption	DC12V 1A8 WattsAC 24V10.5 Watts802.3 af POE12.5 Watts

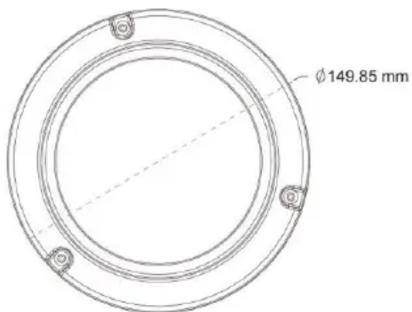

Dimension	149.85 (D) mm X 118.07(H) mm
Weight	510g/1.13lb
Certification	FCC/CE
Viewing System Requirements	OS: Microsoft Windows 8/7/Vista/XP/2000Browser: Mozilla Firefox, Internet Explorer 6/7 or above, Safari, Google ChromeCell Phone: 3GPP playerReal Player: 10.5 or aboveQuick Time: 6.6 or aboveVLC
Warranty	Limited 36 months warranty

Camera Accessories Options

L-WM-01
Camera Bracket

POE30U V2
High Power PoE Injector

PS-588I-v2
8-port 10/100M PoE Fast Ethernet Switch

PS-7242IL-AT
24-port 10/100M High Power PoE+
Web Smart Ethernet Switch
