BRUGSANVISNING CG-1 Kata

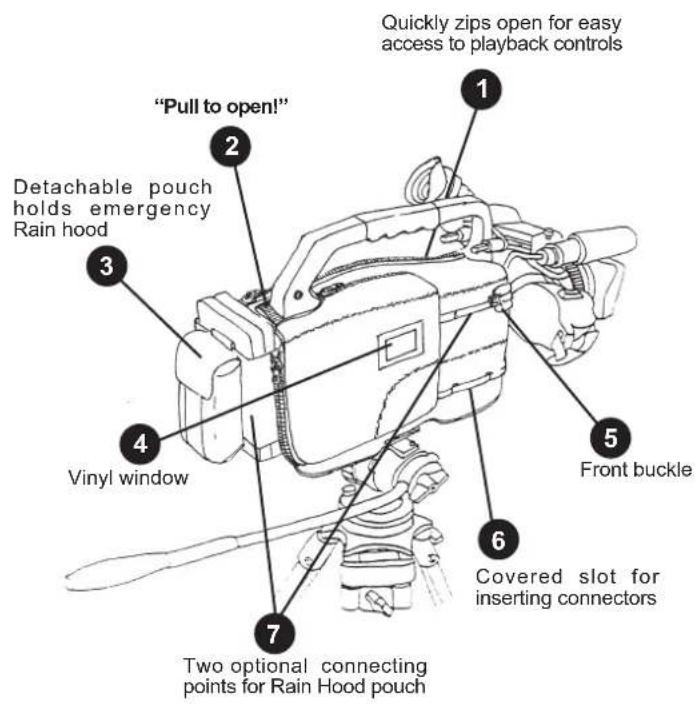

"Pull to open!" 2 Detachable pouch holds emergency Rain hood 3 4 Vinyl window 5 Front buckle 6 Covered slot for inserting connectors 7 Two optional connecting points for Rain Hood pouch 1 Quickly zips open for easy access to playback controls

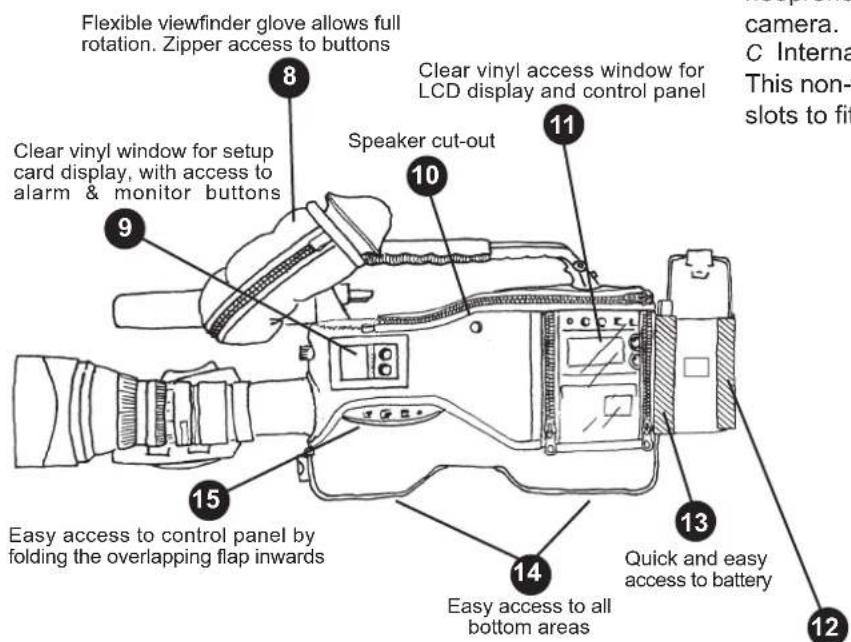

Flexible viewfinder glove allows full rotation. Zipper access to buttons Clear vinyl window for setup card display, with access to alarm & monitor buttons 8 9 10 Speaker cut-out 11 Clear vinyl access window for LCD display and control panel 12 13 Quick and easy access to battery 14 Easy access to all bottom areas 15 Easy access to control panel by folding the overlapping flap inwards

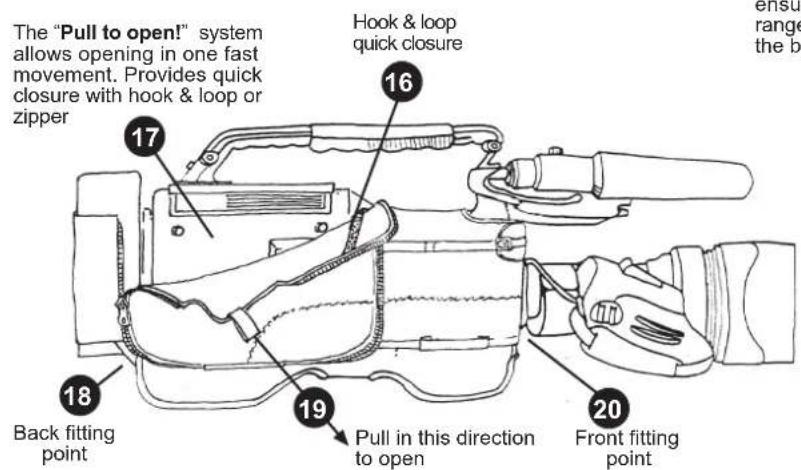

The "Pull to open!" system allows opening in one fast movement. Provides quick closure with hook & loop or zipper 17 Hook & loop quick closure 16 18 Back fitting point 19 Pull in this direction to open 20 Front fitting point

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.DS011206.

CAMERA GLOVE

INCLUDES RAIN HOOD AND FLEXIBLE VF COVER

KT/VA-601-1 CG-1

for SONY BVW-200/300/400/D600 camcorders and IKEGAMI HL-V55

KATA's new camera glove is custom fitted to your camera so that it "fits like a glove":

• Protection against cold, dirt, bumps and scratches
- Attractive design
- Improved product engineering: overlapping closure design
- Accommodates batteries in several sizes
- Designed not to interfere with camera operation
- "Pull to open!" system
- Advanced materials:

The gloves are made of a specially engineered lamination:

A External layer of nylon elastic knit, which enables ventilation and is not abrasive to your skin.
B Middle layer of shock resistant advanced closed cell neoprene perforated foam, prevents overheating of your camera.
C Internal knit layer protects the camera body.

This non-fray lamination enables you to cut open additional slots to fit your exact working configuration.

Kata CG-1 - for SONY BVW-200/300/400/D600 camcorders and IKEGAMI HL-V55 - 1

MATERIALS

  • Neoprene foam laminated between two layers of elastic cloth
  • Clear PU UV protected windows
    • Nylon hook & loop material
  • Silent action YKK® zippers
  • Fastex-ITW® nylon or acetal buckles

Hook & loop adjustment ensures a snug fit on a wide range of batteries and protects the battery as well

SPARE PARTS (If lost or damaged)

• VA-601-1-RH Rain Hood with pouch
• VA-601-1-VF Flexible Viewfinder Cover

Development & production by KATA Ltd.

POB 45078 Jerusalem, Israel 91450

Tel: +972-2-5911000

Fax: +972-2-5400504

www.kata-bags.com

Info: technical@kata-bags.com

Sales: video@kata-bags.com

Kata CG-1 - SPARE PARTS (If lost or damaged) - 1
KATA. A SIMPLE CASE OF BETTER DESIGN.

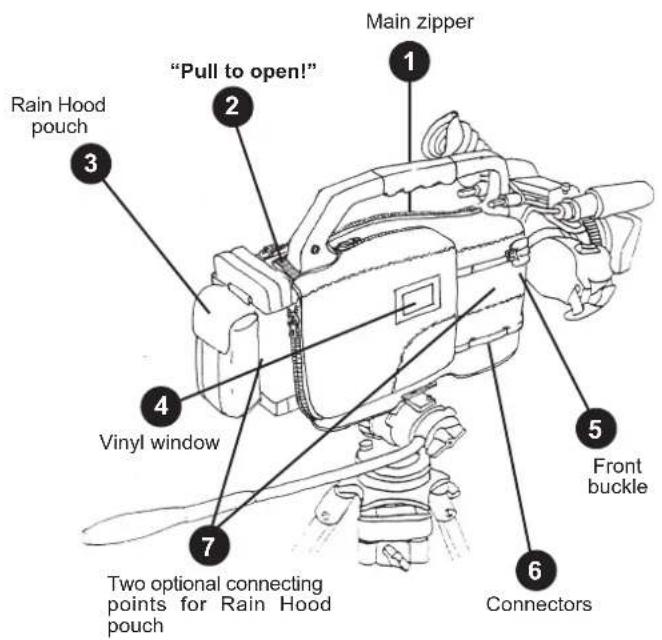

Main zipper "Pull to open!" 1 2 3 Rain Hood pouch 4 Vinyl window 5 Front buckle 6 Connectors 7 Two optional connecting points for Rain Hood pouch

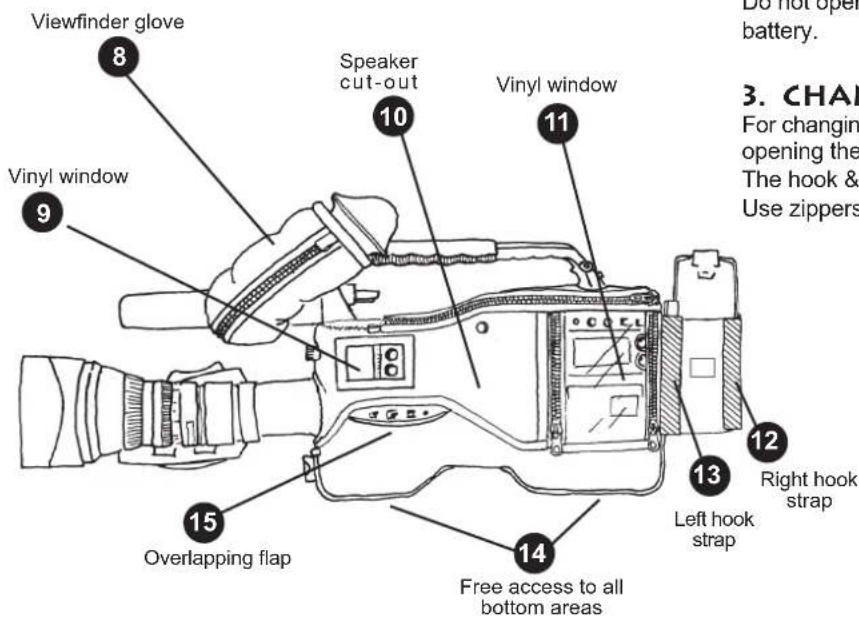

Viewfinder glove 8 Vinyl window 9 Speaker cut-out 10 Vinyl window 11 12 3. CHAN For changing opening the The hook & Use zippers 13 Right hook strap Left hook strap 14 Free access to all bottom areas 15 Overlapping flap

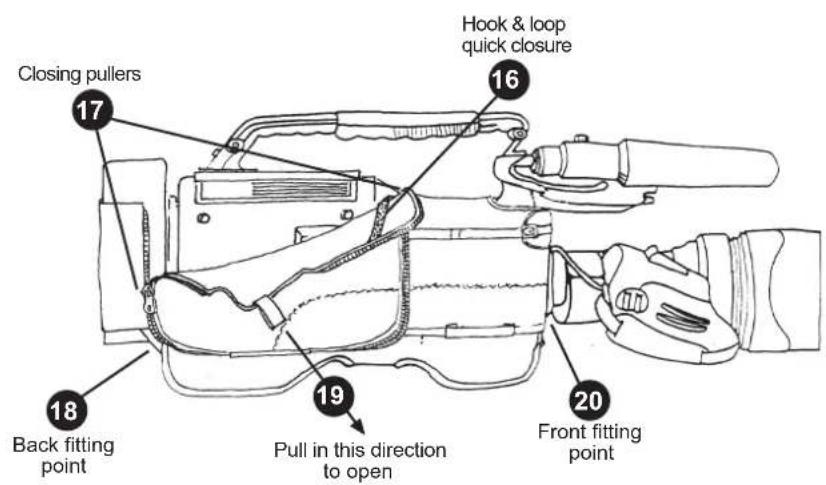

Closing pullers 17 Hook & loop quick closure 16 18 Back fitting point 19 Pull in this direction to open 20 Front fitting point

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.DS011206.

CAMERA GLOVE

INCLUDES RAIN HOOD AND FLEXIBLE VF COVER

KT/VA-601-1

CG-1

for SONY BVW-200/300/400/D600 camcorders and IKEGAMI HL-V55

GENERAL INSTRUCTIONS

1. Dressing the camera

Open the main zipper (No.1) and buckle (No.5).

Put the camera in the glove.

Stretch the bottom part to fit around points (No.18) and (No.20) (Important!)

Pull up and close zipper (No.1).

Close buckle (No.5).

2. Adjustment to battery

First close left hook strap, (No.13) then adjust back part to your battery with right hook strap (No.12)

Use the left hook strap for changing battery (No.13)

Note:

Do not open right hook strap (No.12) each time you change the battery.

3. CHANGING TAPE - "Pull to open!" system.

For changing tape pull strap (No.2) in a diagonal direction (No.19), opening the whole zipper in one movement.

The hook & loop (No.16) enables quick temporary closing.

Use zippers (No.17) for tight closing.

  1. Setup card - For access to setup card slot open buckle (No.5).

  2. Control panel - For access to control panel fold flap inwards (No.15).

6. VIEW FINDER GLOVE

Open buckle and zipper and pull over VF. If necessary, cut out a window to expose the Tally light.

7. RAIN HOOD

Emergency Rain Hood (No.21) in pouch (No.3). The Rain Hood pouch has two optional connecting points: back and front (No.7)

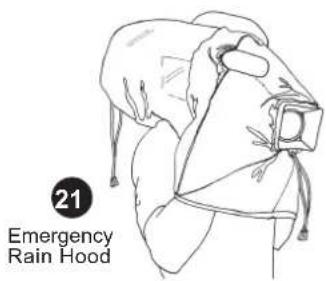

Emergency Rain Hood 21

Development & production by KATA Ltd.

POB 45078 Jerusalem, Israel 91450

Tel: +972-2-5911000

Fax: +972-2-5400504

www.kata-bags.com

Info: technical@kata-bags.com

Sales: video@kata-bags.com

Kata CG-1 - RAIN HOOD - 2
KATA. A SIMPLE CASE OF BETTER DESIGN.
