enOperatingandinstallationinstructions

enTableofContents

Congratulations 3

Safety and warning information 3

Information concerning disposal 4

Installation instructions 4

Installing and connecting the appliance 5

Appliances and installation dimensions 6

Door opening angle 6

Removing appliance doors and handles 7

Getting to know your appliance 8

Control and display panel 9

Switching on the appliance 10

Selecting the temperature 10

Warning signal 10

Super cooling 10

Super freezing 11

Selecting the temperature unit 11

Refrigerator compartment 11

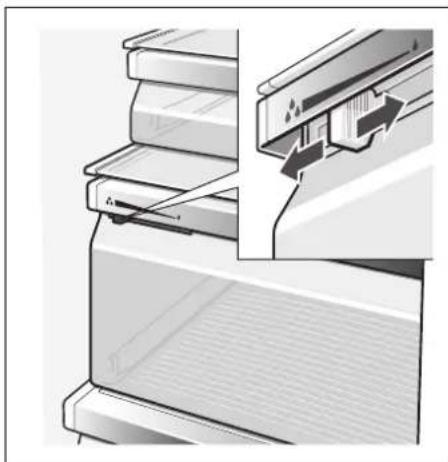

Vegetable compartment with humidity filter 11

Usable capacity 11

Variable interior design 12

Freezer compartment 12

Features of the freezer compartment 12

Freezing food 12

Purchasing and storing deep-frozen food 13

Thawing frozen food 13

Ice and water dispenser 13

Switching the ice and water dispenser off 14

Water filter 14

Specification and performance data sheet 15

Tips for saving energy 16

Operating noises 16

Defrosting 16

Switching off and disconnecting the appliance 16

Cleaning 16

Light 17

Eliminating minor faults yourself 18

Appliance self-test 19

Customer service 19

Congratulations

With the purchase of your new fridge-freezery you have opted for a modern, high-quality domestic appliance.

Yourfridge-freezerisdistinguished by itseconomicalenergyconsumption.

Each appliance which leaves our factory is inspected thoroughly to ensure that it functions properly and is imperfect condition.

If you have any questions—particularly concerning installation and connection of the appliance—pleased on that hesitateto contact your customer service.

Furtherinformationandaselection of ourproductscanbefoundon our homepage.

Safetyandwarning information

BeforeyouswitchON the appliance

Pleasereadtheoperatingand installationinstructionscarefully. They containimportantinformation on howtoinstall,useandmaintain the appliance. Keepalldocumentationforsubsequent useorforthenextowner.

Technicalsafety

Warning

- This appliance contains a small quantity of environmentally-friendly but flammable R600 are refrigerant. Ensure that the tubing of the refrigerant circuit is not damaged during transportation and installation. Leaking refrigerant may cause eye injuries or ignite.

Ifdamagehasoccurred

-Keepnakedflamesand/orignition sourcesawayfromtheappliance.
-Switchofftheapplianceandpull outthemainsplug.
-Thoroughlyventilatetheroom for severalminutes.
-Notifycustomerservice.

Themorerefrigerantanappliance contains, the largertheroom must be. Leakingrefrigerantcan form a flammablegas-airmixtureinrooms which are too small.

Theroommustbeatleast1 m ^3 per 8 gofrerigerant. The amount of refrigerantinyourappliance is indicatedontheratingplate inside the appliance.

• Onlycustomerservicemaychange thepowercordandcarryoutany otherrepairs.Improperinstallations andrepairsmayputtheuserat considerablerisk.
• Onlyoriginalpartssuppliedbythe manufacturermaybeused. The manufacturerguaranteesthat onlythesepartssatisfythesafety requirements.

Importantinformation whenusingtheappliance

• Neveruseelectricalappliancesinside theappliance(e. g. heaters,electric icemakers,etc.).Riskofexplosion!
• Neveruseasteamcleanertodefrost orcleantheappliance!Steam may comeintocontactwithelectrical componentsandcause a short-circuitoranelectricshock.
• Donotstoreproductswhichcontain flammablepropellants(e. g. spray cans)orexplosivesubstancesinthe appliance.Riskofexplosion!
• Donotstandorsupportyourself on thebase,drawersordoors,etc.
• Tocleantheappliance, pullout the mainsplugorswitchoffthefuse! Do notpulloutthemainsplugby tuggingthecable.
• Bottleswhichcontainahigh percentageofalcoholmustbesealed andstoredinanuprightposition.
• Keepplasticpartsandthedoorseal freeofoilandgrease. Otherwise, partsanddoorsealwillbecome porous.
• Nevercoverorblocktheventilation openingsfortheappliance.
• Peoplewhohavelimitedphysical, sensoryormentalabilitiesor inadequateknowledgemustnot use thisapplianceunlesstheyare supervisedorgivenmeticulous instructions.
• Donotstorebottledorcanneddrinks (especiallycarbonateddrinks) in the freezer compartment. Bottles and cansmayexplode!
• Donotputanicelollyoricecube directlyfromthefreezercompartment intoyourmouth. Riskofburnsfrom verylowtemperatures!
• Nevertouchfrozenfoodwithwet hands.Yourhandscouldfreeze to thefood.Riskofinjury!

en

Childreninthehousehold

• Donotallowchildrentoplaywiththe appliance!
• If the appliance features a lock, keep the key out of there each of children.

Generalregulations

Theapplianceissuitable

• forrefrigeratingfood,
• forfreezingfood,
• formakingice,
  • fordispensingdrinkingwater.

The appliance is suppressed according to EUDirective 2004/108/EC.

Therefrigerationcircuithasbeen checkedforleaks.

Thisproductcomplieswiththerelevant safetyregulationsforelectricalappliances(EN 60335/2/24).

Information concerningdisposal

Disposalofpackaging

Thepackagingprotectsyourappliance fromdamageduringtransit.Allutilised materialsareenvironmentallysafe and recyclable.Pleasehelpusbydisposing ofthepackaginginanenvironmentally friendlymanner.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warning

Keepchildrenawayfrompackaging anditsparts.Dangerofsuffocation fromcollapsibleboxesandfoil!

Oldappliancesarenotworthless rubbish!Valuablerawmaterialscanbe reclaimedbyrecyclingoldappliances.

This appliance has been identified in accordance with the European directive 2002/96/EGonWaste Electrical and Electronic Equipment-WEEE. The directives specifiesthe framework for an EU-wide valid return and recycling of fold appliances.

Warning

Redundantappliances

1. Pulloutthemainsplug.
2. Cutoff the power cord and discard with themains plug.

Refrigeratorscontainrefrigerants and theinsulationcontainsgases. Refrigerantandgasesmustbe disposedofprofessionally.Ensurethat tubingoftherefrigerantcircuitisnot damagedpriortoproperdisposal.

Installation instructions

Transporting

The appliances are heavy and must be secured during transportation and installation.

Becauseoftheweight/dimensions of the appliance and tominimisetherisk of injuries and damage to the appliance at least two persons are necessary to set-up the appliances securely.

Installationlocation

Installtheapplianceinadry,well ventilatedroom.Theinstallation locationshouldneitherbeexposedto directsunlightnornearaheatsource, e.g.acooker,radiator,etc. If installationnexttoaheatsources is unavoidable,useasuitableinsulating plateorobservethefollowingminimum distanceoahatsource:

-3 cmtoelectricorgascookers.

-30 cmtoanoilorsolid-fuelcooker.

Ifinstallingtheappliancenexttoan-otherrefrigeratororfreezer,theremust beaminimumgapof25 mmbetween theappliancesinorderto preventcondensation.

Ifapanelorcupboardisinstalledabove the appliance,ensurethatagapof 30 mmisleftsothattheappliancecan bepulledoutoftherecessifrequired.

The airheated on there are side of the appliancemust be allowed to escape unhindered.

Subsurface

Attention!

The appliance is very heavy. Referto the following appliance weighttable (emptyweight):

Modelwithdispenser143 kg

Theflooroftheinstallationlocation mustnotgiveway;ifrequired,reinforce floor.

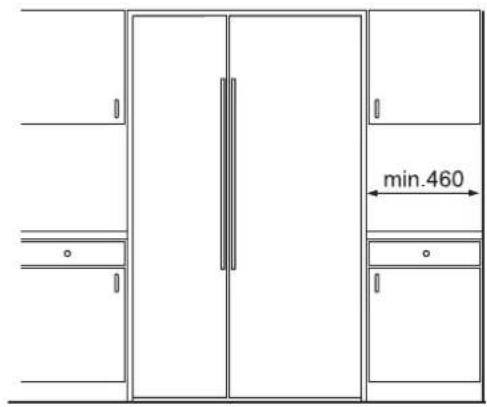

Toensure that the doors can open all the way, observelateral minimum distances when installing the appliance in acorneror recess (see chapter "Appliance and installation dimensions").

Ifthedepthoftheadjacentkitchen equipmentismorethan 60cm, observelateralminimumdistancesin ordertoutilisethefulldooropening angle(seechapter“Dooropening angle”).

Observeambient temperature and ventilation

Ambienttemperature

The climatic class can be found on the rating plate. It state the room temperature within which the appliance can be operated. Therating plate is located in there refrigerator compartment at the bottom right side.

Climaticclass	Permittedambient temperature
SN+10 °Cto32 °C
N+16 °Cto32 °C
ST+16 °Cto38 °C
T	+16 °Cto43 °C

Ventilation

Nevercovertheventilationopenings on therearoftheappliance.

Otherwisetherefrigeratingunitmust workharder,increasingthepower consumption.

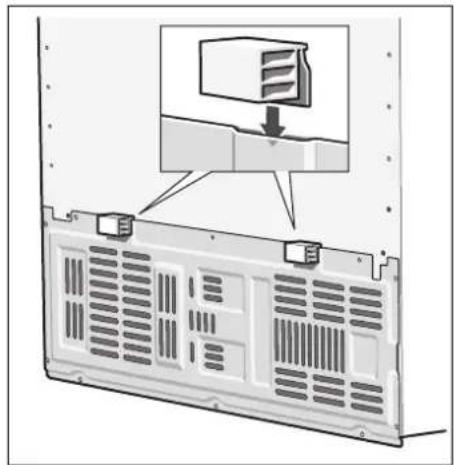

Placetheenclosedspacersinthe designatedholdersonthebackofthe appliance. Thisensuresthatthereis a minimumdistancebetween the applianceandthewall.

Laptop front panel showing ventilation grilles and a monitor with a close-up of the screen (no text or symbols visible)

Installing and connecting the appliance

• Haveatechnicianinstallandconnect theapplianceaccordingtothe enclosedinstallationinstructions.
• Afterinstallingtheappliance,waitat least1 houruntiltheappliancestarts up.Duringtransportationtheoilinthe compressormayhaveflowedintothe refrigerationsystem.
• Beforeswitchingontheappliancefor thefirsttime,cleantheinteriorofthe appliance(see chapter"Cleaning").
  • Alwaysconnectthewaterbefore the power.
• Apartfromstatutorynational regulations,youshouldsticktothe connectiontermsrelatingtothelocal electricityandwatercompanies.
• Donotremovethetransportation protectiondevicesfromtheshelves and storage compartmentsuntilthe appliancehasbeeninstalled.

Waterconnection

Thewatermaybeconnectedonly by a competentfitteraccordingtothe localregulationsoftheappropriate watersupplycompany.

Connecttheappliancetoadrinking waterline:

- Minimumpressure: 0.2 MPa(2 bar)

- Maximum pressure: upto0.8MPa (8 bar)

Tasteandodourofthewatermaybe improvedbyinstallingtheenclosed waterfilter. In this case observethe different connection conditions (see chapter "Waterfilter").

Note

Themaximumoutsidediameter of the watermains(withoutconnecting pieces)is 10 mm.

Electricalconnection

Donotuseextensioncablesor distributors. This appliancemustbe connectedtoapermanentlyinstalled socket.

The plugtosecuretheappliance must befreelyaccessible. Connect the applianceto a 220–240 V/50 Hzaccurrentvia a plugwhichhasbeenproperly installed. Thesocketmustbefused witha10 to16Afuseorhigher.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your main supply. The rating plate is situated in the bottom right-hand side of the appliance. Themains connectionable may be replaced by an electrician only.

⚠ Warning!

Neverconnecttheapplianceto electronicenergysaverplugs (e. g. Ecoboy:SavaPlug)ortopower inverterswhichconvertthedirect currentto230Valternatingcurrent (e. g.solarequipment,powersupplies onships).

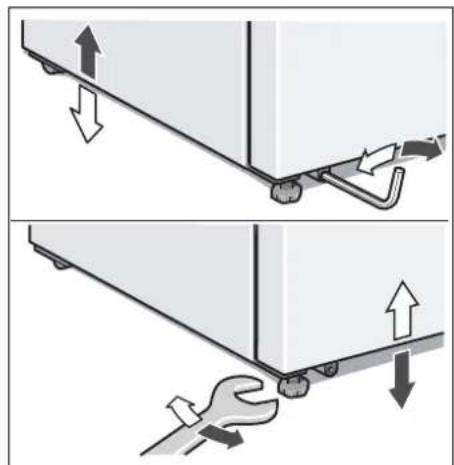

Aligningtheappliance

Toensure that the appliance functions correctly, it must be set level with a spirit level.

If the appliance is not level, water may flow out of the i cemaker, ice cubes maybe irregular or the doors may not close properly.

• Placetheapplianceinthedesignated location.
• Alignfrontfeetwithahexagon wrench.
• AlignfrontfeetwithanAllenkey.

Appliancesandinstallationdimensions

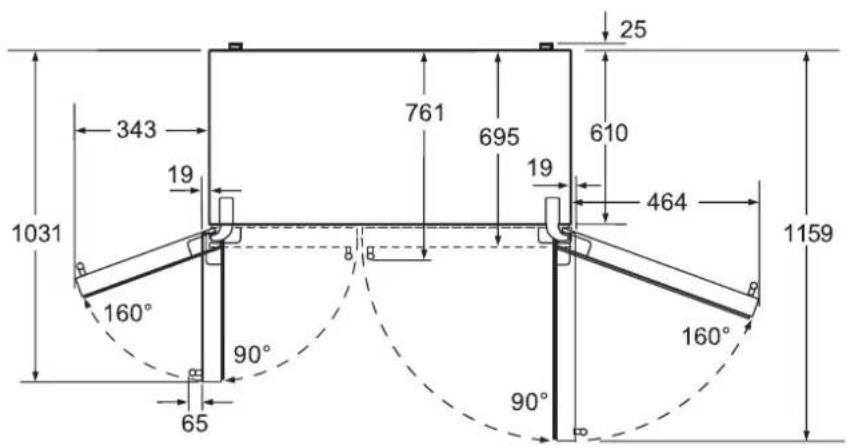

Dooropeningangle

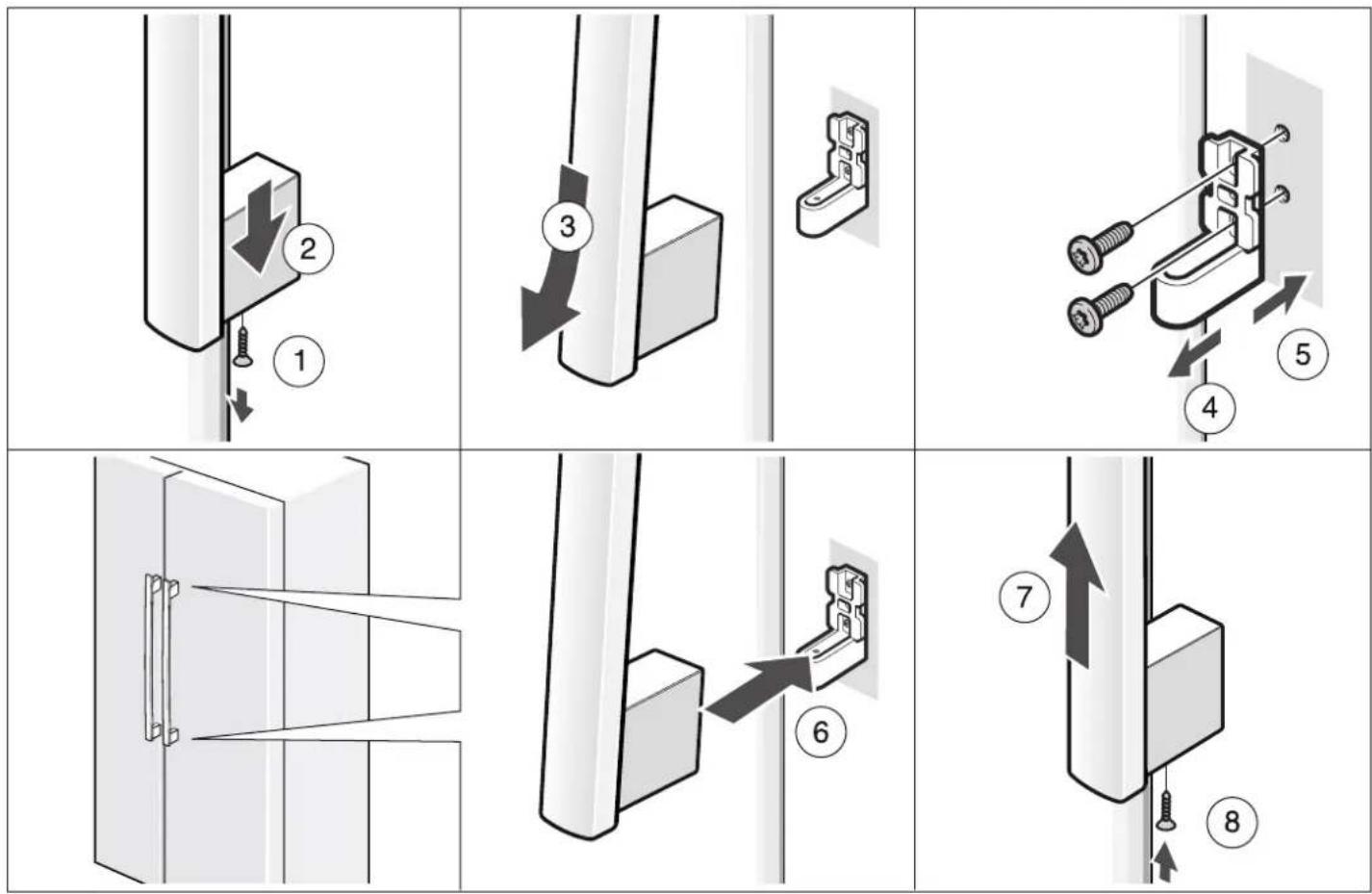

Removingappliancedoorsandhandles

If the appliance will not fit through the housed door, the appliance doors and handles can be unscrewed.

Attention!

If the appliance door shavetobe unscrewed, only customers service may do this.

Gettingtoknowyourappliance

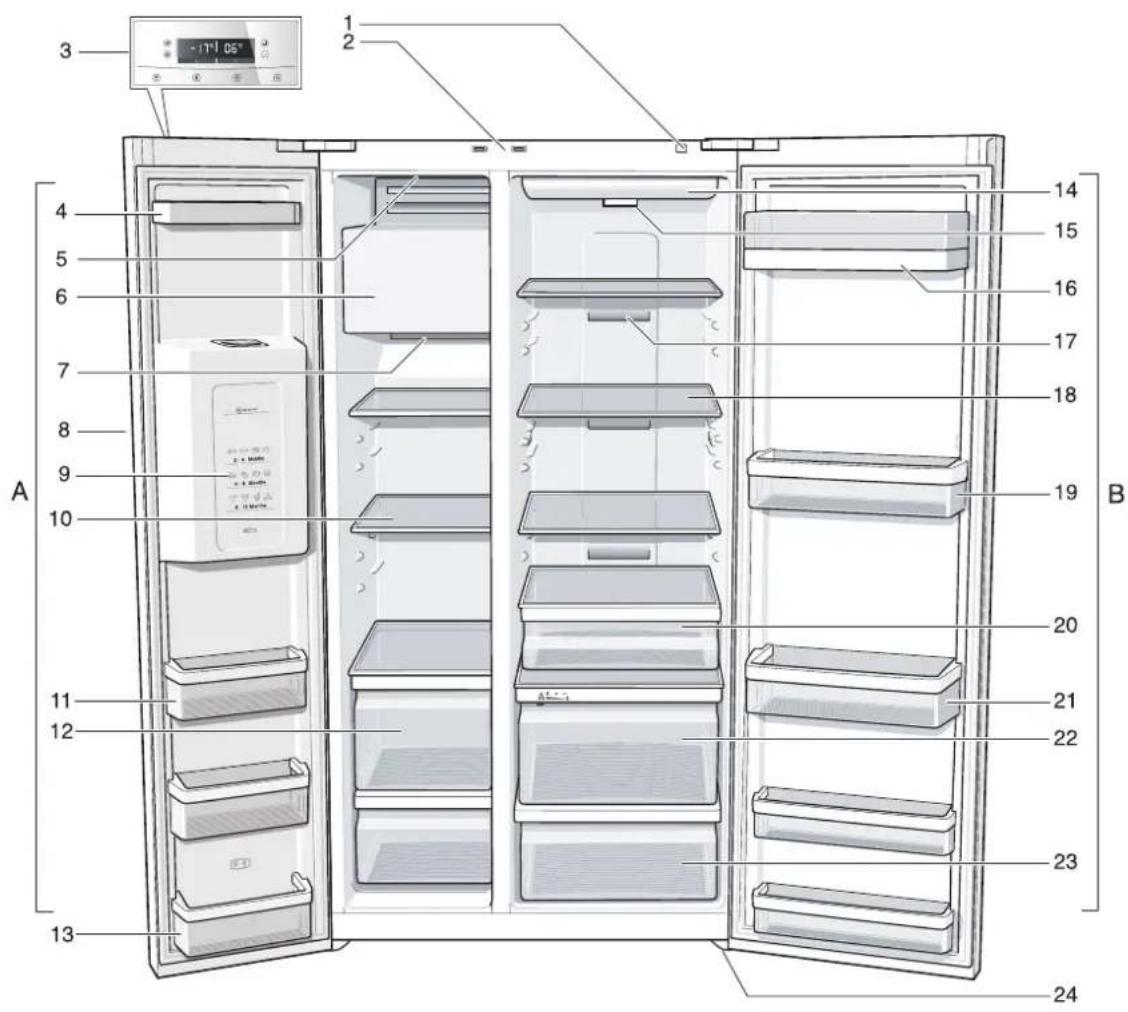

Theseoperatinginstructionsrefertoseveralmodels.Thediagramsmaydiffer.

AFreezercompartment

canbeselectedfrom-14°C to -24°C

BRefrigeratorcompartment

canbeselectedfrom+2°Cto+8°C

1On/Offbutton

2Lightswitchforrefrigerator and freezercompartments

3Controlanddisplaypanel

4Doorstoragecompartment

5On/Offswitchicemaker

6lcemaker/Icecubecontainer

7Airoutletopenings

8Iceandwaterdispenser

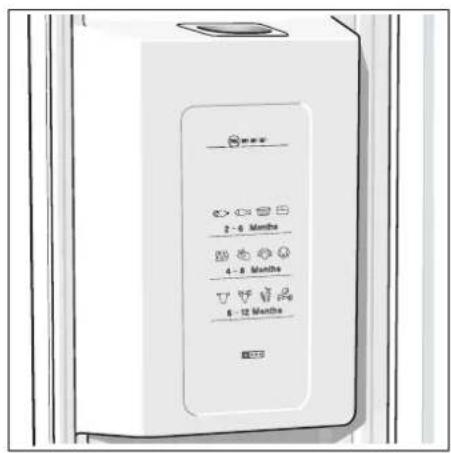

9Frozen-foodcalendar

10Glassshelvesinfreezer compartment

11 Doorstoragecompartment

12Freezerdrawer

13 Doorstoragecompartment (2-star compartment) forshort-termstorageoffood and icecream.

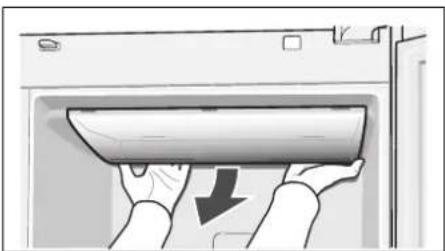

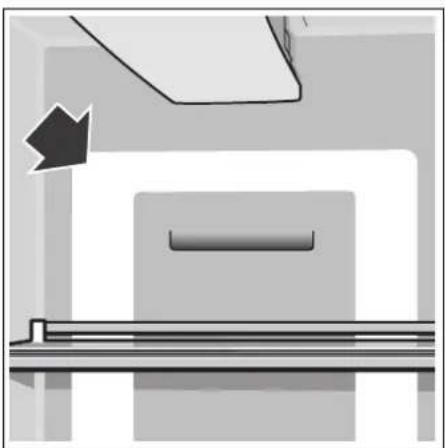

14Light, refrigeratorcompartment

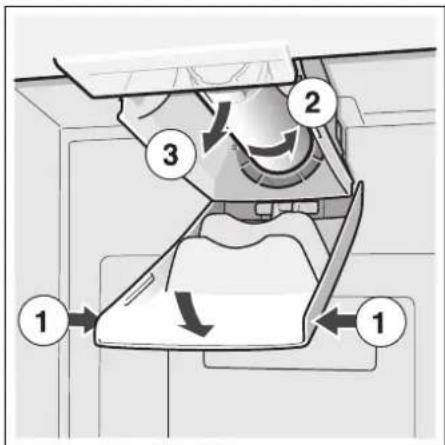

15Particlefilter/Waterfilter

16Butterandcheesecompartment

17Airoutletopenings

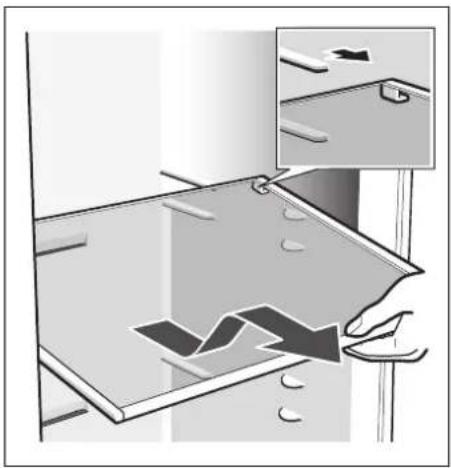

18Glassshelvesinrefrigerator compartment

19Doorstoragecompartment

20Delicatessendrawer

21 Doorstoragecompartment for largebottles

22Vegetablecompartment with humidityfilter

23Vegetablecontainer

24Height-adjustablefeet

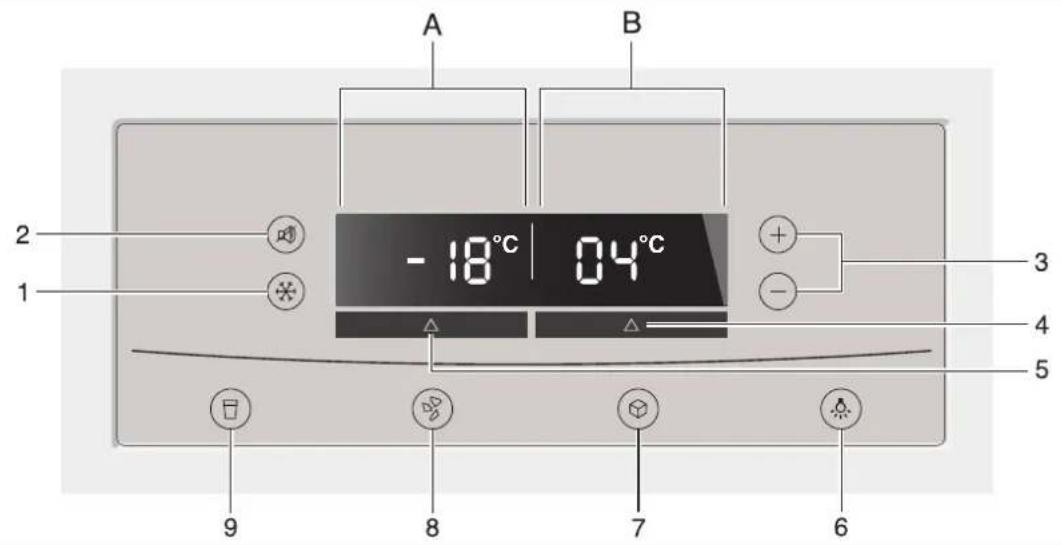

Controlanddisplaypanel

Thefasciaanddisplaypanelon the doorconsistsofatouchpad.

Touchthekeypadtoactuatethe correspondingfunction.

1"super"button

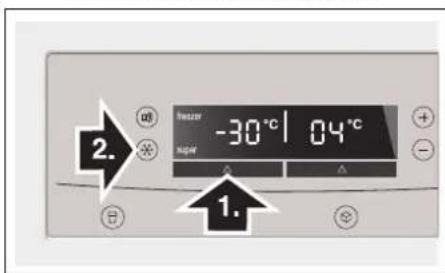

ToswitchontheSuperfreeze or Supercoolfunctions.

See "Superfreeze" and "Super cool" section.

2"alarm off/lock"button

Thebuttonisusedto

a) switchoffthewarningsignal.

See "Warningsignal" section.

b) switch the button lock on and off.

When the "lock" function is activated, nosettings are possible via the control panel. Exception: If there is awarning message, the "alarm off/lock" button can be pressed.

Toswitchonandoff, pressbutton for5 seconds. Whenthefunctionis switchedon, "lock" is litonthe displaypanel.

3“+/-”button

Theselectedtemperatureisset withthe“+”and“-”buttons.

4"fridge"button

To implement settings for the refrigerator compartment area, pressbutton until "fridge" is lit in the display panel.

5"freezer"button

Toimplementsettingsforthe freezercompartment, pressbutton until "freezer" is litonthedisplay panel.

6On/Off"light"buttonforceand waterdispenser

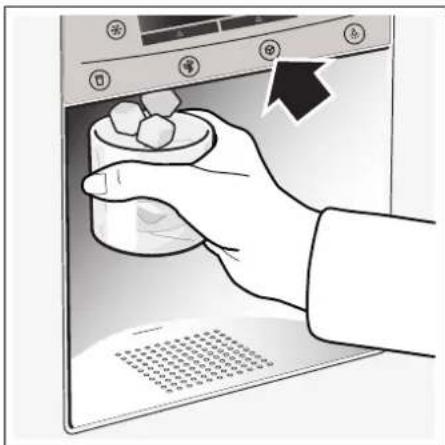

7 Dispenserbuttonforicecubes

8 Dispenserbuttonforcrushedice

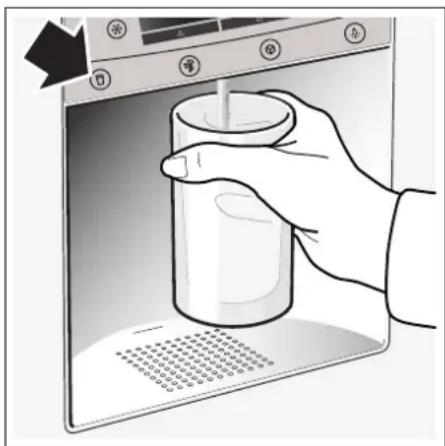

9Waterdispenserbutton

ADisplaypanel, freezer compartment

BDisplaypanel, refrigerator compartment

Switchingonthe appliance

Switchontheappliancewiththe On/Offbutton.

Pressthe"alarmoff/lock"button. The warningsignalswitchesoff.

The "alarm" display goes out as soon asthesettemperature has been reached.

The preset temperatures are reached after several hours. Donotputanyfood in the appliance beforehand.

Thefactoryhasrecommendedthe followingtemperatures:

Refrigeratorcompartment:+4 °C

Freezercompartment: -18^

Selectingthetemperature

Refrigerator compartment

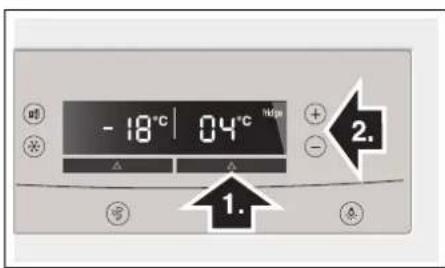

1. Selecttherefrigeratorcompartment areawiththe"fridge"buttonuntil "fridge"islitonthedisplaypanel.
2. Set the temperature with the + (warmer) or - (cooler) selection buttons.

Thetemperaturecanbesetat1 °Cintervals.

Therefrigeratorcompartment can be setfrom+2 °Cto+8 °C.

Perishable food should not be stored warmer than +4 °C.

Freezer compartment

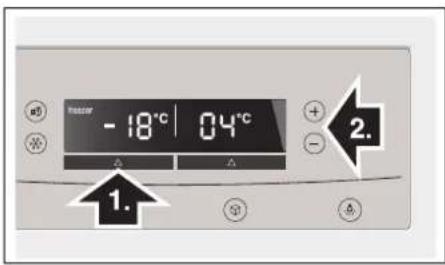

1. Press "freezer" button until "freezer" is lit on the display panel.
2. Set the temperature with the + (warmer) or - (cooler) selection buttons.

Thefreezercompartmentcanbeset from-14 °Cto-24 °C.

The value last indicated dissaved by the system.

Warningsignal

In the following cases awarningsignal maysound.

Thedoorwarningsignal

Thedoorwarningsignalsoundsifone oftheappliancedoorsisopenfor longerthanoneminute.Closethedoor toswitchoffthewarningsignal.

Pressthe"alarm off/lock"button to switchoffthewarningsignal.

Temperaturewarning signal

Thetemperaturewarningsignalswitchesonifthefreezerorrefrigerator compartmentistoowarmandthefood isatriskofthawing.

Theacousticandopticalsignalsmay beactuatedwithoutrisktothefrozen foodwhen:

• Theapplianceisswitchedon.
• Largequantitiesoffreshfoodare placedinthefreezer.

Freezercompartment

Thesettemperatureofthefreezer compartmentflashesand"alarm" is displayed.

Pressthe"alarm off/lock"button to switchoffthewarningsignal.

Thetemperaturedisplayindicatesfor 10 secondsthewarmesttemperature whichwasreachedinthefreezer compartment.Thentheset temperatureisdisplayedagain.

The "alarm" displaygoesoutassoon asthesettemperaturehasbeenreached.

Attention!

Donotrefreezefoodwhichhasstarted tothaworalreadythawed.Itcanonly berefrozenwhenithasbeenusedto prepareareadymeal(boiledorfried). Nolongerstorethefrozenproducefor themax.storageperiod.

Refrigeratorcompartment

"alarm" is indicated on the refrigerator compartment display panel.

Pressthe"alarm off/lock"buttonto switchoffthewarningsignal.

Attention!

Iftherefrigeratorcompartmenthas becometoowarm,cookwarmed refrigeratedfoodbeforeconsumption. Ifindoubt,donotuserawfood.

Supercooling

Supercoolingcoolstherefrigerator compartmenttothelowesttemperatureforapprox. 6 hours.Then thetemperaturesetbeforesuper modeisautomaticallyrestored.

Supercoolingisrecommendedespecially:

• Beforeplacinglargequantitiesof foodintherefrigeratorcompartment.
• Tocooldrinksquickly.

Switchonsupercooling

1. Selecttherefrigeratorcompartment areawiththe"fridge"buttonuntil "fridge"islitonthedisplay.
2. Then press the "super" button. "super" is indicated on the display panel.

Switchingoffsupercooling

Aswhenswitchingonsupercooling, selecttherefrigeratorcompartment area, thenpressthe"super"button. "super" goesoutonthedisplaypanel.

Superfreezing

Foodshouldbefrozensolidasquickly aspossible.Vitamins,nutritionalvalues,appearanceandtastearethereforeretained.

Topreventanundesirabletemperature risewhenplacingfreshfoodinthefreezercompartment,switchonfastfreeze severalhoursbeforehand.

Asarule,4–6 hoursisadequate. If max.freezingcapacityistobeutilised,24 hoursarerequired.

Smallerquantitiesoffoodcanbefrozen withoutsuperfreezing.

Switchingonsuperfreezing

1. Select the freezer compartment are with the "freezer" button. "freezer" is lit on the display panel.
2. Thenpressthe "super" button. "super" is litonthedisplaypanel.

Switchingoffsuperfreezing

Toswitchoff, pressthe "super" button again.

Superfreezingautomaticallyswitches offafter2½ daysatthelatest.

Selectingthetemperatureunit

Thetemperaturecanbedisplayed in degrees Celsius(°C) or degrees Fahrenheit(°F).

Selectingthetemperatureunit

Holddown "freezer" and "fridge" buttons for 5 seconds.

Depending on the previous setting, the display switch the other temperature unit.

Refrigerator compartment

Therefrigeratorcompartment temperaturecanbeselected from+2 °Cto+8 °C.

Werecommendasettingof+4 °C.

Perishable food should not be stored warmer than 4 °C.

Usingtherefrigerator compartment

Forstorageofcakesandpastries, readymeals,tinnedfood,condensed milk,hardcheese,fruitandvegetables sensitivetothecold:tropicalfruit,e.g. mandarins,bananas,pineapples, melons,avocados,papayas,passion fruit,aubergines,alsofruitwhich requiresfurtherripening,tomatoes, cucumbers,greentomatoes,potatoes.

Whenstoringfood, complywiththefollowing:

-Allowwarmfoodanddrinkstocool downoutsidetheappliance.
- Topreventfoodfromlosingits flavourordryingout,placeinairtight containers.
-Donotblockairoutletopeningswith food,otherwisetheaircirculationwill beimpaired.
-Avoidcontactofoilandfatwiththe plasticpartsanddoorseal.
-Storehigh-percentagealcoholtightly closedandstandingup,donotstore anyexplosivesubstancesinthe appliance.
Riskofexplosion!

Vegetable compartmentwith humidityfilter

The humidity drawer is covered by a special filter which allows the air to pass through but retains the humidity.

Ahighairhumiditykeepsleafy vegetablesfreshforlonger.Vegetables andfruitshouldbestoredataslightly lowerairhumidity.

The air humidity in the vegetable drawers depends on the amount of stored food.

If the air humidity is too high, drips may form and caused decay.

Diagram of a mechanical assembly with layered components and a close-up view of a component (no text or symbols)

Highairhumidity

Regulatortoleft-ventilationopening is closed.

Lowairhumidity

Regulatortoright-ventilationopening isopen.

Usablecapacity

Informationontheusablecapacitycan befoundinsideyourapplianceonthe ratingplate(seediagramatchapter "Customerservice").

Variableinteriorde-sign

Shelves

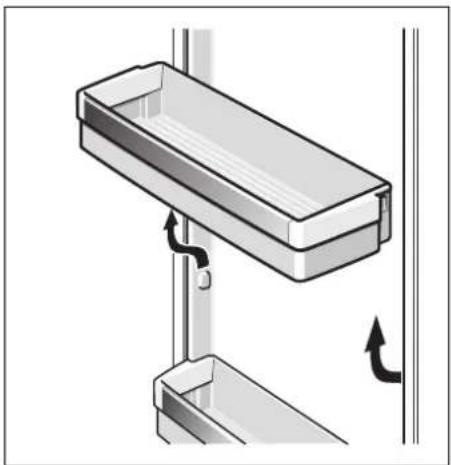

Diagram showing a hand pressing down a metal tray with a downward arrow, next to an inset view of a shelf (no text or symbols)

Pullshelfforwards,lowerandswingout totheside.

Diagram of a mechanical lifting device with two parts and directional arrows indicating motion (no text or symbols)

Liftthedoorstoragecompartment and takeitout.

Freezercompartment

Thefreezercompartmenttemperature canbesetfrom-14°Cto-24°C.

Werecommendasettingof-18°C.

Usethefreezercompartment:

-Forstoringdeep-frozenfood.

-Tofreezefood.

-Tomakeicecubes.

Note

Ensure that the freezer compartment dooris always closed. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: Energy will belost duetohigh power consumption.

Whenthefreezercompartmentdooris closed, alowpressureoccurs, causing asuckingnoise. Waittwotothree minutesuntilthelowpressurehas adjusteditself.

Featuresofthe freezercompartment

(notallmodels)

Freezercalendar

The figures next to the symbols indicate the permitted storage period of the produce in months. When purchasing frozen produce, observethed date of manufacture or sell by date.

Freezingfood

Freezefresh, undamaged food only. Keep food which is the best frozen away from food which is already frozen. To prevent food from losing its flavour or drying out, place in a light containers.

Freezingcapacity

Informationaboutthemax.freezingcapacitywithin24hourscanbefoundontheratingplate(seechapter"Customer service").

Packingfoodcorrectly:

1. Placethefoodinthewrapping.

2. Pressoutalltheair.

3.Sealthewrapping.

4.Labelthewrappingwiththe contentsanddate.

The following products are not suitable for wrapping food:

Wrappingpaper, greaseproofpaper, cellophane, refusebags and used shopping bags.

The following products are suitable for wrapping food:

Plasticfilm,polyethyleneblownfilm, aluminiumfoilandfreezertins. Theseproductscanbepurchased fromyourdealer.

The following products are suitable for sealing the wrapped food:

Rubberbands, plasticclips, string, cold-resistantadhesivetapeorsimilar. Bagsandpolyethyleneblownfilmcan besealedwithafilmsealer.

Shelflifeoffrozenfood

Storagedurationdependsonthetype of food. Atatemperaturesetting of -18°C:

- Fish, sausage, readymealsand cakesandpastries: upto6months

- Cheese, poultry and meat: upto 8 months

• Vegetablesandfruit: upto12months

Purchasing and storingdeep-frozen food

When purchasing frozen food, observe the following:

• Check that the packaging is not damaged.
• Checkthesell-bydate.
• Thetemperatureofthesupermarket freezershouldbe–18°Corlower. If not, theshelflifeofthefrozenfood isreduced.
• Purchasedeep-frozenfoodlast. Wrapfoodinnewspaperorplacein a coolbagandtakehome.
• Athomeimmediatelyplace deep-frozenfoodinthefreezer compartment. Consumethefrozen foodbeforetheuse-bydateexpires.

Thawingfrozenfood

Dependingonthetypeandappliacation, selectoneofthefollowingoptions:

-Atroomtemperature.
-Intherefrigerator.
-Inanelectricoven, with/without fan assisted hot-air.
-Inamicrowaveoven.

Note

Donotrefreezefoodwhichisbeginningtothaworwhichhasalreadythawed. Thefoodcannotberefrozenuntilhas beenprepared(boiledorfried).

Nolongerstorethefrozenproducefor themax.storageperiod.

Iceandwaterdispenser

The following can bed dispensed as required:

• cooledwater,
• crushedice,
• icecubes.

Warning

Neverreachintotheicecube dispenseropening!Riskofinjury!

Attention!

Donotplacebottlesorfoodinthecube containerinordertocoolthemquickly. The icemakermayblockand be damaged.

Usingtheiceandwater dispenser

Theiceandwaterdispenseronlyworks whentheapplianceisconnectedtothe watermains.

When the appliance has been switched on, it takes approx. 24 hours until the first batch of rice cubes are ready.

Whentheappliancehasbeenconnected,therearestillairbubblesin the lines.

Runoffdrinkingwaterandpouraway untilwatercanbedispensedwithout bubbles.Pourawaythefirst5 glasses.

When using the icemaker for the first time, donot us the first 30–40 ice cubes for reason of hygiene.

Operatingtheicemaker

Whenthefreezercompartmenthas reacheditsfreezingtemperature,water flowsintotheicemakerandfreezes intoicecubes. Whentheicecubesare ready,theyareautomaticallydischargedintotheicecubecointainer.

Occasionallythesidesoftheicecubes sticktogether. Whentheyareconveyed totheoutletopening, theyusually breakawayfromeachother.

Whentheicecubecontainerisfull,ice makingswitchesoffautomatically.

Theicemakercanmakeapprox. 100 icecubeswithin24 hours.

Whenicecubesarebeingmade, the buzzingwatervalve, the waterflowing into the ice cubetray and the falling ice cubescanbeheard.

Observingdrinkingwater quality

Allmaterialsusedinthedrinksdispenser areodourlessand tasteless.

Ifthewaterhasanaftertaste, this may becaused by:

-Mineralandchlorinecontentofthe drinkingwater.
–Materialofthedomesticwaterlineor connectionline.
-Freshnessofthedrinkingwater. If waterhasnotbeendispensedfor a longtime,thewatermayhave a "stale"taste.In thiscasedispense approx. 15 glassesofwaterand pouraway.

Tasteandodourofthewatermaybe improvedbyinstallingtheenclosed waterfilterinthewatersupply.

Theenclosedwaterfilterwillfilteronly particlesoutofthesupplywater,not bacteriaormicrobes.

Dispensingice/water

• Selecttheiceandwaterdispenser button(water,crushediceorice cubes).
• Keeppressingthebuttonuntilthe requiredquantityisintheglass.

Dispensingwater:

Illustration of a hand pouring liquid into a glass jar inside a kitchen appliance (no text or symbols)

Tip:

Thewaterfromthewaterdispenser is cooledtoapalatabletemperature. If youwouldlikethewatercolder,place icecubesintheglassbeforedispensing thewater.

Dispensingice:

Illustration of a hand placing food into a microwave oven with a tray (no text or symbols)

Disconnectingtheice maker

Ificecubesarenottobedispensedfor longerthan1 week(e.g.holiday),temporarilydisconnecttheicecubemaker topreventtheicecubesfromfreezing together.

• Removetheicecubecontainer.
• PresstheOn/Offswitchbehindthe icecubetraydownwards—icecube makerisswitchedoff.

- Emptyandcleanicecubecontainer. Re-attachtheicecubecontainer. Ensurethattheicecubecontainer engageswiththesupport.

Switchingontheicecubemakeragain:

- PressuptheOn/Offswitchbehind theicecubetrayfor5 seconds—ice cubemakerisswitchedon.

Note

The description under the On/Off switch is for customers service only and can be ignored.

Switchingtheice andwaterdispenser off

Youcanusethisfunctiontoswitchoff theiceandwaterdispenser.

Emptyandcleanicecubecontainer. Re-attachtheicecubecontainer. Ensurethattheicecubecontainer engageswiththesupport.

Switchingonandoff

Toswitchtheiceandwaterdispenser onandoff, pressthe"freezer" and "super" buttonfor5 seconds. When the function is switched off, "IWDoff" is litonthedisplaypanel.

Waterfilter

Attention!

Donotusetheapplianceinplaces wherethewaterqualityisriskyor notsufficientlyknownaboutwithout suitabledisinfection,beforeand afterfiltering.

Afiltercartridgeforfilteringparticles canbeobtainedfromcustomer service.

Thewaterfiltersshouldbereplacedafter sixmonthsatthelatest.

Importantinformation concerningthewaterfilter

• Afteruse, the watersystem is subject to low pressure. Becareful when removing the filter!
• Rinsethewatersystemthroughif the appliancehasnotbeenusedfor a longperiod,orifthewatertastesor smellsunpleasant.Inadditiontothis, drawwaterfromthewaterdispenser forseveralminutes.Ilftheunpleasant tasteorsmellpersistsexchangethe filtercartridge.

Exchangingthefilter cartridge

• Insertnewfiltercartridge.
• Drawafewlitresofwaterfromthe waterdispenser.Doingthisremoves airfromthewatersystem.
• Pourwateroutoftheusedfilter cartridge. Thefiltercartridgecanbe disposedofinthehouseholdrubbish.

Specificationandperformancedatasheet

Forfiltermodel:9000225170

Usingreplacementcartridge: 9000 077104

ThemodelwastedbyNSF Internationalwithreferenceto ANSI/NSFStandards42&53and certifiedforareductioninthe substancescitedbelow.

The concentration of the indicated substances which are dissolved in water and penetration the system was reduced to a value below or equal to the permitted limit value in accordance with NSF/ANSI42 and 53 for water discharged out of the appliance.

Note

Eventhough the test were conducted under standard laboratory conditions, the actual performance may deviate from the test.

Thesystemwastestedandcertifiedonmodel9000225170byNSFInternationalwithreferenceto ANSI/NSF Standard 53 for a reduction in cysts and turbidity, as well as with reference to ANSI/NSF Standard42forareductioninthetasteandodourofchlorine.

Nominalparticleclass:I Nominalservicelife:2,800litres

Substance	Averagein inflow	Inflow concentration	Wastewater concentration	Average reductionas%	Max.permitted concentrationin wastewater	Max.wastewaterMin.reductionas %		NSFtest
Cysts *166.500Min.50,000/l199.9999.95199.99511077-03
Turbidity	10.7	11 x 1 NTU	0.3 l	97.10	0.5 NTU	0.49	95.42	511078-03
Particleclassl particlesize 0.5 to<1 μm	5.700,000	At least 10,000 particles/ml	30,583	99.52	>85 %	69,000	98.9	511079-03
Tasteofchlorine andturbidity	1.9	2.0 mg/l ±10%	0.05	97.3	>50 %	0.06	96.84	511081-03

* BasedontheuseofCryptosporiumparvumocysts.

Applicationguidelines/Water supply parameters:

Waterpressure	207–827 kPa
Wathertemperature *	0.6 °C–38 °C
Flowrate	2.83l/min.

• Thesystemistobeinstalled and operated according to the guidelines recommended by the manufacturer.
• Thefilteristobechangedevery 6–9 months.
• Rinsenewfilterthoroughlyfor 5 minutes.
• Moredetailedinformationcanbe foundonthewarrantycard.

Withoutappropriatedisinfection beforeandafterconnectingittothe system,thisproductshouldNOTbe usedifthewaterismicrobiologically contaminatedorifthequalityhas notbeenascertained.Asystem certifiedforcystreductionshould beusedfordisinfectedwaterwhich possiblycontainsfilterablecysts.

Aone-yearwarrantyisissuedforthe entiresystem(exceptdisposable cartridge).Withreferencetodisposable cartridgesawarrantyisissuedfor materialandprocessingfaultsonly. As theservicelifeofdisposablefilter cartridgesdependsonthelocalwater conditions,nowarrantyisissuedfor them.

More detailed information on the prices of spare parts is available from your applianced dealer or part sales man on site.

Manufacturedby:

3 MMaterialTechnology (Guangzhou)Ltd. 9NanxiangErroad,ScienceCity, Guangzhou,510663,P.R.China

Tipsforsaving energy

• Install the appliance in a cool, well ventilated room, but not indirect sunlight and not near a heat source (radiator, cooker, etc.). If required, use an insulating plate.
- Allowwarmfoodanddrinkstocool downbeforeplacingintheappliance!
- Whenthawingfrozenfood,placeit in therefrigeratorcompartment. The lowtemperatureofthefrozen productscoolsthefoodinthe refrigerator.
- Opentheappliancedoorasbrieflyas possible.

Operatingnoises

Quitenormalnoises

Humming-refrigeratingunitisrunning. Thefaninthecirculatingair systemisrunning.

Bubbling, gurgling or whirring noises—refrigerantisflowing through the tubing. Waterflowing into the icemaker.

Clicking-motorisswitchingonoroff. Solenoidvalveonthewaterconnection isopeningorclosing.

Rumbling-readyicecubesfromthe icemakerarefallingintotheicecube container.

Preventingnoises

Theapplianceisnotlevel

Pleasealigntheappliancewithaspirit level. Usetheheight-adjustablefeetor placepackingunderneathem.

The appliance is not free-standing

Pleasemovetheapplianceawayfrom adjacentunitsorappliances.

Drawers, basketsorstorageareas wobbleorstick

Pleasechecktheremovablepartsand, ifrequired,reinsertthem.

Receptaclesaretouchingeach other

Pleasemovebottlesorreceptacles awayfromeachother.

Defrosting

Freezercompartment

ThefullyautomaticNofrostsystem ensure that the freezer compartment remains free of ice. Defrosting is no longer required.

Refrigeratorcompartment

Defrostingisactuatedautomatically.

Thecondensationrunsthroughthe drainageholeintoanevaporationpan ontherearoftheappliance.

Switchingoff and disconnecting the appliance

Switchingoff the appliance

• Switchofftheappliance.
• Pulloutthemainsplug.

Disconnecting the appliance

If you donot us the appliance for a prolonged period:

• Beforeswitchingoff, it is most important that you switch the water supply to the appliance off for a few hours.
  • Takeallfoodoutoftheappliance.
• Switchofftheappliance.
• Pulloutthemainsplug.
• Cleantheapplianceinterior (see chapter"Cleaning").

Topreventodours,leavethedoors open.

Cleaning

Warning

Nevercleantheappliancewithasteam cleaner!

Donotuseabrasiveoracidiccleaning agentsandsolvents.

Cleaningtheappliance

Nevercleanshelvesandcontainersin thedishwasher.Thepartsmaywarp!

• Beforecleaning: Switchoff the appliance and pullout themains plug.
• Taketherefrigeratedfoodoutof the applianceandstoreinacool location.
• Cleantheappliancewithlukewarm waterandalittlewashing-upliquid.
• Wipethedoorsealwithwateronly andthendrythoroughly.
• Cleanthesurfaceoftheappliance withasoftdampclothandalittle washing-upliquid. Afterwards, rub dry.
  • Aftercleaning: reconnectandswitch ontheappliance.

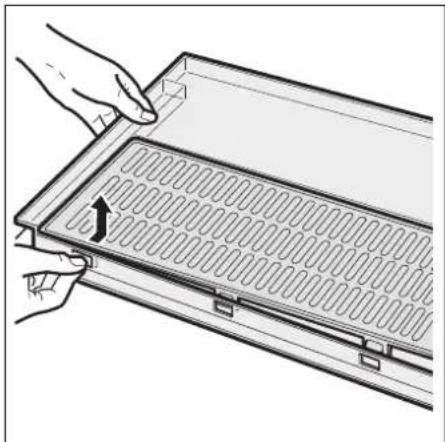

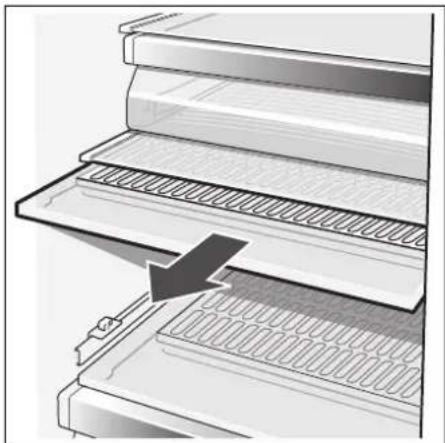

Cleaningthehumidity filter

Diagram of a multi-tiered storage or rack system with a black arrow indicating a specific component (no text or symbols present)

Illustration of hands installing or adjusting a grid-patterned panel inside a metal enclosure (no text or symbols)

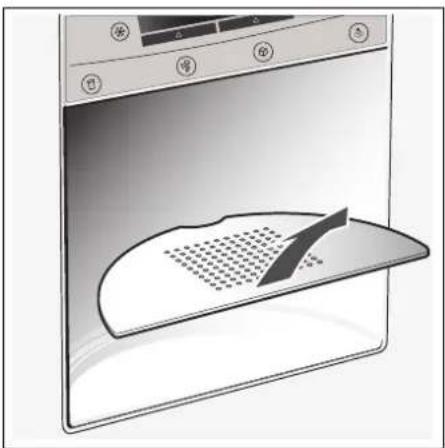

Cleaningthewater collectingtray

Spilledwatercollectsinthewatercol-lectingtray.

Toemptyandclean,removethefilter. Wipeoutwatercollectingtraywith a spongeorabsorbentcloth.

Illustration of a kitchen oven with a microwave oven and a triangular kitchen knife (no text or symbols)

Light

(depending on model)

LEDlight

Your appliance features a maintenance-free LED light.

Caution!LEDlight

Class1 Mlaserlighting(IEC60825 Standard). Donotlookdirectlyinto the lightingwithopticalinstruments. Riskofeyeinjury!

Theselightsmaybepairedby customerserviceorauthorised techniciansonly.

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

Changingoverthebulbs forrefrigeratorandfreezer compartments

- Attention! Switch off the appliance and pullout themains plugorswitch off the fuse.

Illustration of hands installing or adjusting a ceiling panel with a downward arrow (no text or symbols)

• Removethecover.
• Changethebulb (replacementbulb,220–240 Va.c., E14lampholder,seedefectivebulb forwattage).
• Re-attachthecover.

Eliminatingminorfaultsyourself

Beforeyoucallcustomerservice:

• Please check whether you can eliminate the fault yourself based on the following information.
• Run an appliance self-test (see chapter "Appliance self-test").

You must pay for customers service advice—even during the warranty period!

Fault	PossiblecauseRemedialaction
Temperaturediffersgreatly fromthesetvalue.		Insomecasesitisadequatetoswitchofftheappliance for 5 minutes.Ifthetemperatureistoohigh,waitafewhoursandcheck whetherthetemperaturehasapproachedthesetvalue.Ifthetemperatureistoolow,checkthetemperatureagain thenextday.
Nodisplayonthedisplay panel.	Themainsplugoftheapplianceisnotinthesocket properly.Thefuseforthedomesticsupplyisswitched off.	Checkwhetherthepowerison,thefusemustbeswitched on.
“E”isindicatedonthe displaypanel.	Electronicsmodudefective.Callcustomerservice.
Warningsignalsoundsand thetemperaturedisplayon thefreezercompartment flashes.	Thefreezercompartmentistoowarm!Frozenfoodis at risk!Theventilationopeningshavebeencovered.Freezercompartmentdoorisopen.Toomuchfoodwasplacedinthefreezer compartmentatonce.	Pressthe“alarm off/lock”buttontoswitchoffthewarning signalandtheflashingdisplay.Thewarmesttemperaturereachedinthefreezer compartmentisindicatedonthetemperaturedisplay of the freezersectionfor10seconds.Note:Frozenfoodwhichhasstartedthawingorwhichhas thawedcanberefrozenifmeatandfishwereabove+3°C fornotmorethanonedayorotherfrozenfoodwasabove +3 °Cfornotmorethanthreedays.
Theinteriorlightisnot functioning.	Thelightswitchforthefreezerorrefrigerator compartmentissticking.	Checkwhetherthelightswitchcanmove.
	Thelightisdefective.Seechapter“Light”.
Theappliancebecomes slightlylouderforabrief period.	Not a fault! Your appliance is designed to save energy. Under certain conditions (e.g. activation of the Super function) theappliancemustworkharderforabriefperiodandthereforebecomeslightlylouder.
Appliancehasno refrigeratingcapacity. The interiorlightisnot functioning.	Powerfailure;thefusehasbeenswitchedoff; the mainsplughasnotbeeninsertedproperly.	Checkwhetherthepowerison,thefusemustbeswitched on.
Therefrigeratingunit is switchingonmore frequentlyandforlonger.	Appliancedooropenedfrequently.Donotopenthodoorunnecessarily.
	Largequantitiesoffreshfoodarebeingfrozen.Donotexceedmax.freezingcapacity.
	Theventilationopeningshavebeencovered.Removeobstacles.
Thetemperatureinthe refrigeratororfreezer compartmentistoocold.	Temperaturehasbeensettoolow.Selectawarmertemperature(see “Settingthetemperature”).
Thefrozenfoodisfrozen solid.		Loosenfrozenfoodwithabluntobject.Donotuseaknife or pointedobject.

Waterandicedispenser

Fault	PossiblecauseRemedialaction
Despiteprolongedoperatingtime, ice cubesarenotbeingdispensed.	Tapturedoff.Turnontap.
	Watersupplyisinterrupted.Water pressuretoolow.	Informplumber.
	Icemakerisdisconnected.Switchonicemakeragain(see“Disconnectingiceand water dispenser,icemaker”).
	Iceandwaterdispenserisswitchedoff.“IWD off”islitonthedisplaypanel.	Switchoniceandwaterdispenseragain(see“Switchingoff iceandwaterdispenser”).
Despiteprolongedoperatingtime, ice cubesarenotbeingdispensed.	Freezercompartmenttoowarm.Settemperaturecolderinthefreezercompartment(see “Selectingthetemperature”).
Icecubesareintheicecubecontainer butarenotbeingdispensed.	Icecubesarefrozentogether.Removeandemptytheicecubecontainer.
Icecubesarejammedintheoutlet of the icecubecontainerorintheice crusher.		Removetheicecubecontainerandrotatethescrewconveyor byhand.Loosenanyjammedchunksoficewithawooden chopstick.
Icecubesarewatery.Icecubeshavemelted-powerfailureor thefreezercompartmentdoorwasnot closedproperly.		Removetheicecubemaker,emptyandrubdry.
Waterdispenserisnotfunctioning.	Tapturedoff.Turnontap.
	Watersupplyisinterrupted.Water pressuretoolow.	Informplumber.
Theicemakerdoesnotmakeenough iceortheiceisdeformed.	Theapplianceoricemakerhasonly just beenswitchedon.	Approx.24 hoursisneededuntiliceproductionstarts.
	Alotoficehasbeentaken.Approx.24 hoursisneededuntiltheicecubecontainer is filledagain.
	Lowwaterpressure.Connectappliancetotheprescribeddrinkingwatersupply (see“Installingandconnectingtheappliance”, “Water connection”).
	Thewaterfilterisbungeduporused.Changethewaterfilter.

Appliance self-test

Yourappliancefeaturesanautomatic self-testprogramwhichshowsyou sourcesoffaultswhichmayberepairedbycustomerserviceonly.

Starting the appliance self-test

• Switch off the appliance and wait 5 minutes.
• Switchontheapplianceagain.
• Simultaneouslypressbutton“+”and “-”buttonfor5 seconds.

Theself-testprogrammestarts.If"E.."isindicatedonthedisplaypanel,an errorhasoccurred.Ifafaultis indicated,informcustomerservice.

Ending the appliance self-test

- Pressthe“+”and“-”buttonsagain for5 seconds.

Customerservice

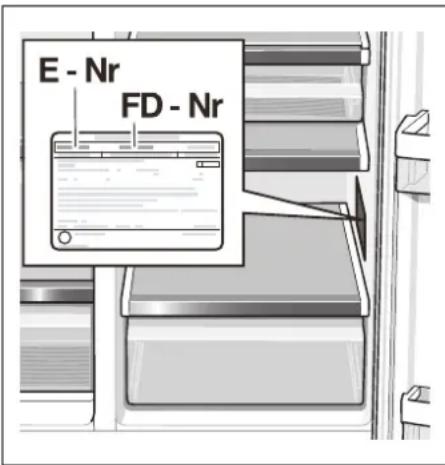

Yourlocalcustomerservicecanbe foundinthetelephonedirectoryorin thecustomer-serviceindex.Please providecustomerservicewiththeapplianceproductnumber(E-Nr.)and productionnumber(FD).

Thisinformationcanbefoundonthe productlabel.

Topreventunnecessarycall-outs, please-assistcustomerservicebyquoting theproductandproductionnumbers. Thiswillsaveyouadditionalcosts.
