Step 15

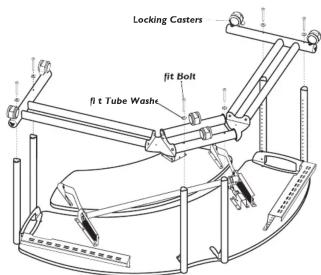

Begin by placing the Base Tube Assembly 'Locking Casters as shown) onto the Vertical Legs.
Attach the Base Tubes to each Leg by inserting a fit Bolt through a Tube Washer, then insert the fit Bolt through the Base Tube and carefully thread into each Vertical Leg.
Tighten all fit Bolts and Cap Screws.
^5/_6-18×3.5^m fi : Bolt
325-5194-00
fit Tube Vvashe 225-2050-00 or 225-3522-00
Step 16 (uses the ^1/3 " Hex Key)
Carefully rotate your Console Unit onto the Casters.

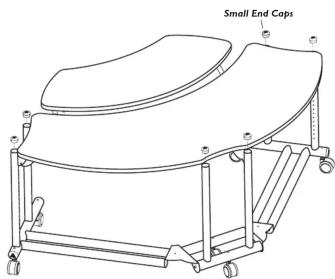

Pop the six Small End Caps into the Leg ends.
Congratulations! Your assembly is complete.
Questions?
300-5245-00
1-800-325-3841
Console Unit Assembly Instructions
Hello! Thank you for choosing Anthro
Before beginning assembly of your Console Unit, take a moment to review the parts listed on the next page to verify that your shipment is complete. Please review the assembly instructions of all Anthro products yo purchased and are planning to include in this installation, prior to beginning this assembly
Your Console Unit is heavy. A second person will be needed for this assembly procedure.
To make the assembly of your Console Unit even easier, we have included all of the required tools. The handy Hex Driver Bit can be used in your electric drill in place of the Hex Driver
| Hex Driver ^2/_32 | 375-5000-00 |
| Hex Driver Bit ^3/_32 | 375-5003-00 |
| Hex Key ^2/_32 | 375-5016-00 |
| Hex Key ^1/_4 | 375-5024-00 |
| 3-Way Wrench | 225-5196-03 |
| 8 oz. Rubber Mallet | 375-5022-00 |

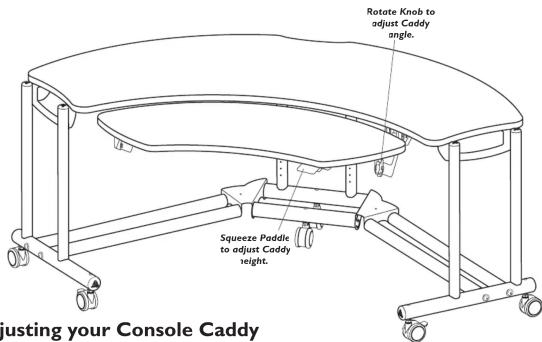

Adjusting your Console Caddy
Adjust the Caddy Shelf height by:
-
Squeezing and holding the Paddle.
-
Reposition the Caddy to the desired location.
-
Release the Paddle.
Adjust the Caddy Shelf angle by:
-
Rotating the Knob counterclockwise.
-
Reposition the Caddy to the desired angle.
-
Rotate the Knob clockwise
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062
anthro.com
1-800-325-384
SAVE THESE INSTRUCTIONS
Rev. F January 2006
Component list for part # FCCzz/xx3

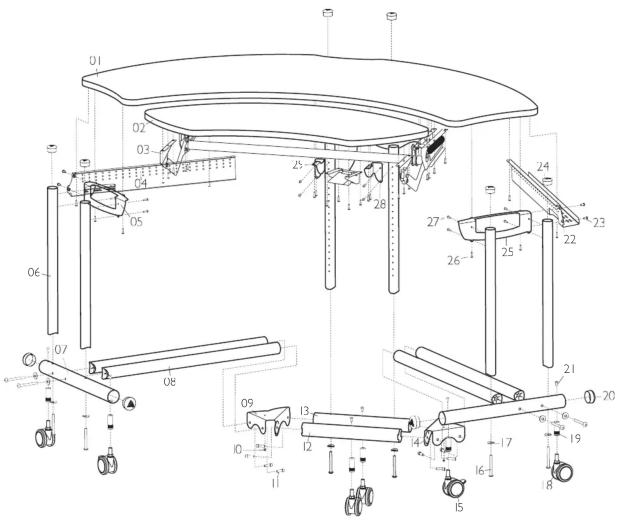

Detailed views of all Hardware is provided with each Assembly Step
| 01- fi Console Large Shelf .... Qty. .... 100-6498-00 | |
| 02- fi i Console Caddy .... Qty. .... 100-6499-00 | |
| 03- fi Adjusta Mechanism .... Qty. .... 225-5547-00 | |
| (The Adjusta Mechanism is packaged separately & requires assa | |
| 04- fi Console Back Trough-> ... Qty. .... 225-2367-00 | |
| 05- Small Support Y .... Qty. .... 225-2015-00 | |
| 06- fi '24.875" Vertical Leg ... Qty. 6 .... 125-5230-00 | |
| 07- fi '21" Base Tube .... Qty. . .... 125-5275-00 | |
| 08- fi 30.5" Console Cross Tut... Qty. 4 .... 125-5248-00 | |
| 09- fi i Console Base Junction-Y ... Qty. .... 225-5787-00 | |
| 10- Acorn Nuts .... Qty. . .... 325-5023-00 | |
| 11- Cap Screws .... Qty. 8 .... 325-5225-00 | |
| 12- fi i '15.27" Keyed Base Tub ... Qty. .... 125-5249-00 | |
| 13- fi i '15" Base Tub... Qty. .... 125-5250-00 | |
| 14- fi i Console Base Junction-X ... Qty. .... 225-5786-00 | |
| 15- 3" Locking Casters ... Qty. . .... 150-5053-00 | |
| 16- 1/4-18 fit Bolts ... Qty. 11 .... 325-5194-00 | |
| 17- fi i Tube Washer ... Qty. If '225-2050-00 or 225-3522- | |
| 18-3" Non-Locking Casters | Qty. 4 | 150-5052-00 |
| 19- Caster Inserts | Qty. € | 525-5032-00 |
| 20-2.0" Large End Caps | Qty. 4 | 175-5157-00 |
| 21- Insert Screws | Qty. € | 325-5052-00 |
| 22- fl Console Back Trough | Qty. | 225-2368-00 |
| 23- Button Head Screws | Qty. 4 | 325-5003-00 |
| 24- 1.5" Small Caps | Qty. € | 175-5156-00 |
| 25- Small Support X | Qty. | 225-2014-00 |
| 26- 1⁄4" Wood Screw | Qty. 4 | 325-5106-00 |
| 27- Support Screws | Qty. 1 | 325-5010-00 |
| 28- fit Corner Connector Suppoi | Qty. | 225-5582-00 |
| 29- fit Corner Connector Suppoi | Qty. | 225-5583-00 |
All Fastener quantities listed here are the minimum needed for your Console Unit assembly. There may be a few extra Fasteners included, which are not counted in the Parts List
Step 12 (uses the ^1/_4 " Hex Key)

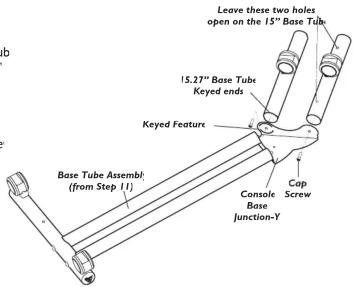

Position the 15.27" Base Tube against the Consol Junction, then mate the Keyed Feature to the Keyed Tub End. Secure the Base Tube using a Cap Screw & th 14 " Hex Key
Place the 15 "Base Tube against the Base Junction an secure using a Cap Screw
NOTE: Do not yet fully tighten the 15" Base Tube Cap Scre
Step 13 (uses the ^1/_4 " Hex Key)

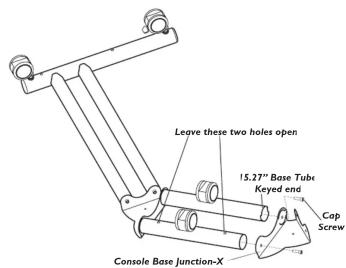

Place the Console Base Junction-X onto the open ends of the 15" & 15.27" Base Tubes as shown, then mate th Keyed Feature to the 15.27" Keyed Tube En
Secure both Base Tubes to the Console Base Junction using two Cap Screws & the 14 " Hex Key
NOTE: Do not yet fully tighten the 15" Base Tube Cap Scre
Step 14 (uses the ^1/_4 " Hex Key)

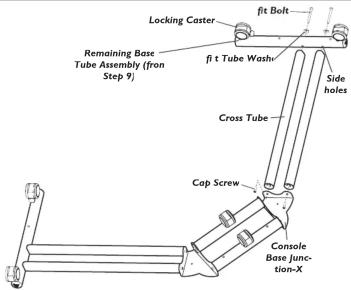

Place the non-coped ends of the two remaining Cross Tubes against the Base Junction and loosely secure using two Cap Screws.
Orient the remaining Base Tube assembly as shown Secure to the coped Cross Tube Ends by inserting;
a fit Bolt through a Tube Washer, then insert the Bo through the Base Tube and carefully thread into each Cross Tube, but don't fully tighten th fi 1 Bolts yet
Tighten the two Cap Screws installed during this Step.
FCCzz/xx3
Step 9
Insert two End Caps into the ends of both 21" Base 7 Install two Caster Inserts into each Base Tube and secure with one Insert Screw per Insert.
Insert one Locking and one Non-Locking Caster into each Insert of a Base Tube as shown
Insert Screw with pink thread 325-5052-00
Locking
Step 10
Install one Caster Insert into both the 15.27" & 15" Bas Tubes and secure each Insert with one Insert Screw Insert one Non-Locking Caster into each Insert of both Base Tubes as showr
Insert Screw
with pink threads)
325-5052-00
Step II (uses the 14 " Hex Key)

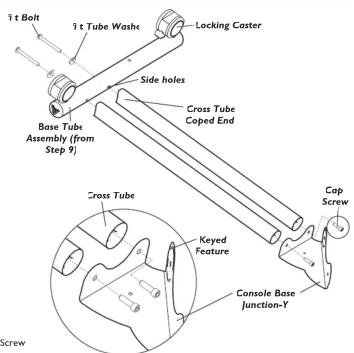

Place one Base Tube Assembl (Locking Casters oriented as shown) against the Coped Ends of two Cross Tubes
Attach the Base Tube to the Cross Tubes by insert a fit Bolt through a Tube Washer, then insert the Bo through the Base Tube and carefully thread into each Cross Tube, but don't fully tighten the fi 1 Bolts yet.
Place the Base Junction-Y against the opposite Cross Tube Ends.
NOTE: Make certain the Keyed feature is oriented as shown. Secure the Base Junction-Y to the Cross Tubes using two Cap Screws and the ^1/_4 " Hex Key.
(^5/_16-18×3.5^) fi · Bolt 325-5194-00
fit Tube Washe (5/6.18 X 1.5") Cap Screw
225-2050-00 or 225-3522-00 325-5225-00
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-384
Step la
Your Adjusta Mechanism comes unassembled and is boxed separately inside the Console Unit package.

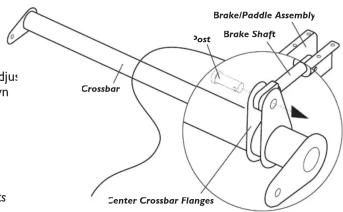

Begin to assemble the Mechanism by first locating the Adjust Crossbar and Brake/Paddle Assembly, position it as shown right. Depress the Paddle once to free the Brake Shal
Place the Brake Shaft between the two center Crossbar Flanges. Insert the Post through both center Crossbar Flanges and Brake Shaft.
NOTE: included with Adjusta Mechanism is a small bag of Hardware containing the (1) Post, (1) Cotter Pin, (2) Hex Nuts (2) Wood Screws, & (2) Cable Mounts
Step Ib
Install the Cotter Pin through the single opening of the Post to secure into place.
(included with 225-5547-00)
Included with 225-5547-00)
Step 2 (uses the 3-Way Wrench
Unpack the remaining Adjusta Mechanism components and arrange them as shown at right.

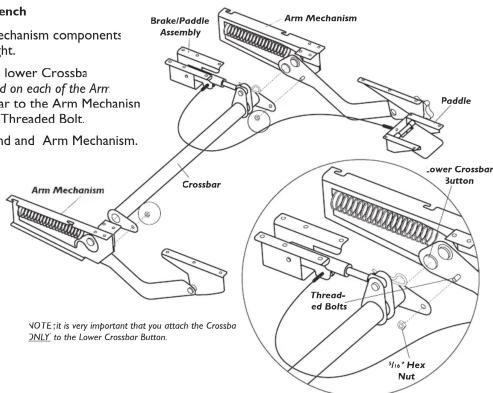

Place one Crossbar end onto the lower Crossba Button and Threaded Bolt (located on each of the Arm Mechanisms). Secure the Crossbar to the Arm Mechanism using one ^1/_6 ' Hex Nut onto the Threaded Bolt.
Repeat for remaining Crossbar end and Arm Mechanism.
^1 I _16 " Hex Nut included with 225-5547-00)
DETAIL VIEW
anthro.com
FCCzz/xx3
Step 3
Place your Console Large Shelf onto the floor with the predrilled holes facing up.
Position both Small Support Brackets onto the Large Shelf and align two of the holes on each Support with the predrilled holes on the Shelf. Loosely secure each Sm: Support to the Shelf using two Wood Screws per Support
Step 4
Place both Back Troughs onto the Console Large Shel between the installed Support Brackets.

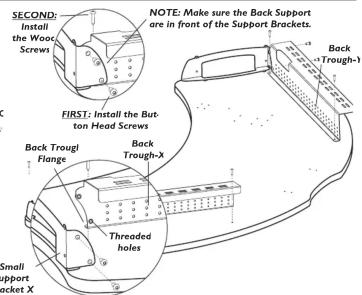

Align the two Threaded holes on each Back Trough with those on the installed Support Brackets. Carefully, three one Button Head Screw through the Support Bracket, into the Back Trough. Repeat for remaining three Button Head Screws & Threaded Holes
Insert two Wood Screws through the two remainin Holes on each of the Back Trough fl angle (which should be aligned with two predrilled holes on the Shelf) and tighten into place.
Step 5

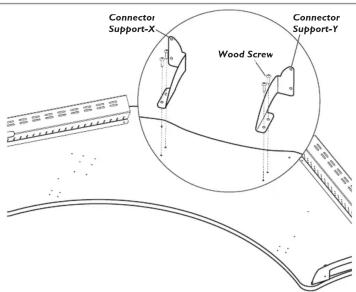

Place each of the Connector Supports onto the top as shown.
Align the two holes on each Support with the predrilled holes on the Shelf, then secure each Support using two Wood Screws
Anthro Corporation Technology Fumitun® 10450 SW Manhasset Drive Tualatin, Oregon 97062 1-800-325-384
Step 6
Determine the best height for your Console Large Shelf. These instructions will place your Shelf 31" from the floor using the standard 3" Casters

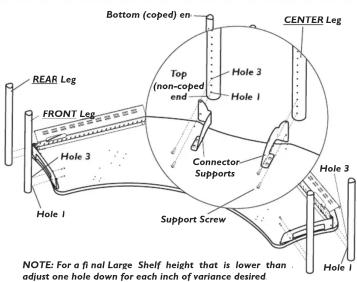

Attach both center Vertical Legs by loosel installing two Support Screws through each Connector Support into Holes 1 & 3 from the top (non-coped end).
Loosely install two Support Screws through each Sn Support into holes 1 & 3 from the top of both front Install two Support Screws through holes 1 & 3 from the top of both rear Legs.
Step 7 (requires Shelf to be 12" from floor

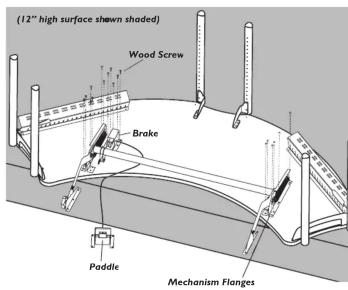

Place the Mechanism onto the Shelf Assembly.
Align the Mechanism Flanges with the predrilled Holes on the Shelf underside.
Secure the Mechanism to the Shelf using a total of twelve Wood Screws
Align the six Holes of the Brake Assembly with those or the Shelf.
NOTE: It may be necessary to depress the Paddle while manipulating the Brake over the predrilled Shelf Holes.
Secure the Brake Assembly using a total of six Wood Scr
Step 8 (requires Shelf to be 12" from floor

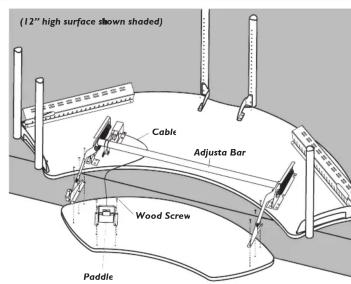

Rotate the Console Caddy so the predrilled holes face Slide the Caddy under the Mechanism and align the three holes located on each end of the Caddy and Mechanism. Secure the Caddy using a total of six Wood Screws. The secure the Paddle to the Caddy using four Wood Screws NOTE: Make certain the Cable for the Paddle is positioned underneath the Adjusta Bar
