BRUGSANVISNING ThinkCentre SML73MS PC LENOVO

NEW LOOK WITH ENHANCED OWNERSHIP EXPERIENCE.

LENOVO® THINKCENTRE® A58 DESKTOP

TOP REASONS TO OWN

CoST-SAvInG THInKvAnTAGe® TeCHnoloGleS woRTH UP To \$90 1 PER DeSKToP AT no eXTRA CoST

• lenovo online DATA BACKUP oFFe RS ToTAI DATA PRoTeCTlon, even IF Y OUR ComputeR CRASHeS
• new eRGonomIC AnD Tool-IeSS D ESIGN PRovlDeS eASe-oF-USe

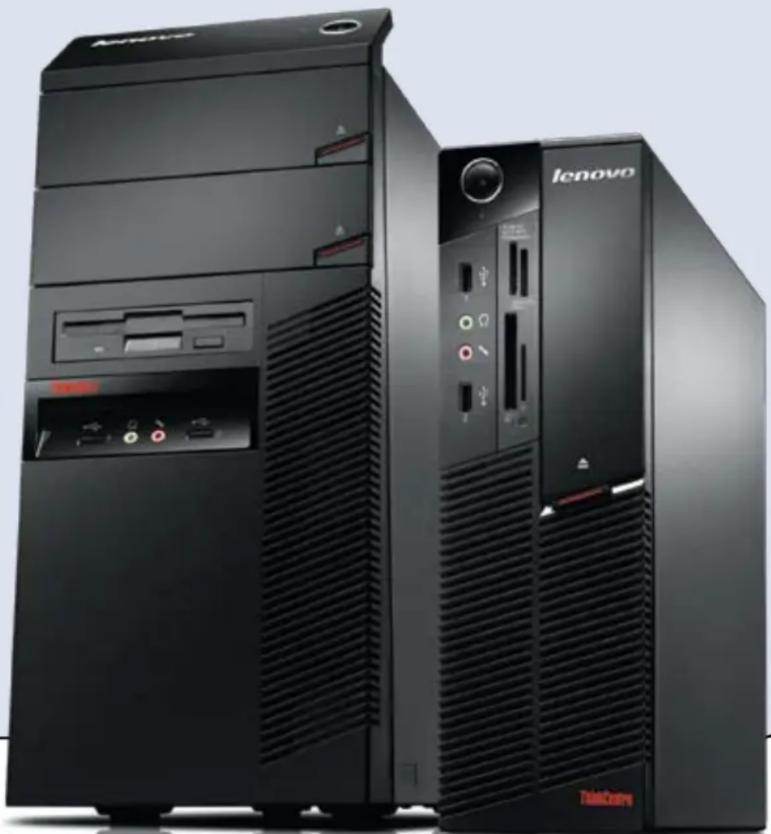

Exterior view of two Lenovo desktop computers (no signage or text visible on main structures)

ENHANCED OWNERSHIP EXPERIENCE

- ThinkVantage Technologies suite is the IT manager for your business

Lenovo Care™ is tailored to help small businesses be productive ♦

Rescue and Recovery® ensures fast and easy data recovery

Client Security Solution is security made simple ◆

System Update keep your systems current ♦

- Power Manager saves you money by controlling and enforcing energy use at a company-wide level

Lenovo is the only PC vendor with no-charge software for remote deployment of power schemes and global settings (enabled by Active Directory and LANDesk®)

◆ Time-based control enables PC shut offs on evenings and weekends

- Easy-to-use, new ergonomic design

Power button conveniently on the top

- Easily visible and accessible to the front I/O ports

Large ODD door button design allows for quick and easy access to external devices

Easy-to-carry with top handle

- Easy-to-service tool-less design, including tool-less entry, and tool-less motherboard ^2

GREAT OWNERSHIP EXPERIENCE AND RELIABILITY IN ONE AFFORDABLE PACKAGE

LENOVO® THINKCENTRE® A58 DESKTOP

The ThinkCentre A58 desktop improves over the A57 with a new attractive ID, including ease-of-use, the combination of glossy, chrome and textured finishes, and a simplified design with a flipper door for media, air inlets off the front and cleaner lines. Powered by the latest Intel ^® platform, the ThinkCentre A58 combines the latest specs and integrated features with a new ergonomic design that was built to withstand the pressure of the latest hardware tests.

Coupled with this elevated build is an innovative, leadership software solution specially made for small businesses. Lenovo Care and other ThinkVantage Technologies (TVTs), such as Rescue and Recovery, Client Security Solution, System Update and Power Manager, are the first of their kind in the industry. Additionally, Lenovo Online Data Backup is a simple and secure online solution for automatically and continuously backing up your irreplaceable files — even while they are in use by other applications. This ‘set it and forget it’ solution finds your files for you, and protects them in an offsite data storage house that can be accessed worldwide through an online interface. All files are encrypted twice before they leave your PC, and are sent to the online storage house using the same secure connection that banks use to transfer money. You can have peace of mind knowing that your data will be protected from theft, irreparable damage or other PC disasters.

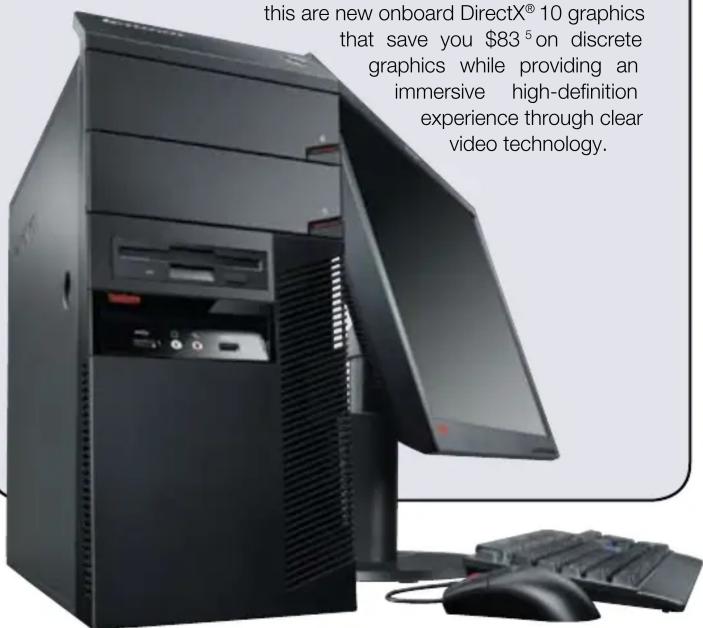

Behind the ThinkCentre A58 desktop's new look and feel is pure performance, driven by new Intel® Core™2 Dual and Quad-Core processors. They deliver faster performance when complex calculations are being rendered, faster rotation of the 10Krpm hard disk drives (even with higher data transfer rates), faster booting of Windows® and faster processing of multiple read/write requests (such as defragging, multitasking and virus scanning). On the graphics end of the spectrum, a next-generation DisplayPort interface enables exciting new monitor designs, higher performance and improved digital display connectivity. Coupled with

IMPROVED RELIABILITY AND SECURITY

Lenovo Online Data Backup is simple and secure●

- “Set it and forget it”: automatically and continuously finds and backs up your irreplaceable files (even while in use by other applications) Worldwide access to files through an online interface: minimizes data - impact due to disasters, theft and irreparable damages

Peace-of-mind with secure offsite data storage: all files are encrypted twice before they leave your PC and are sent using the same secure connection that banks use; private key encryption option is also available for advanced users

I/O ports with enable/disable capability and Fingerprint Reader • technology for better security

EVERYDAY PRODUCTIVITY

DirectX● 10 onboard provides better graphic performance than DirectX 9

Supports Core™2 Quad processors with latest Intel® G41 platform

Supports 1TB and 10k rpm hard disk drive, Blu-ray™ disk drive (Tower • Only) and DisplayPort graphics

GREEN

ThinkCentre A58 is certified ENERGY STAR 4.0 ^3 , EPEAT Gold, GREENGUARD and Climate Savers ^4

1. Cost of ThinkVantage Technologies if purchased separately.
2. Tool-less motherboard on Small Form Factor only.
3. Select models.
4. Select models on Small Form Factor.
5. Source: www.Lenovo.com, ATI Radeon HD 2400 PRO graphics card price in U.S.A.

GOLD

ENERGY STAR

THINKCENTRE® A58 DESKTOP SPECIFICATIONS AND SERVICES

Processor

Intel ^® Core ^TM2 Quad Processor Q9x50

(12MB L2, 1333 MHz FSB)

Intel ^® Core ^TM2 Quad Processor Q9x00

(6MB L2, 1333 MHz FSB)

Intel ^® Core ^TM2 Quad Processor Q8x00

(4MB L2, 1333 MHz FSB)

Intel ^® Core ^TM2 Quad Processor Q6x00

(8MB L2, 1066 MHz FSB)

Intel ^® Core ^TM2 Duo Processor E8x00

(6MB L2, 1333 MHz FSB)

Intel ^® Core ^TM2 Duo Processor E7x00

(3MB L2, 1066 MHz FSB)

Intel ^® Core ^TM2 Duo Processor E6x50

(4MB L2, 1333 MHz FSB)

Intel® Pentium® Dual-Core Processor E5x00

(2MB L2, 800 MHz FSB)

Intel® Pentium® Dual-Core Processor E2xx0

(1MB L2, 800 MHz FSB)

Intel ^® Celeron ^® Dual-Core Processor E1x00

(512KB L2, 800 MHz FSB)

Intel ^® Celeron ^® Processor 4x0

(512KB L2, 800 MHz FSB)

Preloaded Operating System

Genuine Windows Vista ^® Ultimate 32bit SP1

Genuine Windows Vista ^® Business 32bit SP1

Genuine Windows Vista ^® Business 64bit SP1

Genuine Windows Vista ^® Home Premium 32bit SP1

Genuine Windows Vista ^® Home Basic 32bit SP1

Genuine Windows Vista ^® Business Downgrade to

Genuine Windows ^® XP Professional

Genuine Windows Vista ^® Ultimate Downgrade to

Genuine Windows ^® XP Professional

Chipset

Intel ^® G41 Chipset

Machine Type

Tower :

7515, 7523, 7569, 7611, 7706, 7717, 7719, 7749, 7774

SFF:

7522, 7560, 7610, 7705, 7715, 7718, 7721, 7773, 7799

Serial ATA Hard Drive

160GB, 250GB, 320GB, 500GB, 1TB/7200rpm and

150GB/10k rpm

Memory

512MB/1GB/2GB DDR2 667MHz/800MHz

Optical Drive

DVD-ROM, DVD Recordable, Blu-ray Recorder

(Tower only)

Integrated Communications

Marvell 8057, 10M/100M/1000M Gigabit Ethernet

Ports

Tower/SFF:

(8) USB 2.0 (2 Front/4 Rear/2 Internal), (2) PS/2,
(2) Serial (1 standard, 1 optional), (1) Parallel,
(2) Front audio ports: Headphone and Microphone,
(3) Rear audio ports: Line in, Line out and
Microphone, (1) VGA, (1) RJ-45

Slots

Tower :

(2) Full Height PCI slots, (1) Full Height PCI-e x1 slot,

(1) Full Height PCI-e x16 slot

SFF:

(1) Low Profile PCI slot,

(1) Low Profile PCI-e x16 slot

Bays

Tower :

Internal: (2) 3.5 inch,

External: (2) 5.25 inch Half Height, (1) 3.5 inch

SFF:

Internal: (1) 3.5 inch,

External: (1) 5.25 inch Half Height,

(1) 3.5 inch Slim – for media card reader

Power Supply

Tower :

280W standard (Manual),

280W 80% Efficiency (Auto-sensing),

450W 80% Efficiency (Auto-sensing)

SFF:

280W standard (Auto-sensing),

280W 85% Efficiency (Auto-sensing)

Dimensions

Tower :

Height: 412 mm (16.2 in.)

Width: 175 mm (6.9 in.)

Depth: 442 mm (17.4 in.)

SFF:

Height: 99 mm (3.9 in.)

Width: 317 mm (12.5 in.)

Depth: 355 mm (14.0 in.)

Keyboard

Preferred Pro Full Size Keyboard (PS2),

Preferred Pro Full Size Keyboard (USB),

Preferred Pro USB Fingerprint Keyboard

Graphic Card

Integrated:

Intel GMA X4500 (DX 10)

Discrete:

Tower :

NVIDIA® GeForce G100 256MB DDR2 FH with

VGA + DVI-I,

ATI® Radeon® HD3470 256MB GDDR3 FH with

VGA + DisplayPort,

NVIDIA GeForce 9500GT 512MB GDDR3 FH with

DVI + DisplayPort

SFF:

NVIDIA GeForce G100 256MB DDR2 LP with DVI-I

ATI Radeon HD3470 256MB GDDR3 LP with VGA +

DisplayPort

Security

BIOS enable/disable of all USB ports

Computrace support

Chassis Intrusion Switch (select models only)

Limited Warranty

Up to 3 years

Software Application (preloaded in Vista ®)

Microsoft® Office Professional 2007 60-Day

Trial Version

Microsoft® Windows Live™ Portal

McAfee® VirusScan® Plus with 30 days of

virus definitions

Lenovo System Toolbox for Windows ^® and PC

Doctor for WINPE

Adobe® Acrobat Reader®

Intervideo WinDVD®

Roxio ^® Creator ^TM Small Business Edition

Lenovo Care

ThinkVantage ^® Rescue and Recovery ^®

ThinkVantage System Update

ThinkVantage Client Security Solution

ThinkVantage Fingerprint Software

ThinkVantage Power Manager

GO GREEN WITH THE THINKCENTRE A58 DESKTOP

The A58 is an EPEAT™ Gold certified ThinkCentre for low energy use and minimal impact on the environment, exceeding the requirements of the world's most widely known eco labels. All form factors have select models that are also ENERGY STAR® 4.0 certified and GREENGUARD® Indoor Air Quality Certified®. The A58 has ThinkVantage Power Manager, the most advanced power management tool, providing power management control and monitoring. Lenovo's ThinkCentre A58 has improved thermals over its predecessor product, and combined with Lenovo's energy-saving ThinkVision® monitors and keyboards provides a low energy consumption solution.

GOLD

ENERGY STAR

THINKCENTRE® A58 DESKTOP ACCESSORIES AND OPTIONS

	Lenovo PC2-6400 800 MHz DDR2 Additional MemoryLowest-cost method to boost system performance (41U2977) 1GB PC2-6400 800MHz DDR2 SDRAM UDIMM(41U2978) 2GB PC2-6400 800MHz DDR2 SDRAM UDIMMwww.lenovo.com/support/memory	Image not shown	Lenovo ADD2 DVI-D Monitor Connection Adapter(43R1985) Low-cost method to attach a second digital monitor while the first analog monitor is attached to the ThinkCentre's VGA portwww.lenovo.com/support/graphiccards
	Lenovo 256MB ATI Radeon HD3470 DisplayPortBoost graphics performance (45K1636) Lenovo 256MB ATI Radeon HD3470 DisplayPort +VGA Graphics Cardwww.lenovo.com/support/graphiccards		Kensington Twin Head Cable LockHelp reduce theft, and increase physical asset security protection(45K1620) Kensington Twin Head Cable Lock from Lenovowww.lenovo.com/support/monitoraccessories
	Lenovo ThinkVisionTM L1700p (9417-HE2)Boost your productivity as an office professional or executive. Display more data, attach multiple monitors.www.lenovo.com/support/monitoraccessorieswww.lenovo.com/thinkvision		Lenovo USB Webcam (40Y8519)Express yourself with true-to-life video and voice calls Video conference with colleagueswww.lenovo.com/support/monitoraccessories
	Lenovo Fingerprint USB Keyboard (73P4730)Replace Windows® passwords with fast, secure access using your fingerprint		Lenovo USB Headset (40Y8518)For Internet voice conversations and multimedia applications

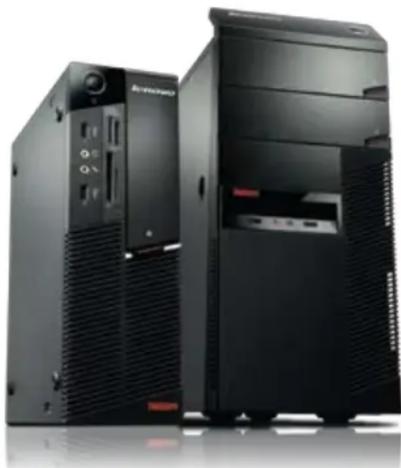

Two black desktop computer units with ventilation grilles, one front and one side, against a white background (no visible text or labels)

www.lenovo.com THINK SAVINGS. THINK LENovo.

©2009 Lenovo. Produced in the USA. All rights reserved.

Availability: Offers, prices, specifications and availability may change without notice. Lenovo is not responsible for photographic or typographic errors.

Pricing: Does not include tax, shipping and handling, or recycling fees. Reseller prices may vary.

Warranty: For a copy of applicable warranties, write to: Warranty Information, 500 Park Offices Drive, RTP, NC, 27709, Attn: Dept. ZPYA/B600. Lenovo makes no representation or warranty regarding third-party products or services.

Trademarks: Lenovo, the Lenovo logo, ThinkCentre, ThinkVision, ThinkVantage, ThinkPlus and Rescue and Recovery are trademarks or registered trademarks of Lenovo. © 2009 Levovo. All rights reserved.

Intel, Core, Pentium and Celeron are trademarks or registered trademarks of Intel Corporation in the U.S. and other countries. Windows, Vista and DirectX are registered trademarks of Microsoft Corporation. PS/2 is a registered trademark of IBM Corporation. NVIDIA is a registered trademark of NVIDIA Corporation. ATI and Radeon are trademarks or registered trademarks of Advanced Micro Devices Inc. Blu-ray is a trademark of Blu-ray Disc Association. Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated. WinDVD is a registered trademark of Corel Corporation. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. EPEAT is a trademark of the Green Electronic Council. GREENGUARD and Indoor Air Quality Certified are registered trademarks of Greenguard Environmental Institute. Climate Savers is a registered trademark of WWF. Other company, product and service names may be trademarks, registered trademarks or service marks of others.

Not all the technologies listed with the bulb element may be available on some/all products showcased in this advertisement.

Visit lenovo.com/safecomputing periodically for the latest information on safe and effective computing.
