BRUGSANVISNING VMAX122 Cerwin-Vega
Cerwin-Vega mobile
VMAX
SUBWOOFER OWNERS MANUAL
Dear Cerwin-Vega Marine Customer,
Thank you for making Cerwin-Vega Marine your choice for high performance marine audio products. At Cerwin-Vega Marine our goal is to produce products of unsurpassed quality. We believe you will not find a better value anywhere in the marine audio environment.
To ensure that your new Cerwin-Vega Marine speakers provide years of enjoyment you should consider having them installed by a professionally trained technician. They have the knowledge to make your new speakers perform their very best.
Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. Cerwin-Vega Marine speakers can exceed that level, so please exercise restraint when listening and enjoy your new speakers for years to come.
The Cerwin-Vega Marine Team
SERIES WOOFER FEATURES
Mica filled polypropylene cone
Dual Spiders with sandwiched tinsel leads
Diecast Aluminum Frame
Dual 2.5" voice coils
Available in 2 ohm or 4 ohm
500 watts RMS Power handling

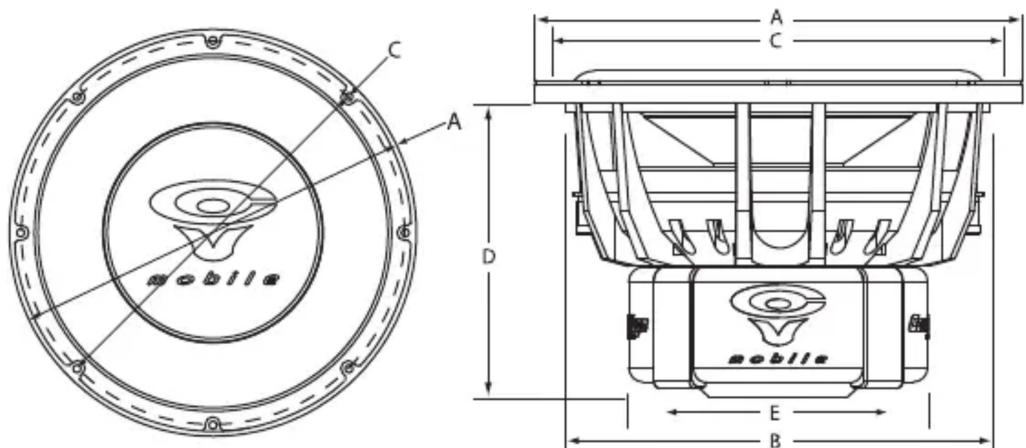

PHYSICAL DIMENSIONS
| Dimension (in./mm) VMax | 102/104 | VMax | 122/124 | VMax | 152/154 |
| Total Diameter (A) | 10.62 in. (270 mm) | 12.59 in. (320 mm) | 15.35 in. (390 mm) | ||
| Mounting Diameter (B) | 9.25 in. (235 mm) | 11.22 in. (285 mm) | 13.58 in. (345 mm) | ||
| Screw Hole Diameter (C) | 10.03 in. (255mm) | 11.96 in. (304 mm) | 14.76 in. (375 mm) | ||
| Mounting Depth (D) | 6.37 in. (162 mm) | 6.77 in. (172 mm) | 7.55 in. (192 mm) | ||
| Magnet Diameter (E) | 6.49 in. (165 mm) | 6.49 in. (165 mm) | 6.49 in. (165 mm) | ||
| Displacement | 0.09 ft ^3 (2.55 liter) | 0.13 ft ^3 (3.68 liter) | 0.22 ft ^3 (6.23 liter) | ||
THIELE/SMALL PARAMETERS
| Parameter (unit) | VMax 102 | VMax 104 | VMax 122 | VMax 124 | VMax 152 | VMax 154 |
| SPL (dB) | 83.1 | 82.7 | 86.2 | 85.6 | 87.2 | 86.1 |
| Re (Ω) [series] | 3.70 | 7.20 | 3.70 | 7.20 | 3.70 | 7.20 |
| Qms | 3.471 | 4.598 | 4.457 | 4.940 | 3.685 | 5.323 |
| Qes | 0.552 | 0.636 | 0.554 | 0.641 | 0.595 | 0.796 |
| Qts | 0.476 | 0.559 | 0.493 | 0.567 | 0.512 | 0.693 |
| Fs (Hz) | 38.070 | 39.552 | 32.676 | 32.676 | 29.138 | 30.273 |
| Vas (L) | 13.370 | 12.387 | 43.159 | 43.159 | 82.259 | 76.209 |
| Cms (mm/N) | 0.0954 | 0.0884 | 0.0999 | 0.0999 | 0.0896 | 0.083 |
| Mms (g) | 183.202 | 183.202 | 237.448 | 237.448 | 333.115 | 333.115 |
| Sd (m2) | 0.0314 | 0.0314 | 0.0552 | 0.0552 | 0.0804 | 0.0804 |
| BL (T*M) | 17.141 | 22.707 | 18.047 | 23.407 | 19.470 | 23.938 |
| Xmax (mm) one way | 11.9 | 11.9 | 13.8 | 13.8 | 13.8 | 13.8 |
| Pwr (W) NOM/MAX | 500/1000 | 500/1000 | 500/1000 | 500/1000 | 500/1000 | 500/1000 |
ENCLOSURE
The enclosures specified below are offered as a suggestion only. Assistance from an authorized Cerwin-Vega Mobile retailer is recommended for designing the correct system for your vehicle. All volumes below are shown as gross internal volumes, driver and vent displacement has been accounted for. The use of a 30Hz sub-sonic filter is recommended on most vented enclosures.
| Sealed | VMax 102/104 VMax | 122/124 VMax 15 | 2/154 |
| Vb (ft3) 0.7 1.0 2.0 | |||
| F3 (Hz)/QTC 54/0.65 33/0.75 5 | 2/0.89 | ||
| Power Handling (Watts RMS) 500 500 500 | |||
| Vented | |||
| Vb (ft3) 1.0 1.75 2.0 | |||
| Fb/F3 (Hz) 36/29 42/29 39/29 | |||
| Port (in.) [dia. x length] 2.5 x 8.75 4 x 7.5 4 x 8 | |||
| Power Handling (Watts RMS) 400 400 400 | |||
Warranty
Cerwin-Vega Marine warrants all amplifiers and speakers to be free of defects in material or workmanship for a period of 1 year.
Warranty Procedure:
Cerwin-Vega Marine strongly suggests all warranty claims should be handled through an authorized dealer. Because of the technical nature of our products, performance problems can often be the result of improper usage or installation. An authorized retailer can help determine if this is the case and will save you the time of returning an item that is not actually defective.
For all MARINE subwoofer models the cone is to be removed from the basket as completely as possible. Cut the surround and then the spider. After this, the cone should lift out.
All returns must have the serial number taped to the cone. The serial number can be found on the basket on all speakers and underneath the spider attached to the top of the magnet plate.
Please remove the sticker and tape it to the cone. This process will save everyone on shipping costs and allow us to check and replace speakers much faster.
Shipping:
Once you have your RA number, ship your return to:
Cerwin-Vega Marine
ATTN: Customer Service Dept.
6915 W. Frye Road
Chandler, AZ 85226
When we receive your return, we will process your order. Please make sure that you clearly mark the RA number on the outside of the box and on the shipping label.
If the RA number is not on the outside of box/label, it will be returned to sender!
Specifications subject to change without notice.
