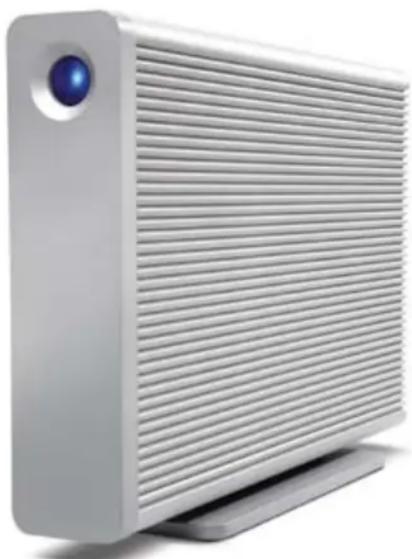

LaCie Big Disk Quadra

eSATA 3Gb/s | Hi-Speed USB 2.0 | FireWire 400 | FireWire 800

d2 Design by Neil Poulton

Maximum Connectivity

The LaCie Big Disk Quadra was created for professionals who expect high speed and large capacity in an easy-to-use, compact device. Fully loaded with all four leading interfaces - eSATA 3Gb/s, FireWire 800, FireWire 400, and Hi-Speed USB 2.0 – it offers complete universal compatibility with any Mac or PC. It also comes with advanced backup software with computer recovery: Genie Backup Manager Pro™ for Windows® and Intego Backup Manager Pro™ for Mac® users.

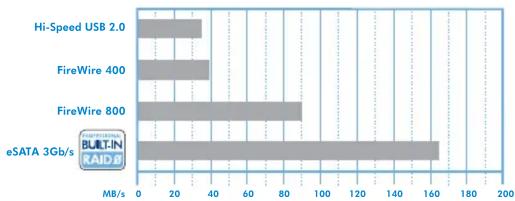

PERFORMANCE COMPARISON
BURST READ TRANSFER RATE BENCHMARK***

Sophisticated, Convenient Design

Designed by Neil Poulton exclusively for LaCie, the Big Disk Quadra is fully engineered to integrate into your Mac or PC environment. With versatile configurations such as vertical, horizontal, stacked with other drives or rack-mounted, this highly adaptable storage solution conforms to any desktop to save you space. The glowing blue button on the front is the LaCie Shortcut Button, which can launch any backup or library application of your choosing in one push.****

EXCLUSIVE d2 HEAT SINK DESIGN

Ideal For Digital Audio/Video Pros

With two internal SATA disks and built-in hardware RAID 0, the Big Disk Quadra reaches impressively high speeds and offers enormous capacity for such a compact drive, making it ideal for audio/video editors, creative professionals, or database managers. The eSATA 3Gb/s interface delivers remarkably rapid burst transfer rates of up to 165MB/s**. Use it with high-definition audio, digital video editing, SD video and 2D/3D imaging or to back up your computer or archive thousands of files. You can even daisy-chain FireWire or iLink DV cameras via FireWire.

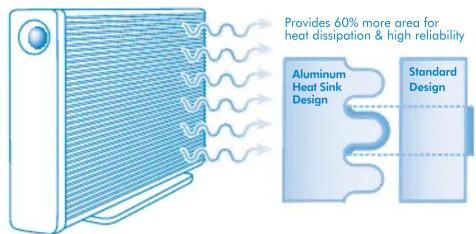

Advanced Cooling System

The Big Disk Quadra's fully aluminum, sturdy heat sink design provides 60% more surface area for naturally drawing heat away from the internal components to keep it cool and safe at all times. This advanced cooling system allows the Big Disk Quadra to be fanless for near-silent operation, enabling maximum peace and quiet in your work environment. It also offers Triple Power Management with a manual switch: "Auto" for energy efficiency; "On" for instant access; or "Off" for data protection.

1TB ^* =

2 hours of uncompressed HD video or 70 hours of DVD or 77500 RAW photos***

• Quadruple interface for maximum connectivity on any PC/Mac
  • Built-in RAID 0 and eSATA for fast speeds
• Sturdy aluminum heat sink design for high reliability
• Ideal for large volume backups or creative pro use

Features

• eSATA 3Gb/s, FireWire 800, FireWire 400, and Hi-Speed USB 2.0
• Fast burst transfer rates up to 165MB/s (eSATA)**
  • Daisy-chainable via FireWire
• Easy to set-up and use
• Plug & play
  • Fanless for near-silent operation
• Advanced backup software with computer recovery for PC/Mac
• Triple Power Management
  • LaCie Shortcut Button****

Box Content

• LaCie Big Disk Quadra
- eSATA-to-eSATA cable
- FireWire 800 (9-to-9 pin) cable
- FireWire 400 (6-to-6 pin) cable
• Hi-Speed USB 2.0 cable (USB 1.1 compatible)

• External power supply

- Drive stand for upright use

- Quick Install Guide

• LaCie User Manual and Utilities:

- Genie Backup Manager Pro software with computer recovery for Windows 2000, XP, Vista™

- Intego Backup Manager Pro software with computer recovery for Mac OS X 10.4 and 10.5

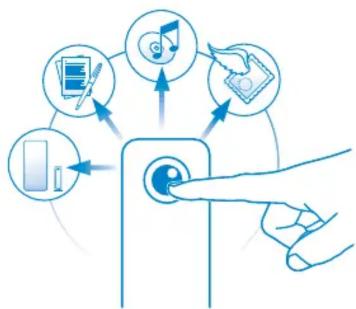

LACIE SHORTCUT BUTTON****

Launch Any Backup/Library Application In 1 Push

Minimum System Requirements

• Computer with an eSATA, FireWire 800, FireWire 400, or Hi-Speed USB 2.0 port
• Windows XP 64-bit, Windows Vista / Mac OS X 10.4.6 or higher
  • Minimum free disk space: 600MB recommended

LaCie Big Disk Quadra

Item Number	301428
Capacity*	3TB
Interface	1 x eSATA 3Gb/s; 2 x FireWire 800; 1 x FireWire 400; 1 x Hi-Speed USB 2.0
Interface Transfer Rates (maximum theoretical bus speed)	eSATA: up to 3Gbits/s (300MB/s)FireWire 800: up to 800Mbits/s (100MB/s)FireWire 400: up to 400Mbits/s (50MB/s)Hi-Speed USB 2.0: up to 480Mbits/s (60MB/s)
Read Burst Transfer Rates** (maximum drive speed)	eSATA: up to 140-165MB/sFireWire 800: up to 80-90MB/sFireWire 400: up to 35-40MB/sHi-Speed USB 2.0: up to 30-35MB/s
Rotational Speed	7200rpm
Cache Size	32MB (2 x 16MB) or greater
Average Seek Time	<10ms (eSATA)
Cooling System	Advanced aluminum heat sink design for safe, fanless, quiet operation
Triple Power Management	"Auto" for energy efficiency; "On" for instant access; "Off" for data protection
Dimensions (WxHxD)	1.7 x 6.8 x 10.4 in. / 44 x 173 x 264 mm
	5.51 lbs / 2500 g
Warranty	3-year limited

Premium 3 Year Warranty

The Big Disk Quadra comes with a 3 Year Limited Warranty. For superior service, it also comes with the LaCie Advance Care Option, which can be purchased separately online within 30 days of the purchase date. Under the Advance Care Option, LaCie will immediately swap out the product without it needing to be returned first for minimal interruption of your workflow. LaCie covers all freight costs. Availability depends on the sales area. See www.lacie.com for details.

d2 Design by Neil Poulton
