BRUGSANVISNING CSP-D850CB CLUB3D
SWITCHING POWER SUPPLY


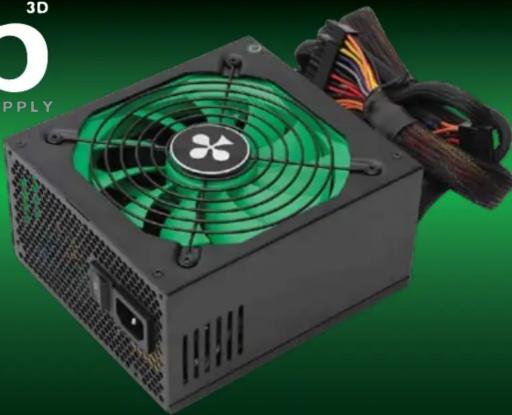

Black power supply unit with green fan and black cable, no visible text or symbolsFeatures
- Compatible with latest PC-technology
Supports the newest specifications of ATX12V & EPS12V. Supports current and next-generation multi-CPU and GPU platforms (including ATI Crossfire and NVIDIA SLI configurations). - Extremely high efficiency (80-Plus® Bronze certification)
Up to 85% of efficiency, compliant with 80-Plus® Bronze efficiency requirement
• Highly durable & reliable 105°C and 85°C capacitors
The best solution for a High-end PSU by using 105°C and 85°C capacitors. - Ultra-quiet fan
Extremely Low Noise Level, equipped with a large and ultra-quiet 135mm fan.
Native Cable
1x 20+4 pin main connector
2x PCI Express 6+2 pin connector
1x ATX12V/EPS12V 4+4 pin connector
1x Floppy connector
2x Peripheral connector
3x SATA connector
Modular Cable
2x PCI Express 6+2 pin connector
1x ATX12V/EPS12V
4+4 pin connector
1x Floppy connector
5x Peripheral connector
6x SATA connector
Specification
| Type | ATX Form Factor 12V V2.3 / SSI standard EPS 12V V2.92 |
| PFC | Active PFC (0.99) |
| Input Voltage | 100-240V (Auto Range) |
| Input Frequency Range | 50 ~ 60Hz |
| Fan | Ultra-silent 135mm temperature controlled fan |
| Power Good Signal | 100 ~ 500ms |
| Hold Up Time | > 17 ms |
| Efficiency (Load) | 85% |
| Dimensions (W / D / H) | Standard ATX 150 x 165 x 86 (mm) |
| Operation Temperature | 0-40°C (nominal Input Voltage) |
| Safety | CE |
| 80-PLUS Certification | 80PLUS Bronze |
| Protection | OCP (Over Current Protection), UVP (Under Voltage Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection) |
Included in the box
| Switching Power Supply unitSwitching Power Supply unit thumbscrewsSwitching Power Supply unit bag | User manualPower cord3x Velcro wraps for cable management | Carrying bagModular cables |
| Item Code | Input Characteristics | Output Characteristics | |||||||||||
| Voltage | Frequency | Input Current | +3.3V | +5V | +12V1 | +2V2 | +12V3 | +5V | +5V | -12V2 | Total Max. Output | ||
| CSP-D850CB | 115V-230V | 50-60Hz | 15A | 24A | 30A | 34A | 34A | 34A | 0.5A | 3.0A | 850W | ||
| 170W | 73W | 2W | 6W | 15W | |||||||||
| 829W 21W | |||||||||||||
Cable loom (mm)
| 20+4P Main | 550 | SATA | 550+150 |
| ATX/EPS 4+4P | 550 | PATA+FLOPPY | 550+150 |
| PCI-E 6+2P | 550+150 |
Club 3D is a trademark of Club 3D B.V. All rights reserved. All other brand names are trademarks or registered trademarks and are the property of their respective owners. All specifications are subject to change without notice.
| CSP-S400 | CSP-S600 | CSP-D700CB | CSP-D850CB | CSP-X1000CB |
| 400 Watt | 600 Watt | 700 Watt | 850 Watt | 1000 Watt |
Made for PC with single VGA configurations.
Made for PC with dual VGA configurations.
Made for PC with triple VGA configurations.
Safety Protections
Extremely Low Noise
Cable Management
135mm Fan
Item Code: CSP-D850CB EAN Code: 8717249408710
www.club-3d.com ©2010 Club 3D BV The Netherlands
