AMD FireStream Stream Processors and FireStream SDK

November 2007

Agenda

•IAMD & Stream Computing
•IIntroducing the AMD FireStreamI9170
•IAMD FireStreamISoftware Development Tools

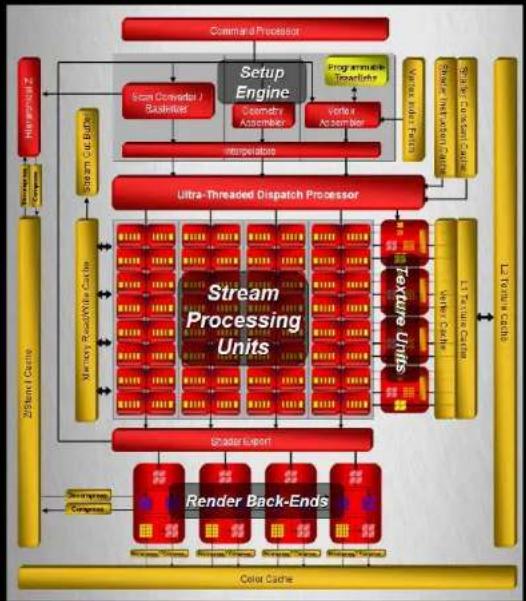

General Purpose GPU: Platform Processing Acceleration

Huge potential for acceleration of data parallel workloads

- Using the parallel processing capabilities of the GPU for computation

Highly efficient in handling massive amounts of data processing

- Supports 1000's of concurrent threads

Where the algorithm is well-suited to the architecture, dramatic improvements in several key metrics vs. current CPUs alone

- GFLOPS per Watt and per \$

AMD Stream Computing:

HPC Acceleration + Mainstream Efficiency Gains

AMD

Smarter Choice

Stream

Computing

Products

FireStream Processors

Discrete

Stream

Processor Business

Markets

•Oil and Gas
•Research
•Engineering

3D rendered abstract sculpture of a hand holding a knife, displayed within a software interface (no visible text or symbols on the sculpture itself)

Close-up of an AMD Opteron CPU chip and a red CPU socket (no visible text or symbols)

Products

•AMD processors and GPUs for PCs and workstations

Acceleration for Mainstream Applications

Markets

•Gaming
-Search
•Consumer Video

Stream Computing Market Opportunity

Smarter Choice

• Accelerate critical computational algorithms

• HPC: Computational chemistry, seismic processing, atmospheric research, engineering, financial analysis
• Embedded OEM: Signal processing, medical imaging
• Commercial/consumer: Search, security, video editing, video games

3D protein structure visualization with red and blue ribbons, no text or labels present

3D rendered anatomical model of internal organs with color-coded regions, displayed within a software interface (no text or symbols on the model itself)

Portrait of a woman with shoulder-length dark hair (no text or symbols visible)

New Stream Computing Products

AMD

Smarter Choice

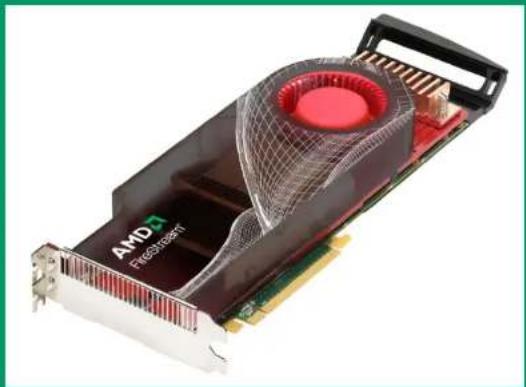

AMD FireStream 9170 Stream Processor

First Stream processor with double-precision floating point

AMD 74963808 CPU card with visible cooling fan and heatsink (no text or symbols on card body)

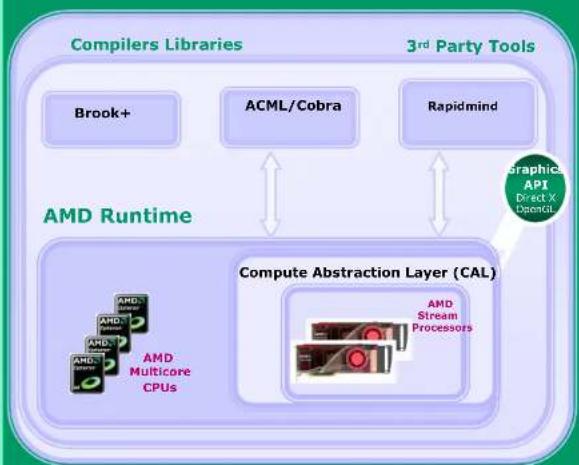

AMD FireStream SDK

Open systems approach to drive broad customer adoption


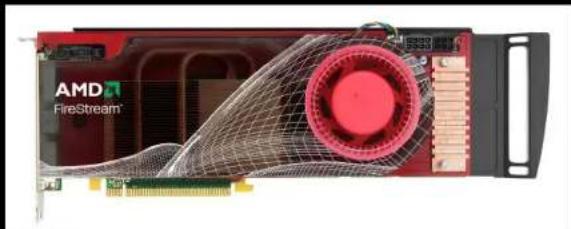

AMD FireStream 9170 Stream Processor Designed for Performance and Efficiency

• First GPU with double-precision floating point
  • 320 stream cores
• Up to 512 GFLOPS single-precision performance*
  • 55nm process technology
• <150W power consumption drives over 3 GFLOPS/Watt!
• 2GB on-board memory
  • Asynchronous DMA
  • Supported in variety of server and desktop systems
  • MSRP: \$1999

Front view of a AMD FireStream processor with visible internal components and a meshed fan structure (no readable text or symbols)

*Based on 320 stream cores and engine clock rates of 775-800MHz

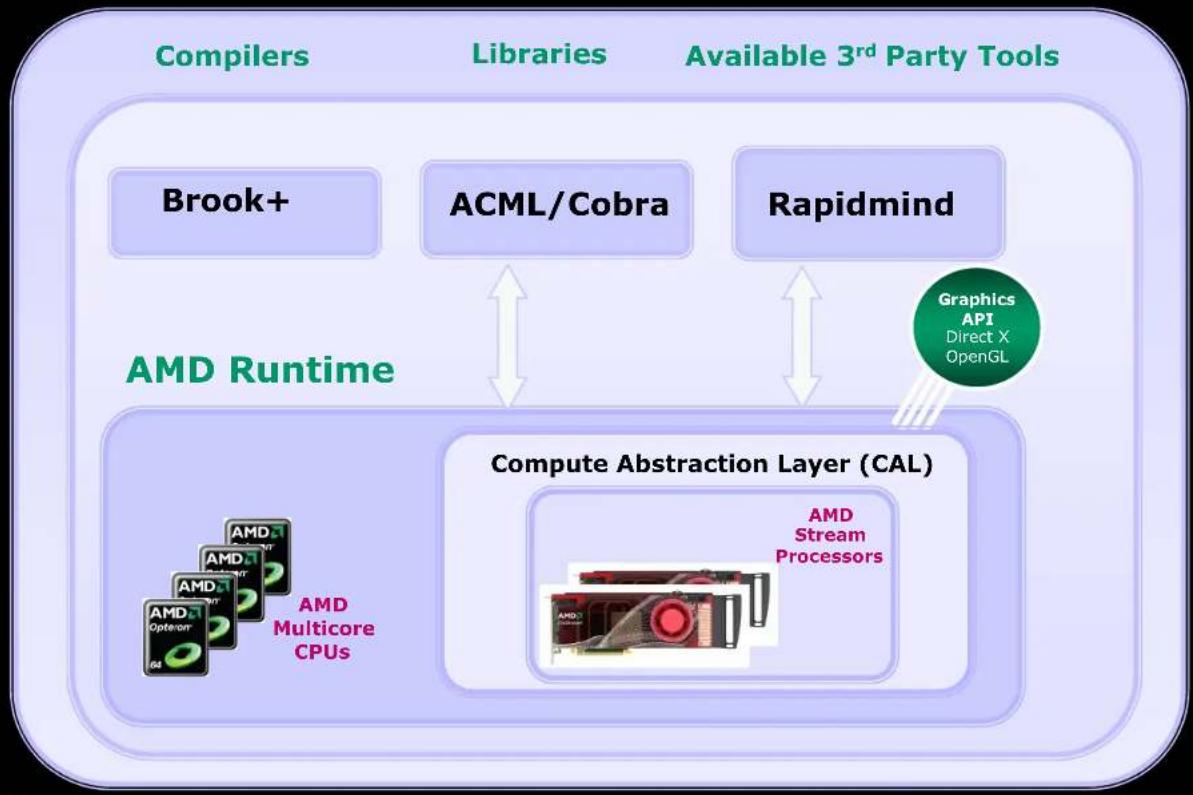

FireStream SDK Software Development Stack

AMD

Smarter Choice


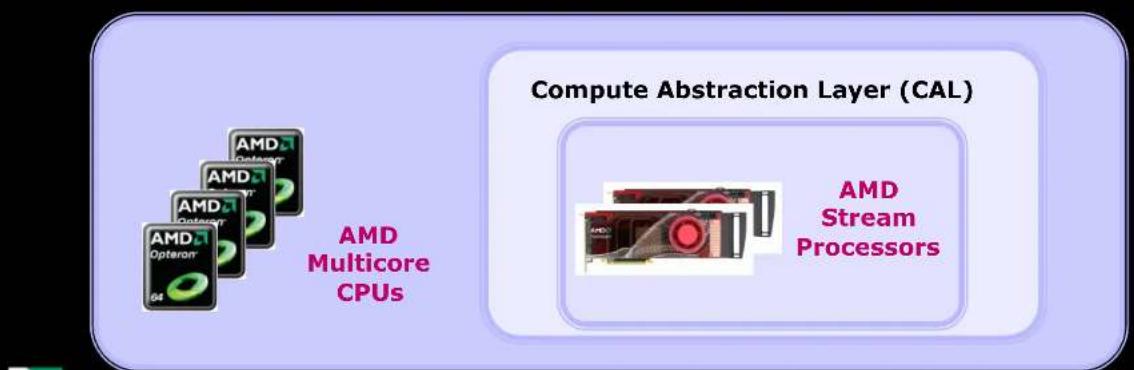

Compute Abstraction Layer The Evolution of "Close to the Metal"

• Provides low-level access to GPU architecture
  • Published instruction set architecture (ISA) and intermediate language (IL)
• Allow developers to write in Brook+ or other HLL; then tune performance at low level
  • Forward compatibility from R600 to future GPUs
• Implements new features: DX10, DP-FP

FireStream Software Development Kit High-level Development Tools

- Brook+

– High-level language, C extensions for the GPU
- Based on Brook from Stanford; AMD enhancements will be open-sourced

- Libraries

- AMD's math library ACML provides GPU-accelerated math functions; COBRA video library accelerates video transcode

- 3^rd Party Tools

- Tools and libraries from RapidMind, etc

Compilers Libraries

Available 3 ^rd Party Tools

Brook+

ACML/Cobra

Rapidmind

Open Systems Strategy Drives Adoption

• IOpen IL and ISA specifications ensure developers can optimize performance
  -ISupporting AMD Brook+ along with other 3^rd party high-level tools to provide a choice of familiar development environments
• IOpen-source Linux drivers and AMD-enhanced Brook+ enable developers to modify and retarget tools as needed
  -IAMD partners with systems vendors and integrators to deliver system solutions

Close-up of a metallic padlock with chain links on a textured wooden surface (no text or symbols visible)

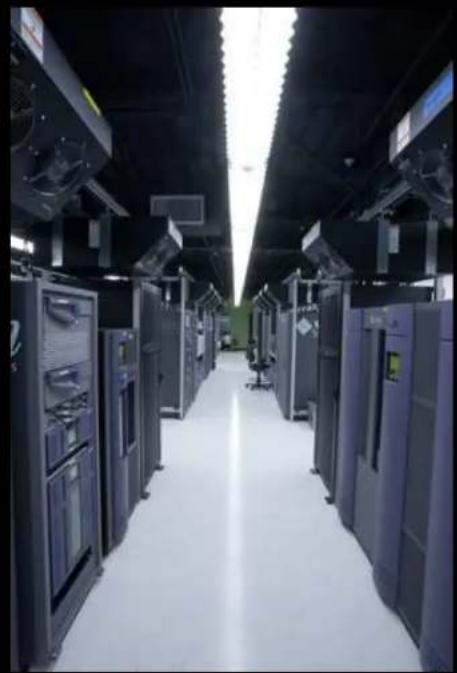

AMD Stream Computing: In Summary

• AMD FireStream 9170 Stream Processor: first GP-GPU with double-precision floating point
  • AMD FireStream SDK: Open systems approach drives broad adoption
  • AMD expertise in GPUs, CPUs and software: capable of delivering integrated hardware and tools today
• Provides a path to next-generation heterogeneous compute architectures in the data center

Interior view of a data center with rows of server racks and overhead lighting (no visible text or symbols)
